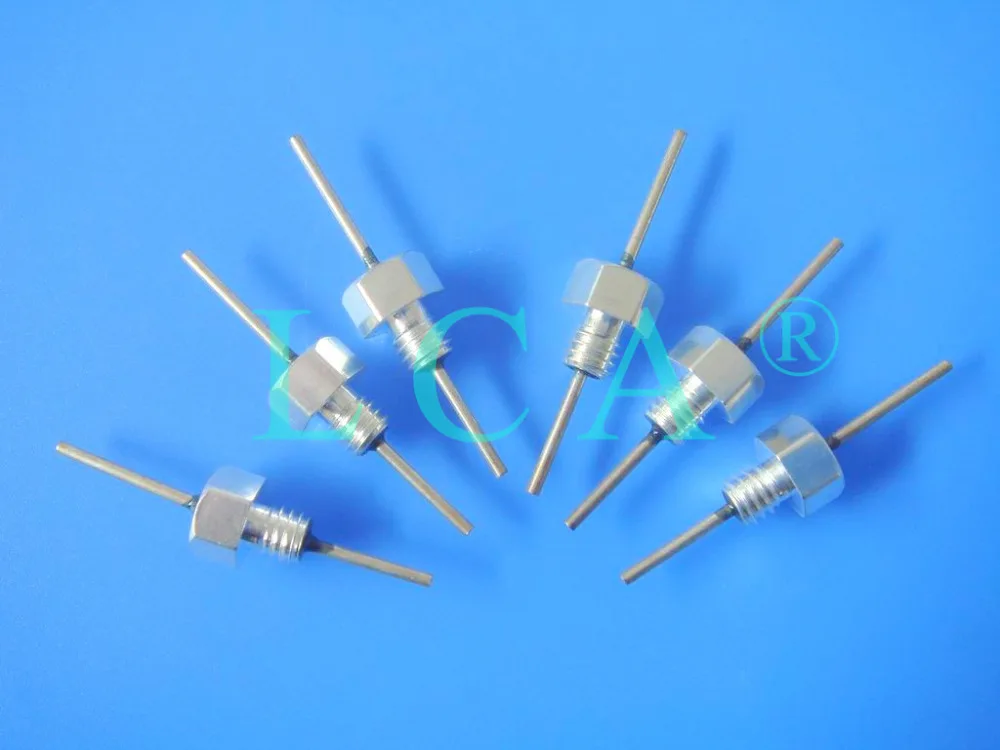

low pass Feedthrough Filter  L8-32UNC-2A-007





1	Capacitance	5000pf
2	Dissipate Factor	<3.5%
3	Tolerance	-0% +100%
4	Material Quality	X7R
5	Rated Voltage	200VDC
6	Test Voltage	500VDC
7	Current (A)	15A
8	Insulation Resistance	10GΩ
9	Temperature Feature	-55℃ +125℃
Custom design is available





























PART NUMBER

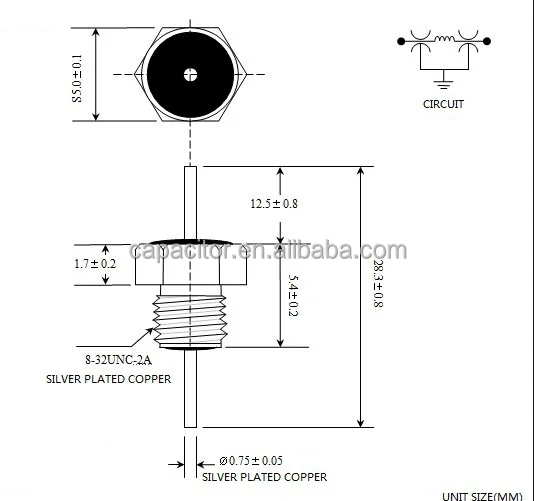

DIMENSIONS(UNIT:mm)

CAPACITANCE

WITHSTAND VOLTAGE

CIRCUIT

S

M

L1

L2

XWL3325

3.3

2.5*0.45

6.6

3

5pF-10nF

16VDC-500VDC

C

XWL4030

4

3*0.5

6-12

2.5-3.5

5pF-100nF

16VDC-500VDC

C

XWL5040

5

4*(0.5-0.7)

6.5-13.5

2.5-6

5pF-100nF

16VDC-500VDC

C/PI

XWL6040

6

4*0.7

7.5-11

2.5-4

5pF-100nF

100VDC-1KVDC

C

XWL6050

6

5*0.8

10-15.5

4-4.5

5pF-100nF

100VDC-1.5KVDC

C

XWL7060

7

6*1.0

16

8

101/221

100VDC-1.5KVDC

C

XWL8050

8

5*0.8

10-11

6

5pF-10nF

100VDC-1.5KVDC

C

XWL8060

8

6*(0.75-1.0)

9-15

4-10

5pF-1uF

100VDC-1.5KVDC

C

XWL10080

10

8*(0.75-1.0)

15

7

5pF-100npF

100VDC-1.5KVDC

C

XWL8-32UNC-2A

4.75-5

8-32UNC-2A

5.1-9.2

1.52-2.4

5pF-10nF

100VDC-500VDC

C/PI

XWLL1/4-28UNF-2A

10

1/4-28UNF-2A

7.9-19

3.2-14.3

10nf-1.4uf

100VDC-500VDC

C/PI

XWLL12-28UNF-2A

6

12-28UNF-2A

12

4

103

100VDC-500VDC

C

XWLL6-32UNC-2A

4

6-32UNC-2A

9.1

3.2

331

100VDC-500VDC

C

XWL8-36UNF-2A

5

8-36UNF-2A

3.3

1

221

100VDC-500VDC

C

Lead wire`s diameter: 0.6mm,0.7mm,0.75mm,1.0mm,1.2mm,1.5mm,2.0mm Custom design is available.
