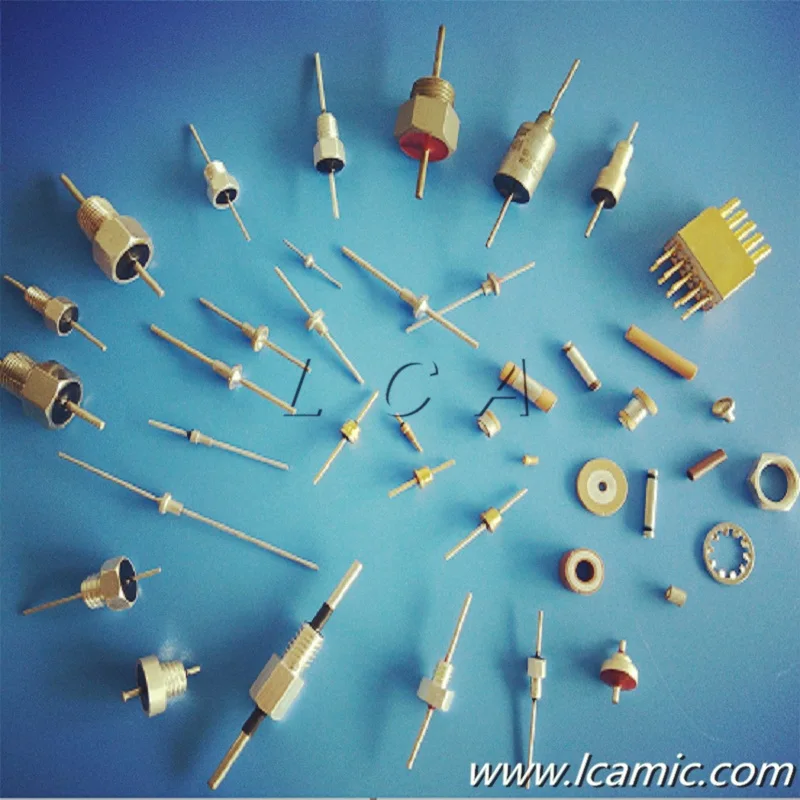

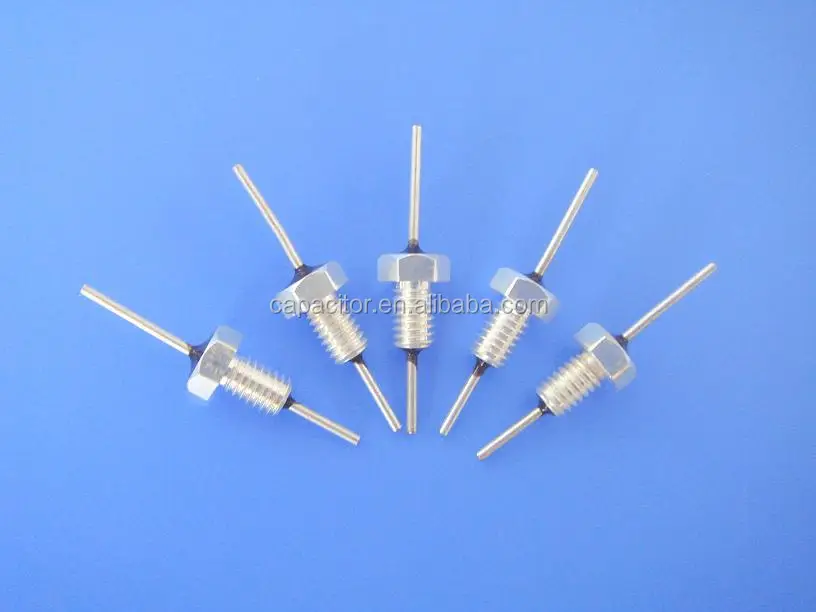

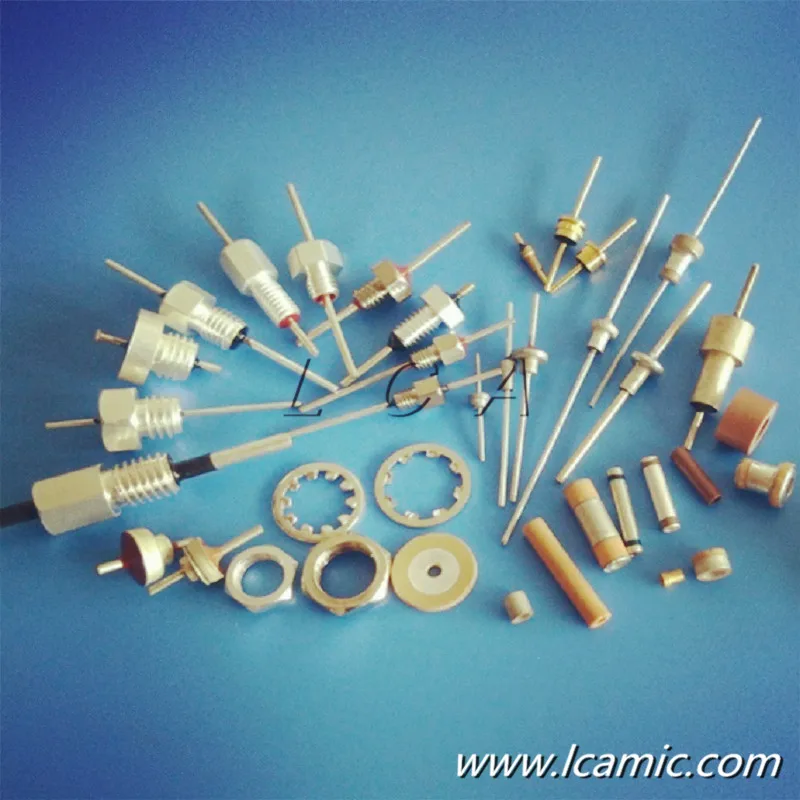

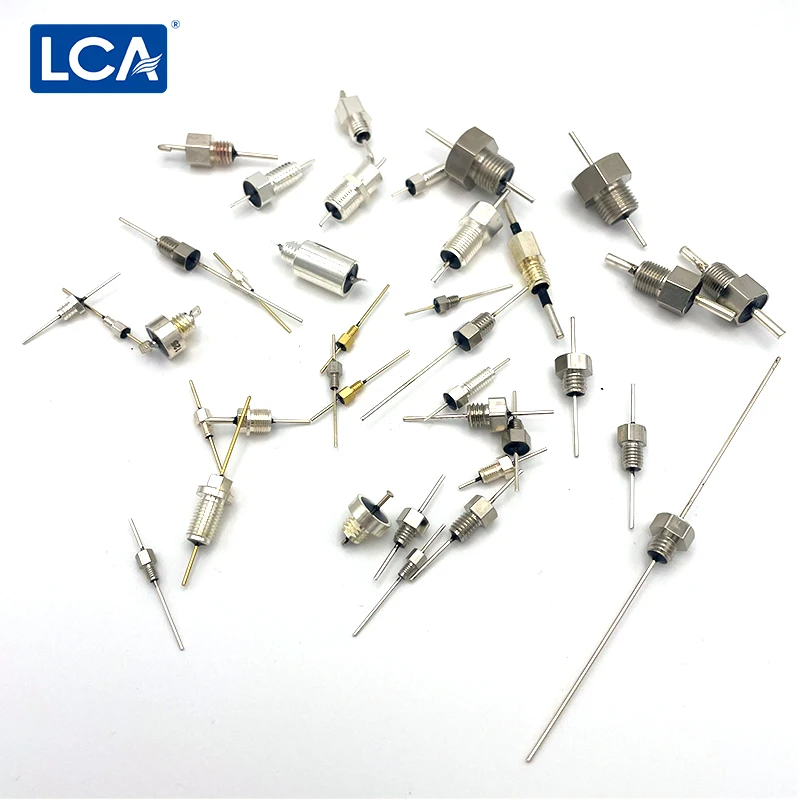

Thread Type RFI EMI Filter for media equipment

Product Overview

Description

Thread Type RFI EMI Filter  for media equipment



Specification:

1.Rated Voltage:                  50VDC,100VDC... up to 2000VDC

2.Capacitance:                     10pF...up to 1.4uF

3.Cap Tolerance:                 Z( +80% -20%)

4.Current:                            7A...up to 25A

5.Dissipate Factor:              <3.5%

6.Insulation Resistor:          >3000 MΩ

7.Withstand Voltage:          1.5times Vr 1 min no flyarc,no breakdown

8.Temperature Feature:      -55°C ~ +125°C or  -25°C ~ +85°C

9.Circuit Type:                    C Type / LC Type / Pi Type

10.Dielectric:                      NPO/X7R/Y5P/SL/Y5V....

CUSTOM DESIGN IS AVAILABLE.
