Be applicable for resection, transection and creation of anastomosis in laparoscopic surgery.
Technology
[Technological Parameters]
Reloads
Type
Specification
Staple height before forming (mm)
Staple height after forming (mm)
No. of staples
Suture length(mm)
Aplication
Color
Straight
AKYQDA-30/2.0
2.0
0.75
48
30
Thinner tissue
Grey
AKYQDA-30/2.5
2.5
1.0
Thin tissue
White
AKYQDA-30/3.5
3.5
1.5
Normal tissue
Blue
AKYQDA-45/2.0
2.0
0.75
66
45
Thinner tissue
Grey
AKYQDA-45/2.5
2.5
1.0
Thin tissue
White
AKYQDA-45/3.5
3.5
1.5
Normal tissue
Blue
AKYQDA-45/4.8
4.8
2.0
Thick tissue
Green
AKYQDA-60/2.5
2.5
1.0
90
60
Thin tissue
White
AKYQDA-60/3.5
3.5
1.5
Normal tissue
Blue
AKYQDA-60/4.8
4.8
2.0
Thick tissue
Green
Articulated
AKYQDB-30/2.0
2.0
0.75
48
30
Thinner tissue
Grey
AKYQDB-30/2.5
2.5
1.0
Thin tissue
White
AKYQDB-30/3.5
3.5
1.5
Normal tissue
Blue
AKYQDB-45/2.0
2.0
0.75
66
45
Thinner tissue
Grey
AKYQDB-45/2.5
2.5
1.0
Thin tissue
White
AKYQDB-45/3.5
3.5
1.5
Normal tissue
Blue
AKYQDB-45/4.8
4.8
2.0
Thick tissue
Green
AKYQDB-60/2.5
2.5
1.0
90
60
Thin tissue
White
AKYQDB-60/3.5
3.5
1.5
Normal tissue
Blue
AKYQDB-60/4.8
4.8
2.0
Thick tissue
Green

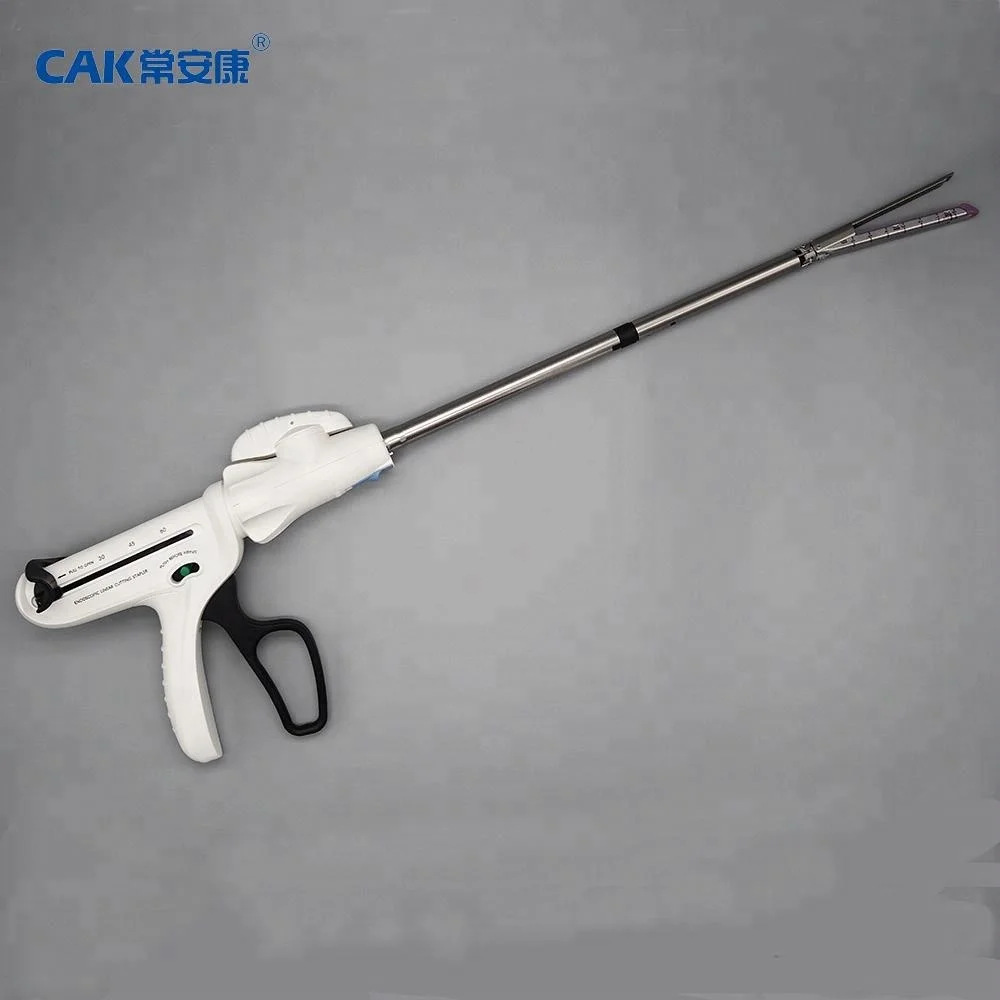

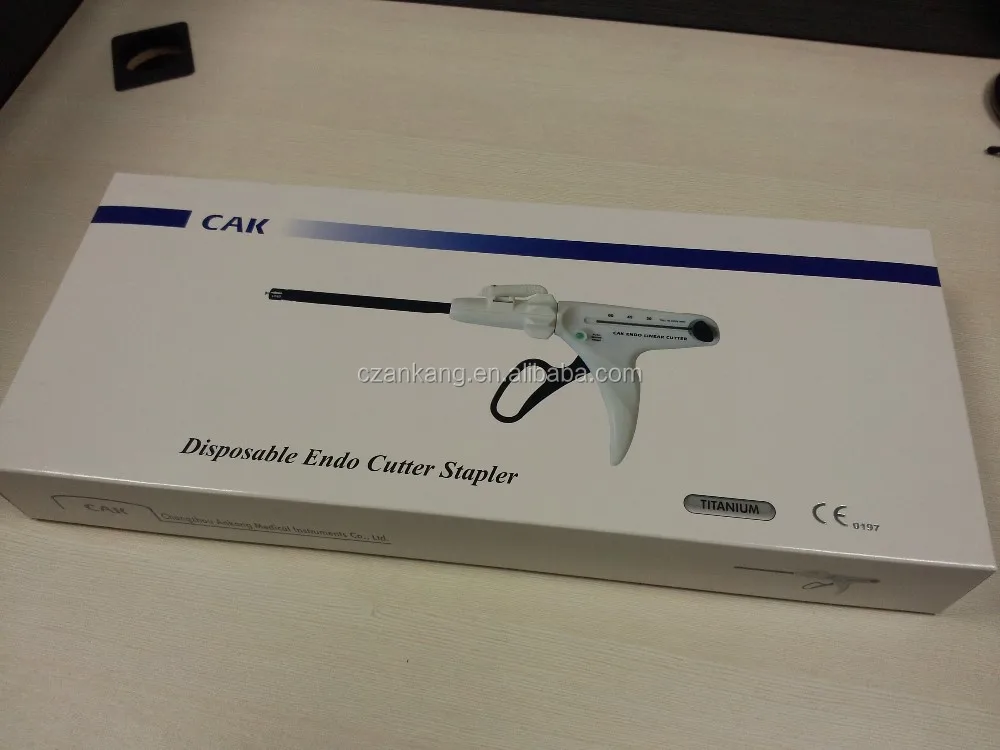

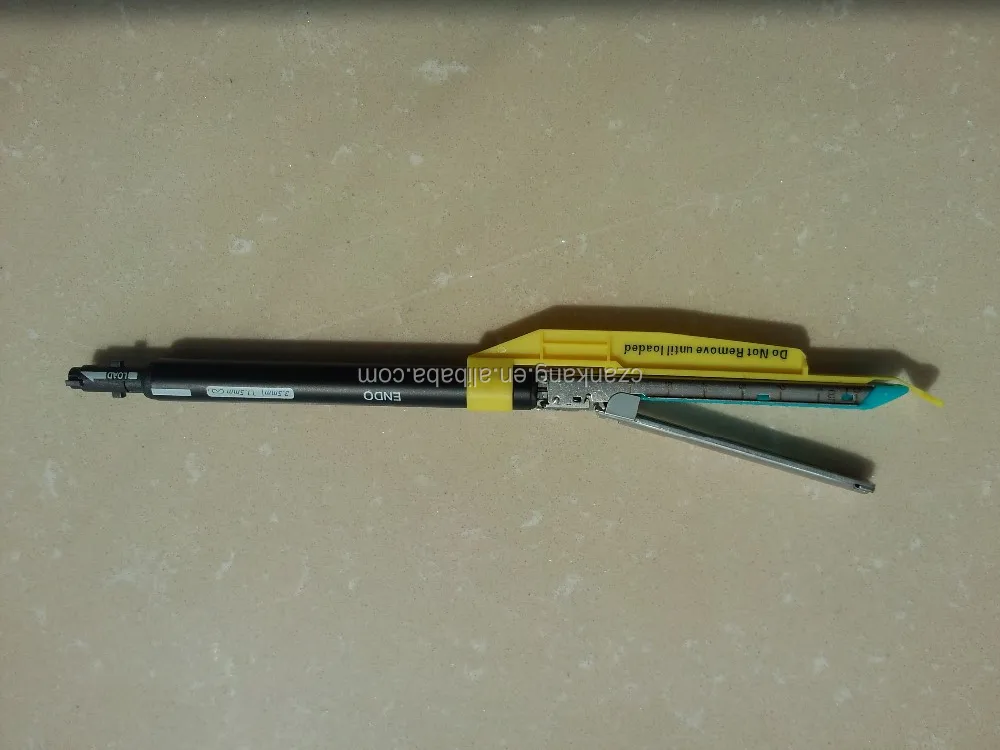

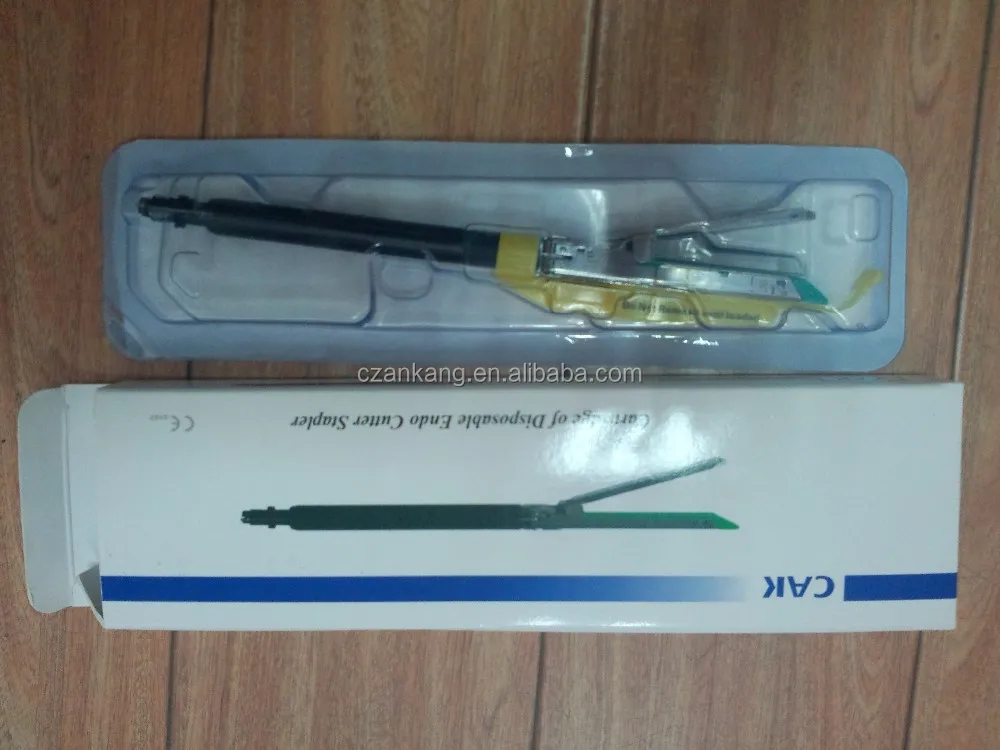

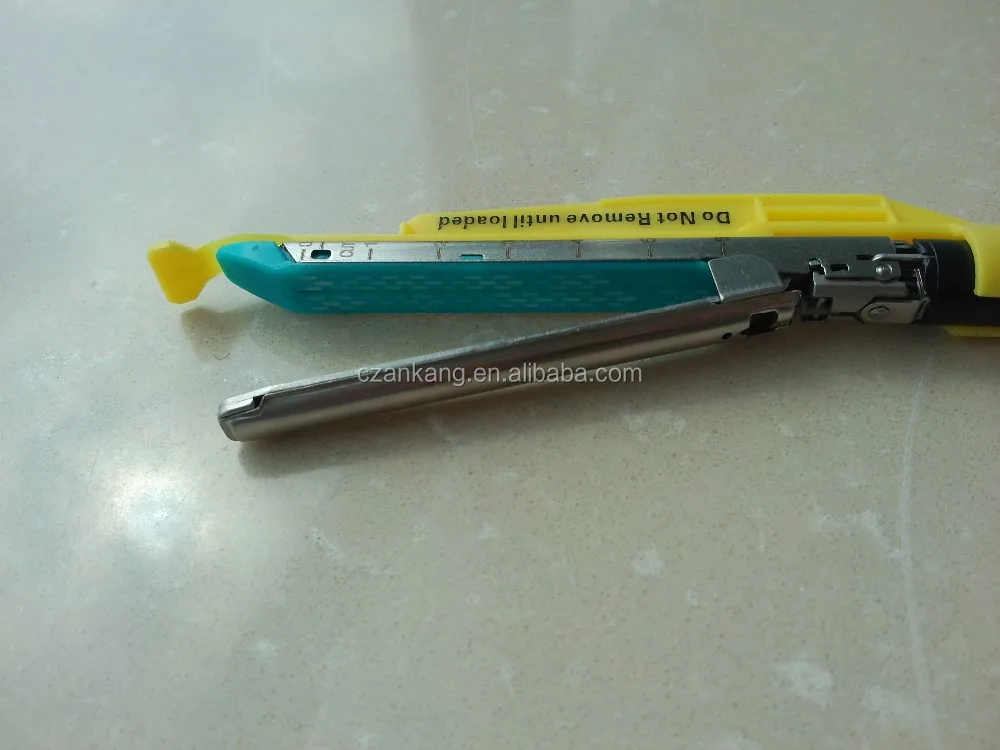

[Products Show]
[Characters]
1. The disposable cutting blade should be replaced together with loading unit to ensure that the blade is always sharp to cut tissue completely and reduce tissue damages.
2. Six rows staples are provided to ensure safety.
3. The control mechanism for equidistant clearance ensures that the staples at distant end and proximal end are uniform on the loading unit.
4. With the wide anterior opening of loading unit, the tissue can be inspired conveniently. The design of thin anvil makes it smooth for entering without larger clearance separation so that the tissue damages are reduced.
5. The indicatrix on cutter head is used to indicate the position of cutter head under the endoscopic for better safety.
6. With 360 rotary, it is convenient to reach the tissue.
7. With the symmetrically-ergonomic design, the surgical operation can be achieved independently with left and right hands.
8. Equipped with the safety inter lock device to prevent the used loading unit from being triggered again, thus ensures safety in surgical operation.
9. An apparatus can be matched with 16 different loading units to reduce the complicated procedures and lower the cost operation.
