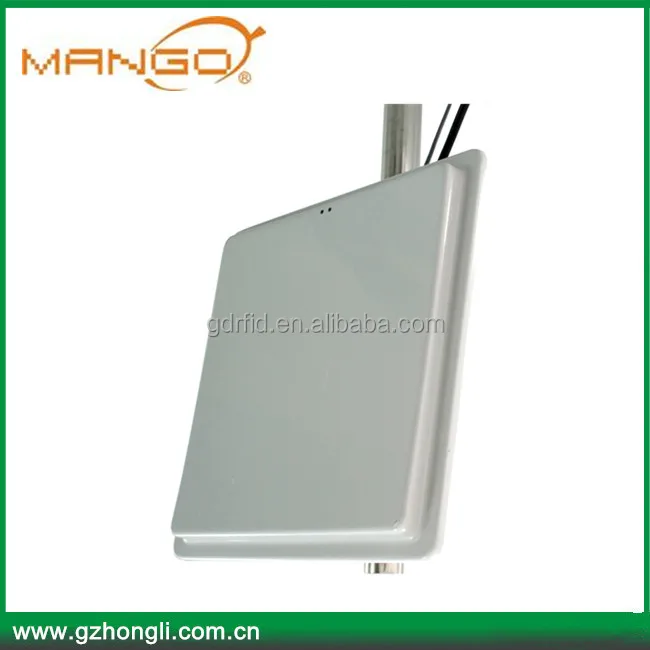

2018 ISO 18000 6C uhf rfid card reader

UHF RFID Integrated Reader

Two model: 12bdi and 8bdi

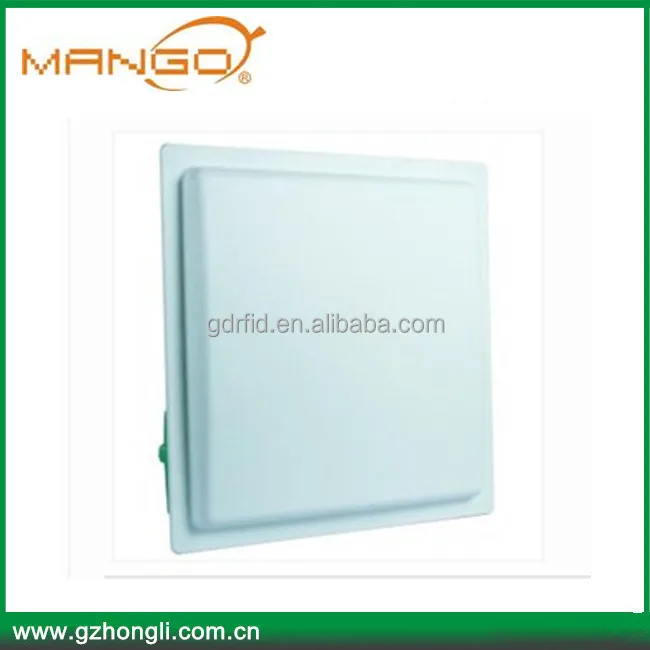

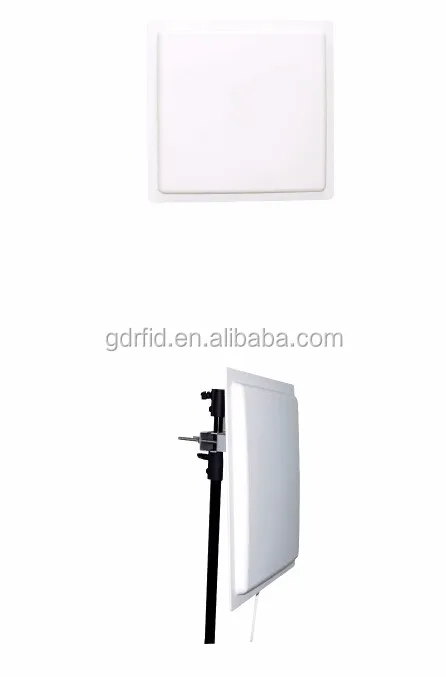

DHU1861-12dbi is a high performance UHF RFID integrated reader. It is designed upon fully
self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports
fast tag read/write operation with high identification rate. It can be widely applied in many RFID
application systems such as logistics, access control, and anti-counterfeit and industrial production

process control system

FEATURES

Self-intellectual property;
Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
860~868MHz, 902~928MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 30dbm(adjustable);
12dbi antenna optional with effect distance up to 8~15m *;
Support auto-running, interactive and trigger-activating work mode;
Low power dissipation with single +9 DC power supply;
Support RS232, RS485, Wiegand, TCP/IP interface;
Provide DLL and Demonstration Software Source code to facilitate further development.
* Effective distance depends on antenna, tag and environment

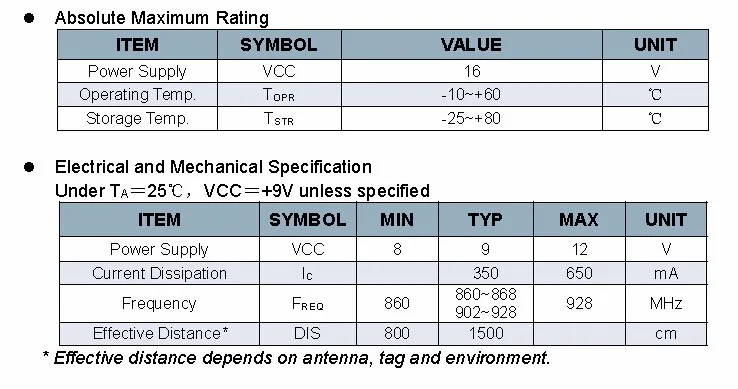

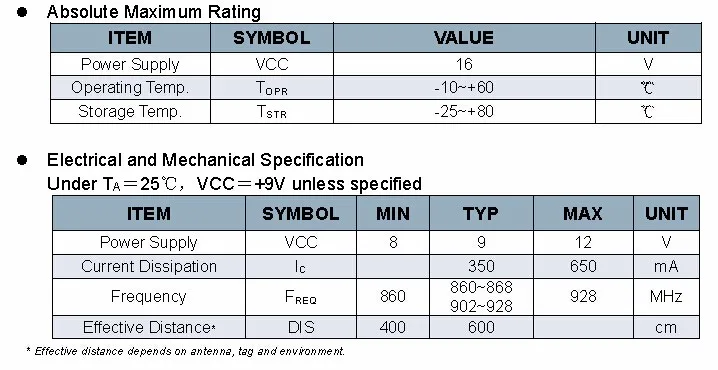

CHARACTERISTICS

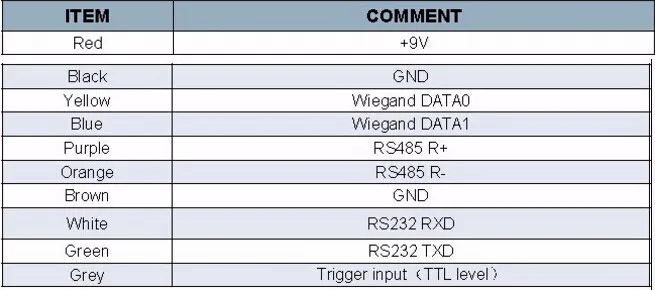

INTERFACE

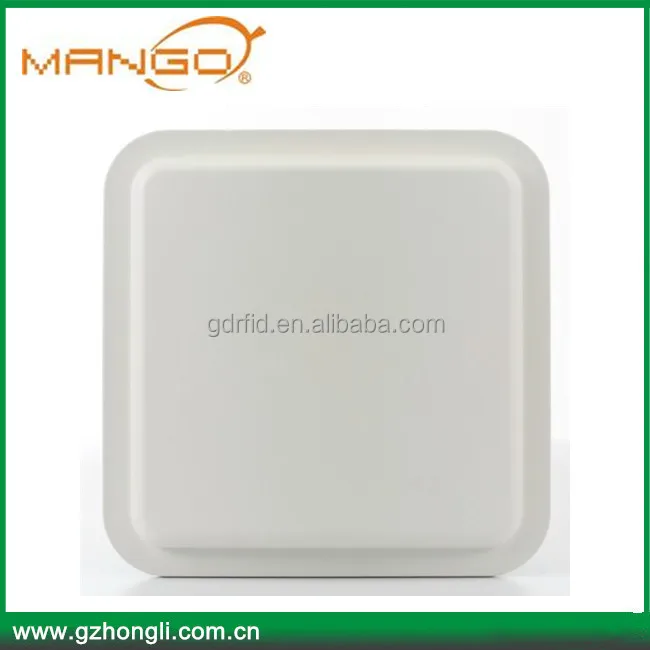

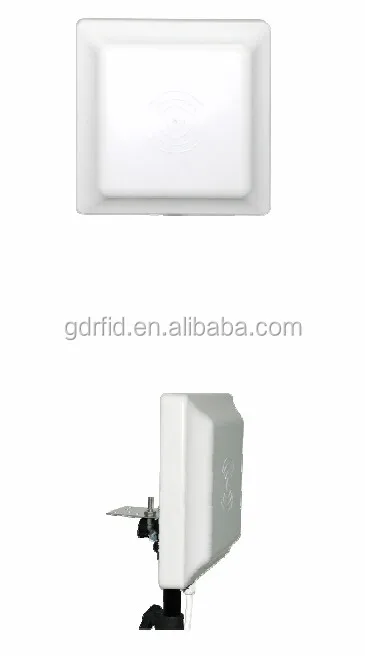

DHU1861-8dbi is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as Logistics, Access Control, Anti-counterfeit and Industrial Production Process Control System.

FEATURES

l Self-intellectual property;

l Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

l 860~868MHz, 902~928MHz frequency band(frequency customization optional);

l FHSS or Fix Frequency transmission;

l RF output power up to 30dbm(adjustable);

l 8dbi antenna optional with effect distance up to 4~6m*;

l Support auto-running, interactive and trigger-activating work mode;

l Low power dissipation with single +9 DC power supply;

l Support RS232, RS485, Wiegand, TCP/IP interface;

l Provide DLL and Demonstration Software Source code to facilitate further development.

* Effective distance depends on antenna, tag and environment.

CHARACTERISTICS

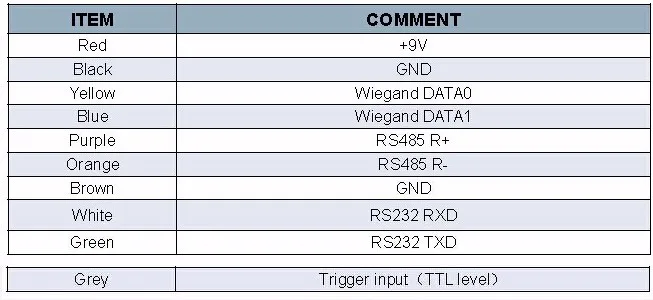

INTERFACE

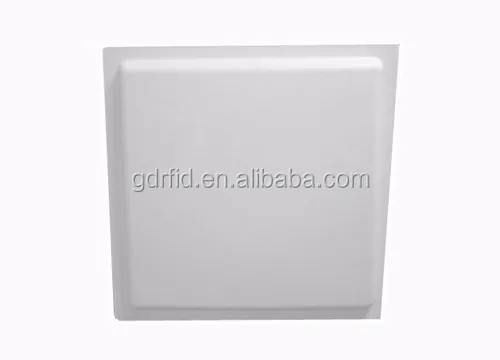

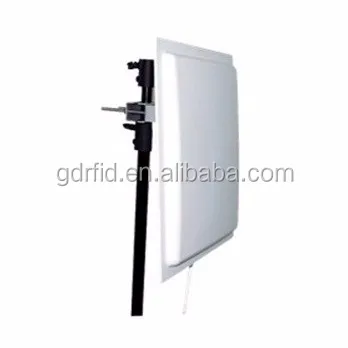

Pictures:

Package : Standard export carton

Delivery: Sample within 2 working days; Bulk order about 3-5working days.

Shipment: Samples ship by Express; Bulk order according customers demands.
