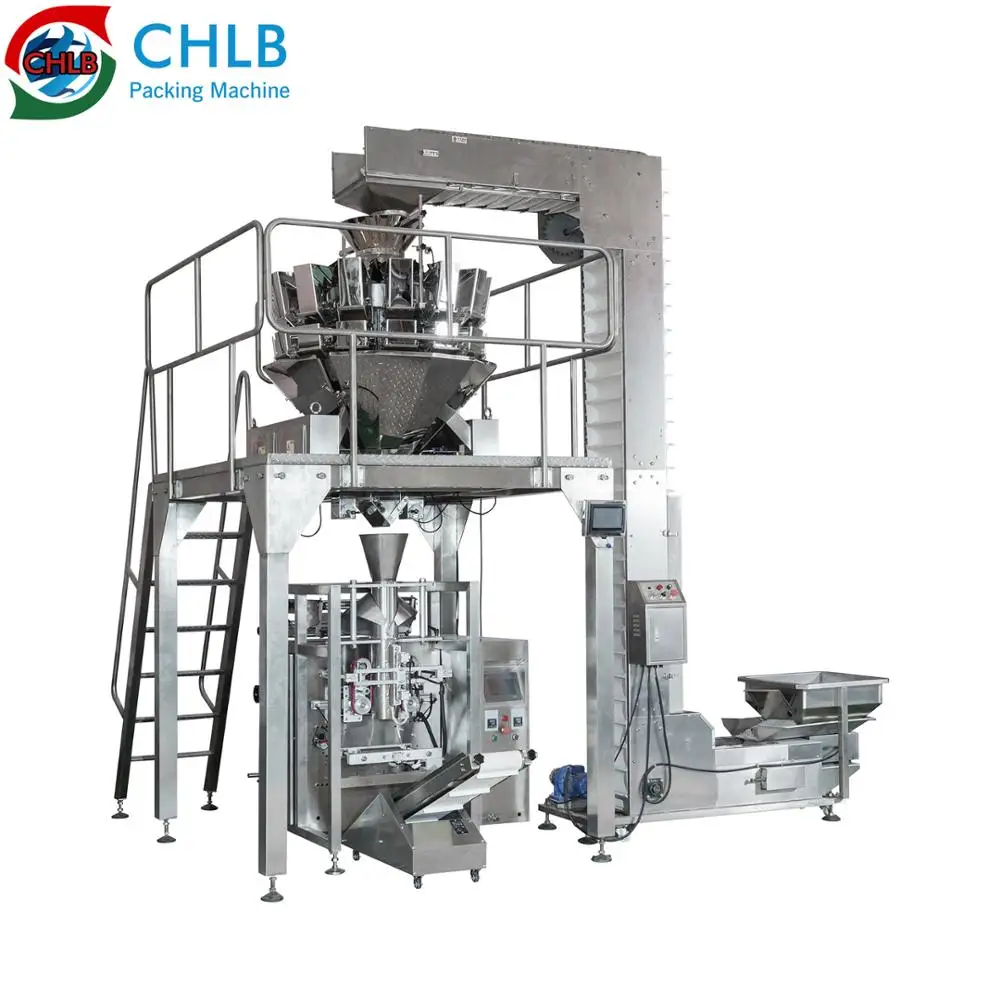

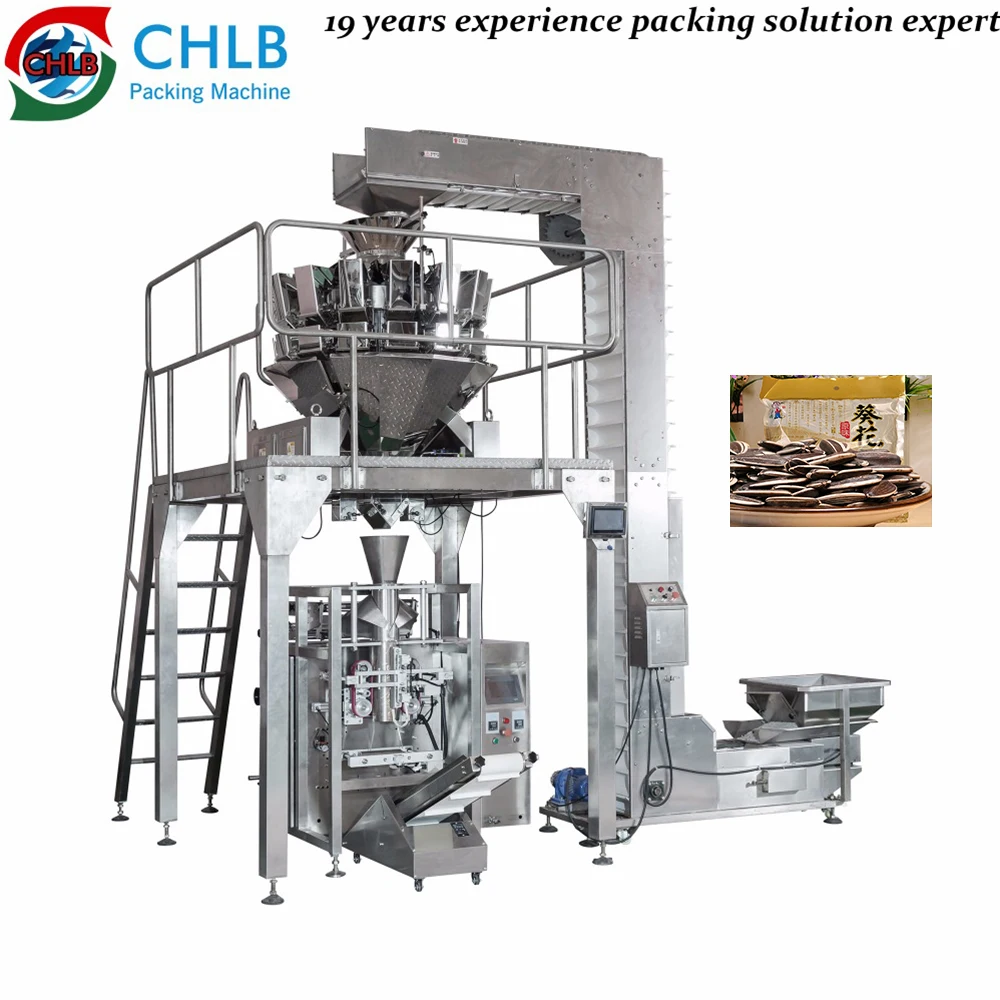

10 Head weighing Vertical Potato chips Packing Machine/Banana chips small snack cheese packing machine
| For more information, please click. | CONTACT US > |
10 Head weighing Vertical Potato chips Packing Machine/Banana chips small snack cheese packing machine
Features: 1. Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use. 2. Use famous brand electric and pneumatic components, stable and long life circle. 3. Use superior mechanical components, reduce the wear out loss. 4. PLC control with stable and high accuracy output. 5. Two color touch screen 7", one for packing machine, another for multihead weigher .
|
| For more information, please click. | CONTACT US > |
| For more information, please click. | CONTACT US > |
10 Head weighing Vertical Potato chips Packing Machine/Banana chips small snack cheese packing machine
| Model | CBP1-420 |
| Bag size | L(60~300)×W(40~200)mm |
| Packing speed | 5~60 bags/min |
| Mad width of film roll | ≤420mm |
| Driving film type | by a pair of belt controlled by servo |
| Air consumption | 0.6MPa |
| Gas consumption | 0.4m³/min |
| Power requirement | 2.2KW, 220V, 50HZ |
| Machine size | L1320×W920×H1392mm |
| Machine weight | 550Kg |
| Model | Pump liquid filler |
| Max. Capacity(g) | 200~1000ml |
| Max. measuring accuracy(g) | ±0.5%(not the same for different product) |
| Filling speed | 10~30 bags per minute(depend on the filling volume) |
| Air pressure | 0.3~0.5MPa |
| Voltage | 220V, 50/60HZ |
Suit for the quantitative measuring of liquid product, such as oil, sauce, syrup, honey, milk, cream, butter,
shampoo, lotion, milk, ketchup, etc.
| For more information, please click. | CONTACT US > |
Component list:
| A | Control parts | Brand/Origin |
| 1 | Touch screen | SCHNEIDER/FRANCE |
| 2 | PLC | SCHNEIDER/FRANCE |
| 3 | Servo motor | SCHNEIDER/FRANCE |
| 4 | Servo controller | SCHNEIDER/FRANCE |
| 5 | Temperature meter | AISET/CHINA |
| 6 | Eye mark | AUTONICS/KOREA |
| B | Pneumatic parts | Brand/Origin |
| 1 | Horizontal seal cylinder | AIRTAC/TAIWAN |
| 2 | Vertical seal cylinder | AIRTAC/TAIWAN |
| 3 | Drive belt cylinder | AIRTAC/TAIWAN |
| 4 | Cutting cylinder | AIRTAC/TAIWAN |
| 5 | Solenoid valve | AIRTAC/TAIWAN |
| 6 | Triplet | AIRTAC/TAIWAN |
| C | Electronic parts | Brand/Origin |
| 1 | Intermediate realy | SCHNEIDER/FRANCE |
| 2 | Solid state relay | YANGMING/TAIWAN |
| D | Switch parts | Brand/Origin |
| 1 | Proximity switch | SCHNEIDER/FRANCE |
| 2 | Buttons | CHINA |
| 3 | RCD | CHINA |
| 4 | Power switch(3.6A) | CHINA |
| Remark: Above is for reference only. Please refer to actual production. |
Free spare parts list:
Item | Qty |
Tool box | 1 |
Belt | 2 |
Horizontal seal heating bar | 4 |
Vertical seal heating bar | 1 |
Socket head wrench | 1 |
Cross screwdriver | 1 |
Slot type screwdriver | 1 |
Monkey wrench | 1 |
One set of wrench | 1 |
Cutting knife | 1 |
Thermocouple | 1 |
Proximity switch | 1 |
Teflon high temperature tape | 1 |
Temperature meter | 1 |
Coppered steel wire brush | 1 |
Solid-state relay | 1 |
Intermediate relay | 1 |
| For more information, please click. | CONTACT US > |
Q1: Can you send me the installation video of this machine? A1: Yes, please check the link for this video
Q2: What is the material of contact food/material parts? A2: The contact food/material parts are made of 304# stainless steel. The machine body can be 304# stainless steel or carbon steel.
Q3: Can this machine make different bag sizes? A3: One former can make one bag width, and the bag length can be adjustable within a range. It should be ordered an extra former if you want to make the other bag width.
Q4: Does your company accept OEM? A4: Yes, we have a professional design and technical team to accept customization.
Q5: When you can deliver the machine after the order is placed? A5: We usually can arrange shipment after 30-40 working days, but it depends on the quantity of the products.
Q6: How about your warranty? A6: We provide 13 months warranty, starts from the issue date of bill of lading.
Q7: What can you provide after service? A7: We can provide machine testing video and pictures before delivery, English manual, some free spare parts, installation in clients' factory and technical training. |
