Electrostatic powder coating machine/line/booth/oven/equipment/plant
- Category: >>>
- Supplier: Yantai Colin Coating Equipment Co. Ltd.
Share on (60409990248):
Product Overview
Description

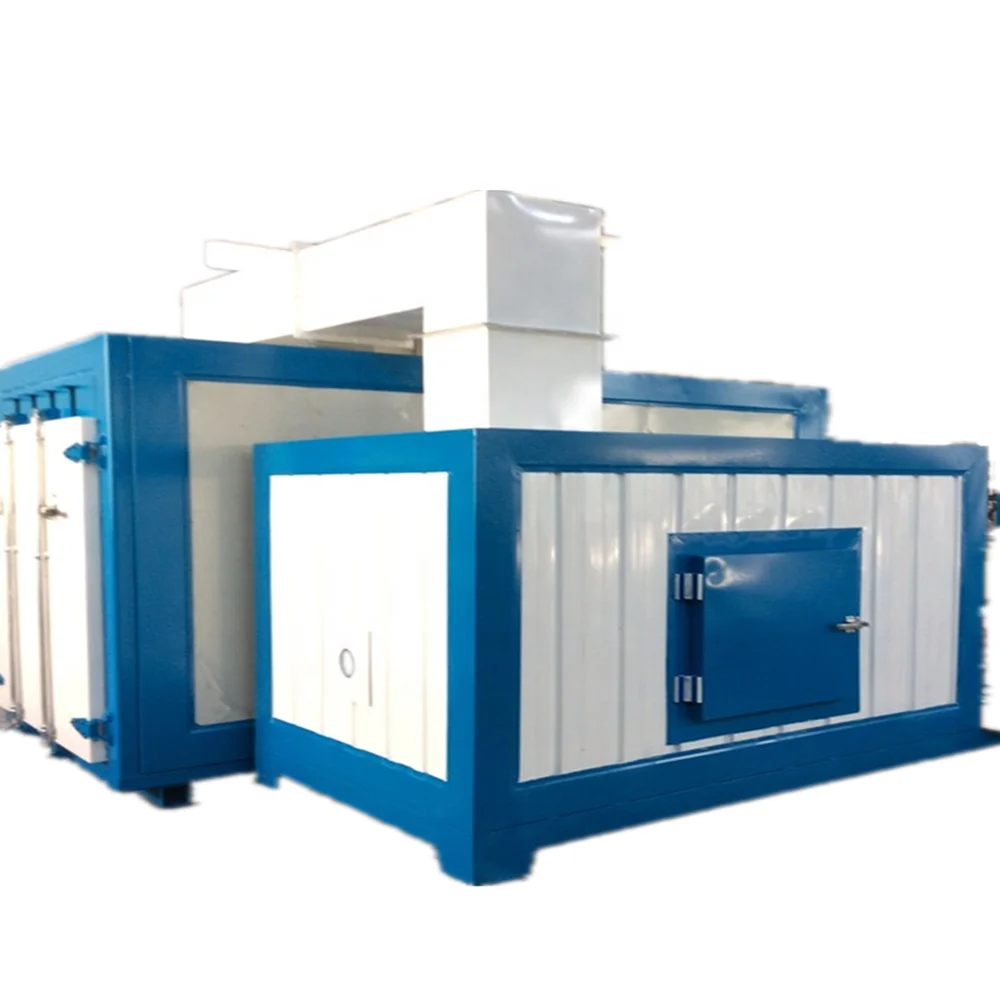

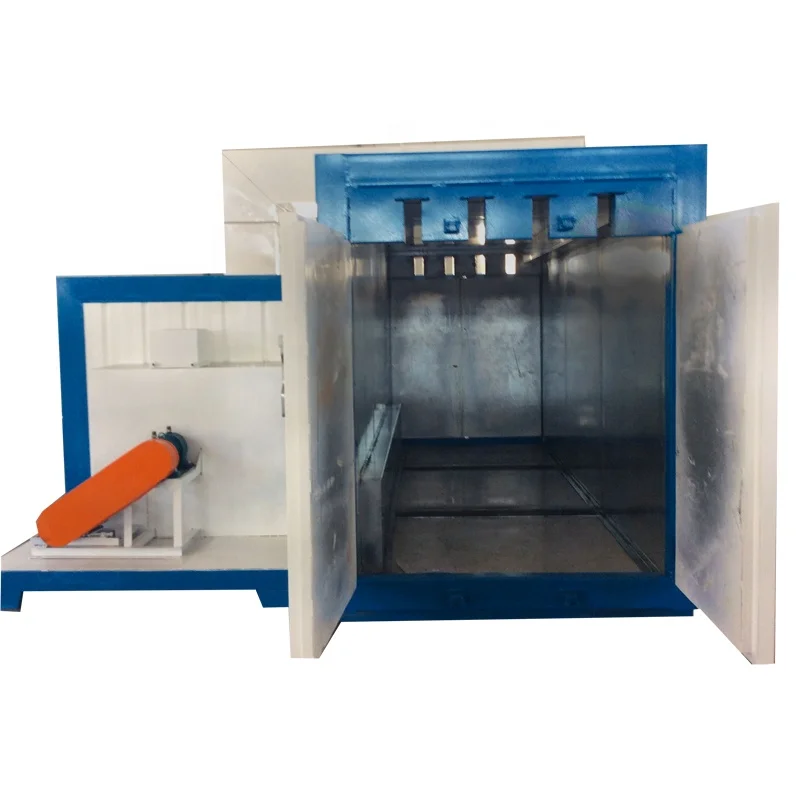

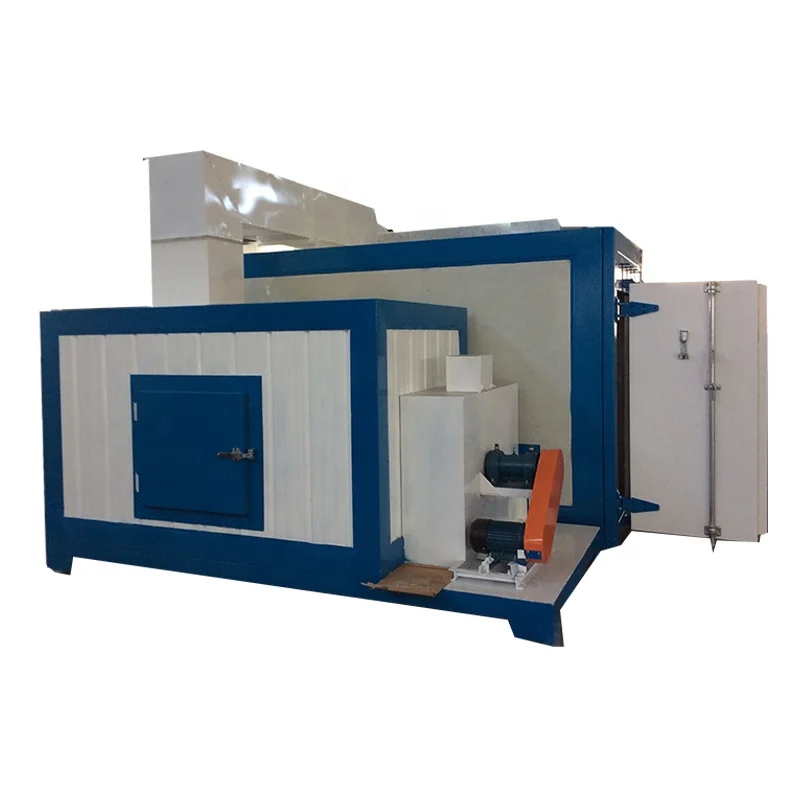

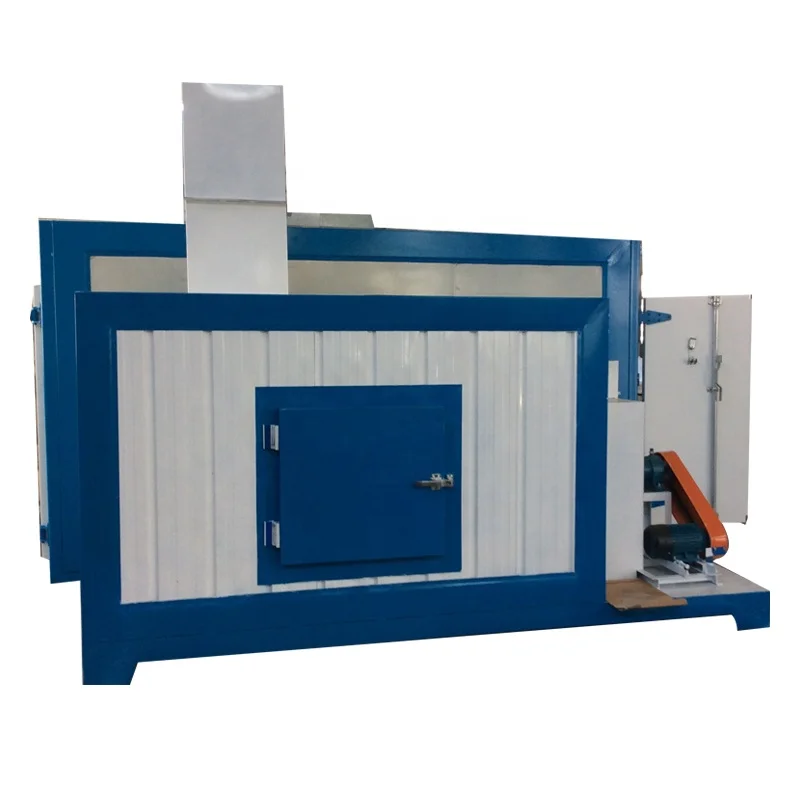

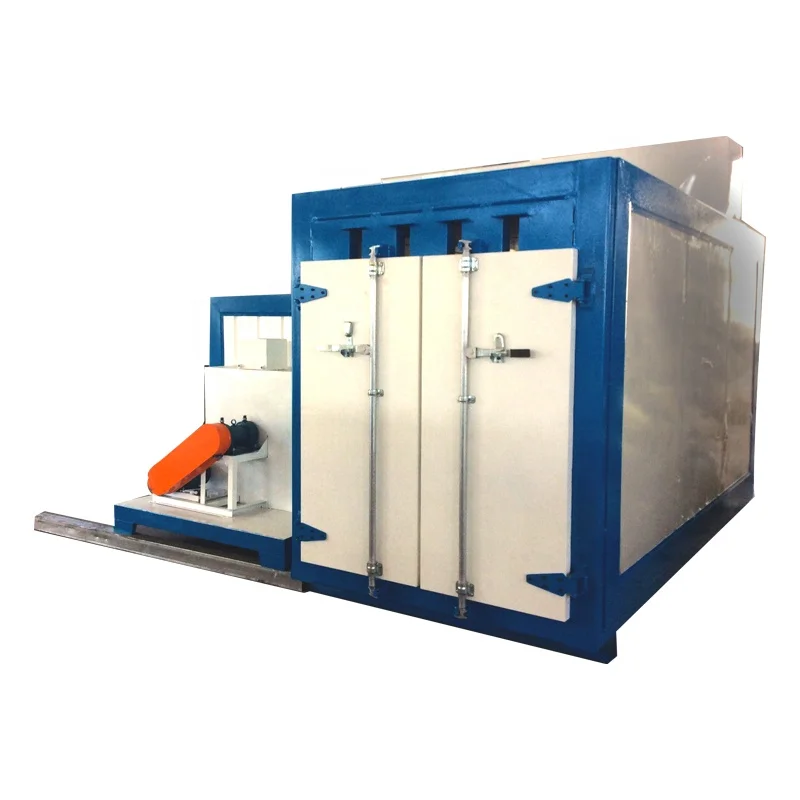

electrostatic powder coating machine/line/booth/oven/equipment/plant
Product Description
| Inside Size(mm) | 8000x1500x2500mm (LXWXH) |
| Outside size(mm) | 8300x1800x3200mm (LXWXH) |
| Wall panel | Rock wool steel board,150 mm thick, |
| anti-flame and heat-insulation | |
| Fan | 1 set 4 kw high-temperatute fan,air flow capacity:7000m3/h |
| Fan and burner box inner is 1.2 mm thick stainless steel,out is also 150mm thick rock wool panel to keep heat | |
| Air curtain fan | 2 sets of 1.5kw centrifugal fan for keeping heat inner the oven |
| Heating system | 1set of Riello FS20 natural gas burner,200000KCal/h |
| max temp:250 ℃, heating time: 20-25 min (180-250℃) | |
| Control system | Temperature alarm(With inductor in the oven) ,stop button,process setting system:could set baking time and temperature,when baking time arrive,stop automaticly |
| Total power | 7kw |
Workshop&Package
Company Information
Engineers are available for oversea service !!
Why choose us?
1.With more than 10-year experience for painting machine,
2.Export more than 100 places around world, Australia,Africa,Ansia,America,Europe etc.
3.Best post-sell service, offer oversea service for you to install for use.
high temperature powder coating ovens and furnaces
