high quality medical transcranial doppler
- Category: >>>
- Supplier: Xuzhou Lianchuang Medical Equipment Co. Ltd.
Share on (60410049389):
Product Overview
Description

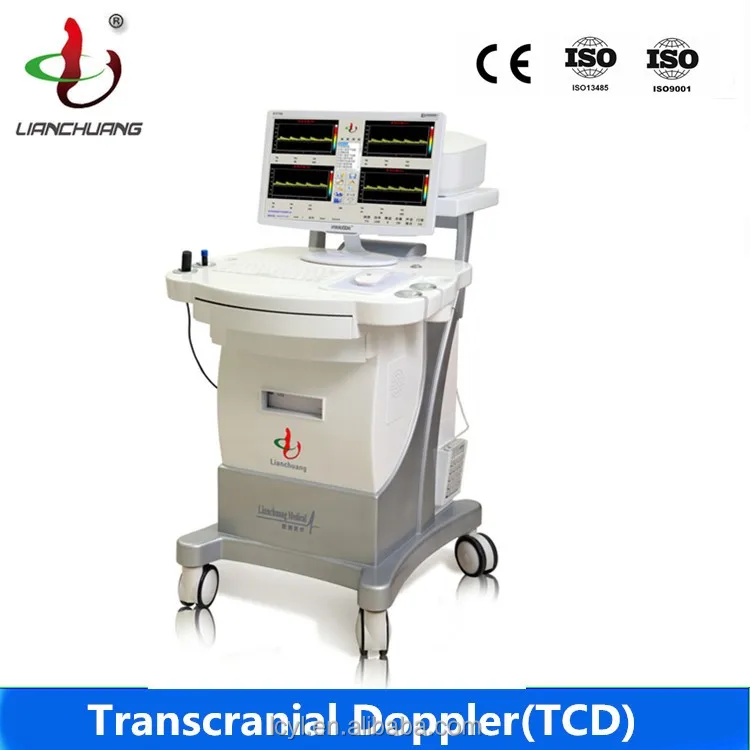

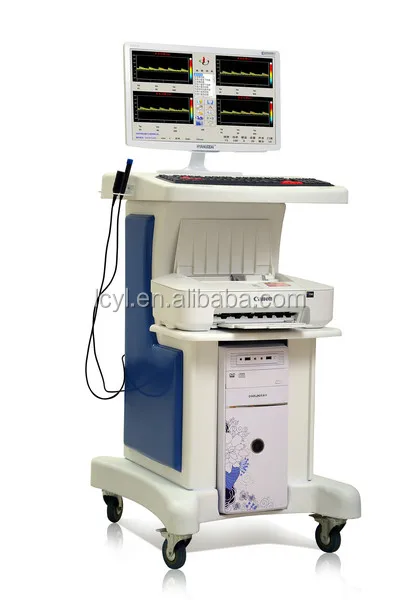

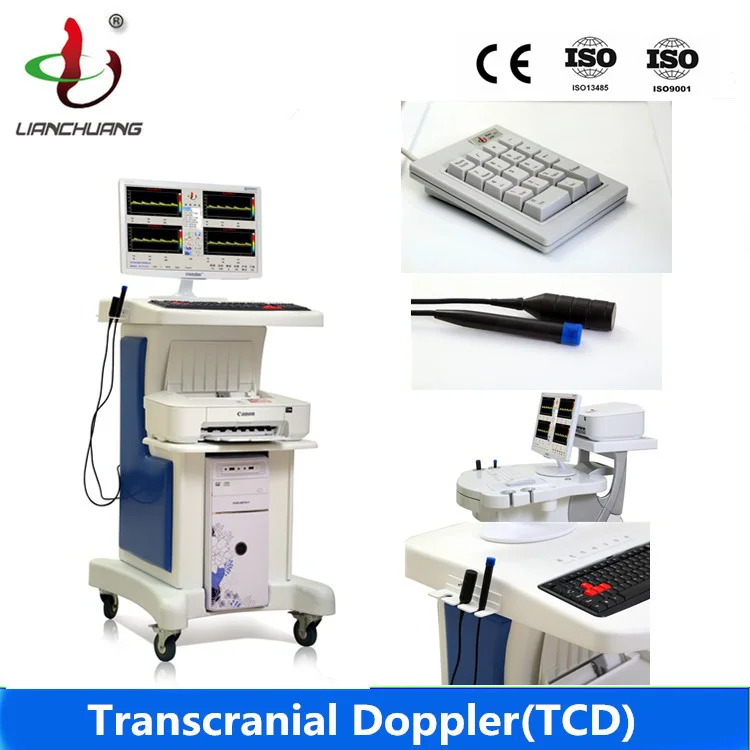

trolley hospital transcranial doppler equipment medical
Standard configuration:
Mainframe
19-inch LCD display, Standard Keyboard,mouse
Software
English Windows-XP Operation Manual
Color Ink-jet Printer

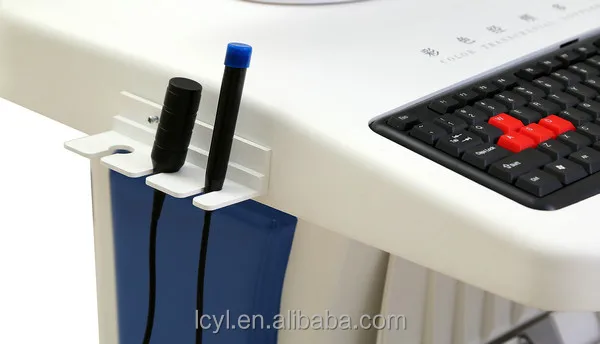

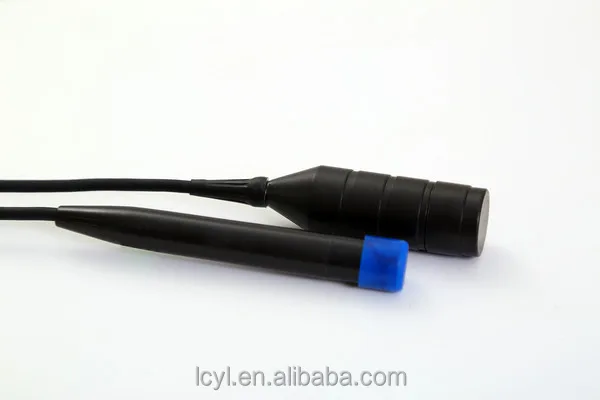

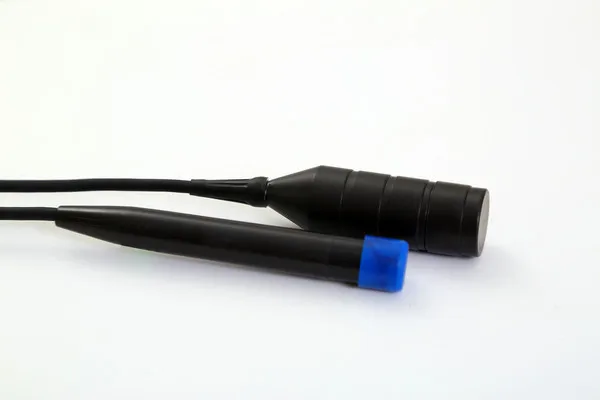

2MHz PW probe
4MHz CW probe
Specialized Medical Trolley
14 months' warranty for the unit and main parts
Main clinical treatments:
1. cerebral arteriosclerosis
2.Insufficient supply of blood
3.Cerebrovascular stenosis and occlusion
4.Cerebral vasospasm
5.Cranial artery malformation and subclavian steal blood syndrome
6.Cranial aneurysm
7.Cerebral artery blood supply deficiency
8.Diagnosis and clssification of apoplexy
9.Inspection and tracking of cerebral thrombosis,as well as cerebrovascular disease
Features:
a. Single&multi-channels and synchronous multi-depth blood test, has greatly shorten the time and reduce the labor intensity of doctors, the same vessel in the different depth can be estimated at the same time.
b.Special high sensitivity can detect images of high quality with the output of 10% power.
c. More high resolution with advanced digital technology. Long-time storage of dynamic spectrum and playback. Easy to operate.
Technica indicators:
Frequencey of probe | 2MHz PW 4MHz CW |
Scolling memory | 240S (max) |
Scanning speed of spectrum | 4S~16S, adjustable |
Adjustable volume f samples(PW0 | 0.77~13mm |
Detecting depth(PW) | 5mm~150mm(extend to 190mm) |
Detecting speed(Max) | ≥300cm/s (PW), +612Hz, -1653(CW) |
Gain ranging | 1-56dB, Range of frequency shift:PW:2-12KHz CW:2-32KHz |
Display indicators of automatic inspection | Vp Vm Vd PI RI RYH S/D |
Spectrum point | 256 |
Update of spectrum lines | 8.0ms |
Power voltage | 220V±10% 50Hz ± 1Hz |
Resolution | 2MHz ≤ 10mm 4&8MHz ≤ 20mm |
Measurement error of speed | ≤ 10% Accuracy: 1mm |
Pulse repetition frequency | Automatic adjustment depend on the depth |
Packaging&delivery:
1.We ship goods by UPS/DHL/FEDEX/TNT express which is door to door ,you can get the product without going out, which takes 3~ 5 days to arrive;
2.We can also help you ship the equipment by air cargo ,it means you need to go to the Air port to take it home ,it takes about 2-7 days to arrive ;
3. If there's a large quantity and you do not need the equipment so urgently , you can choose by sea to save some freight cost which takes about one month to arrive .
No matter what the way you choose, please make it convenient for yourself.
Our services:
1. For all your inquires about us or our medical equipment, we will reply you in detail within 24 hours.
2. We own well-trained and passional workers whoare responsible for selling & after- sale services ,most of them can speak English fluently.
3. We offer OEM services. so you can put your logo on the devices, and customize the retail box packing and other things.
4. We have very experienced engineers,who help you better use the equipment.
It's really smart for you to choose us at your service, and we can ensure you our products and services.Looking forward to coorperating with you in the near future.
...
