Twintex Long Service Life fuente de alimentacion laboratorio Variable Regulated Source Laboratory Power Supply 30V 40A
- Category: Switching Power Supply >>>
- Supplier: Twintex Electronics Co. Ltd.
Share on (60410091264):
Product Overview
Description
Twintex Long Service Life fuente de alimentacion laboratorio Variable Regulated Source Laboratory Power Supply 30V 40A
Product Description
Regulated Power Supply
Features
Max. output power ranging from 200W to 6kW
Max. output voltage 800V, Max. output current 200A
Constant voltage and constant current operations
Auto CV/CC switch
Coarse and Fine control for voltage and current
Over voltage, over current, over temperature and over power protections
Adjustable OVP range, OCP fixed 105% of Max. current range
Intelligent temperature control cooling fan
Customized specifications and functions acceptable
Specifications
Model | Rated Output | Power (W) | |
TP15-30S | 0~15V | 0~30A | 450 |
TP15-50S | 0~15V | 0~50A | 750 |
TP15-60S | 0~15V | 0~60A | 900 |
TP15-80S | 0~15V | 0~80A | 1200 |
TP30-20S | 0~30V | 0~20A | 600 |
TP30-30S | 0~30V | 0~30A | 900 |
TP30-40S | 0~30V | 0~40A | 1200 |
TP50-20S | 0~50V | 0~20A | 1000 |
TP60-10S | 0~60V | 0~10A | 600 |
TP60-20S | 0~60V | 0~20A | 1200 |
TP1H-10S | 0~100V | 0~10A | 1000 |
TP120-5S | 0~120V | 0~5A | 600 |
TP120-10S | 0~120V | 0~10A | 1200 |
TP150-5S | 0~150V | 0~5A | 750 |
TP220-1S | 0~220V | 0~1A | 220 |
TP220-3S | 0~220V | 0~3A | 660 |
TP220-5S | 0~220V | 0~5A | 1100 |
TP250-1S | 0~250V | 0~1A | 250 |

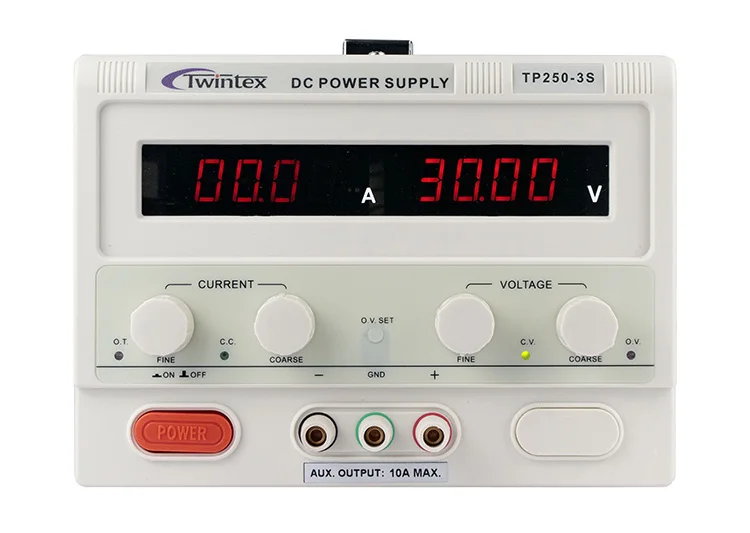

TP250-3S | 0~250V | 0~3A | 750 |
TP250-5S | 0~250V | 0~5A | 1250 |
TP3H-1S | 0~300V | 0~1A | 300 |
TP3H-2S | 0~300V | 0~2A | 600 |
TP3H-3S | 0~300V | 0~3A | 900 |
TP4H-1S | 0~400V | 0~1A | 400 |
TP4H-2S | 0~400V | 0~2A | 800 |
TP4H-3S | 0~400V | 0~3A | 1200 |

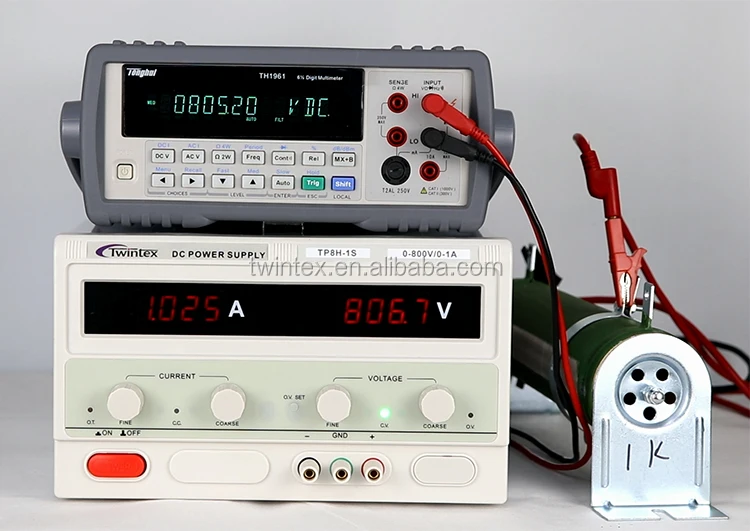

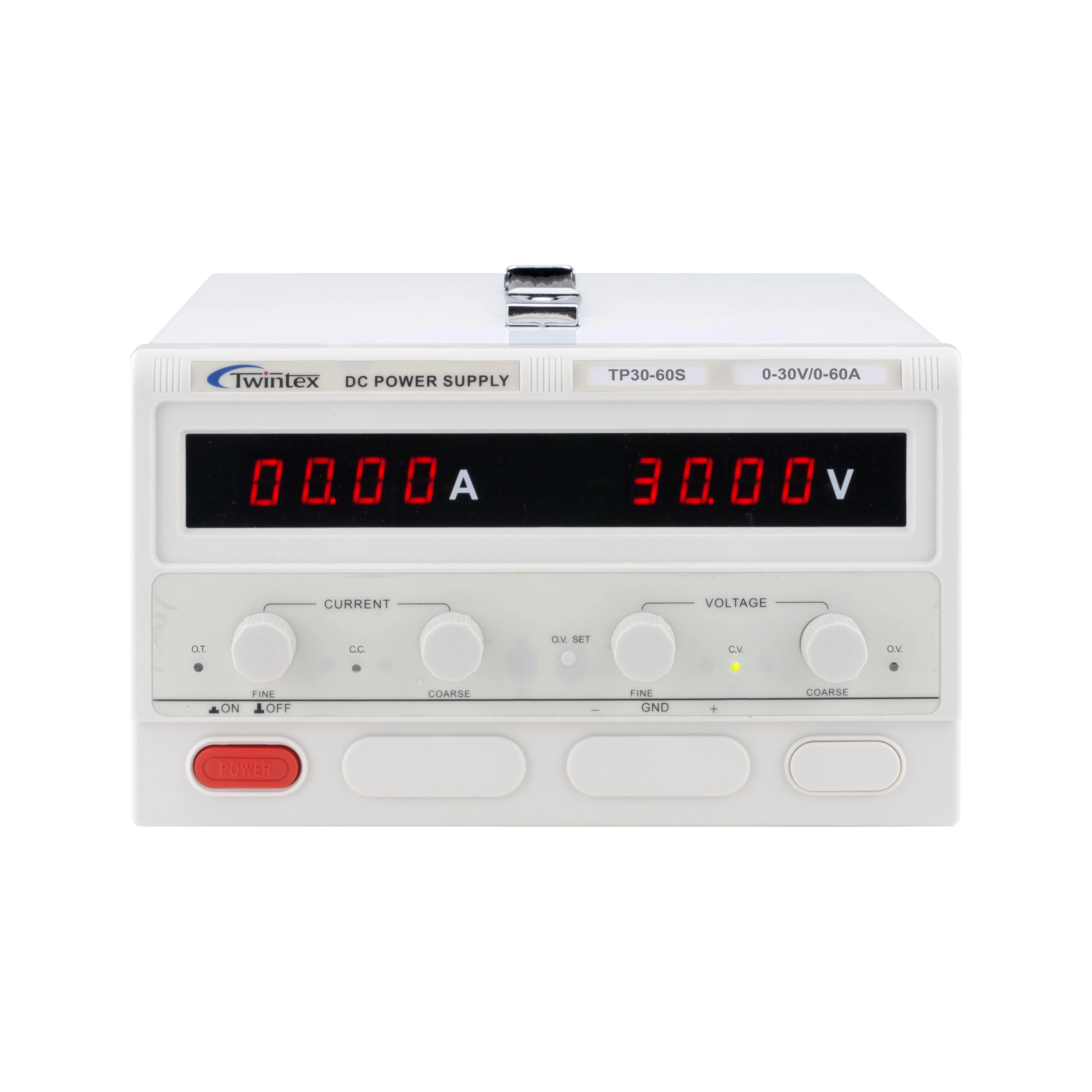

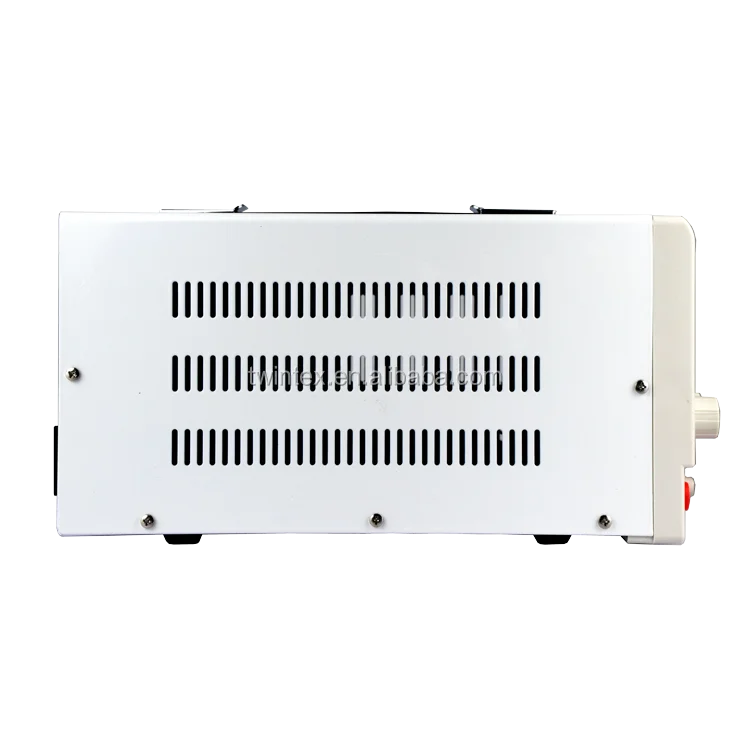

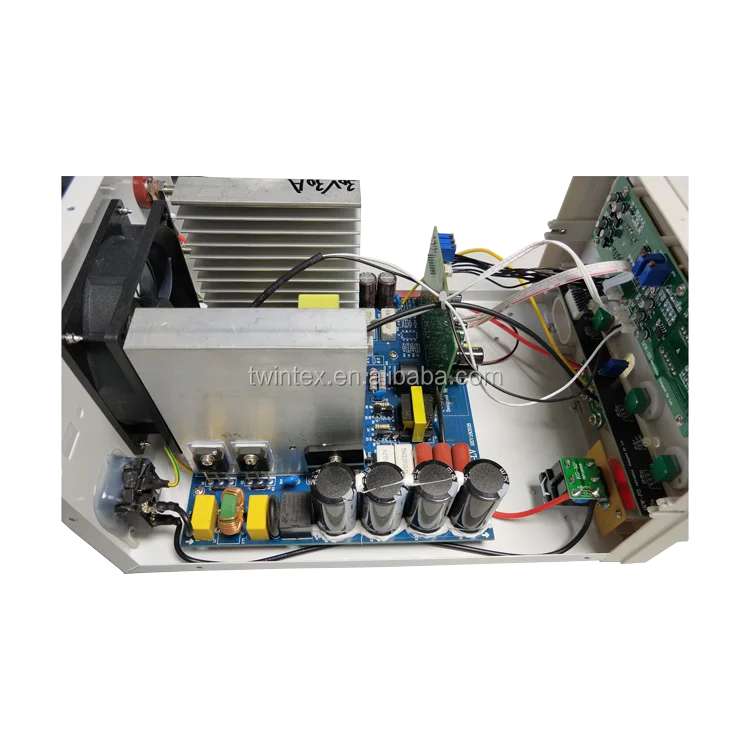

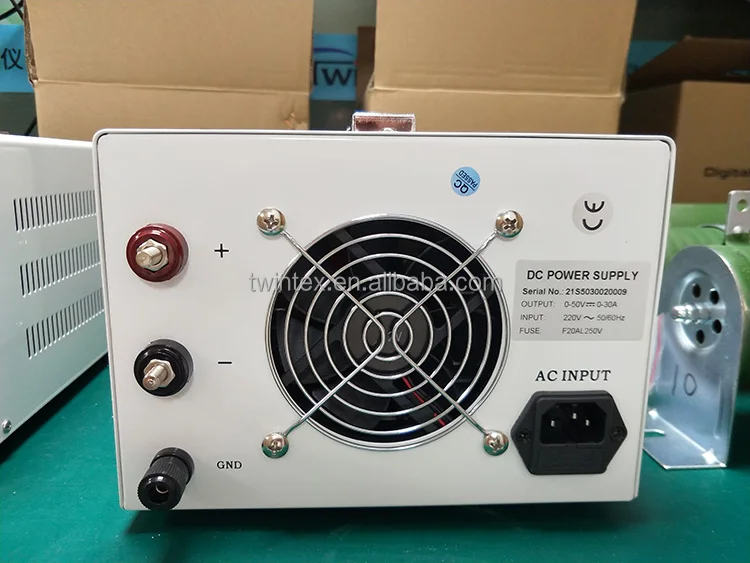

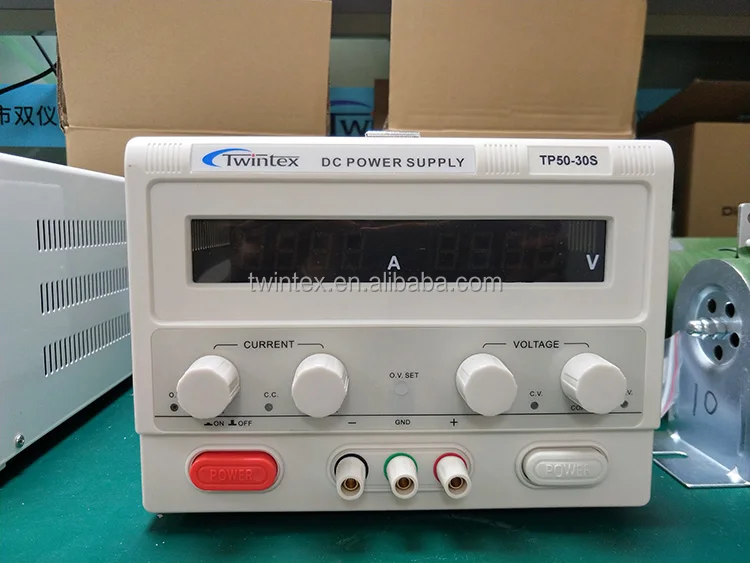

Detailed Images
Related Products
Company Information
Warranty
All products by TWINTEX are tested and guaranteed to keep in good quality with one year warranty except wearing parts, such as test leads and power cords.
If quality problems happen during warranty period, we provide technical supports and spare parts. Our local distributor if any will help to solve your problems in time after receiving phone calls or emails.
Welcome to contact us at any time if any questions about using our products.
However, TWINTEX is free of responsibility to personal injuries or property damages caused by improper operation.
We Recommend
1000w 220vac Single Phase 5v 200a Variable Power With Smart Fan
US $155.00-$158.00

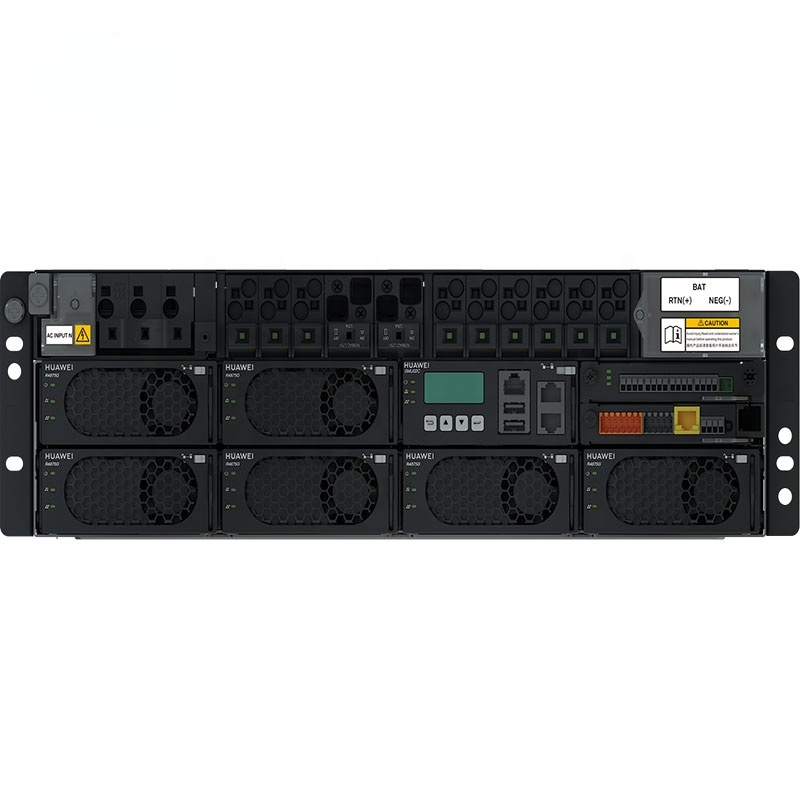

5G High Density Embedded Power Supply ETP48400-C3B1
