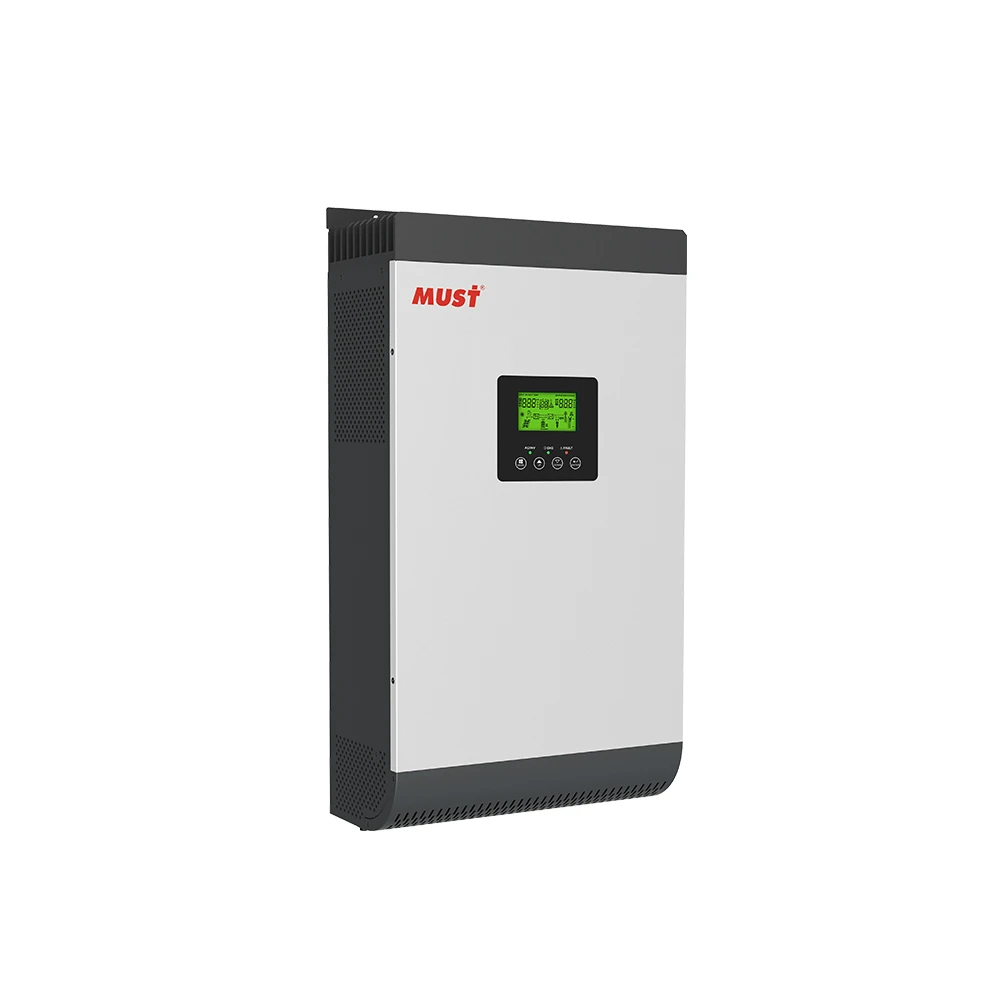

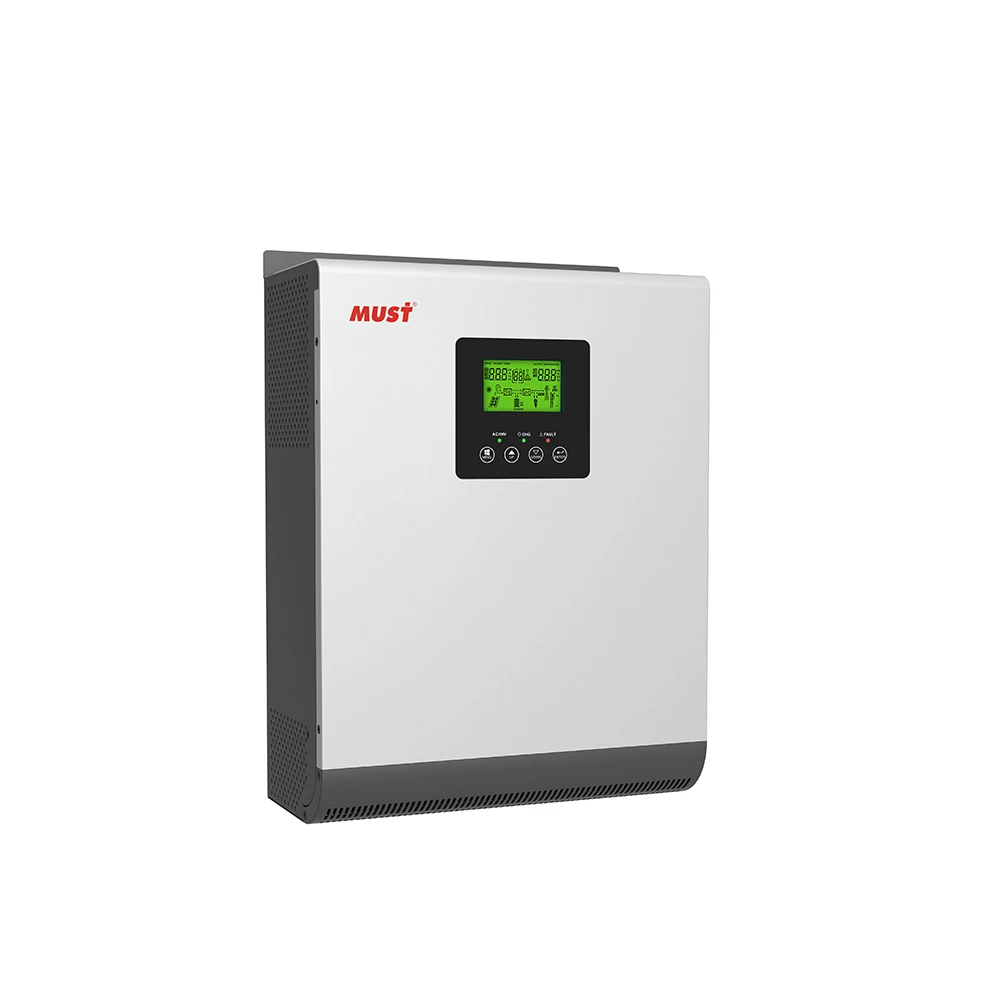

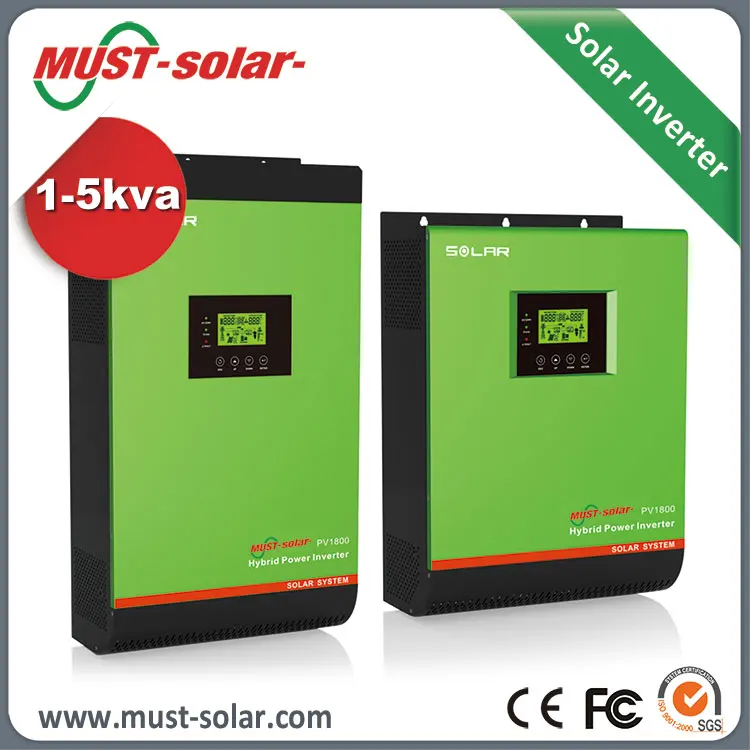

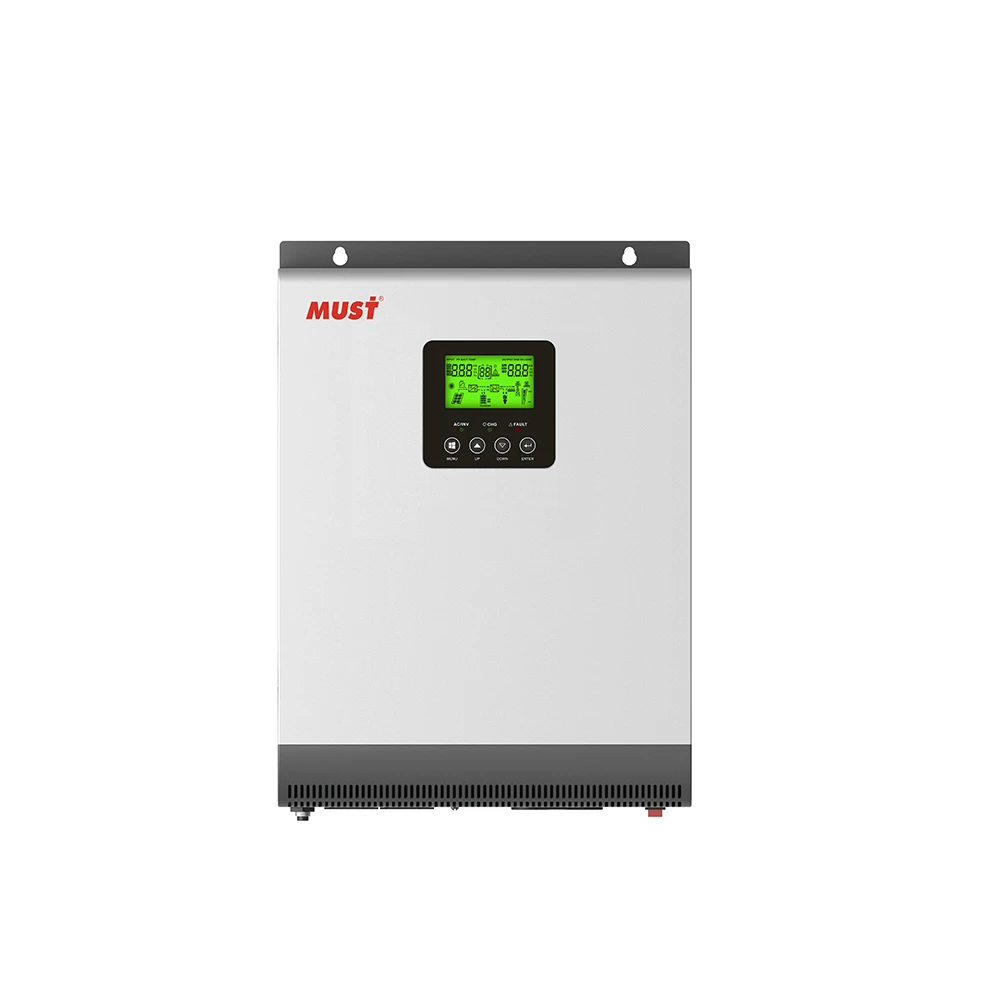

PV1800 series(must solar)micro inverter hybrid solar power inverter car inverter solar tracking kit

Product Overview

Description

PV1800 series(must solar)micro-inverter hybrid solar power inverter car inverter solar tracking kit



What is Solar inverter?



Solar inverters is an electronic system that operates the photovoltaic(PV) modules in a manner that allows the modules to produce all the power they are capable of. The solar mate charge controller is a microprocessor-based system designed to implement the MPPT. It can increase charge current up to 30% or more compared to traditional charge controllers.



Features of must solar inverter



. Pure sine wave inverter
. Selectable input voltage range for home appliances and personal computers
. Selectable charging current based on applications
. Configurable AC/Solar input priority via LCD setting
. Compatible to mains voltage or generator power
. Parallel operation with up to 4 units only available for PV18-4K/5K
. Auto restart while AC is recovering
. Overload and short circuit protection
. Smart battery charger design for optimized battery performance
. Cold start function

Must Solar System

Specification of high efficiency solar inverter



MODEL			PV18-1K MPK		PV18-2K MPK		PV18-3K MPK	PV18-4K MPK	PV18-5K MPK
Default Battery System Voltage			24VDC					48VDC
INVERTER OUTPUT	Reted Power		1000VA/ 800W		2000VA/ 1600W		3000VA/ 2400W	4000VA/ 3200W	5000VA/ 4000W
	Surge Power		2000VA		4000VA		6000VA	8000VA	10000VA
	Waveform		Pure sine wave
	AC Voltage Regulation (Batt.Mode)		230VAC±5%
	Inverter Efficiency (Peak)		90%		93%
	Transfer Time		10ms(For Personal Computers) 20ms(For Home Appliances)
AC INPUT	Voltage		230VAC
	Selectable Voltage Range		170~280VAC(For Personal Computers) 90~280VAC(For Home Appliances)
	Frequency Range		50Hz/60Hz (Auto sensing)
BATTERY	Nominal voltage		24VDC					48VDC
	Floating Charge Voltage		27VDC					54VDC
	Overcharge Protection		31VDC					60VDC
SOLAR CHARGER & AC CHARGER	Maximum PV Array Open Circuit Voltage		75VDC					145VDC
	PV Array MPPT Voltage Range		30 ~ 66VDC					60 ~115VDC
	Standby Power Consumption		2W
	Reted Power		600W					3000W
	Maximum Solar Charge Current		25A					60A
	Maximum Efficiency		98%
	Maximum AC Charge Current		10A or 20A		20A or 30A			60A
	Maximum Charge Current		25A		30A			120A
MECHANICAL SPECIFICATIONS	Dimension,W*H*D(mm)		272*372*131					295*528*141
	Net Weight(kg)		7.4		7.6		8.0	12.5	13.5
OTHER	Humidity		5% to 95% Relativ Humidity (Non-condensing)
	Operating Temperature		0°C -55 °C
	Storage Temperature		-15 °C -60 °C







5KVA Solar inverter connect in parallel to be 10kva

Solar inverter 3 phase connection



Solar inverter run 3 hp air conditioner



  Welcome to visit our company and factory !



Must Solar showroom

Must Solar Exhibitions:

Q1: How to choose a right inverter?

A1:Tell us your demand, then our sales will recommend a suitable inverter to you.



Q2: What's the different between inverter and solar inverter?

A2:  Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.



Q3: How about the delivery time?

A3:  7 days for sample; 25 days for bulk order.



Q4: What is the warranty of inverter?

A4: One year warranty on Must-Solar product.



Q5: How to solve the technical problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
