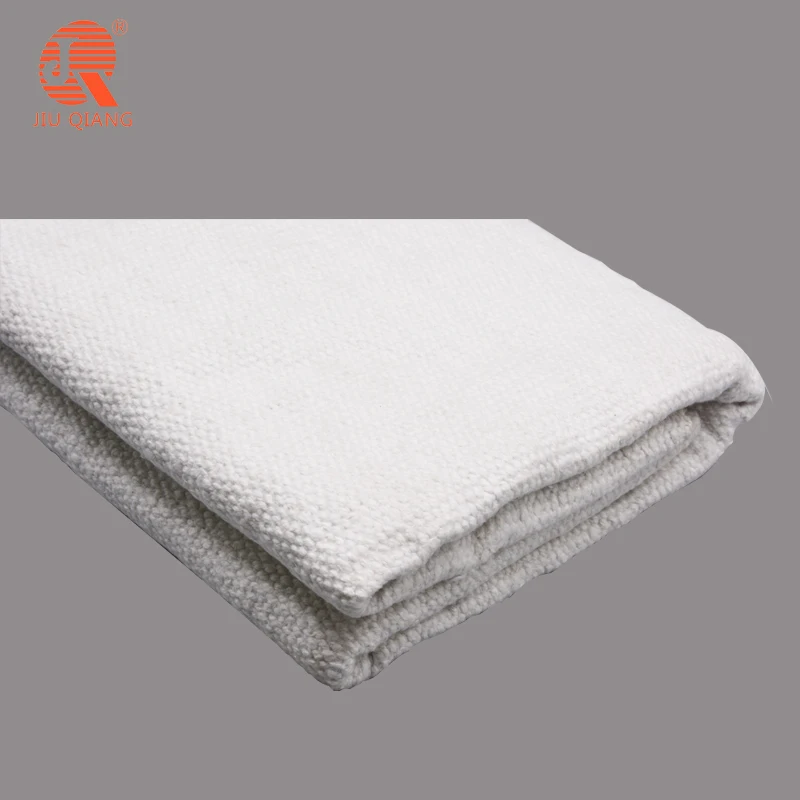

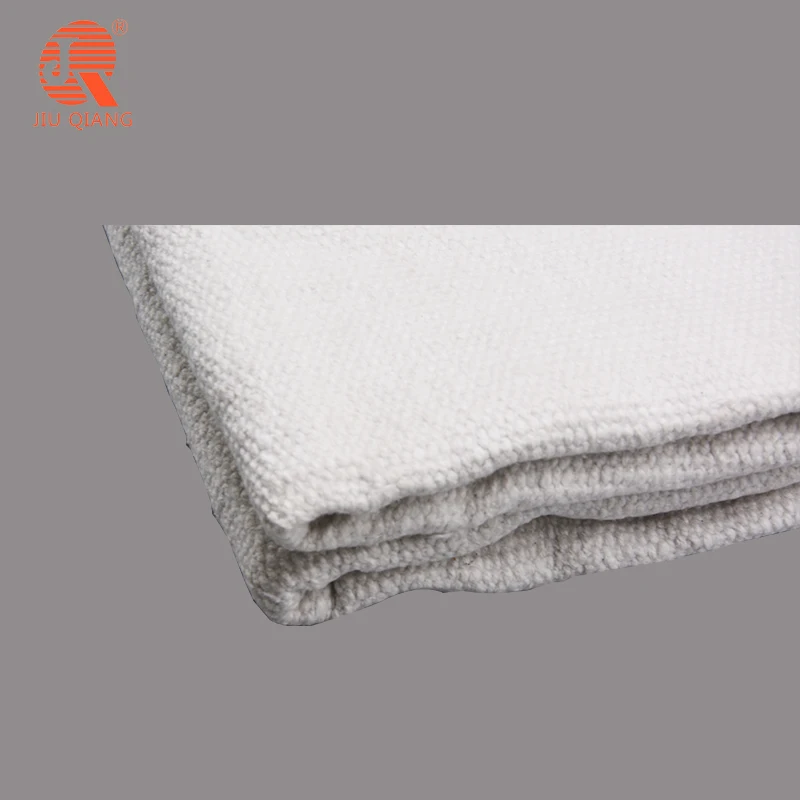

Custom shape Soluble Ceramic Fibre steam pipe insulation Ceramic Fibre cloth

Share on (60410317457):


Price:

Quantity:


Product Overview

Description



Ceramic Cloth Tape


    Refracoty  Ceramic Fiber Textile Cloth and Tap








Product Des0cription_.jpg

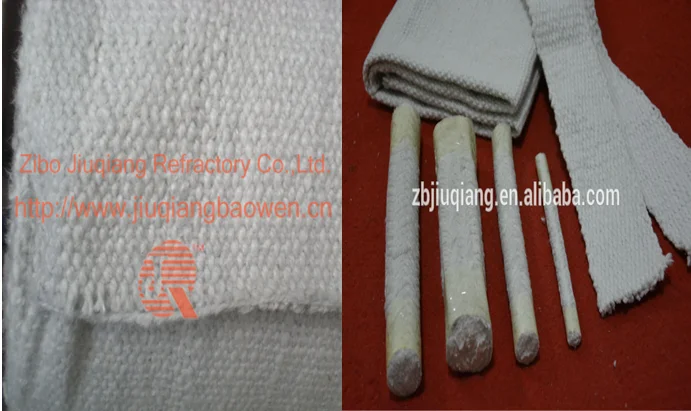

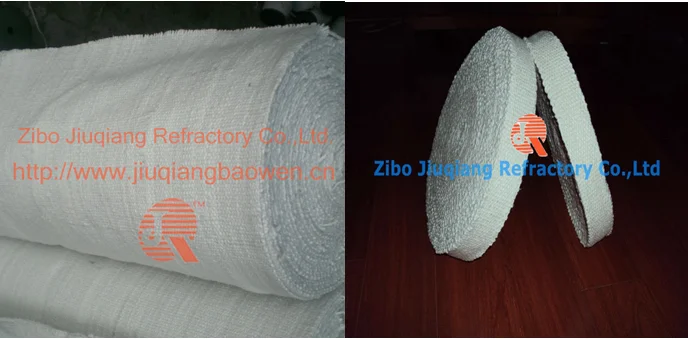

Jiuqiang heat resistant cloth/tap is a woven fabric made from our high quality ceramic fiber


woven yarn. The cloth is reinforced with fiberglass filament, or optional Inconel/alloy steel wire


reinforcement. Ceramic fiber textiles (cloth, tape and rope) contain a certain amount  of binder


material which is normally burnedat lower temperature and does not affect the insulatio property.


It is featured with heat insulation and high temperature protective materials in all kind of thermal


installations and heat-conducting systems, widely used in welding, foundry works, aluminum and


steel mills, boiler insulation and seal, shipyards, refineries, power plants and chemical plants.




Products Advantages_.jpg





-Lightweight and low thermal conductivity.





-Excellent insulation at high temperature.





-Resists corrosive chemicals, commonly used acid and alkali.





-Strong and abrasive. It can be used in tough environment.





-Good substitute of asbestos products in many insulation and sealing applications.





-Reinforcing material: glass fiber wire, stainless steel wire, glass fiber and stainless steel wire







Typical Application_.jpg


-Heat insulation furnace curtain, large area thermal insulation.





-Radiant heat shielding, flexible fabric expansion joints for high temperature piping.





-Safety blankets, welding blankets, protective and insulating covers, gaskets, cable or pipe wrapping, etc.








Technical Data_.jpg





































































 Item



Ceramic Fiber Cloth



Ceramic Fiber Tape



Product Code



JQCFC01



JQCFC02



JQCFT01



JQCFT02



Classification Temperature



1260C



1260C



1260C



1260C



Work Temperature



450C



1000C



450C



1000C



Basic Material



Fiberglass Reinforced



Stainless Steel Reinforced



Fiberglass Reinforced



Stainless Steel Reinforced



Theoretical Density ( kg/ m3)



500±15



500±30



Moisture Content (%)



≤2



Warp Density



48~60 Piece/10cm



Weft Density



21~30 Piece/10cm



Organic Content (%)



≤15



Specification (mm)



L:30,000mm / W:1,000mm / T:2~3mm



L:30,000mm / W:75mm / T:2~3mm



Packing



Plastic bag inside, Carton box outside






Our Certificate


04_





Shipping and Packaging_.jpg


  Package Arrangment


 plastic bag inside and carton box outside








Shipping Arrangment





first loading port :Qingdao


According  the goods,we send by sea,by air ,or by express






















Company Inforation


Company Information_.jpg


 Zibo Jiuqiang Refractory Co.,Ltd is a professional ceramic fiber paper,board,blanket,textitles


(cloth,tape,rope) manufacture,the ceramic fiber paper (cotten fiber paper) we produced has been


exported to all over the world and won a very good reputation.Ceramic fiber paper,ceramic fiber


board,ceramic fiber blankets and felts,ceramic fiber bulk,ceramic fiber modules ,with kinds of


mecihanical anchor fixings,ceramic fiber textiles(cramic fiber yarn,cloth,tape,twisted rope&briaded


rope),special shaped ceramic fiber products/vacuum formed ceramic fiber products.





Our Main products





510_








                  Choose US,Why ?








 plate 6


plate 4


plate 5





1.Zibo Jiuqiang Refractory Co., Ltd is a professional manufacture and

   exporter of the heat insulation material.



2.Senior R&D team and quality managers guarantee the product quality.





3. Large-scale production lines ensure the fast delivery time.





Welcome your  kind  inquiry  on  our High quility products,





happy  to  set  a  good  coopration  with  you
