Brief Introduction of 380V 3phase Electric motor RE AC Servo Motor Drive
XingTai Servo Motor are RE Permanent magnet synchronization servo motor ,was conceived and designed as an advanced and homogeneous range of high performance servo actuators,in line with the evolving demands of the automation industry ,and is particularly suited for direct drive applications. XingTai Servo Motor reach the highest torque/size and power/size ratios in the industry ,they are designed with Rotating transformer encoder,as standard feedback devices,optional or inductive encoders,custom designed for motor operation,which offer absolute resolution up to 8 million points/rev thus affording the best motion uniformity even at the lowest speed,or multiturn absolute encodes,all with serial Endat interface and electronic nameplate, with this features,the limits of mechanical transmissions are overcome and a vast range of applications can be transferred to direct drive technology. XingTai Servo Motor Designed for process lines and apply in sustained operation at high speed,forced cooling over frame with fan servo controlled by the motor ,overall protection grade IP 54;
The advantage of combination of permanent magnet and Magnetic reluctance are: 1.10% higher efficiency than induction motor; 2.wider speed range compared to general permanent magnet motor; 3.Slender structure make motor faster dynamic response ,lower noise; 4.Special airduct design make the motor more outstanding cooling effect.
XT690 Series Servo Drive and Motor for injection molding machine
Servo drive and motor Specification:
*Note:The adaptive servo motor and pump suggested on the sheet are referring to 140kg pressure systems.For others please contact us for best suggestions.
Independent R&D
Strict Quality Test
Production & Warehouse & Package
Applications

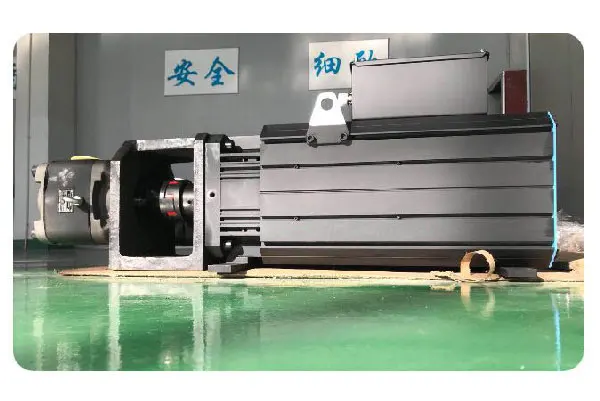

380V 3phase Electric motor RE AC Servo Motor and Servo Drive for Injection molding machine
High energy saving,High performance,High precision,High response,High efficient:
Retrofit your traditional injection molding machine with Xingtai Servo not only to save energy and but also make high quality plastic products.
Company Information
Ningbo Xingtai Technology Co.,Ltd ( Brand XingTai Servo) are professional servo system solution providers for injection molding machine in China, we Concentrate on the research & development, production and sales of high performance servo drive and motors from 2002,We have strong and professional R&D expert as well as technical and sales service teams which are almost 50% of the total employee. XingTai Servo independently R&D and produce XT50 and XT690 series servo drives and its matched servo motors for injection molding machines,which could energy conservation up to 50%.
XingTai servo have obtained 3 national invention patents, 16 national utility model patents, 1 appearance design patent; On the market feedback,the performance of our products are far ahead of domestic similar products and reaches the level of European top-class standards.Our XT690 Series have passed CE certificate .
Until Now ,XingTai Servo have exported to South Korea, Southeast Asia, Middle east , Africa, South America .etc more than 20 countries and are all well received by our both quality and service.
FAQ
1.Do you offer complete set of servo system for injection molding machine? Yes ,We are offering professional solutions of complete set of servo system for different tonnage injection molding machine,We offer servo drive+servo motor+pump+pressure senser+brake resist+other accessories.etc.Please inquriy us for best solutions,
2.What is your mainly delivery port?
Our factory is loacted in Ningbo city,Ningbo Port is our primary choice of delivery sea port.
3. Is there a minimum quantity request?
We does not require a minimum order for standard servo drive and motor, as we understand that some customers may only need 1 or 2 sets of our products or wish to try us out for the first time.
4.What are your packing methods?
We mostly pack into wooden cases or a combination of box and pallet.Xingtai packages will protect the servo drives well.
5.When can I except to receive my order?
Generally 3-15days after order confirmation.
6.What is your servo products quality assurance?
Our XT690 Series servo drive passed CE certificate and all servo drive and motors will be tested on injection molding machine in our factory before delivery ,You just assemble and easy debuge as per our introductions.
Generally we offer 18month warranty for our servo drive and motors,Any problems we are on the behind of you.
7.Is there any possibility to be your partner in our country?
Yes,We are looking for agent in differrent countries and areas ,Please contact one of our sales manager for more business cooperation.
Servo drive and motor Specification:
