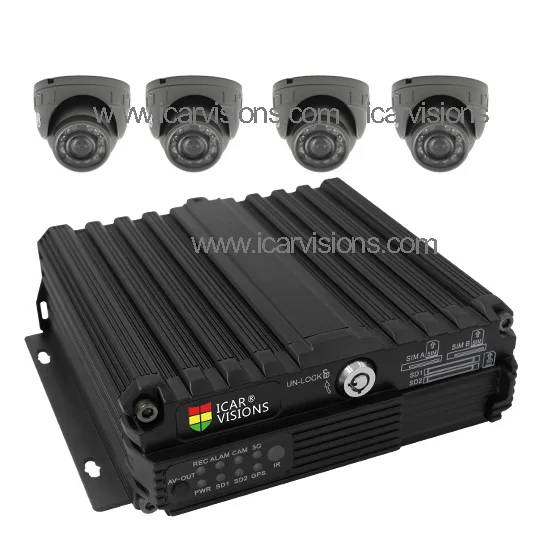

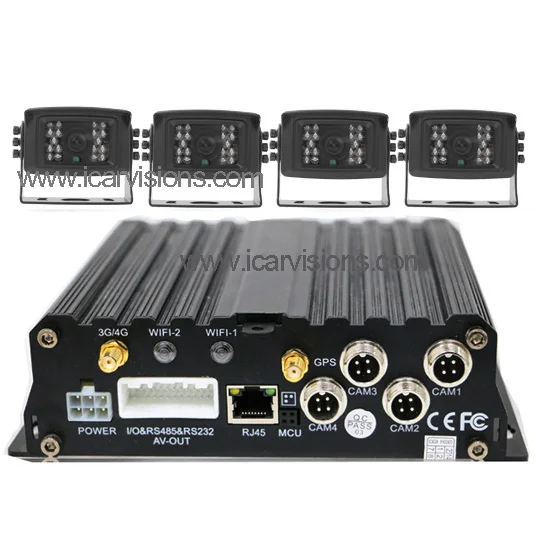

4Ch H.264 SD card mobil DVR with real time video and audio,gps,3g,4g,wifi module for optional

Product Overview

Description

4Ch H.264 SD card mobil DVR with real time video and audio,gps,3g,4g,wifi module for optional



Company Profile

ICARVISIONS(Shenzhen)Technology Co.,Ltd. is a global leader in designing, manufacturing and deploying innovative range of Mobile Digital Video Recorder (MDVR) and vehicle monitoring site solutions.



The company was established by a group of experts in wireless digital video vehicle monitoring system industry with more than 8 years experience. We develop our own exceptional core technology and sustainable R&D strength, specializing in hard disk Mobile DVR, SD card Mobile DVR, vehicular camera, 3G portable mobile monitoring system, monitoring software platform, inside Car Camera etc. Icarvisions products are so reliable and cost effective which are widely used in more than 40 countries and regions, such as Latvia tour bus project, Australia taxi project, Canada tanker truck project and other projects.



Icarvisions shares the belief that things can always be done better for our customers. Our products and full service are all designed, manufactured and delivered with this in mind.



1.Product Introduction





Function		Performance
System	Language	English / Chinese
	Operation Interface	Graphical menu operation interface(OSD menu)
	Password security	Permissions setting of administrator & user
Video	Video input	4 channels  support CIF/HD1/D1/960H/720P AHD camera
		RJ45 X 1, for IP camera or external Wi-Fi module (802.11ac)
	Video output	2 channels (1 as φ3.5 Phone Jack, 1 at 24pin connector)
	Video display	Single picture,5 pictures
	Signal system	PAL / NTSC
	Image compression	H.264 Main profile
Audio	Audio input	4 channels
	Audio output	2 channels (1 as φ3.5 Phone Jack, 1 in the 24pin connector)
	Record format	Synchronized video & audio recording
Recording& Storage	Video resolution	Support 4 channels CIF/HD1/D1/960H/720P AHD camera Video input Support 2-CH 720P AHD + 2-CH 960H analog mixing Video input Support 1-CH 720P/1080P IPC + 4-CH 960H/D1/CIF Video input Note: 4 channels 720P AHD or 1-CH 720P/1080P IPC + 4-CH 960H Video input need high fast SD card,speed over 80MB/S
	Video coding	ISO14496-10
	Video bit rate	CIF: 1536Kbps ~ 128Kbps,
		D1: 2048Kbps ~ 400Kbps,
		960H: 2048Kbps ~ 400Kbps, 720P:4096Kbps ~ 400Kbps
		8 grades of image quality optional, Grade1 as best, Grade8 as lowest
	Audio bit rate	8KB/s
	Storage	2 SD card storage optional, up to 128 GB / card
Alarm	Alarm input	8 channels, alarm activated by low voltage (<1V) or high voltage (>5V)
	Alarm output	1 channel, 12V output
Communication Ports	RS485	RS485 ×1
	RS232	RS232 ×2
GPS	Built-in GPS module. Real-time geographic coordinates, speed information
G-Sensor	Built-in G-Sensor
Wireless Communication	3G	Built-in 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) module optional
	4G	Built-in 4G(TDD-LTE / FDD-LTE) module optional
	Wi-Fi	Built-in Wi-Fi( 2.4 / 5.8 Ghz) optional
Software	PC playback	Video files playback in PC with analysis of the vehicle status
	CMSV6 / IVMS	Wireless real-time video & audio monitoring, GPS, alarm, etc.
Software Upgrade	Upgrade through SD card





2. Features



- 4 channels synchronized video & audio recording and playback,

-Support 4 channels CIF/HD1/D1/960H/720P AHD camera Video input
Support 2-CH 720P AHD + 2-CH 960H analog mixing Video input
Support 1-CH 720P/1080P IPC + 4-CH 960H/D1/CIF Video input
Note: 4 channels 720P AHD or 1-CH 720P/1080P IPC + 4-CH 960H

Video input need high fast SD card,speed over 80MB/S
- Dual SD card storage, support 128GB SDHC card and Class10 SDxc card
- Build-in G-sensor module
- Built-in GPS module,3G/4G module,WiFi module with 2 WiFi Antennas for strong signal
- Automatic downloading video files
- 8 seconds delay power-off for data protection
- 8V-36V wide voltage power supply
- Dimension(L×W×H): 188×170×50 mm

3. Model for option

4. Certification

5. Software

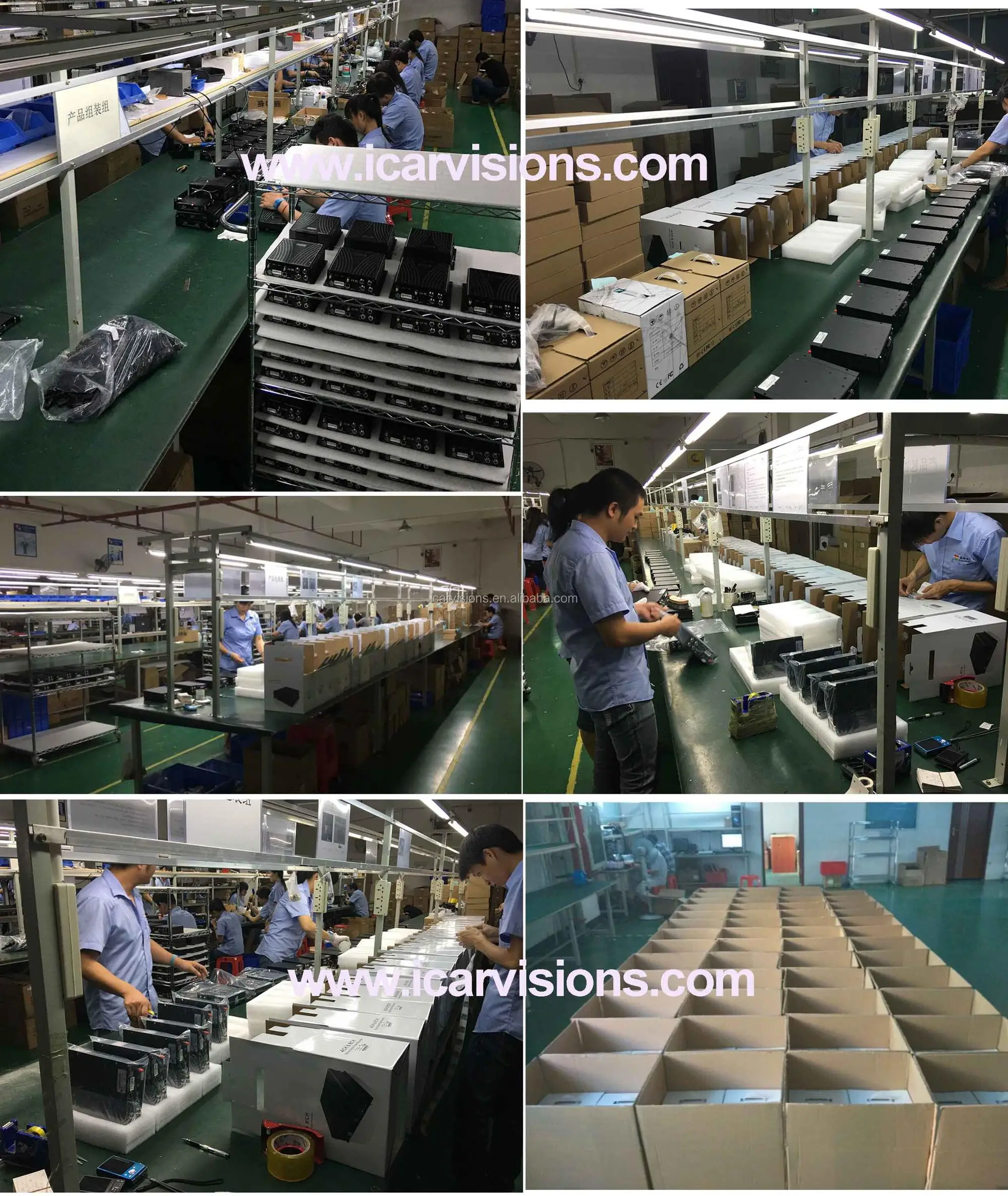

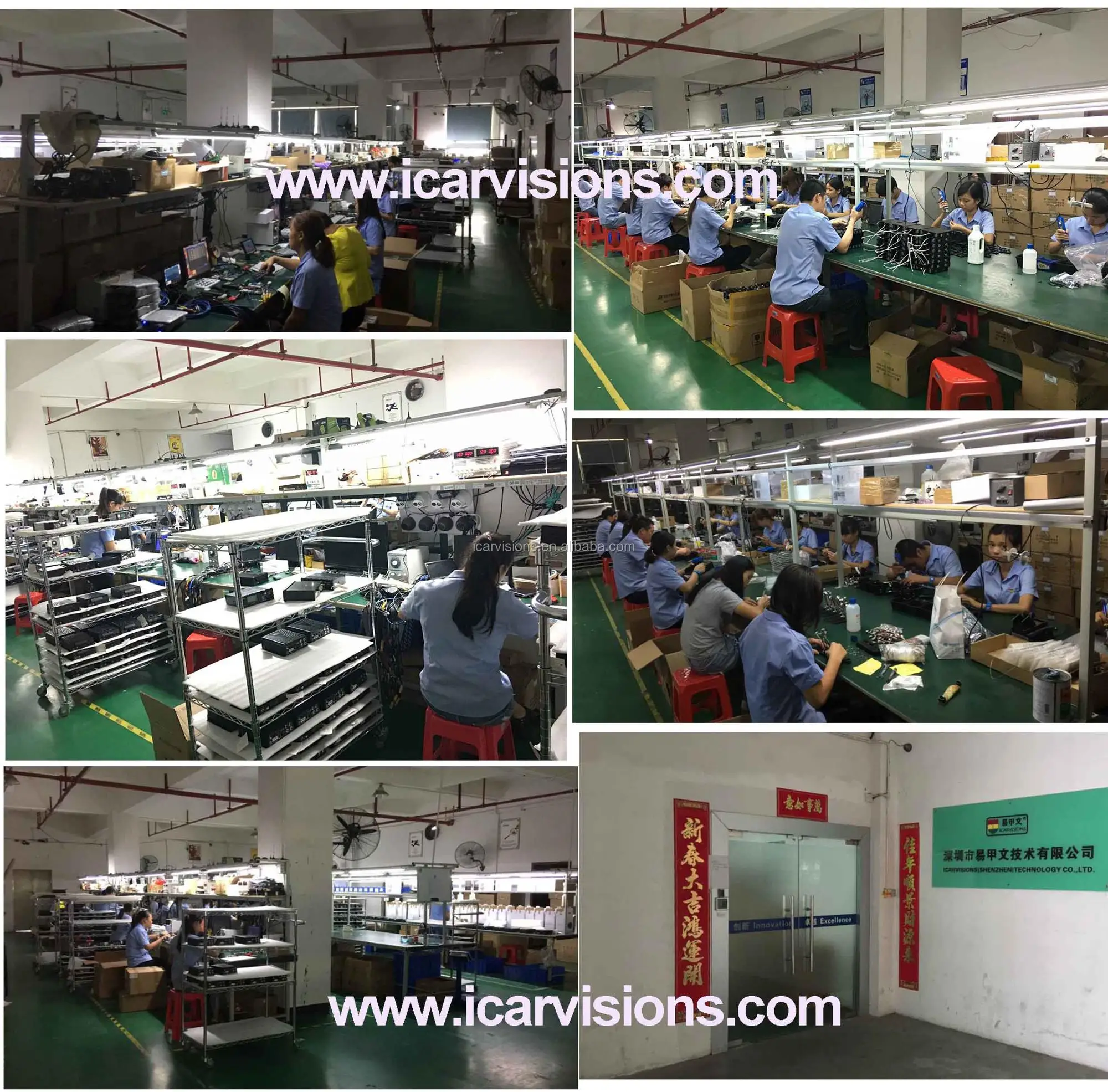

6. Factory
