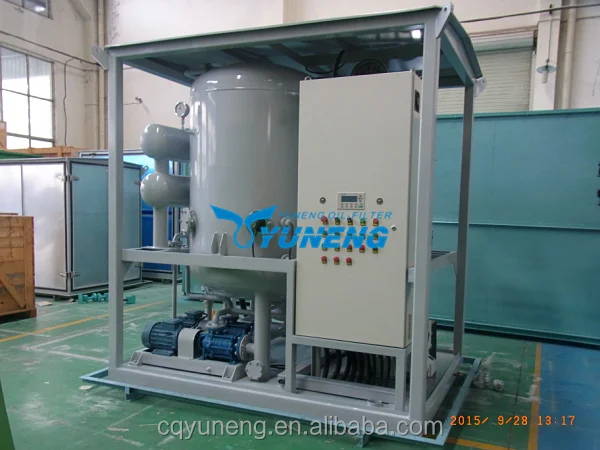

Transformer Oil Purification Machine with Vacuum Separatiion System ( 1000L/H to 40000L/H)
Product Description
Application:
It can remove water and gas in the insulating oil under high temperature and vacuity. it use more precise filter system to filter out impurities(filtering precision: 1-3um). It ia mainly used for purification of oil for transformer with voltage higher than 220kv. It can increase oil breakdown voltage more than 70kV.They are suitable for oil treatment, vacuum oil injection, and cylic hot-oil drying in the installation and maintenance of big transformers.
Besides, they can also be configured into three-stage high-vacuum oil purifiers to meet customers greater needs for oil treatment.
Item | Parameter | Type Unit | ZJA1.8KY | ZJA3KY | ZJA6KY | ZJA9KY | ZJA12KY | ZJA18KY | |
Technical Parameter | Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | |
Working Vacuity | Pa | ≤80 | |||||||
Working Pressure | Mpa | ≤0.35 | |||||||
Temperature Range |
| 45-65 | |||||||
Power Supply |
| 50Hz 380V 3-Phase 4-Wire (or as requested) | |||||||
Total Power | KW | 18+2.25 | 30+6 | 2X30+6.6 | 3X30+8.2 | 4X30+10 | 5X30+16.5 | ||
Inlet/Outlet Diameter | mm | 32 / 25 | 38 / 32 | 44 / 38 | 48 / 44 | 64 / 48 | 76 / 64 | ||
Size | Length | mm | 1200 | 1500 | 1870 | 1930 | 2160 | 2250 | |
Width | mm | 950 | 1150 | 1250 | 1400 | 1600 | 1750 | ||
Height | mm | 1600 | 2000 | 2200 | 2460 | 2650 | 2650 | ||
Weight | Kg | 650 | 900 | 1200 | 1600 | 2200 | 3000 | ||
Oil Treatment Index | Breakdown Voltage | KV | 70-75 | ||||||
Water Content | ppm | 3~5 | |||||||
Gas Content | % | ≤0.2 | |||||||
Filtering Accuracy | µm | cx1~3 | |||||||
Packaging & Shipping

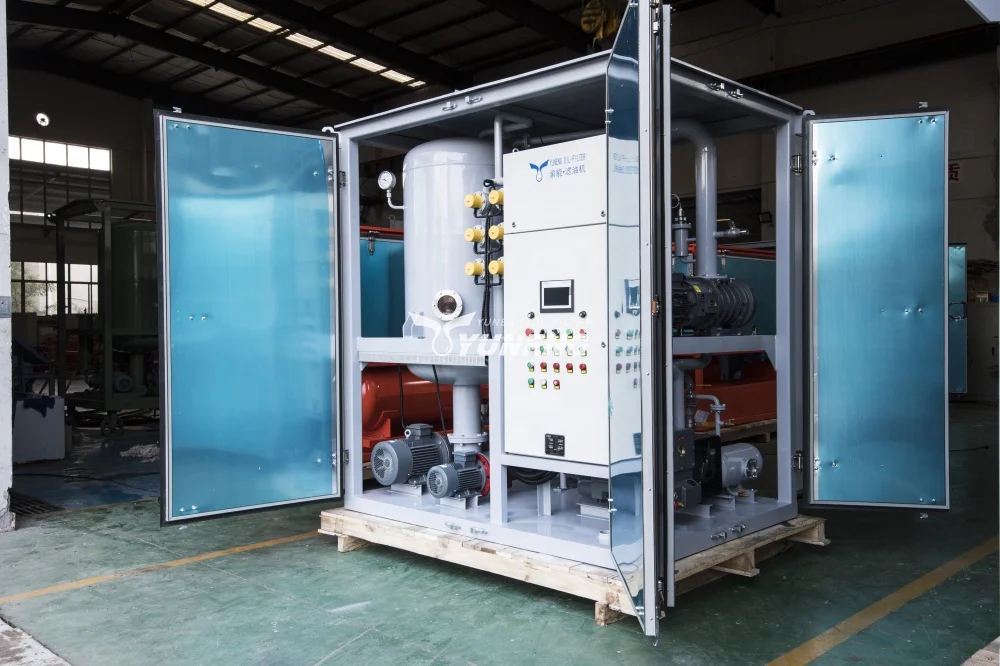

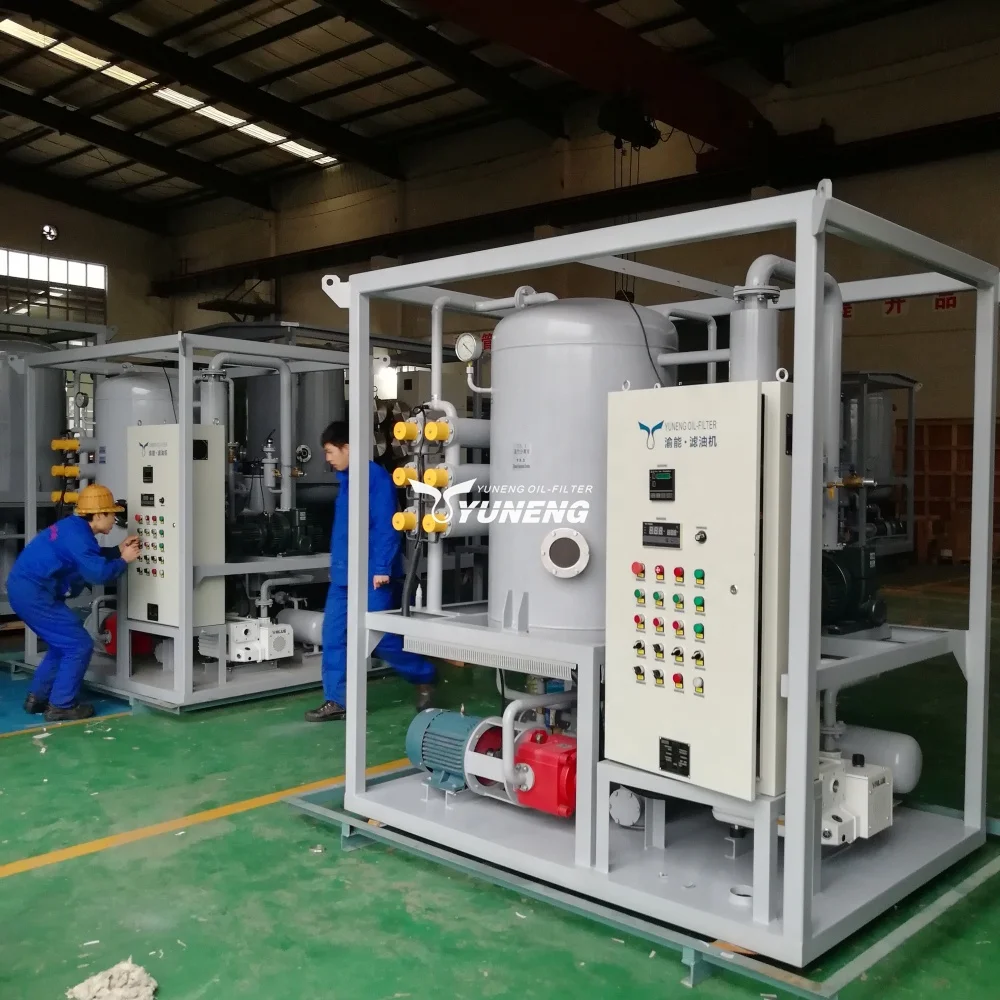

ZJA Multi-function Insulating Oil Purifier with different treatment capacity PHOTO FOR REFERENCE:
