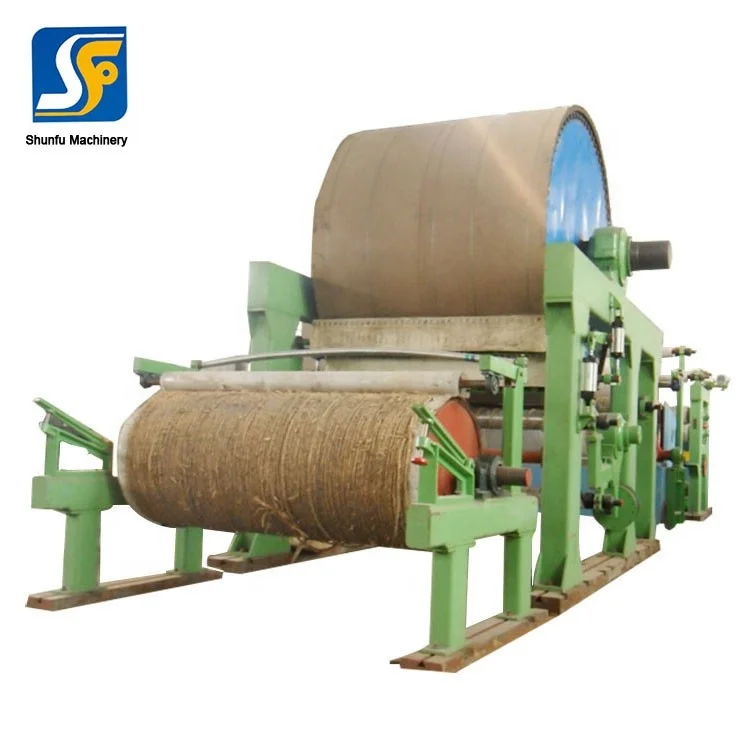

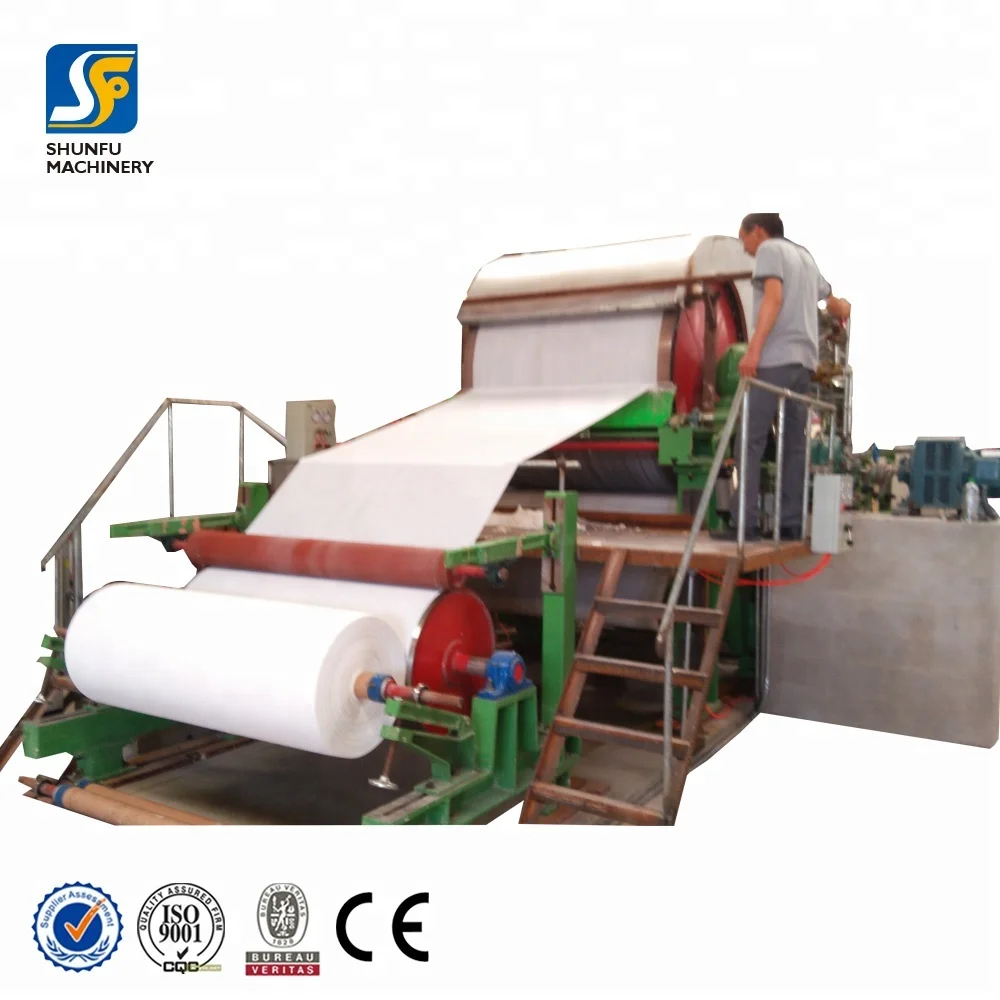

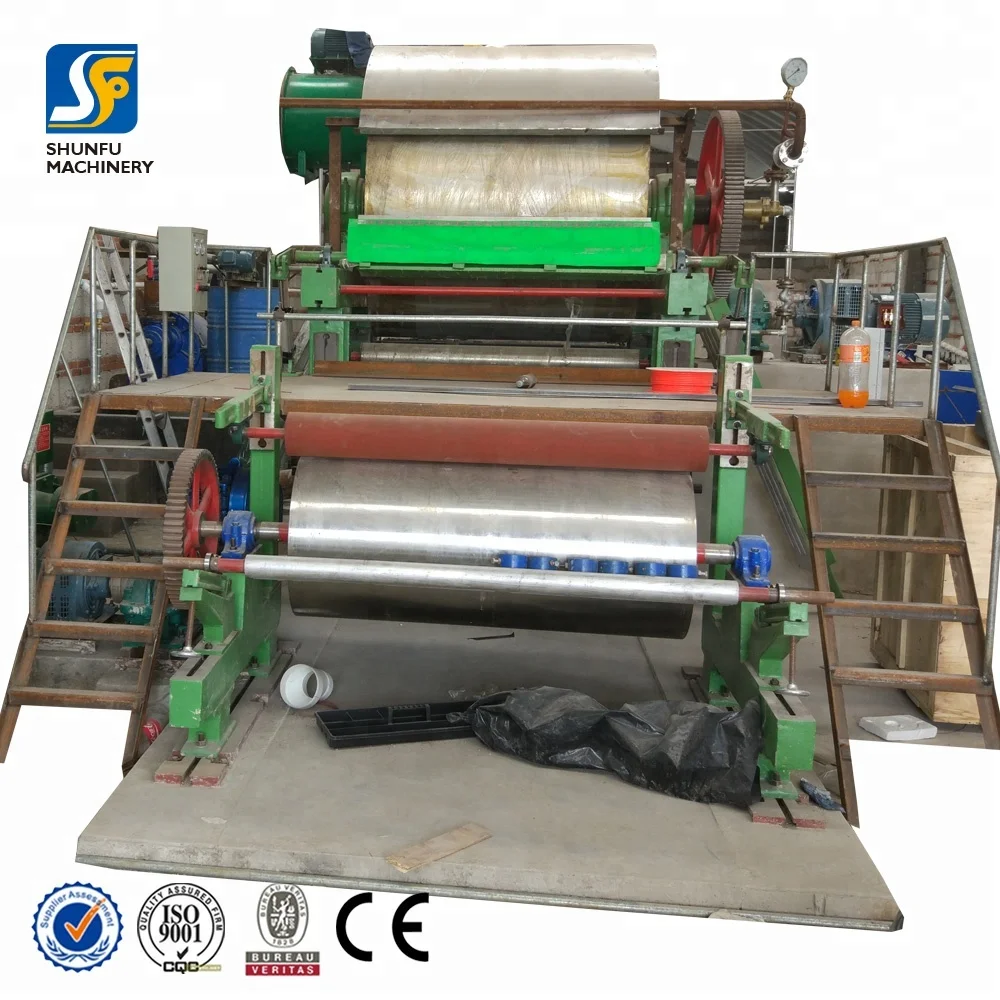

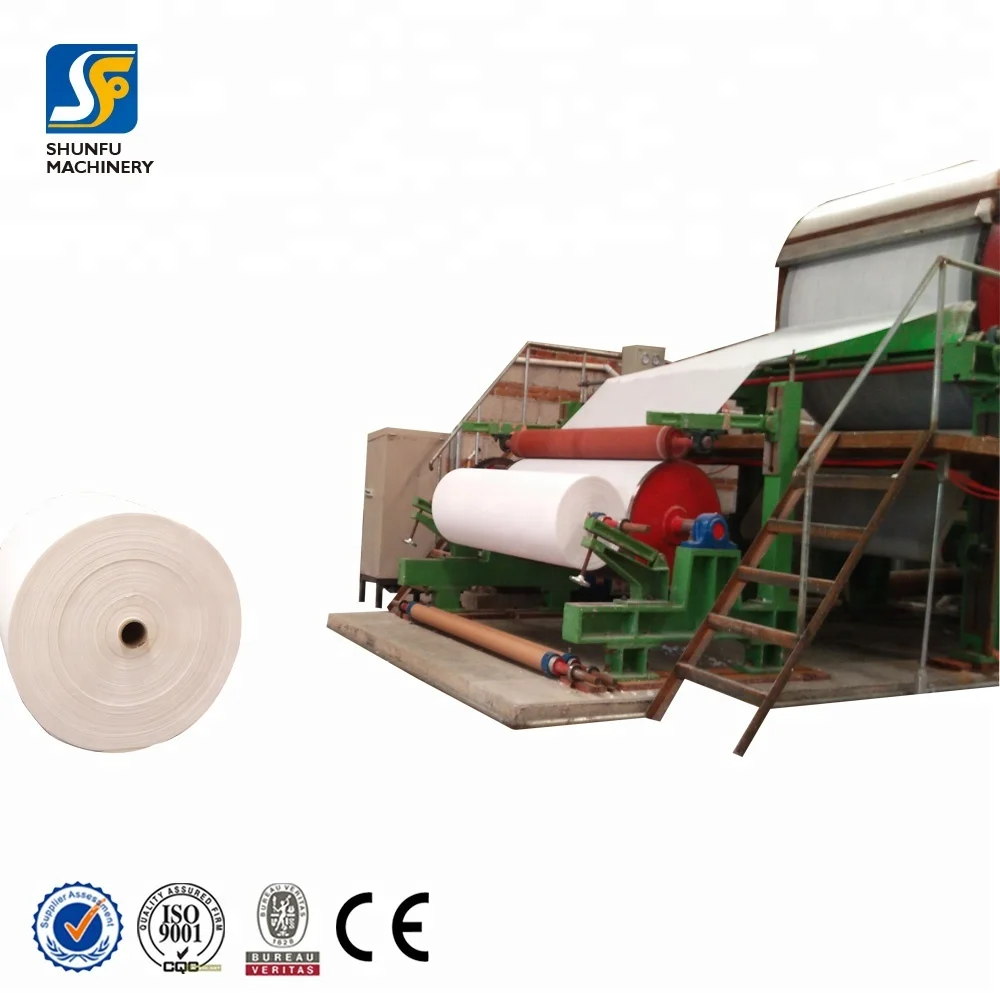

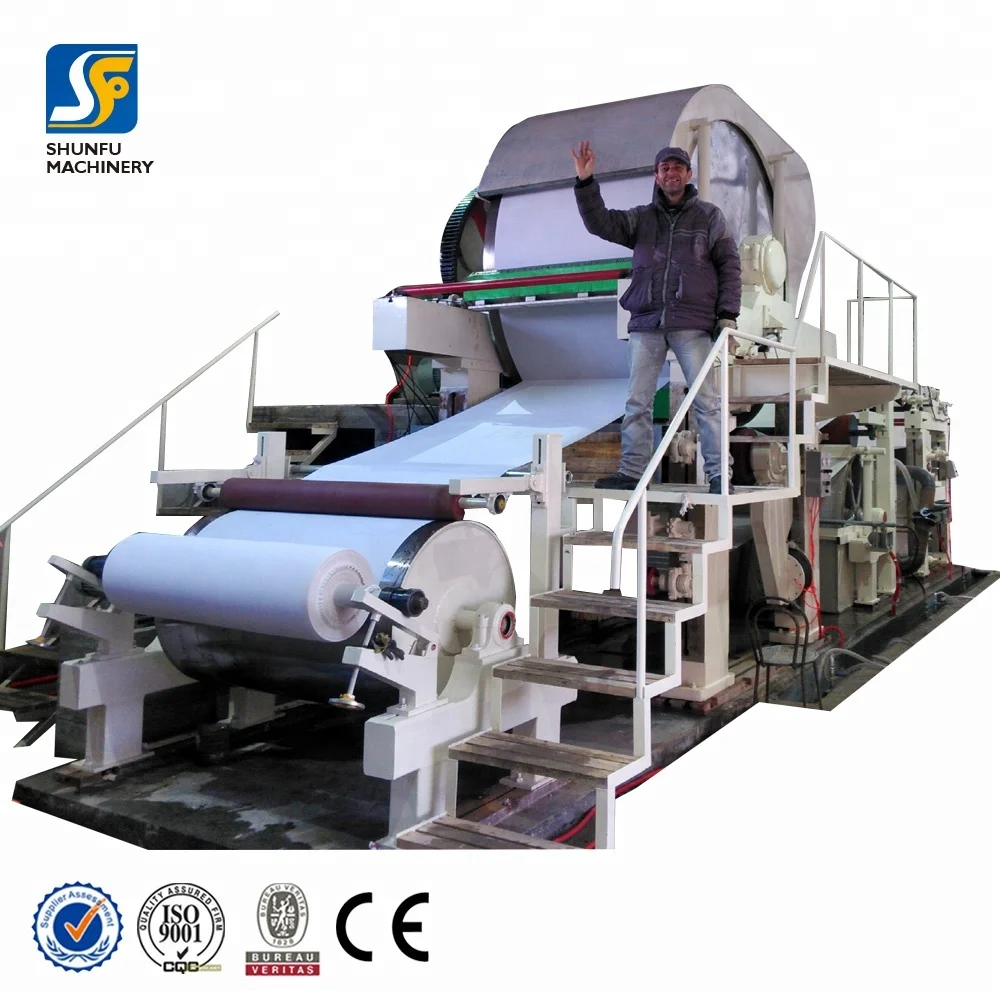

Tissue paper mill machinery small toilet paper making machine 787mm with capacity of 0.8 1ton per day

Product Overview

Description

Tissue paper mill machinery small toilet paper making machine 787mm with

                                              capacity of 0.8-1ton per day





Brief Introduction of our 787mm small toilet paper machine

The whole production line consists of below four parts:
1. Waste paper boiler system
2. Paper pulp making system
3. Tissue paper making machine
4. Valves, pipelines, cables and electrical control cabinets



Technical parameters of our 787mm small toilet paper machine
Raw material: waste paper, pure wood pulp
Output tissue: medium and high grade tissue paper
Width of tissue paper: 787mm
Width of net cage: 800mm
Output weight: 14-40g/m 2 ;
Capacity: 1.0 T/D
Rail gauge: 1300mm
Drive way: speed reducer drive



Main structure of the equipments

1. Cylinder part: one stainless steel plate type cylinder(φ1500mm×2850mm).one sealed pressure

cylinder vat.One couch roll(φ500mm×2850mm),rubber hardness HS-38°C ±2.

2. Dryer part:one dryer can(φ2500mm×2950mm),one touch roll(φ550mm×2850mm)pneumatic

loading mechanism.Rubeer hardness HSD 90 °C ±2,dryer can equipped with one set of double

air exhaust.

3. Reeling part:one roll cylinder(φ1000mm×2850mm),reel paper on sweat cylinder.

4. Rewinding and cutting part:equipped with rewinding and perforating machine.

5. Driving&control part: AC frenquency convertor&adjustable speed, processing transmission.

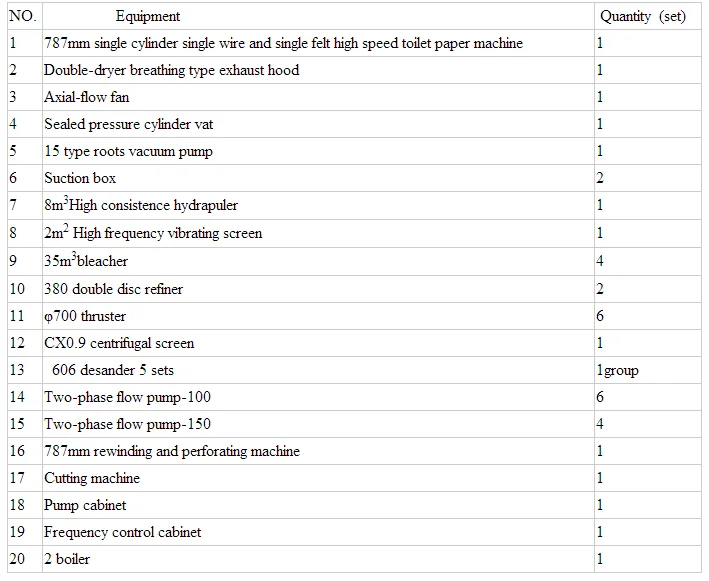

All the necessary equipments

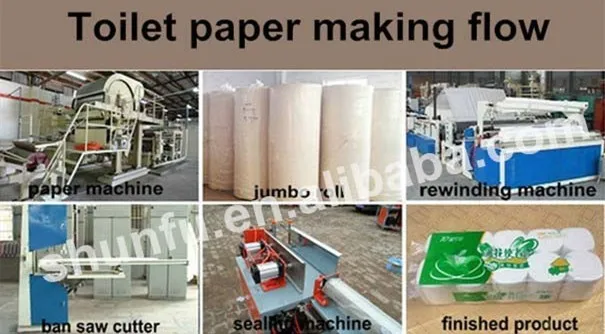

Flow chart



Main equipments

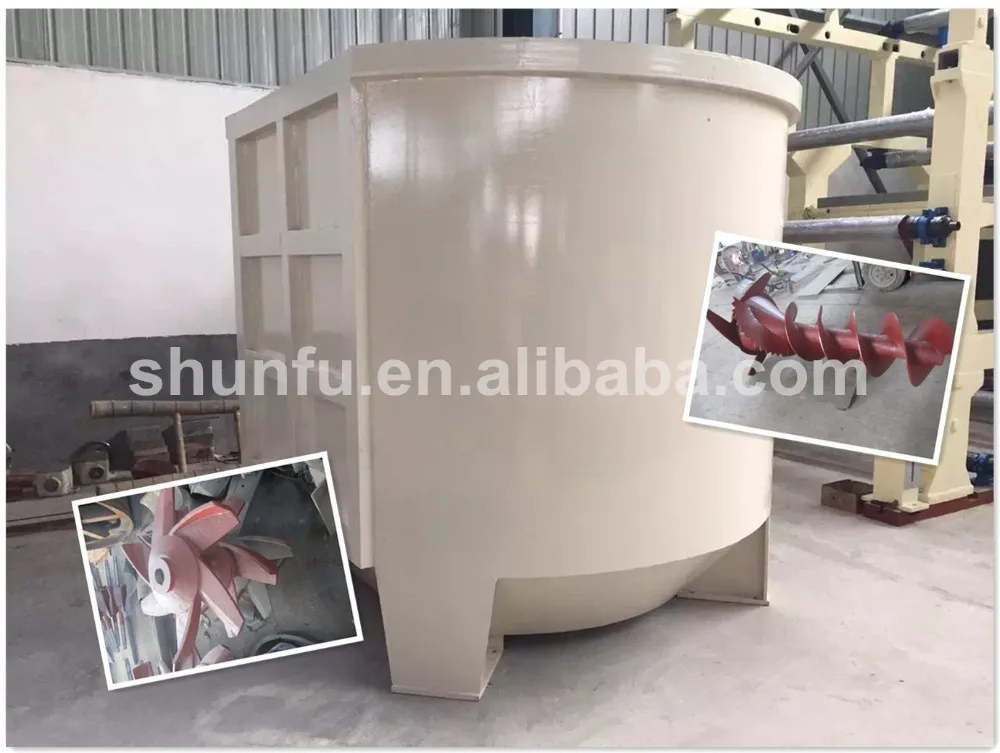

1. Hydrapulper

This product is used to pulp the pulpboard, newspaper, waste paper.

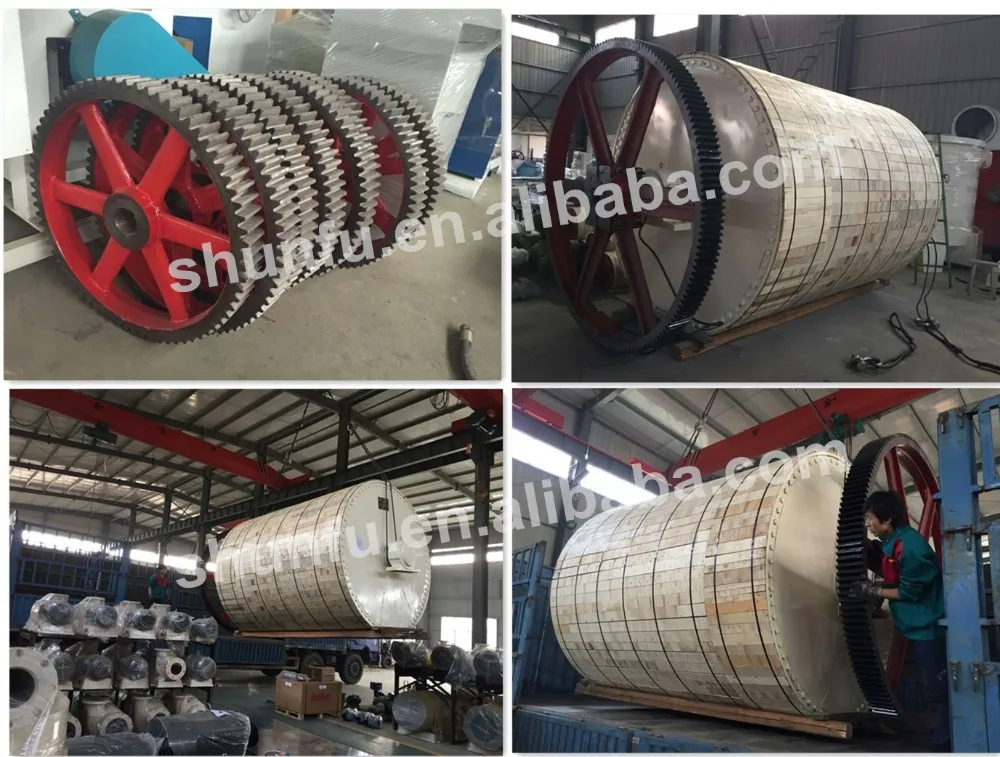

2. Dryer

This is one main part on the paper making machine, used to dry the wet paper sheet.

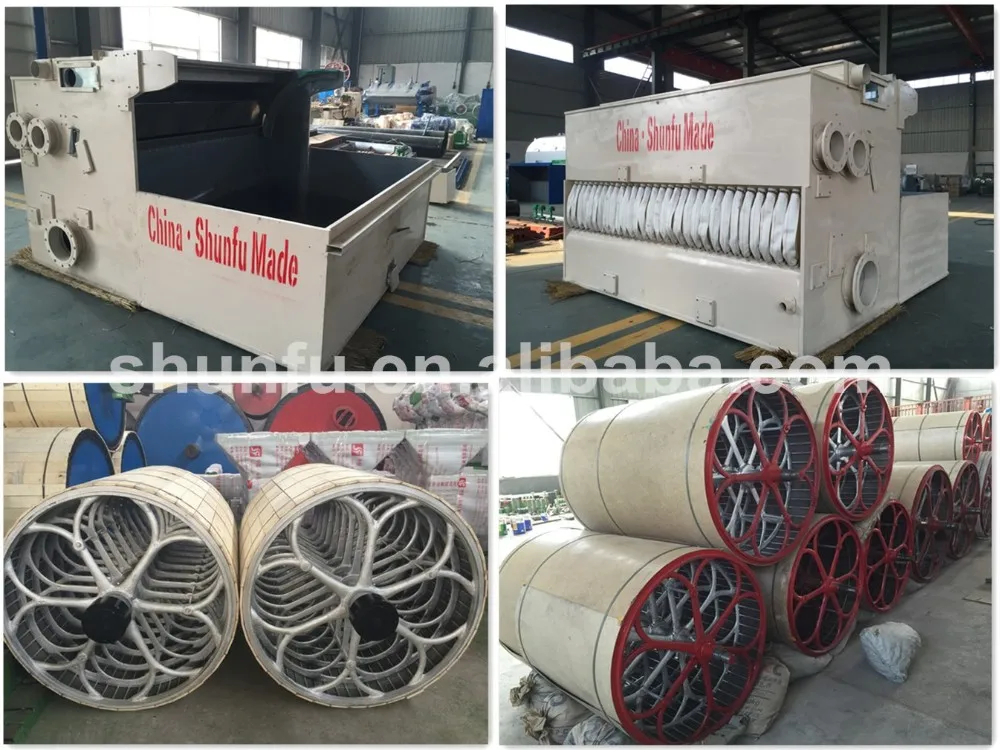

3. Cylinder mould

This is main parts of paper making machine, it used to make the paper pulp to wet paper sheet.

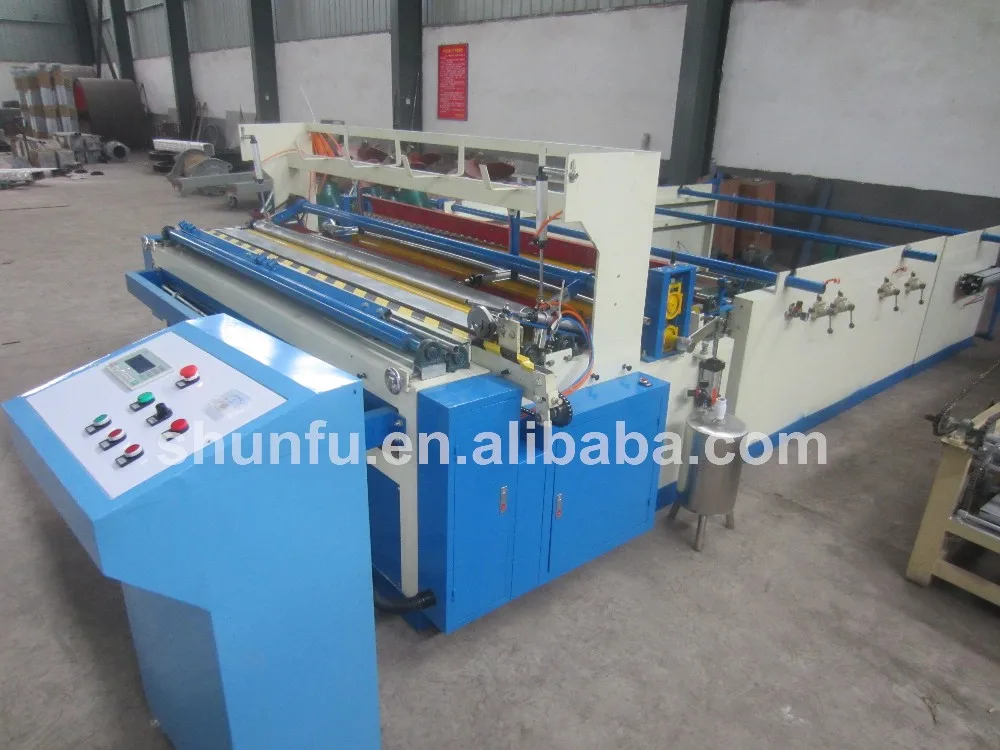

4. Rewinding and slitting machine

This is the main processing equipment after paper making machine, it used to make the rewinding

and slitting the jumbo roll to small bobbin paper, prepared for the folding machine. The specification

of bobbin paper can as customer's requirement.

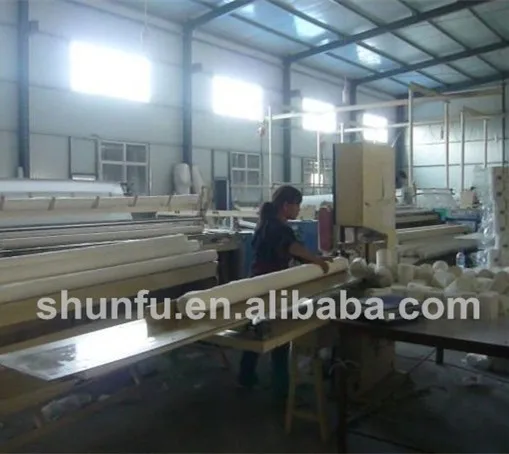

5. Toilet paper cutting machine

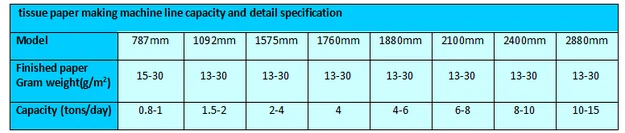

Related paper machine model



About Shunfu

Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. Was founded in 1988. We are

specialized in the production paper making machinery, pulping equipment, paper egg tray making

machine and paper processing equipment. Our products had been certificated by ISO9001 and

exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria, Ukraine, Botswana,

Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.
