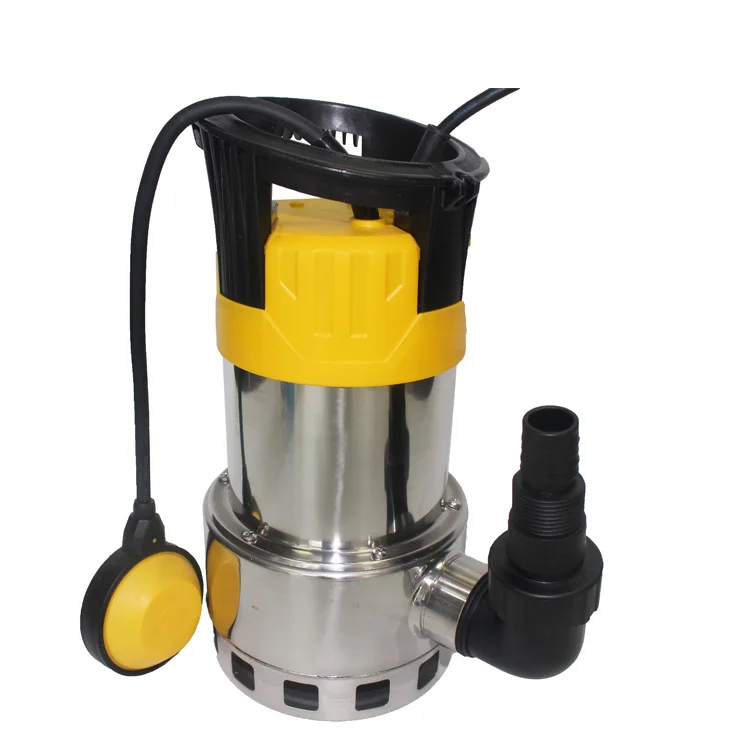

1100w High Flow Submersible Stainless Steel Garden Sump Pump For Dirty/Clean Water

Product Overview

Description

1100w High Flow Submersible Stainless Steel Garden Sump Pump For Dirty/Clean Water





Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C

Motor:
-Build-in overload motor protector with automatic reset
-Insulation Class B/F
-Protection IPX8



Materials:
-Pump body: PP
-Impeller: PPO, stainless steel if request
-Shaft with rotor: 45# Carbon Steel, stainless iron if request



Application:
-Hand-carry submersible automatic water pumps.
-Able to drain infiltrating water, cellars to reservoirs, clean or slightly dirty water and for garden irrigation.



Technical Data:



MODEL	POWER (W)	MAX HEAD (M)	MAX FLOW (L/H)	MAX SUB. DEPTH (M)	MAX GRAIN SIZE	CABLE AND LENGTH (M)	QTY/20”CTN (PC)

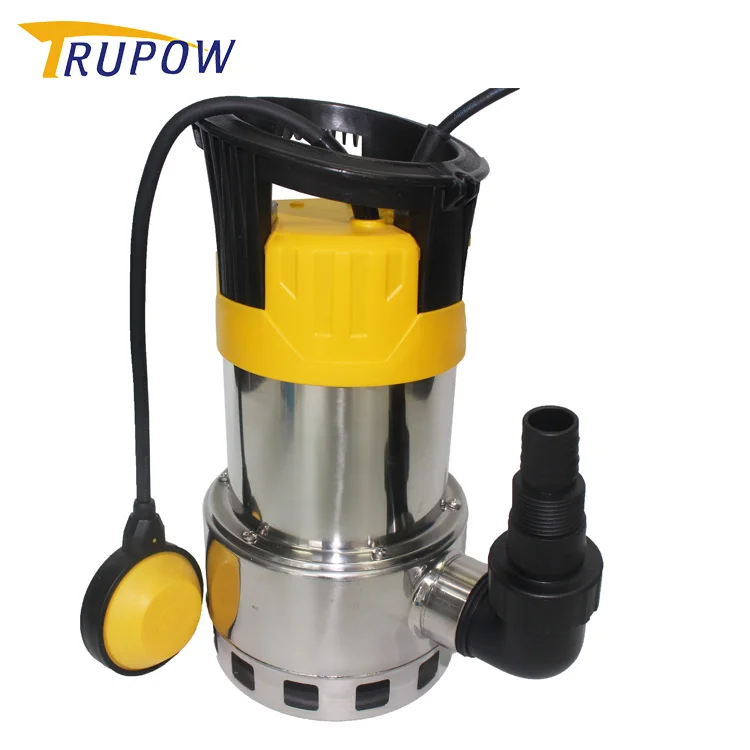

TP01489	550	7.0	10500	5	35MM	H05RN-F3G0.75mm2X10m	2040
TP01490	750	8.0	12500	7	35MM	H05RN-F3G1.0mm2X10m	2040
TP01491	900	8.5/7	14000/18000	7	35MM	H05RN-F3G1.0mm2X10m	2040
TP01492	1100	8.5/8	15000/20000	7	35MM	H07RN-F3G1.0mm2X10m	2040
