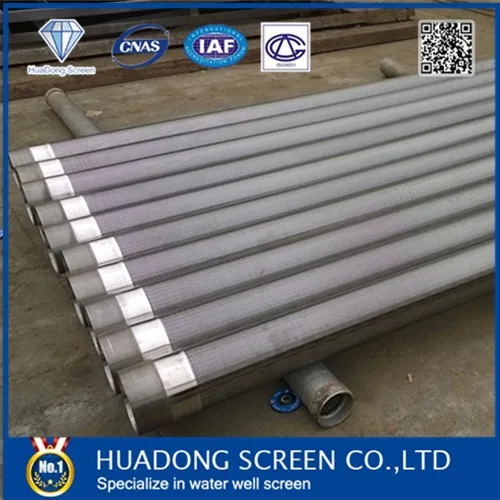

6 inch johnson water well screen pipe/Slot Well Screen

Product Overview

Description







underground sand control filter consist of V-shape profile wire and the longitudinal support rods.  The V wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.  So Water Well Screens has sturdy constriction and good mechanical property.



The V-shape section plane can avoid blockage and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the Water Well Screens under the great pressure, so it can filter sand better. Meanwhile, the slot of Water Well Screens can change according to the real condition of the earth.



 The  construction correspond with the follow drawings respectively

1.Standard contruction

2.Axial wire construction

3.Internal circumferential wire construction

4.inverwire construction





 Technical patameter

The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

Specification (wedge wire):	Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):	Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size:	0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:	galvanized low carton (LCG), stainless steel (304,316 etc.)
Length:	up to 6 meters
Diameter:	from 25mm to 1200mm.

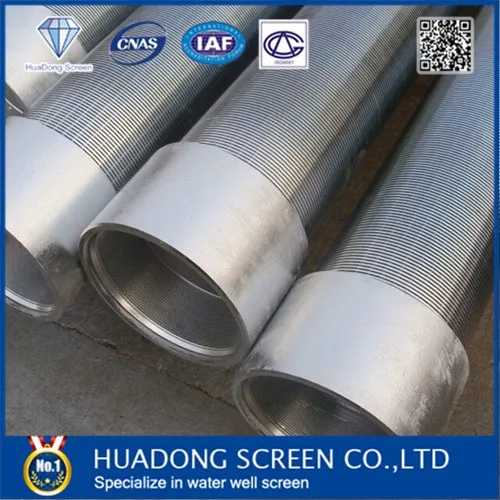

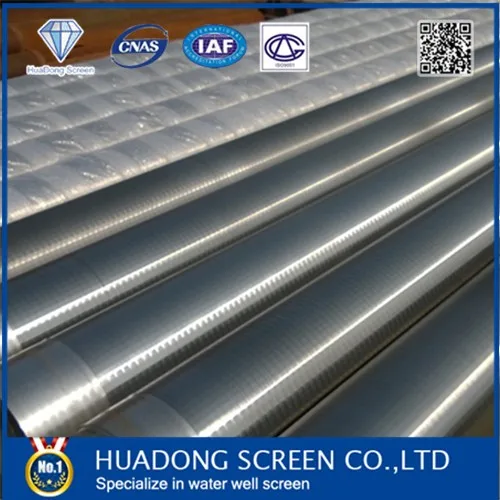

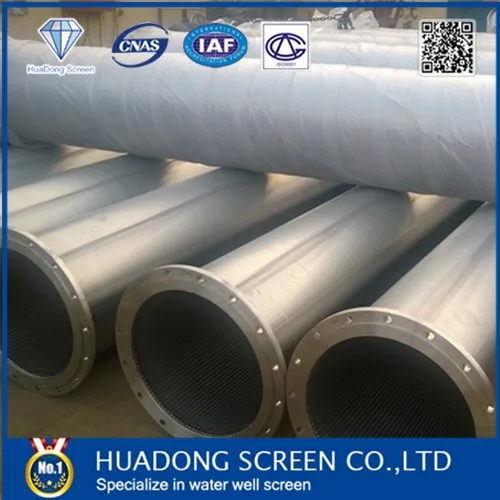

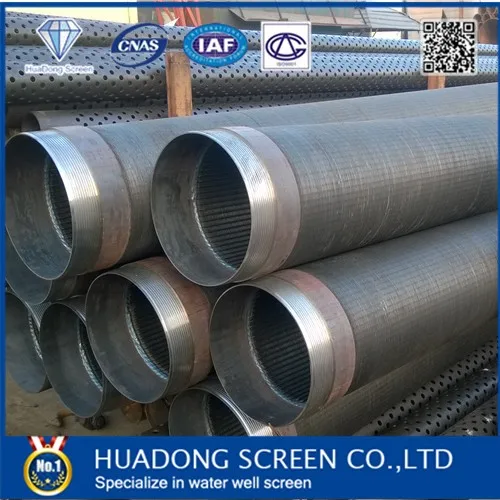

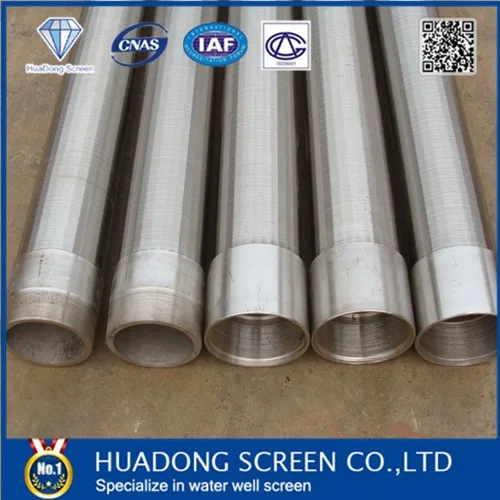

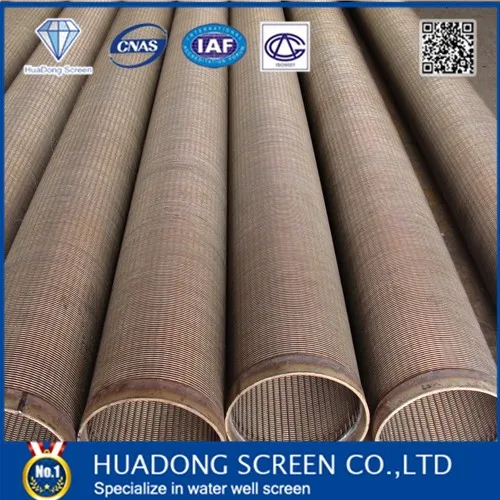

Picture Show



Details of  Water Filter



1. Materials: stainless steel and low carbon , such as 201 304 304L 316 316L Q235, and they can be made according to the customers requirement.



2. Diameter: 89-1000mm



3. Slot:0.05, 0.1, 0.2, 0.5, 0.75, 1, 1.5



4. Length: 3m&6m (5.8m for the 20ft container)



6. Connection: Welding, Thread (STC,LTC,BTC),Flange



7. Supply capacity: 6800m/month



8. First class technology, High quality, Competitive price, Fast delivery





Advantages of Water Filter



1.  Continuous Slot Wedge Wire Well Screens consist of V-shape profile wire and the longitudinal support rods.



2. Each intersecting point of wires of  Continuous Slot Wedge Wire Screens is fusion welded, so it has sturdy construction and good mechanical property.



3. The V-shape section plane of  Continuous Slot Wedge Wirewound Well Screencan avoid blockage, and make sure of the unimpeded water.



4. The consecutive slot of our  Continuous Slot Wedge Wirewound Well Screens have more open area, and  Continuous Slot Wedge Wirewound Well Screen can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.



5. The slot can change according to the real condition of the earth.



 Single with bubble bag and then in wooden case(fumigation certificate).

Each case is clearly marked with:

Name & identification mark of manufacturer-HuaDong Brand

Batch number

Date of manufacture

Material

Safe heating & application temperature
