7 inch LCD display Apartment Video Intercom Door Phone Kit Power supply E Lock Whole sale
- Category: >>>
- Supplier: Shenzhen Proyu Technology Co. Limited
Share on (60410726279):
Product Overview
Description

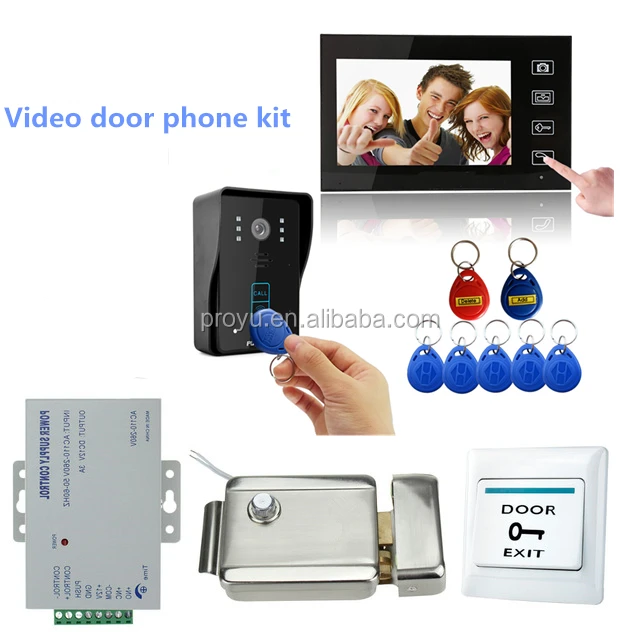

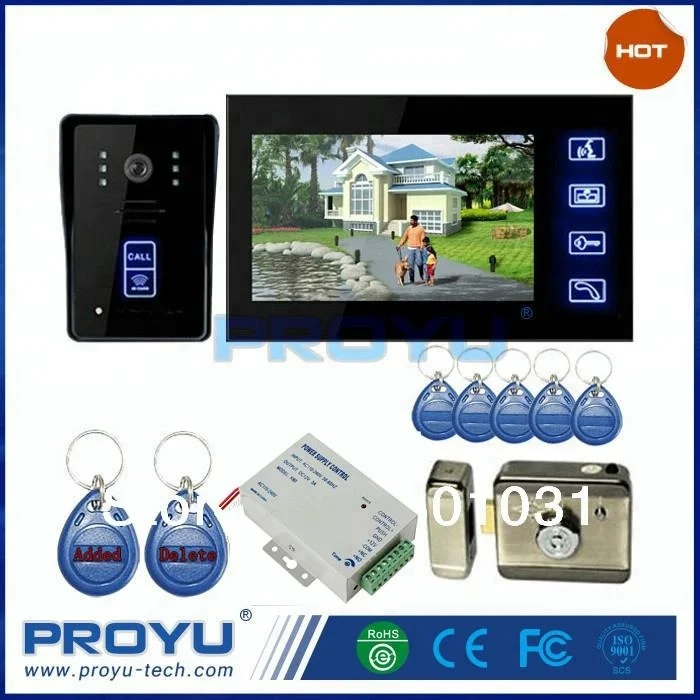

1. 7" Color Monitor Touch Key Video Door Phone System with RFID card reader PY-V806MJID11
Product Description
Features:
7”color TFT LCD with sensitivity touch panel. No radiation, low power consumption
Infared LEDs for night vision, more convenient.
Rainproof cover design, antioxidative Outdoor Unit with piano bakes lacquer panel.
16 kinds of rings for selection
The Volume, brightness and contrast can be adjusted
Piano bakes lacquer panel design on indoor unit, more fashionable and luxury
Hands free intercom, one-button touch makes perfect experience.
Comes with 5 RFID keyfobs,a push release button switch
Support one camera with several monitors, if you need more monitors, please feel free to contact us before bidding.
Added card
This card can authorize the ordinary RFID card to open the E-lock and the operations are shown as follow: Brushing the Added card on the camera-then brushing the ordinary RFID card- Brushing the Added card on the camera again at last. At this time, the ordinary RFID card can be used for opening the door lock.
Deleted card
This card can be used for canceling the authorization of opening the door lock, and the operations are shown as follow: Brushing the deleted card on the camera-then brushing the ordinary RFID card on the camera- Brushing the deleted card on the camera again at last. At this time, the ordinary RFID card is not available to open the door lock.
Outdoor Camera | |||
| |||
Night Vision | IR Light, visible within 5 meters | ||
Vision Angle | 92° Wide Angle | ||
Resolution | > 420 TV Line | ||
Plus Control | Automatically | ||
Power Consumption | Standby: 0.1W; Working: 4W | ||
Working temperature | -10°C~+55°C | ||
Installation | Wall mounted | ||
Size | 168(L)*110(W)*65(H)mm | ||
Net Weight | 310g | ||
Indoor Monitor | |||
|
| ||
Screen | 7'' wide angle TFT LCD, 16:9 Display | ||
Resolution | 480*RGB*234 | ||
Power input | AC100V-240V 50Hz-60Hz | ||
Power output | DC 15V | ||
Current output | 1200mAh | ||
Delay Calling time | 120s ±10% | ||
Delay Monitoring time | 40s ±10% | ||
Valid Distance | 80M (4x0.65 mm2) | ||
Power Consumption | Standby: 0.5W; Working: 8W | ||
Transmitting Distance of Image | about 200m | ||
Viewing Angle | 65° | ||
Adapter Input | AC100~ 240V, 50/60Hz | ||
Adapter Output | DC 15V | ||
Working Temperature | -40°C~+70°C | ||
Standby Temperature | -20°C~+60°C | ||
Installation | Wall mounted/lift on desk | ||
Size | 225(L)*128(W)*23(H)mm | ||
Net Weight | 460g | ||
Electric Drop Bolt Lock | |||
Power supply | DC 12V/1A | ||
Size of lock body | 8.07" x 1.38" x 1.65" in (L x W x H) | ||
Cylinder panel size | 3.54" x 0.98" x 0.08" in (L x W x H) | ||
Cylinder Size | 0.67" in length, 0.63" in diameter | ||
Live out | N.C (0.5A) connection point inside | ||
Power consumption | Start: 0.8A,Normal: 0.09A | ||
Weight | 800G | ||
Safety measures | Unlock when not energized | ||
Reverse connection of negative and positive poles of battery | |||

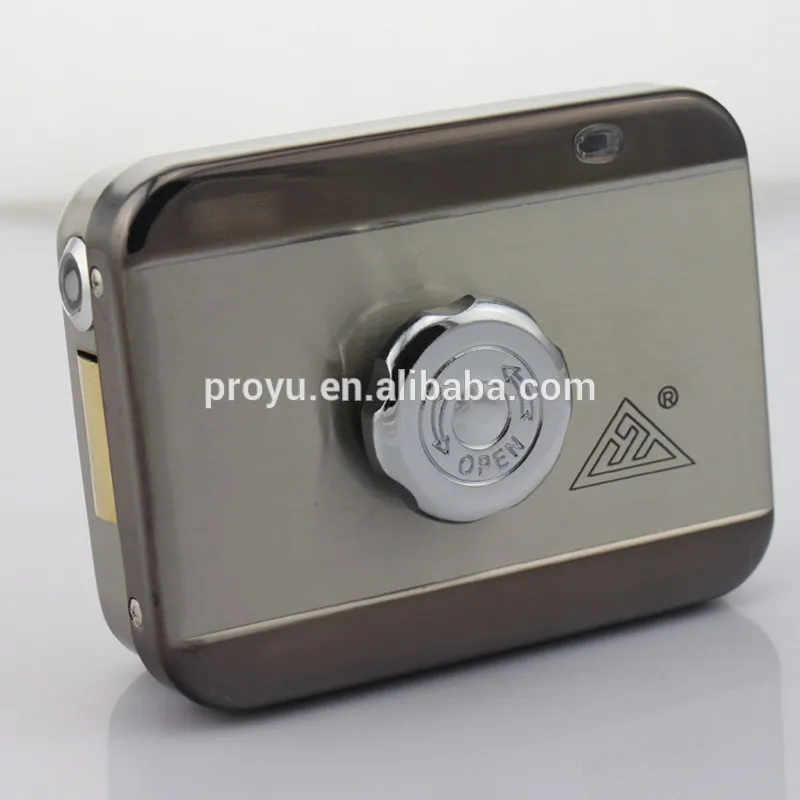

2.Home Security Access Control Electronic Door Lock For Door Phone Doorbell PY-EL1

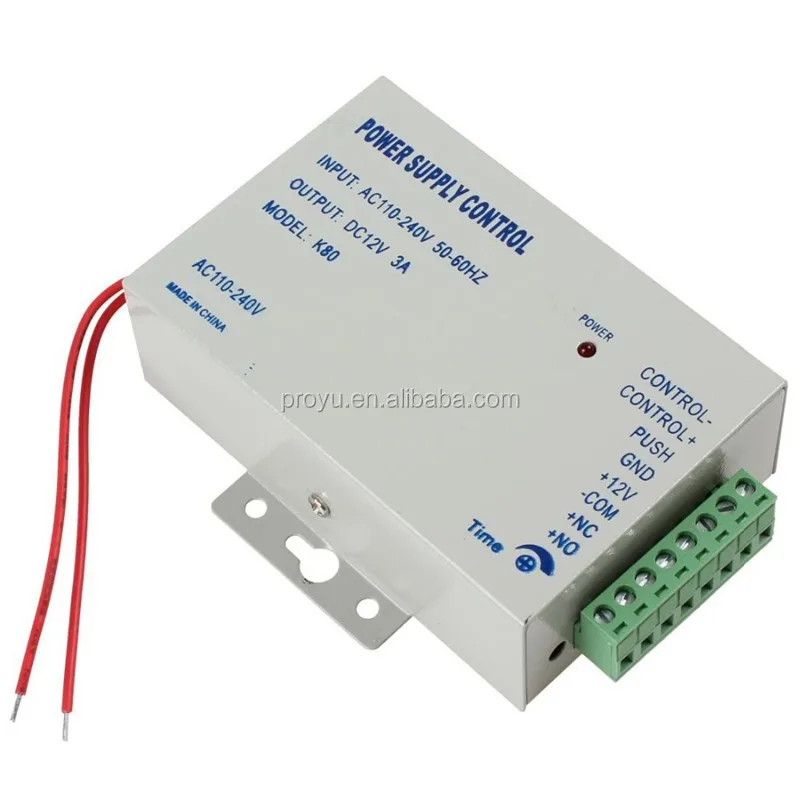

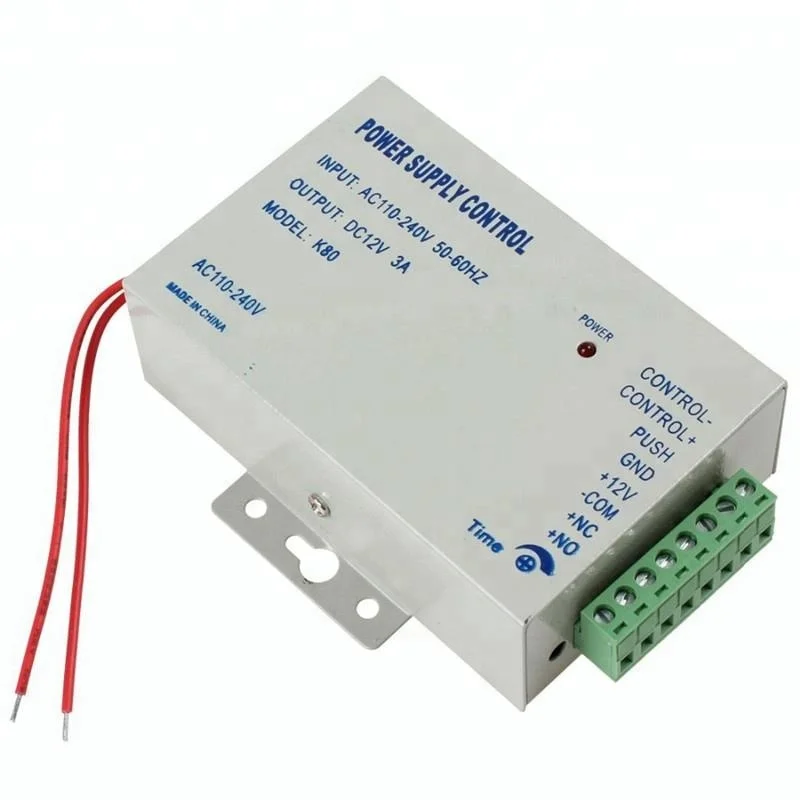

3.Hot-selling 12V/3A Access Control Switching Power Supply PY-PS3
The power source is small and exquisite , simultaneous remote control opens the door,installation is easy to carry about.
Merit:
Voltage range width all can be put into use regularly from 100 V-260V , one by one national power consumption of world voltage , weight suitable are light , transportation is convenient , the disturbance is small, output voltage characteristic property reduces stiffly from carrying idler to being fully loaded with voltage fluctuation only when +/-the temperature that locks, locks up to the electricity rises (compared with labor frequency power source) greatly.
Shortcoming:
The component is expensive , assembling handicraft is complicated.
Exchange imports:
Standard AC100V-260V 50-60HZ
Direct-current outputs:
Stabilivolt DC12V/ 3 A
The direct under the control of electricity is locked up:
In case that time lapse controls a circuit , unblanking time may in 0-15, the second is arbitrarily adjustable.
Automation protection function:
Think that the power source exports meeting automation protection nothing voltage when short circuit happened in the circumferential circuit.
Our Services
Payment Terms 1. Paypal
2. T/T (Telegraphic Transfer) or Western Union
3. Cash for face to face business
Shippment Method
1. International Express(DHL, TNT, Fedex, UPS, EMS), take about 3-7 days
2. International Airline, take about 5-15 days differently.
3. International Sea Shipping, slow but cheap for heavy goods, take about 10-50 days differently.
Product Warranty
We provide 1~2 years warranty from the date of delivery but lifetime technical support.
