SERICO JR07 Vital Signs multi (SPO2 ETCO2)

1.Touch screen,5.0 inch color TFT-LCD, simple for operating, quickly& accurately measure the data;

2.Build-in rechargeable Li-battery, up to 15 hours running time, support AC and DC power;

3.Adjustable audible and visual alarms, and sensor off alarm;

4.Long time monitoring and sleeping monitoring;

5.Easy to carry, suitable for ambulance center, has the stand for fixing

1.Storage and review data up to 3888groups via Trend Graph and Trend List.

2.USB

3.Big font screen interface is easy to observe;

4.Back light can be adjusted;

5.Free advanced software can used on PC/mobile phone

1.ECG

Input: 3- lead ECG cable, standard AAMI cable connector

Lead Selection:I,II,III

Gain Selection:×1,×2,×4,×8

Sweep Speed: 12.5, 25, and 50 mm/s

Frequency Response: None filter: 0.05~100Hz (-3dB), filter: 0.5~40Hz (-3dB)

Calibration Signal: 1mV square wave

Protection: Against electrosurgical interference and defibrillation

2.Heart Rate

Measuring Range: 20 bpm~300 bpm

Renew Time: 1 time per beat

Accuracy: ±1 bpm

Alarm Mode: Audible and visual alarm

3.SpO2

SpO2%

Measuring Range:0%~100%

Resolution:1 %

Accuracy:±2 %(90%~99%), ±3 %(70%~89%),unspecified (0%~69%)

    Pulse Rate

Measuring and Alarm Range:20~300bpm

Resolution:1bpm

Accuracy: ±1bpm

4.NIBP

Method: Oscillometric

Mode: Manual, Auto, STAT

Measuring Interval in AUTO Mode: 1, 2, 3, 5, 10, 15, 20, 30, 45, 60 (min)

Measuring Period in STAT Mode: 5 min

Cuff Pressure Range:0 mmHg~300mmHg

Pulse Rate Range:30 bpm~250bpm

Measurement Rage:

          Adult 30 mmHg~255mmHg,

          Pediatric 30 mmHg~160mmHg

Over-pressure Protection:

          Adult 300mmHg

          Pediatric 220mmHg

Pressure Resolution: 1mmHg

The SYSTOLIC and DIASTOLIC values measured using this device shall be equal to

those measured by trained medical personnel using cuff and stethoscope. The MEAN

value measured using this device is equal to that measured using blood pressure measurement device.

5.TEMP

Input: Body surface thermal-sensitive resistor temperature sensor

Measuring Range: 0℃~50℃

Accuracy: ±0.1℃

6.Power Supply

AC Power Adapter

Input: 100~240V, 50/60Hz, 0.7A

Output: DC 5V, 1.5A

Battery

Li-ion rechargeable battery, 3.7V/7200mAH

Operating Time: 15 hours with full battery capacity.

(Condition: 25℃, NIBP working period is 15 minutes)

Recharge Time: 10 hours.

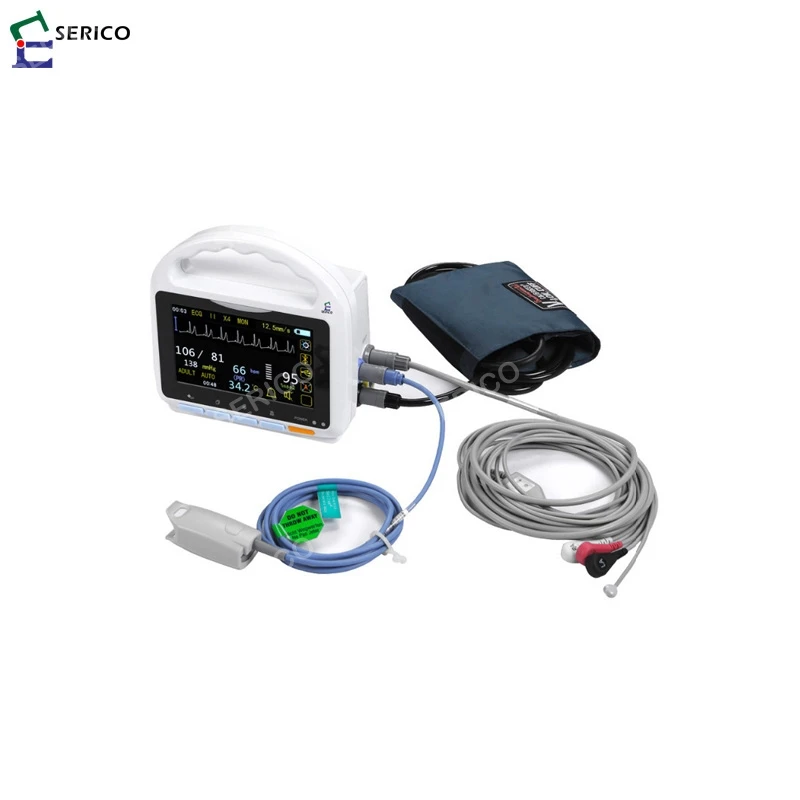

Standard accessories

Patient Monitor main unit(include battery)      1pc

3-lead ECG cable with temp.probe                 1pc

adult NIBP cuff                                          1pc

NIBP tube                                                  1pc

adult SpO2 sensor                                      1pc

AC Power adapter                                        1pc

USB cable                                                 1pc

electrode                                                    3pcs

User manual                                              1pc

Optional accessories

adult,pediatric,neonate(fingertip,finger stall,wrap) SpO2 sensor

adult,pediatric,neonate NIBP cuff

3-lead ECG cable in Euro or USA
