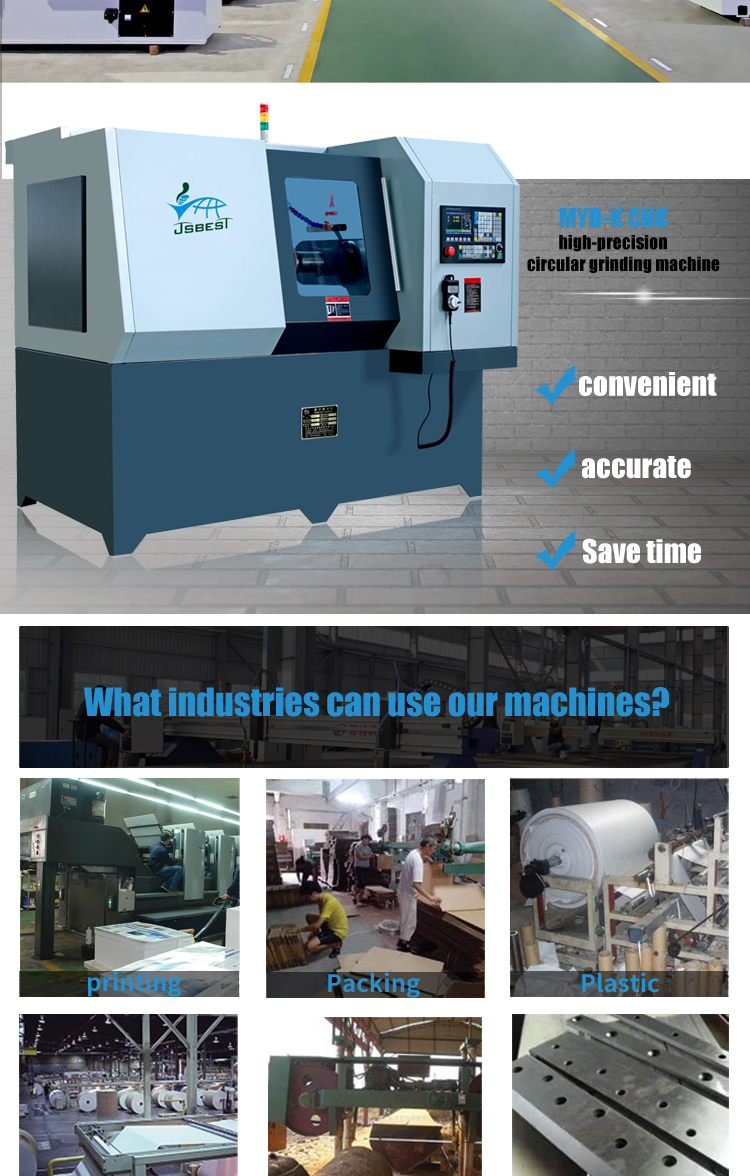

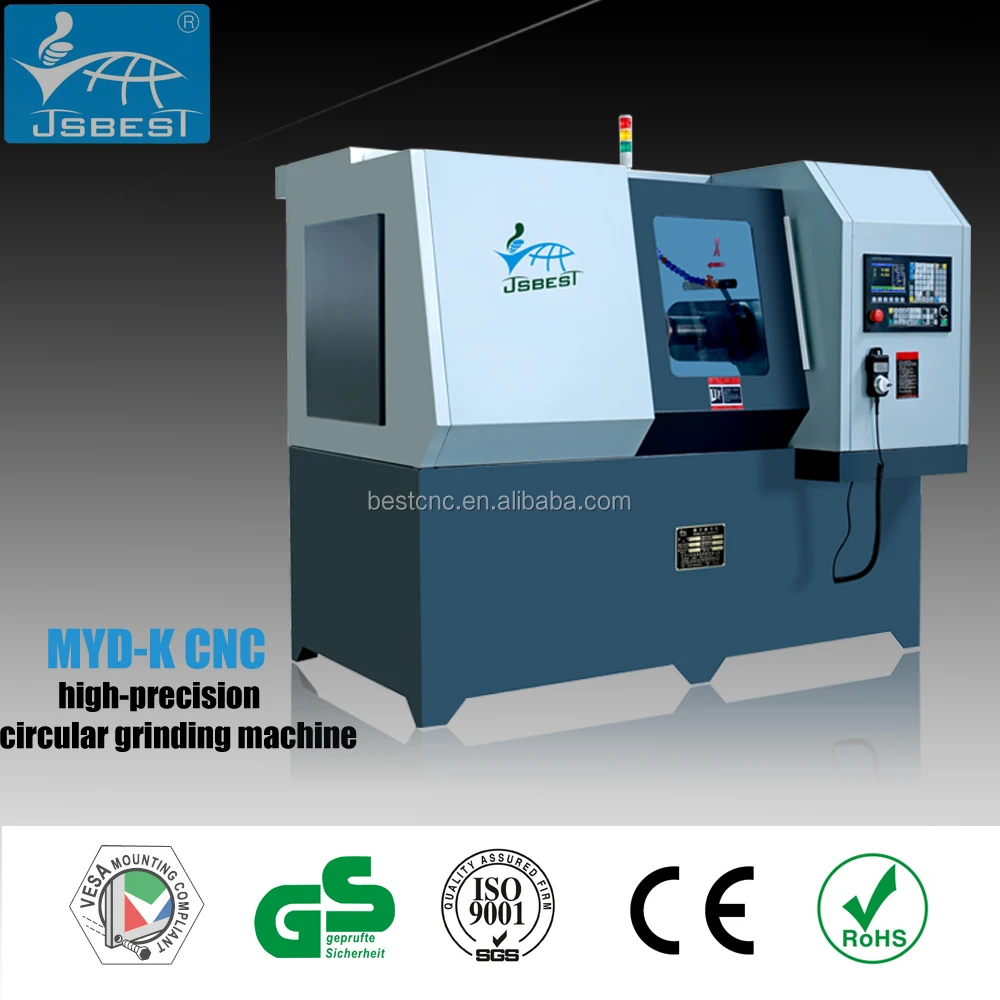

MYD-K CNC высокой точности круглые шлифовальные машины
- Category: Other Machinery & Industrial Equipment >>>
- Supplier: Jiangsu,Best,CNC-Machinery,Co.,Ltd.
Share on:
Product Overview
Description
1,Product features

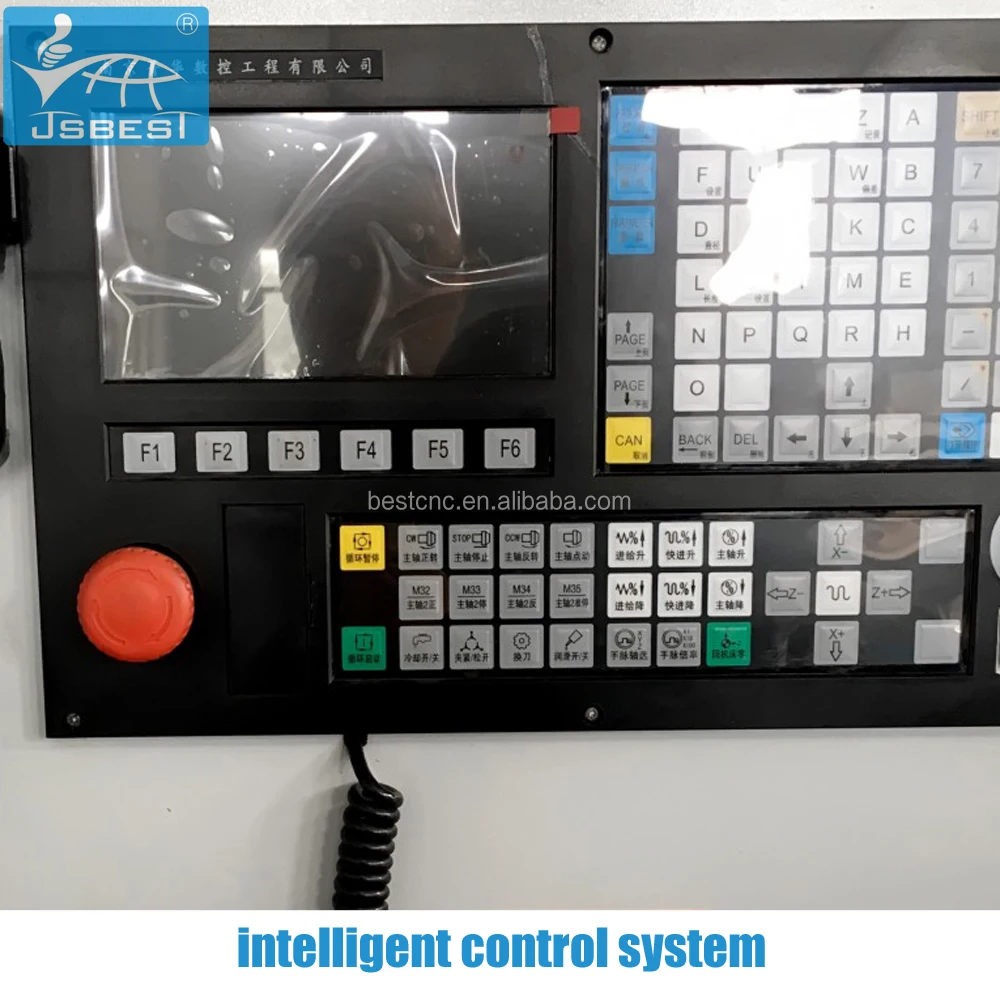

>> Control system using international well-known brands, performance stability ;
>> Frequency converter control to ensure the speed range of different cutting tools. ;
>> Microcomputer controlled automatic lubrication pump, the linear guide, ball screw and other key parts of fixed point, timing, quantitative lubrication, to ensure the service life of the machine ;
>> Bearing, electric using the world's leading brands, to ensure the reliability of products, security .
2,Parameter
NO | Project | parameter | Note |
1 | Abrasive diameter | φ60-φ650 | |
2 | Grinding Angle | 0-45° | |
3 | Cooling motor power | 40W | |
4 | Tool carriage motor power | 370W/700W | Tool for left-handed rotation direction |
5 | Grinding motor power | 1.5kW | Grinding head direction of rotation is left-handed |
6 | Grinding limit speed | 2800rpm | |
7 | Grinding wheel size | φ32×φ175×10 | |
8 | XY | Counterclockwise to forward | |
9 | Surface finish | Ra=0.2~0.8um |
|
10 | Knife shaft beating | ≤0.005mm |
|
11 | Grinding head spindle | ≤0.005mm |
|
12 | Installation of electric power | 2kW |
3,Application industry :
Widely used in paper industry, paper cutter, cutting machine, cutting machine, cutting machine, cutting machine, cutting machine, cutting machine, cutting machine, cutting machine, cutting machine, cutting machine, cutting machine, cutting machine, cutting machine, cutting machine, cutting machine, cutting machine, cutting machine, cutting machine, cutting machine, fiber, textile, plastic, electric material, printing and so on.
