Scissor lift platform truck
- Category: >>>
- Supplier: Suzhou Marston Machinery Co. Limited [Jiangsu China]Suzhou
Share on (60411223068):
Product Overview
Description
Product Overviews
| Type | Scissor lift platform truck |
| Material used | Manganese steel |
| Usage | Warehouse lifting cargos |
| Package | Wooden case |
| Delivery time | 15 days after the order is confirmed |
| MOQ | 1 unit |
| Payment terms | TT or LC at sight |
| Warranty time | 12 month |
Company Information
Why choose us?
12 years manufacturing experience in hydraulic lifting industry.
Do you know what is it makes us walk such far?
1.Competitive price
We are the manufacture,and have lots of orders from domestic and foreign each year,so we can purchase the
raw material with much cheaper price which will directly effects the price of the lifting machines.
2.Reliable quality
a.Material used.The thickness of the rectangular tube is 5mm which make the whole machine more steady and
durable.
b.Oil Paint. The oil paint we used meet international standard which looks more bright and smoothly, also not
easy to remove or come off.
3.Good service
We assure you reply the email within 24 hours.
We assure you 12 mouth quality warranty time.
4.Keeping innovations
We welcome every recommendation and opinion from you and make progress together with you.
We can design a new machine as your requirements,until to your satisfaction.
Product Description
Scissor lift Specifications
Can be made as your special needs!
| Model | Capacity | Lifting Height | Min.Height | Platform size | Motor power | Self Weight |
| KG | MM | MM | MM | KW | KG | |
| SJG0.1-8 | 100 | 8000 | 820 | 3000*1000 | 3 | 2100 |
| SJG0.2-4.4 | 200 | 4400 | 550 | 2000*1200 | 1.5 | 1500 |
| SJG0.3-3 | 300 | 3000 | 450 | 2000*1200 | 1.5 | 1100 |
| SJG0.5-7 | 500 | 7000 | 780 | 2500*1000 | 3 | 1800 |
| SJG0.8-5 | 800 | 5000 | 800 | 2200*1000 | 3 | 1900 |
| SJG1-3.3 | 1000 | 3300 | 800 | 1500*1500 | 3 | 1900 |
| SJG1-4 | 1000 | 4000 | 800 | 1600*1500 | 3 | 2000 |
| SJG1-6 | 1000 | 6000 | 850 | 2250*1500 | 3 | 2200 |
| SJG1-8 | 1000 | 8000 | 1140 | 2500*1800 | 4 | 2600 |
| SJG1-9 | 1000 | 9000 | 1170 | 2400*1800 | 4 | 3200 |
| SJG1.5-3 | 1500 | 3000 | 650 | 1800*1200 | 3 | 1800 |
| SJG1.5-3.5 | 1500 | 3500 | 650 | 2200*1100 | 3 | 1850 |
| SJG1.5-5 | 1500 | 5000 | 840 | 2500*1500 | 4 | 1900 |
| SJG1.5-9 | 1500 | 9000 | 1060 | 3300*1500 | 4 | 2800 |
| SJG2-3.6 | 2000 | 3600 | 800 | 1500*1500 | 4 | 2000 |
| SJG2-4.6 | 2000 | 4600 | 780 | 3200*2600 | 4 | 2350 |
| SJG2-5 | 2000 | 5000 | 870 | 2200*2000 | 4 | 2380 |
| SJG2-6 | 2000 | 6000 | 960 | 2300*2000 | 4 | 2600 |
| SJG2-8 | 2000 | 8000 | 1050 | 3000*1800 | 4 | 2800 |
| SJG2-9 | 2000 | 9000 | 1260 | 3300*2000 | 5.5 | 3000 |
| SJG2.5-3 | 2500 | 3000 | 600 | 2500*2000 | 4 | 1800 |
| SJG2.5-4.5 | 2500 | 4500 | 780 | 2500*2000 | 4 | 2350 |
| SJG2.5-6 | 2500 | 6000 | 960 | 2500*2000 | 4 | 2500 |
| SJG2.5-7.5 | 2500 | 7500 | 1040 | 2800*2000 | 4 | 2700 |
| SJG2.5-9 | 2500 | 9000 | 1050 | 3300*2200 | 5.5 | 3200 |
| SJG3-2.9 | 3000 | 2900 | 650 | 5800*2800 | 5.5 | 3500 |
| SJG3-3.5 | 3000 | 3500 | 630 | 2700*2000 | 4 | 2100 |
| SJG3-4.5 | 3000 | 4500 | 980 | 2000*1800 | 4 | 2280 |
| SJG3-4.7 | 3000 | 4700 | 870 | 2800*1600 | 4 | 2380 |
| SJG3-6 | 3000 | 6000 | 1080 | 2800*2000 | 4 | 2680 |
| SJG3-7 | 3000 | 7000 | 1080 | 2800*1500 | 4 | 2700 |
| SJG3-7.8 | 3000 | 7800 | 1080 | 3450*3200 | 4 | 3000 |
| SJG3-9 | 3000 | 9000 | 1080 | 3300*2000 | 4 | 3400 |
| SJG3.6-4.5 | 3600 | 4500 | 870 | 2600*1400 | 5.5 | 3000 |
| SJG4-6 | 4000 | 6000 | 1050 | 3500*2000 | 5.5 | 3400 |
| SJG5-2 | 5000 | 2000 | 720 | 5600*2000 | 5.5 | 3800 |
| SJG5-3 | 5000 | 3000 | 680 | 2500*2000 | 5.5 | 3100 |
| SJG5-8 | 5000 | 8000 | 1330 | 3000*2000 | 5.5 | 3700 |
| SJG6-3.5 | 6000 | 3500 | 720 | 5600*2200 | 5.5 | 4300 |
| SJG6-6 | 6000 | 6000 | 1050 | 3200*2000 | 5.5 | 3300 |
How to get the quotation if all the model is not suitable for you?
Just let me know:
1.Capacity
2.Lifting height
3.Platform size
Finished Products

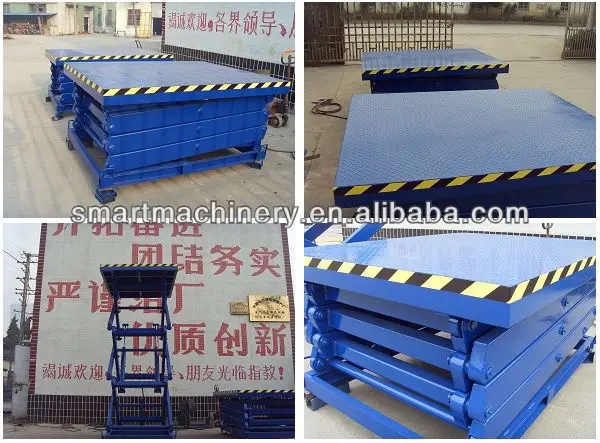

Scissor lift Pictures

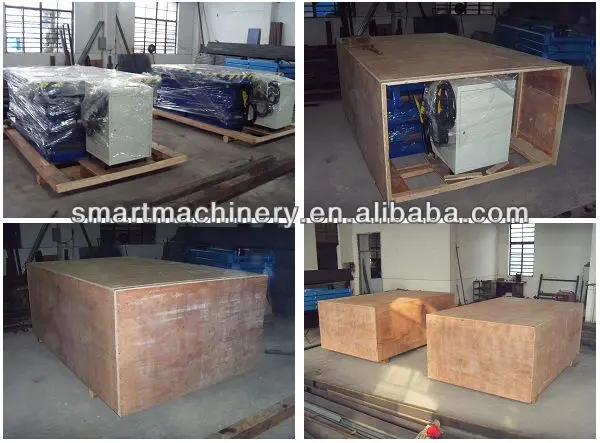

Packaging & Shipping
Packing details
Loading Details
Certifications
Certificate
Our Services
Warranty
We provide 1 year after the date of Bill of Lading to the scissor lift.
During the warranty period we guarantee to supply free replacement parts to any defective of our product
which proved to be defective in material or workmanship when under proper operation during warranty period;
