Product Overview

Description

Analog Mechanical Dual Outlet Timer Switch

We are Acessed supplier on alibaba, we can provide TRADE ASSURANCE if youorder from us for Timer Switch .

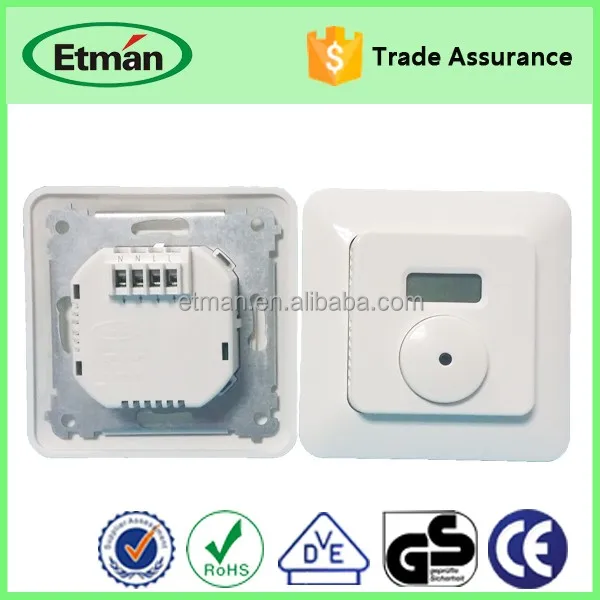

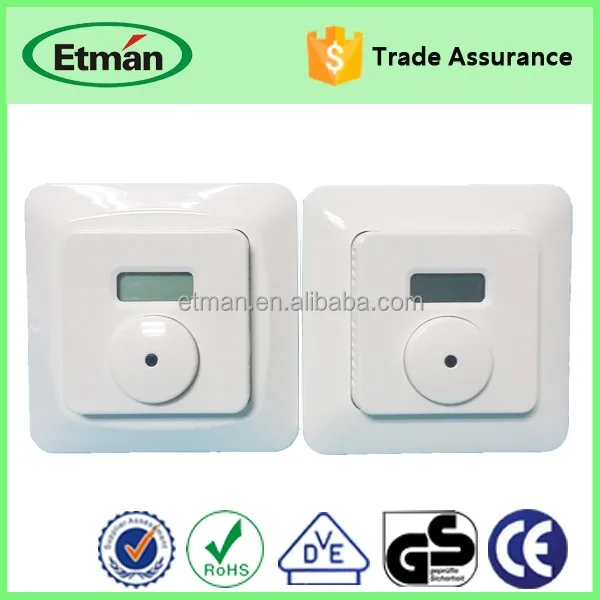

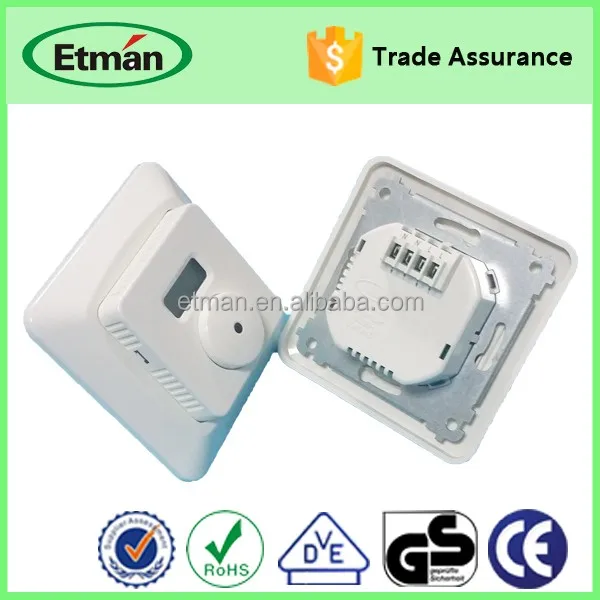

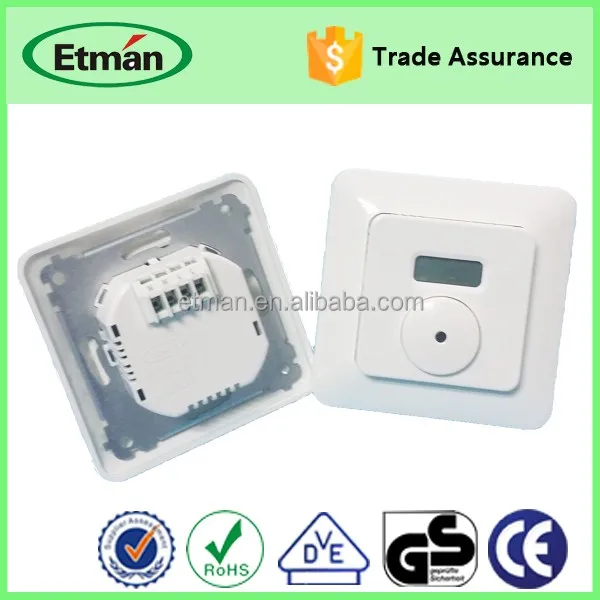

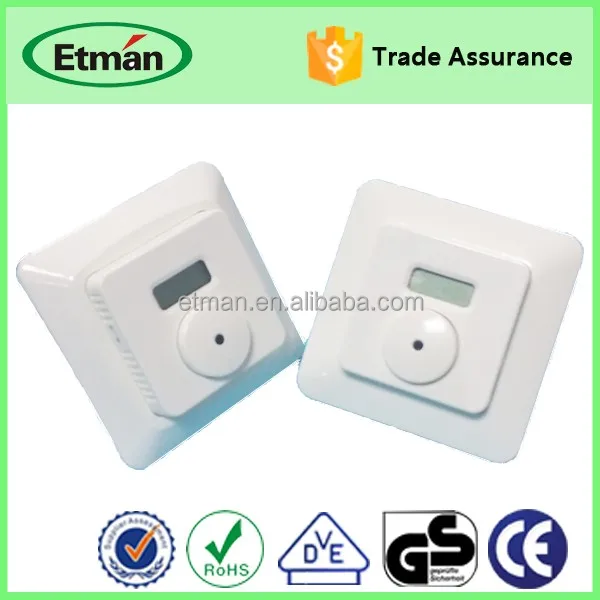

View of Timer Switch

   Analog Mechanical Dual Outlet Timer Switch

Flush-type Timer Switch for fixed installation

Technical Data:	250VAC
Maximum current:	10A
Maximum load:	2500w
Power consumption:	<0.5W
Time duration in hours:	5MIN; 10MIN; 15MIN; 30MIN; 1H; 2H; 4H; 8H
Ambient temperature:	-10°C~50°C
Relative humidity:	<95%
Frequency:	50/60Hz
Colour:	White
Main material:	PC (Halogen free)
IP-Class:	IP20
Max. Ambient temp.:	45°C
Fire hazard test:	650°C/850°C (IEC60695-2-1)
The product complies with the standard(s):	EN 60669-2-1
	EN 60669-1
The product is in conformity with the provisions of the following European directive(s):	LVD (2006/95/EC)
	RoHS (2002/95/EC)
	WEEE (2002/96/EC)
Certificate(s):	CE, Semko, EMC

Technical info:
Timer switch for 2-poles switching of electrical appliances.
For safety, timer switch switches off the electrical appliances connected to it after a selected time interval. The practical application area is the connection of heatproducing appliances, for example coffee machines, heating blanket, etc…
The timer switch is set to suit the usage time of the specific connected appliance (“time” rotary switch on the unit).
The timer switchs fit into standard wall boxes from ETMAN (c-c 60mm) . By surface fixing, please use surface house. By surface fixing, in combination with a switch or other regulators/dimmers, please use double surface house. It is easy to rebuild into the coloured creative line solutions, either as flush - or surface mounted by removing plastic parts.
Thermoplastic center plate 55X55 mm, which fits into Etman “P” series combination plate.
Screw terminal.



Etman International ASA  is a Norwegian holding group with 4 subsidiaries located in China, Norway and Sweden.

Etman Electric(Changzhou) Co.,Ltd is the manufacturing site of the group and located in Changzhou, which is approximately 180km west of Shanghai, one of China's most attractive areas for production.  We have lots of experienced staffs to produce professional and innovative timer switch with high quality and low production cost.

Our company is ISO9001 and ISO14001 certificated for timer switch and has more than 200ITS approved items and factory certificates.
