Hydraulic automatic surface grinder MY1022
- Category: >>>
- Supplier: Yancheng Dafeng Long-Range Machine Co. Ltd.
Share on (60411649974):
Product Overview
Description
Product Description
Hydraulic automatic surface grinder MY1022
|
Model |
MY1022 |
||||
|
Working table |
Table Size (L× W) |
mm |
540×250 |
||
|
Max movement of working table(L× W) |
mm |
560×260 |
|||
|
T-Slot(number×width) |
mm |
1×14 |
|||
|
Grinding wheel |
Max distance from spindle center to table surface |
mm |
450 |
||
|
Wheel Size(Outer diameter×width×Inner diameter) |
mm |
φ200×20×Φ31.75 |
|||
|
Wheel speed |
50HZ |
r/min |
2850 |
||
|
60HZ |
3360 |
||||
|
Feed amount |
Longitudinal speed of working table |
m/min |
3-20 |
||
|
Cross feed(front and rear) on handwheel |
Continuously(Variable Transmission) |
mm/min |
150 |
||
|
Intermittently(Variable Transmission) |
mm/times |
0-5 |
|||
|
Per revolution |
mm |
5.0 |
|||
|
Per graduation |
mm |
0.02 |
|||
|
Vertical(up and down) feed on handwheel |
Per revolution |
mm |
1.25 |
||
|
Per graduation |
mm |
0.01 |
|||
|
Motor power |
Spindle motor |
kw |
1.5 |
||
|
Coolant pump motor |
W |
40 |
|||
|

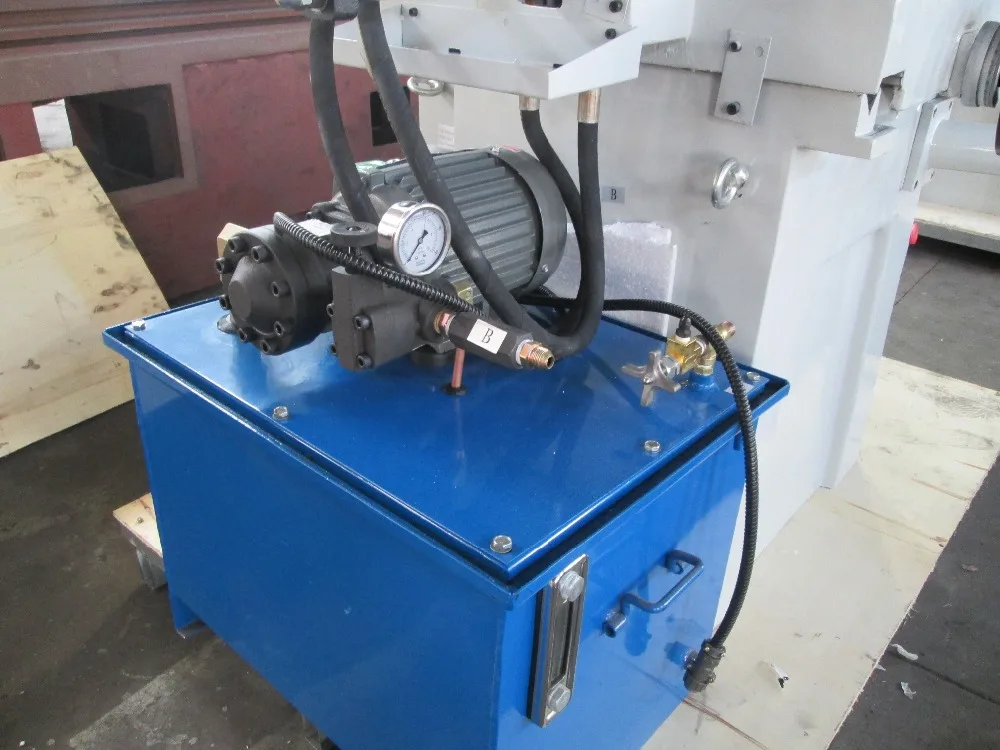

Hydraulic system |
Hydraulic motor |
kw |
1.5 |
||
|
Working pressure |
Mpa |
3 |
|||
|
Oil tank capacity |
L |
80 |
|||
|
Max flow |
L/min |
18 |
|||
|
Working precision |
The parallelism of working surface to base level |
mm |
300:0.005 |
||
|
Surface roughness |
μm |
Ra0.32 |
|||
|
Weight |
Net |
kg |
900 |
||
|
Gross |
kg |
1000 |
|||
|
Overall dimension(L×W×H) |
mm |
1680x1220x1720 |
|||
|
Package dimension(L×W×H) |
mm |
1630x1290x1940 |
|||

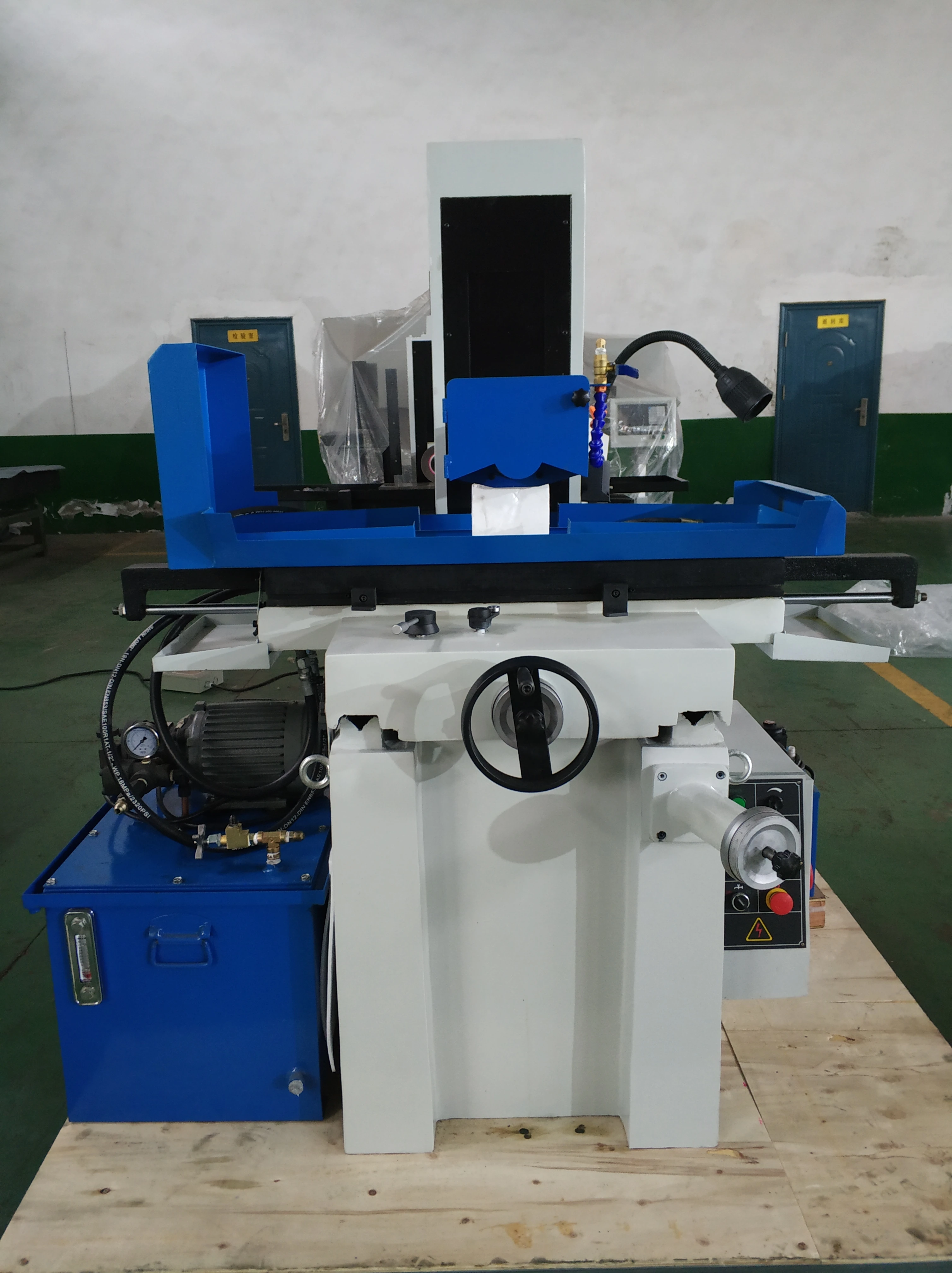

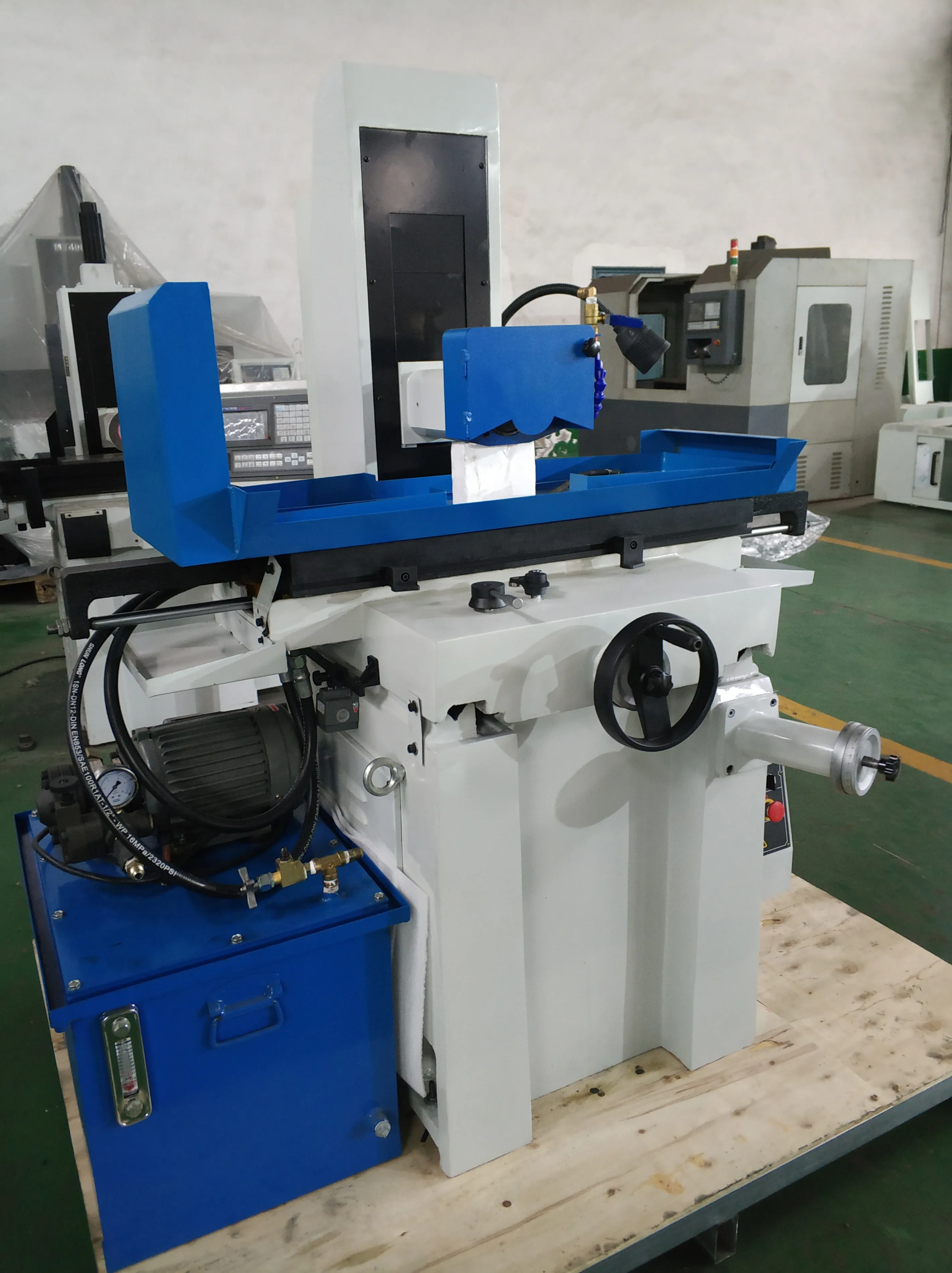

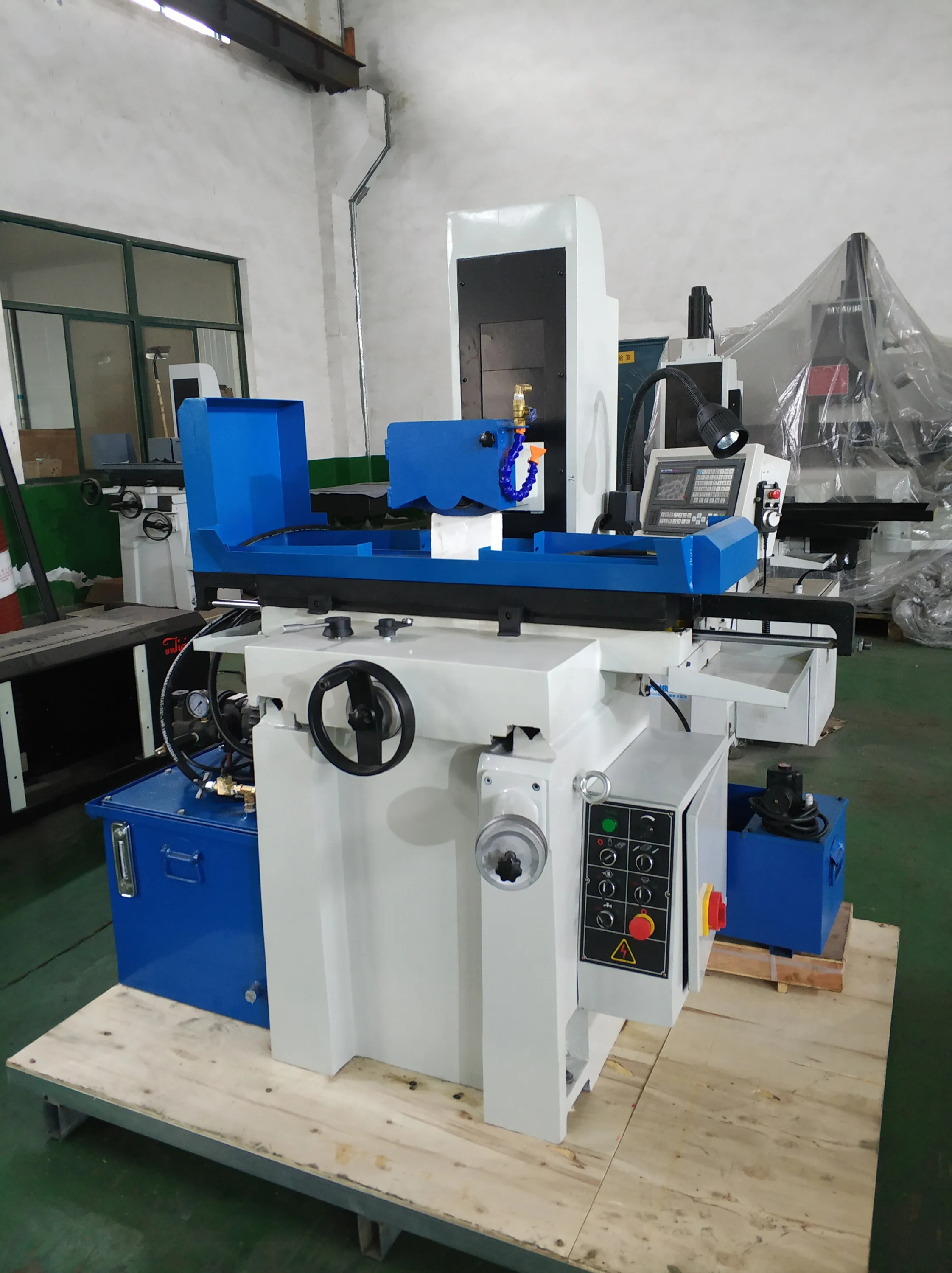

Real Pictures:
Packaging & Shipping
Package:Plywood Box
Delivery Time: 10 working days after we receive the payment
Our Services
Providing after sale service
Our advantage
1,We have passed through the ISO9001:2008 system
2,We have CE certificate for our products
3,We are the manufacturer of surface grinders for over 14 years

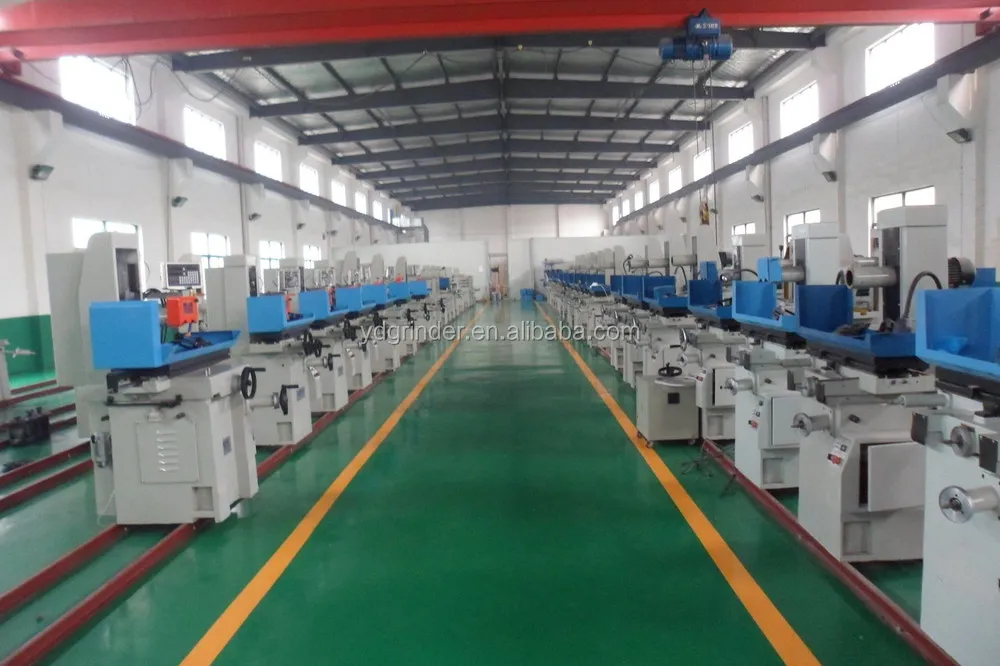

Company Information
FAQ
Question:What are the standard accessories does the machine have?
Answer:
|
Name |
Quantity |
Name |
Quantity |
|
Surface grinder MY1022 |
1 |
Inner hexagon spanner 12 |
1 |
|
Tool box |
1 |
Balancing shaft |
1 |
|
Flange wrench |
1 |
Wheel dresser |
1 |
|
Cross screwdriver |
1 |
Diamond pen |
1 |
|
Open-end wrench 12 x 14 |
1 |
Wheel and wheel chuck |
1 |
|
Open-end wrench 17 x 19 |
1 |
drainage snake tube |
1 |
|
Open-end wrench 22× 24 |
1 |
flushing bag wire tube |
1 |
|
Inner hexagon spanner 3 |
1 |
Machine stand pad |
3(5) |
|
Inner hexagon spanner 4 |
1 |
foot-screw |
3(5) |
|
Inner hexagon spanner 5 |
1 |
Water tank |
1 |
|
Inner hexagon spanner 6 |
1 |
magnetic chuck |
1 |
|
Inner hexagon spanner 8 |
1 |
Balancing stand |
1 |
|
Inner hexagon spanner 10 |
1 |
|
If you have anu other questions,please feel free to contact me.
