precast concrete hollow core slab making machine as roof and floor panel for concrete precast houses
Product Description

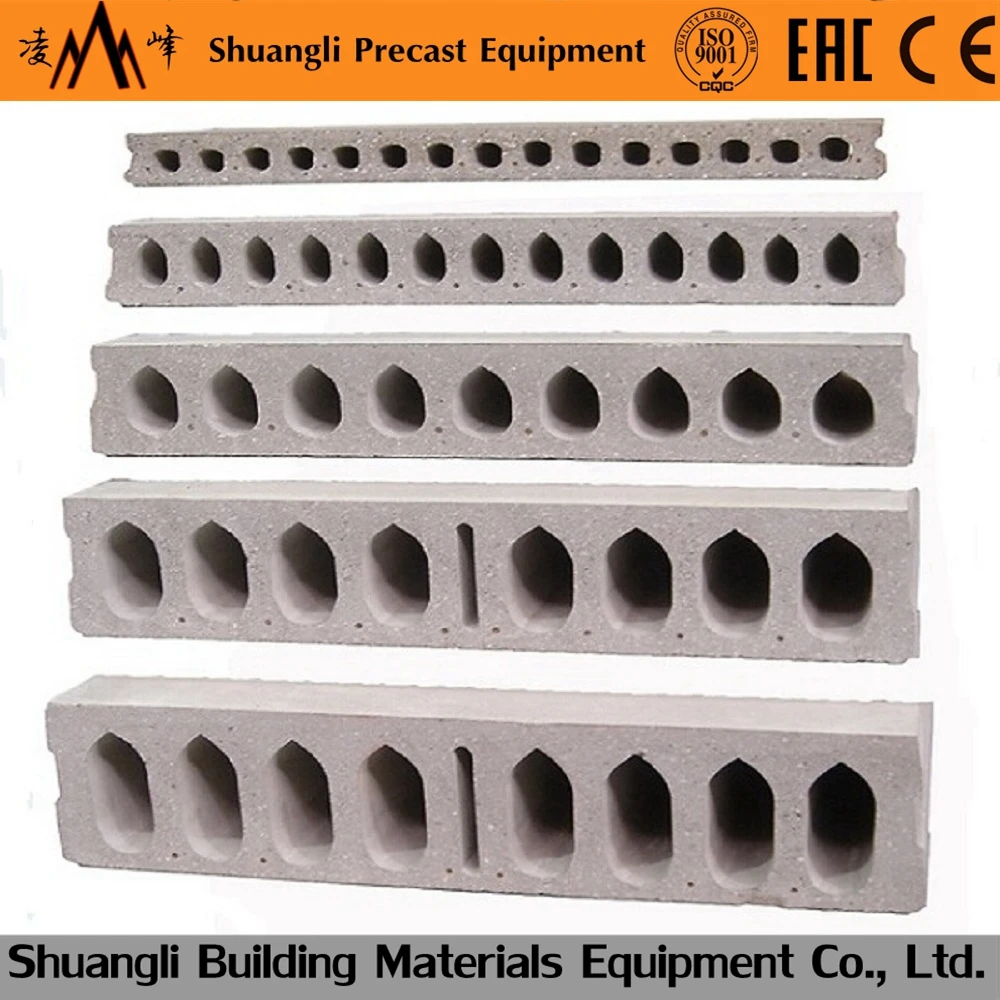

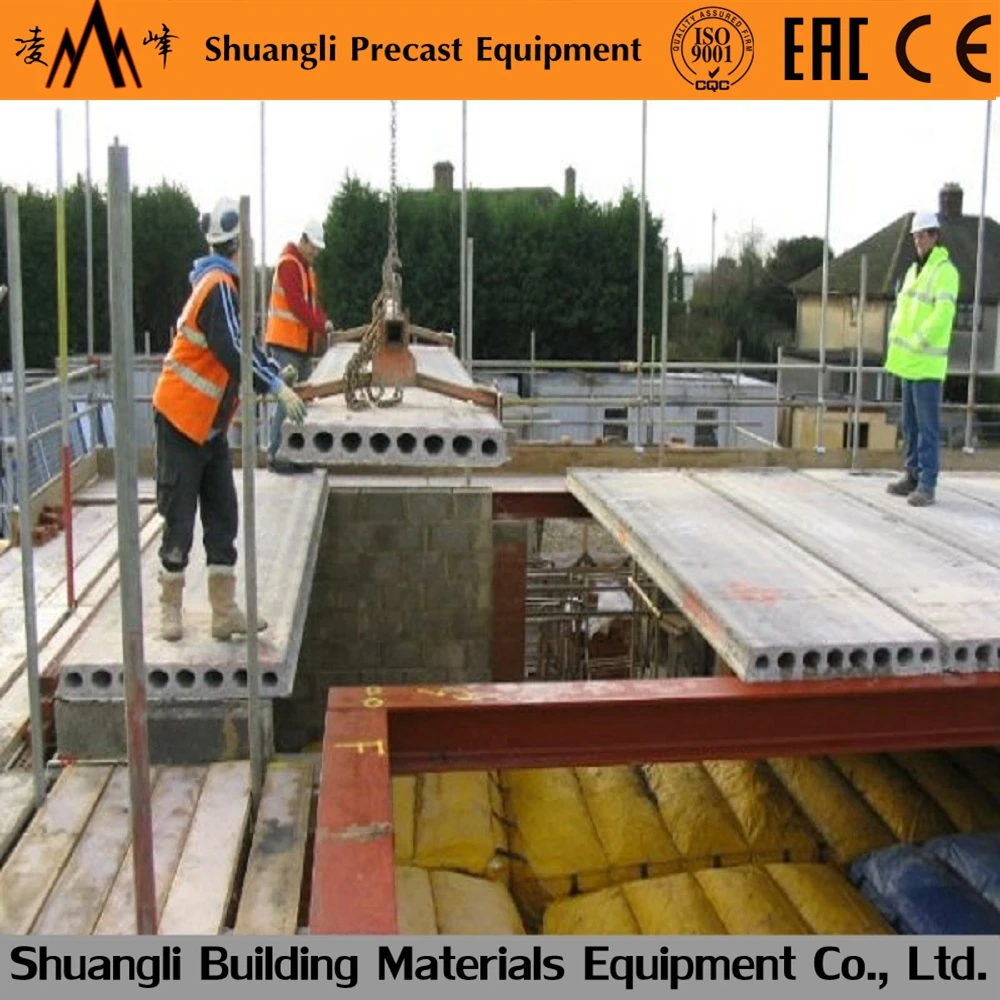

precast concrete hollow core slab making machine as roof and floor panel for concrete precast houses works on the long-line table, using the high-strength low-relaxation steel strand as the guide, using the pushing work method to forming the concrete hollow-core slab. The slab have the advantages of smooth surface, high-density structure, capable of making construction slabs of 4.2m to 18m. The Ling-Feng series concrete hollow-core slab mainly used on the larger bay workshop, school, hospital, shopping mall, office building, bulk storage plant etc.
Parameter
Parameter for precast concrete hollow core slab making machine as roof and floor panel for concrete precast houses
Thickness*Width | Total Power (KW) | productivity (m/min) | Max Length (m) | Maximum load capacity (kn/m2) | Diameter steel for Max load | Number of steel used | Holes |
100*600 | 8 | 1.2-1.4 | 5.1 | 8.11 | 7mm | 5 | 6 |
120*600 | 8.5 | 1.2-1.4 | 6 | 8.86 | 7mm | 6 | 5 |
150*600 | 10.5 | 1.2-1.4 | 7.5 | 10.24 | 9.5mm | 5 | 4 |
180*600 | 10.5 | 1.2-1.4 | 9 | 16.16 | 12.7mm | 4 | 3 |
100*900 | 10 | 1.2-1.4 | 5.1 | 9.76 | 7mm | 10 | 10 |
120*900 | 14 | 1.2-1.4 | 6 | 8.86 | 7mm | 9 | 8 |
150*900 | 15 | 1.2-1.4 | 7.5 | 10.24 | 9.5mm | 10 | 6 |
180*900 | 15 | 1.2-1.4 | 9 | 16.16 | 12.7mm | 9 | 5 |
200*900 | 15 | 1.2 | 10.2 | 13.22 | 12.7mm | 7 | 6 & peach |
120*120 | 15 | 1.2-1.4 | 6 | 8.86 | 7mm | 12 | 11 |
150*1200 | 15 | 1.2-1.4 | 7.5 | 10.24 | 9.5mm | 14 | 13 |
180*1200 | 19 | 1-1.2 | 9 | 16.16 | 12.7mm | 10 | 11 |
200*1200 | 22 | 1-1.2 | 10.2 | 13.22 | 12.7mm | 10 | 8 |
250*900 | 18.5 | 1.2 | 12.6 | 11.1 | 12.7mm | 7 | 6 & peach |
300*900 | 22 | 1.2 | 15 | 10.83 | 12.7mm | 8 | 5 & peach |
220*1200 | 24 | 1-1.2 | 10.5 | 10.9 | 12.7mm | 9 | 8 |
250*1200 | 26 | 1-1.2 | 12.6 | 11.1 | 12.7mm | 10 | 8 |
300*1200 | 33 | 1-1.2 | 15 | 10.83 | 12.7mm | 12 | 6 |
We can design and manufacturespecificmodel according to customers’ specific requirement. | |||||||
Production Flow
Production flow as following image precast concrete hollow core slab making machine as roof and floor panel for concrete precast houses

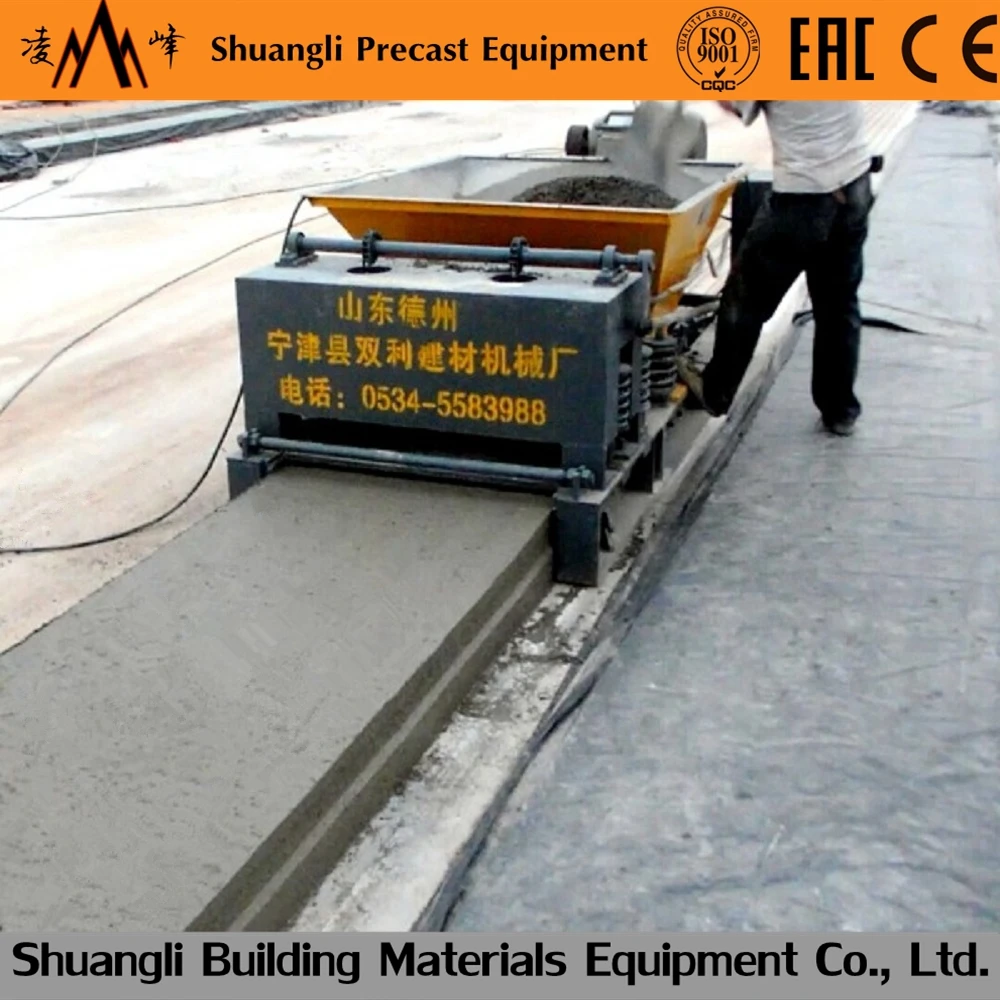

Push type precast concrete molding machine precast concrete hollow core slab making machine as roof and floor panel for concrete precast houses works on the concrete platform, using pre-stressed steel wires as guidance, electric motor as power to push the concrete into concrete slabs while walking along the steel wires.
The continuously working of vibration plate will highly classify the concrete. Meanwhile, the reaction of pushing materials by slider will move the equipment go along with the steel wire overcoming the frictional resistance.

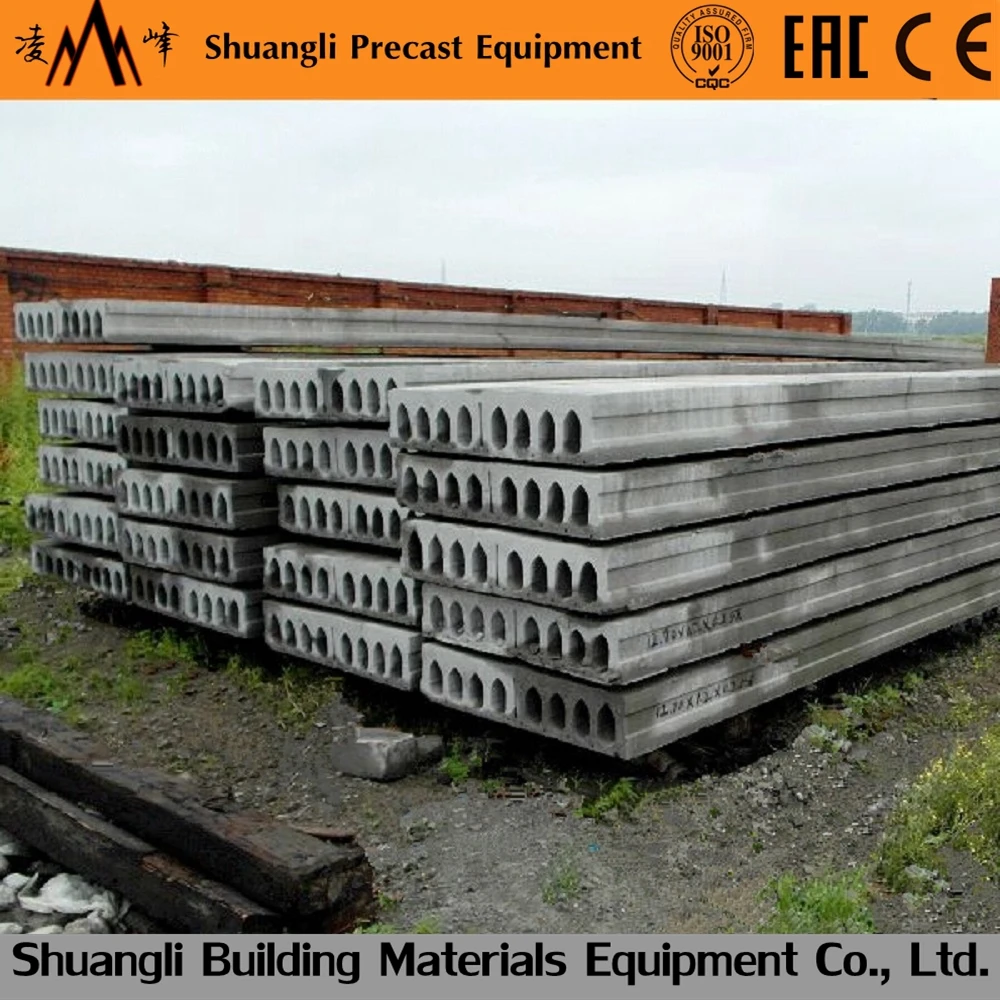

After nearly 48 hours maintenance, it can be cut into concrete slabs for use.
Packaging
precast concrete hollow core slab making machine as roof and floor panel for concrete precast houses was packed in wooden case.
We will arrange the shipment after we get deposit within one month.
Our Services
We supply the technical supporting all the time.
We supply one year warranty for whole machine.
We supply free quick wear parts.
We supply low charge continue maintenance when warrenty is expired.
We supply free training to end-users.
Worldwide customers visiting us
Company Information
Shuangli Building Materials Equipment Co., Ltd was located in Dezhou, Shandong and founded in 1995 and specialized in Precast concrete machine manufacture with a name brand "Ling-Feng". We were authorized ISO901:2000 quality system certificate and also nominated as 'New Technology Enterprise' by Shandong Science and Technology Administration in 2006.
We also founded "Shandong precast Concrete Machinery Research Institute" with Shandong University in 2005, and have successfully developed the non-circular hole slab forming machine and the Prestressed concrete slab extrusion machine. New we can manufacture all kinds of slabs which allowed by our country, and so can completely satisfy on large national and civil architecture project.
