Domestic water treatment MBR membrane ultrafiltration

Product Overview

Description

Domestic water treatment MBR membrane ultrafiltration

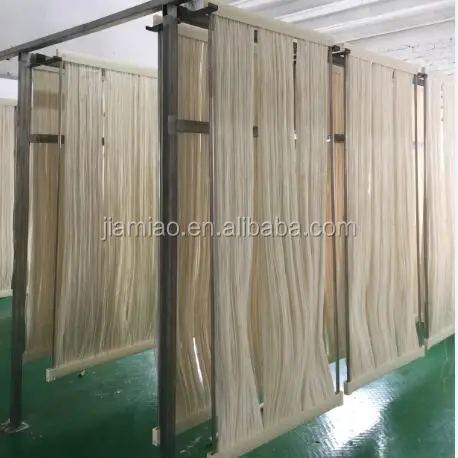

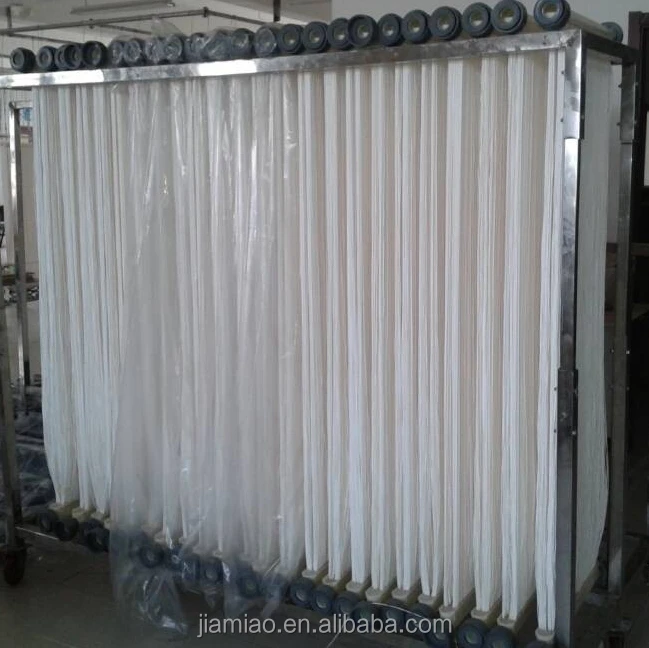

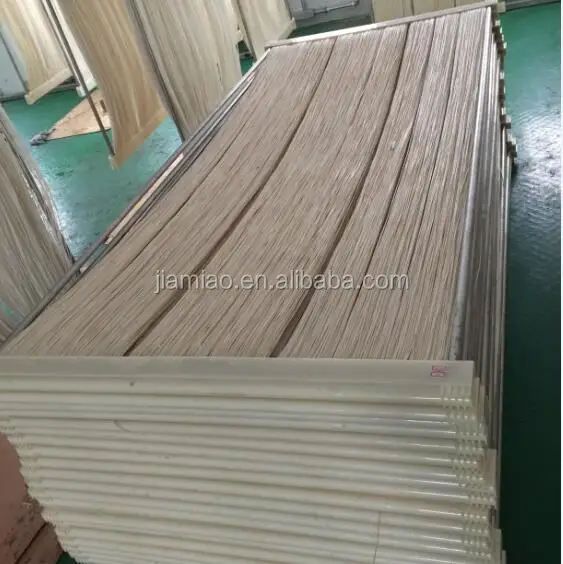

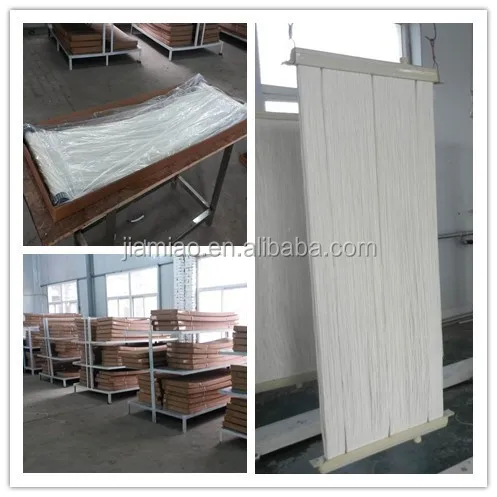

 membrane product

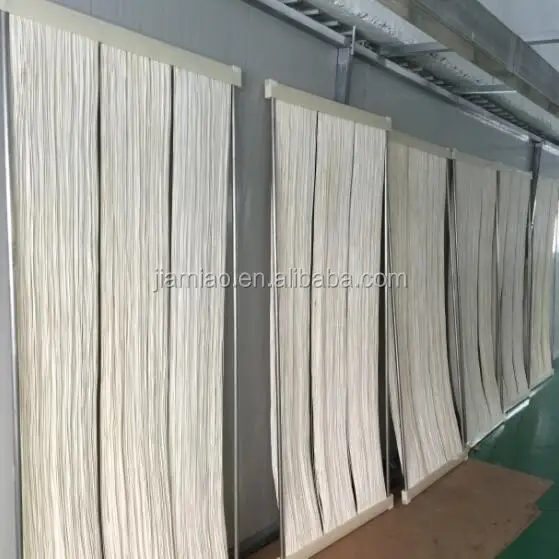

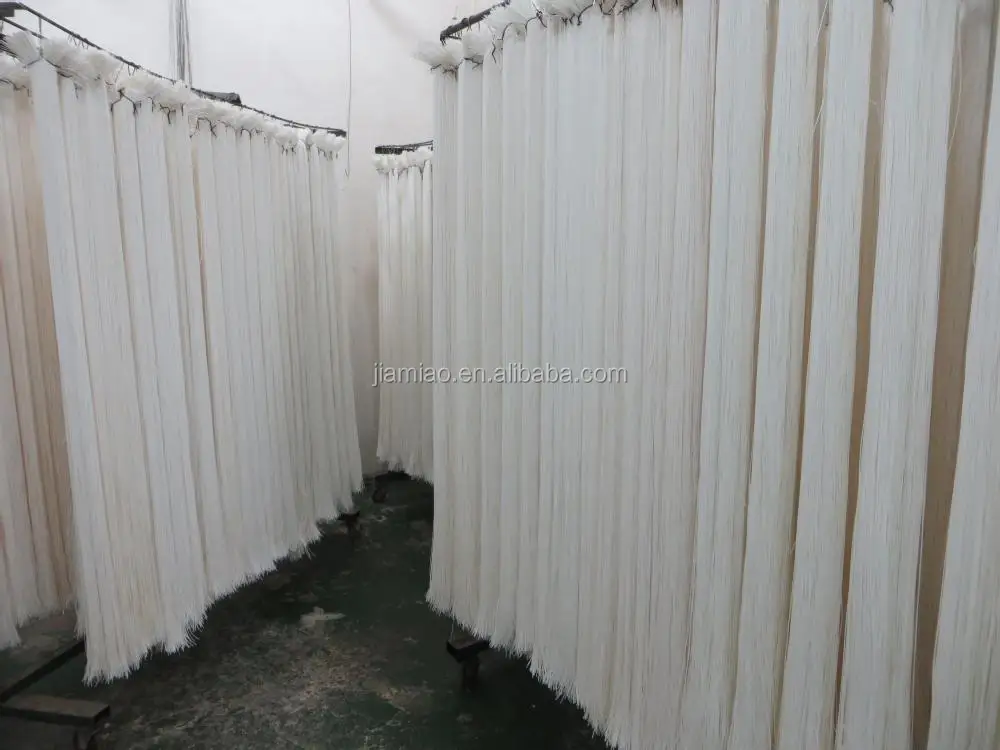

 fiber

 fiber pore

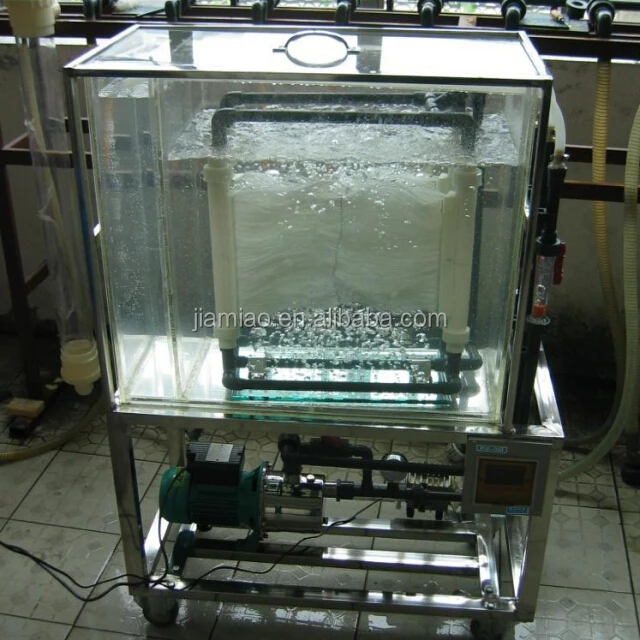

 testing equipment

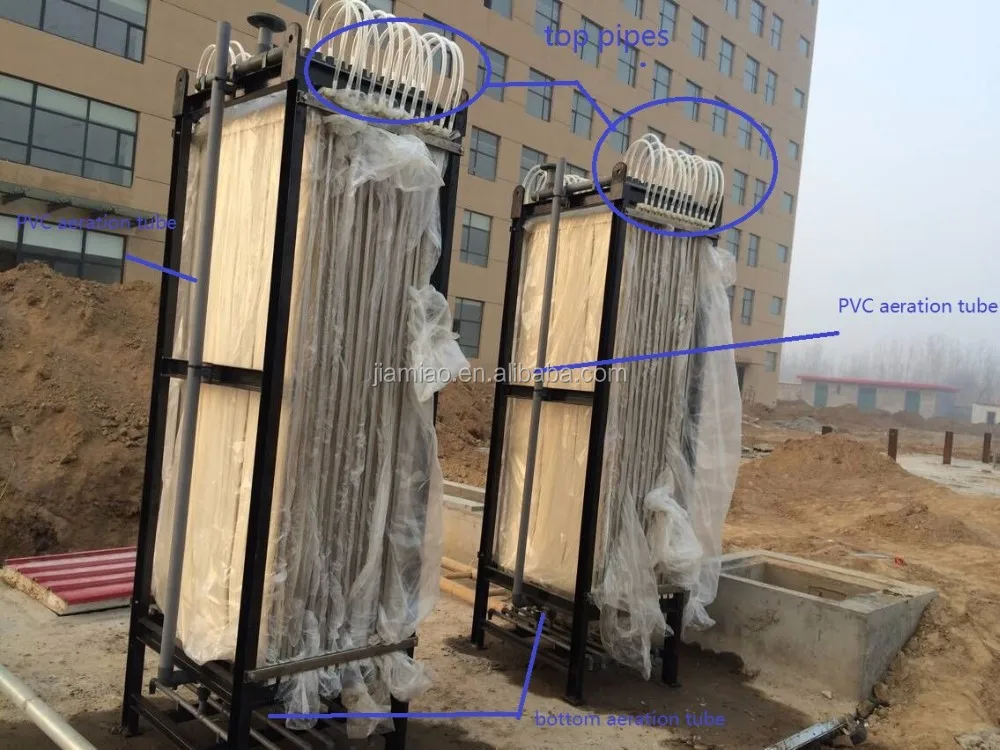

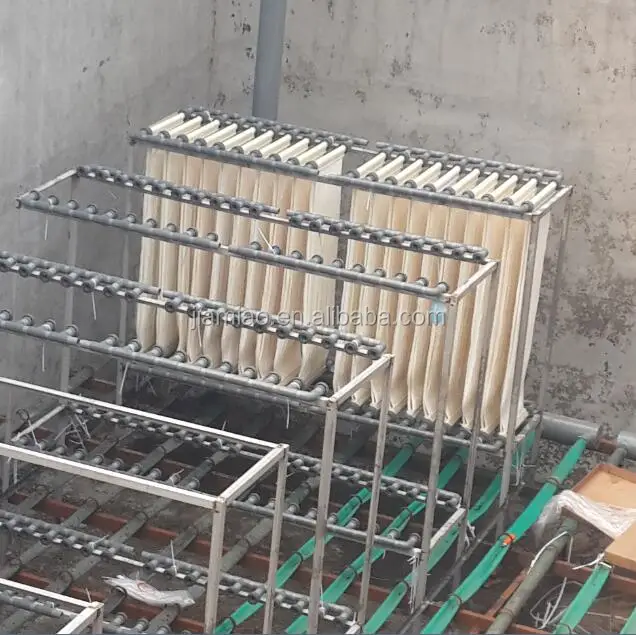

 membrane system





Application:

garbage filterring liquid, sewage of food & beverage, paper-making, printing and dyeing, eiderdown, butcher, chemical industries, and also sanitary sewage.



Advantages:



1.Our MBR membrane is high efficiency, especially capable in frequent disuse occasions.

2.Anti-oxidant modification on the in-let membrane surface makes it more durable in harsh environment like wastewater.

3.Fine inner diameter of the membrane fiber can ensure that sludge blocks the membrane pore the instant the fiber is broken accidentally, endowing the membrane with self-repairing function without affecting outflow water quality.





Standard Membrane Specification:



Model	FP7.5MCS	FP20MCD	FP25MCD
Size(W*L*H)(mm)	625*1055*45	1010*1650*32	1010*2150*32
Membrane Material	Reinforced PVDF
Pore Size (μm)	0.1-0.3
Inner/Outer Dia.(mm)	1.0/2.2
Effective Membrane Area (m2)	7.5	20	25
Design Flux (m3/d)	1.4-4.2	3.8-10.4	4.8-14.4
Operating Pressure(Mpa)	0-0.06Mpa
Operating Temperature(℃)	5-45℃



 Standard Module Specification:



Model	ZL1-10	ZL2-20	ZL3-20
Size(W*L*H)(mm)	625*1000*1420	1020*1320*2160	1010*1300*2660
Standard Treatment Flow Rate(m3/d)	14-42	76-124	96-154
Effective Membrane Area (m2)	75	400	500
Membrane Quantity(pc)	10	20	20
Suitable Effective Water Depth(m)	2	2.6	3.2
Support Frame Material	SS304

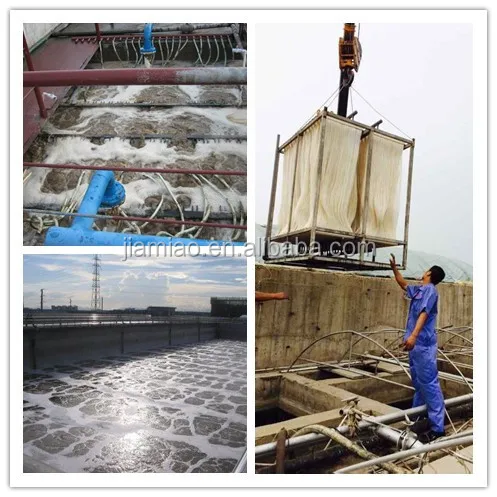

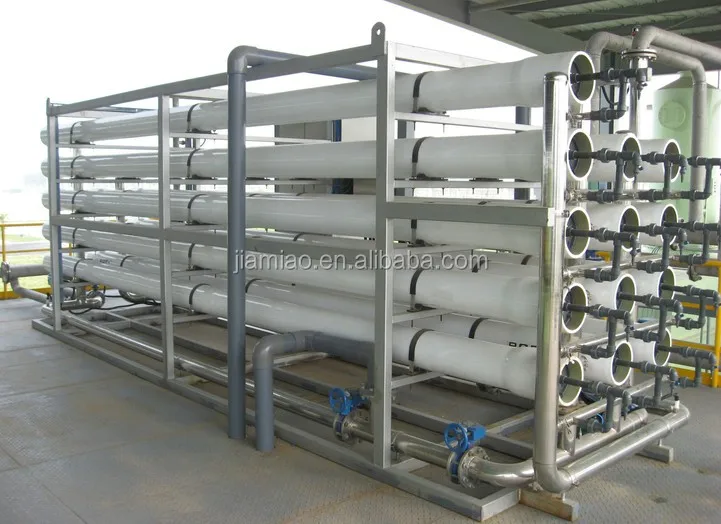

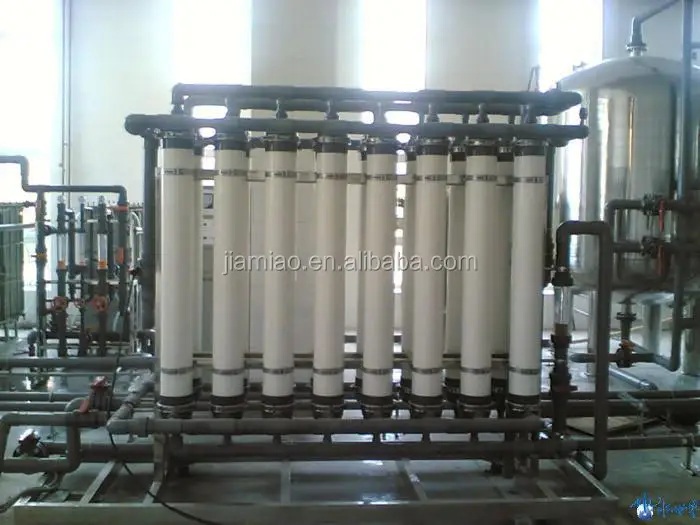

Water Project and Installation

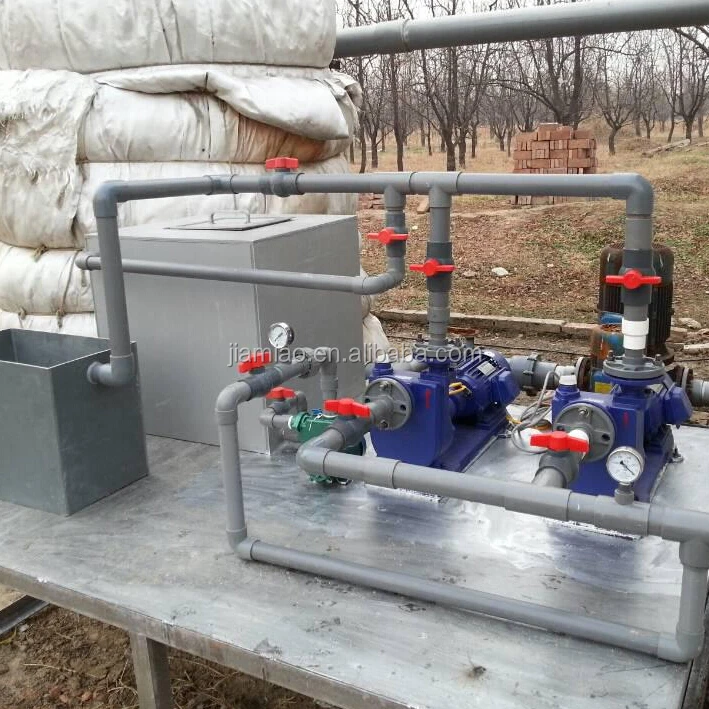

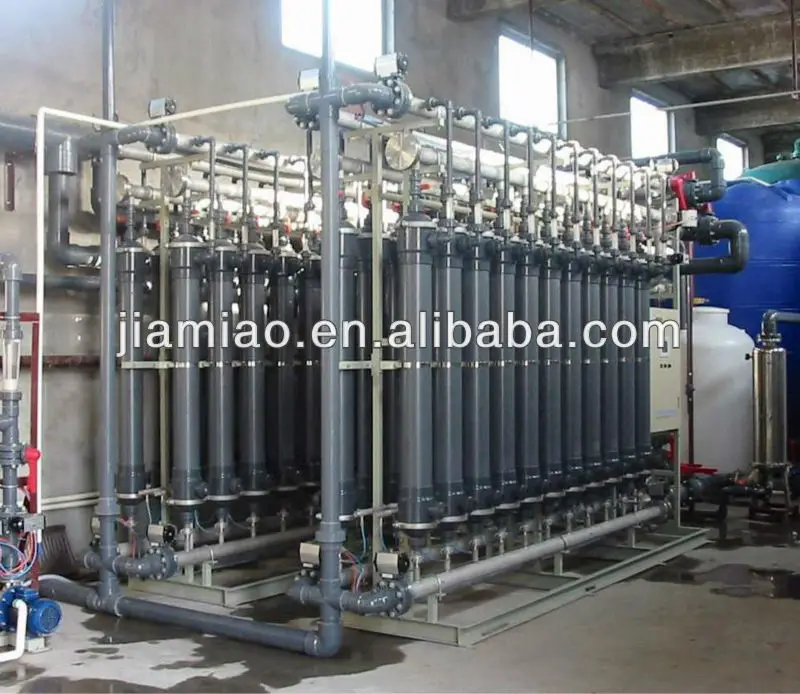

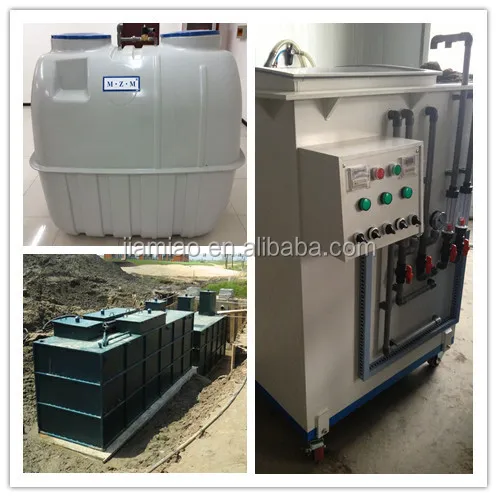

Integrated Equipment--WTP



Our factory have more than 10 years' experiences of engaging in reserching and manufacturing MBR membrane, which are widely used for waste water/industrial sewage treatment in almost all the fields.
