YT24 furukawa rock drill/hand hammer rock drill/rock drill jack hammer for sale

Product Overview

Description

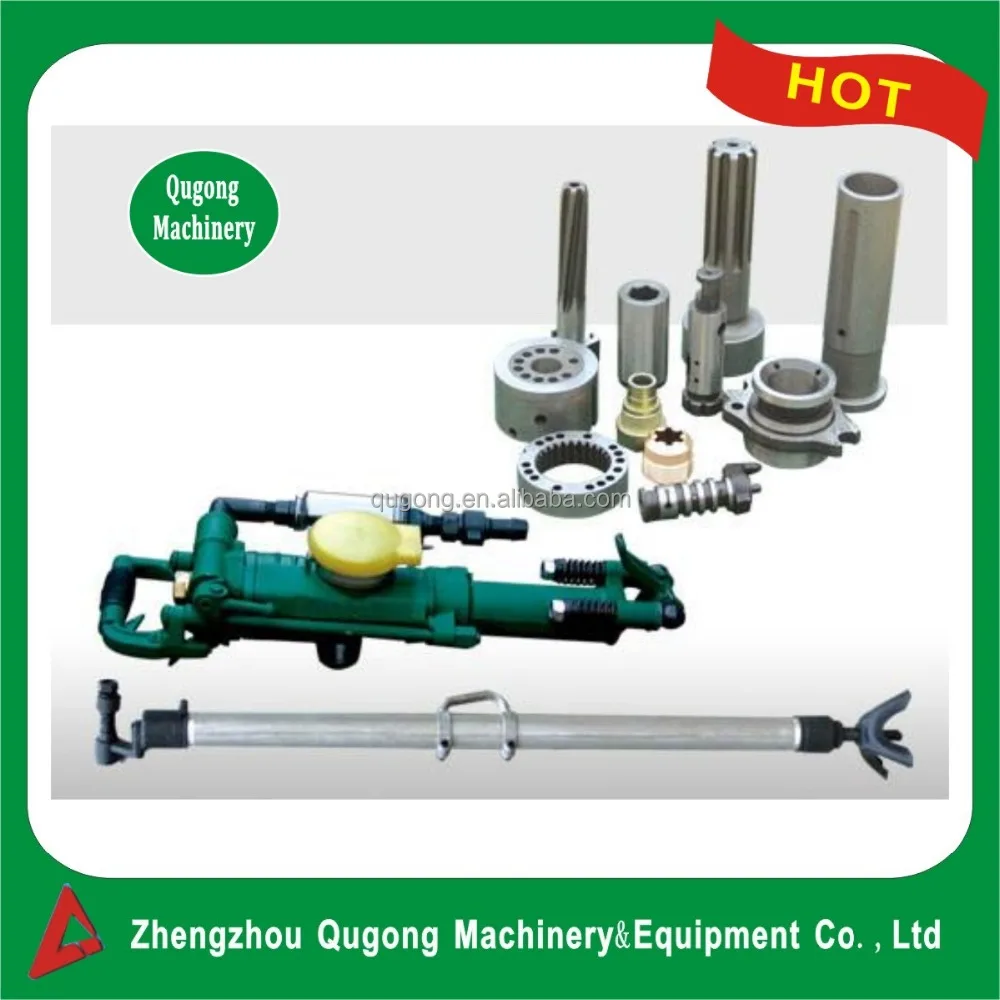

YT24 furukawa rock drill/hand hammer rock drill/rock drill jack hammer for sale

1.widely used in coal, metallurgy, railway, transportion,

2.water conservancy, infrastructure and defense engineering in the level of all kinds of rocks.

3.The rock drills all have water flushing, rifle bar rotation and the pusher leg control is placed at the back head of the rock drill.An in line lubricator is included in the delivery of each rock drill. Together with the appropriate pusher leg, the

rock drill forms an attractive and cost effective drilling unit.



Advantages:

Safe and easy to operate

Best product quality control from cutting edge forging process to product completion

Durable with minimal maintenance

Low weight,reasonable structure

Handy use and little air consumption



Features:



1.This air leg rock drill widely used in coal, metallurgy, railway, transport, water, infrastructure and national defense projects of various levelsof rock, tilt, down the hole drilling operations



2. The use of modern design means,performance of each product is optimized.



3. For all operating agencies were arranged according to ergonomic principles, to ensure that the products of high-performance, high efficiency and convenience of operation, security.



4. Quality materials and scientific and forging, all reflect the "quality " content, to ensure that the products of high strength, high wear resistance and impact resistance.



5. CNC machining, Unicase automatic line treatment, given "quality" of the guarantee and the "tough" self-confidence.



6. Computercontrolled drilling machine from the factory run test bed, grasp the dynamic characteristics of each product to avoid the occurrence of human error to ensure that the manufactured products of excellent quality and superior performance

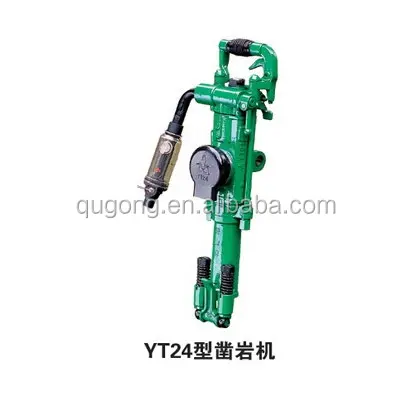

YT24  air rock drill
Weight	24kg
Dia.of cylinder	70mm
Stroke	70mm
Rock drill frequency	31HZ
Strike power	65J
Working water pressure	0.35-0.63Mpa
Air consume of rock drill	67L/S
Dia.of rock drill hole	34-42mm
Depth of rock drill hole	5mm

 Hand-hold Rock Drill Type

Model	Weight kg	Length mm	Cylinder Dia.×Stroke mm	Working pressure Mpa	Impact  energy J	Impact  frequency HZ	Air consumption I/s
YO15	15	550	58×45	0.4-0.63	≥21	≥32	≤20
YO18	18	550	58×45	0.4-0.63	≥22	≥32	≤20
Y19A	19	600	65×54	0.4-0.3-63	≥28	≥28	≤37
YO20	20	561	63×55	0.4-0.63	≥26	≥33	≤33
Y26	26	650	65×70	0.4-0.63	≥30	≥23	≤47

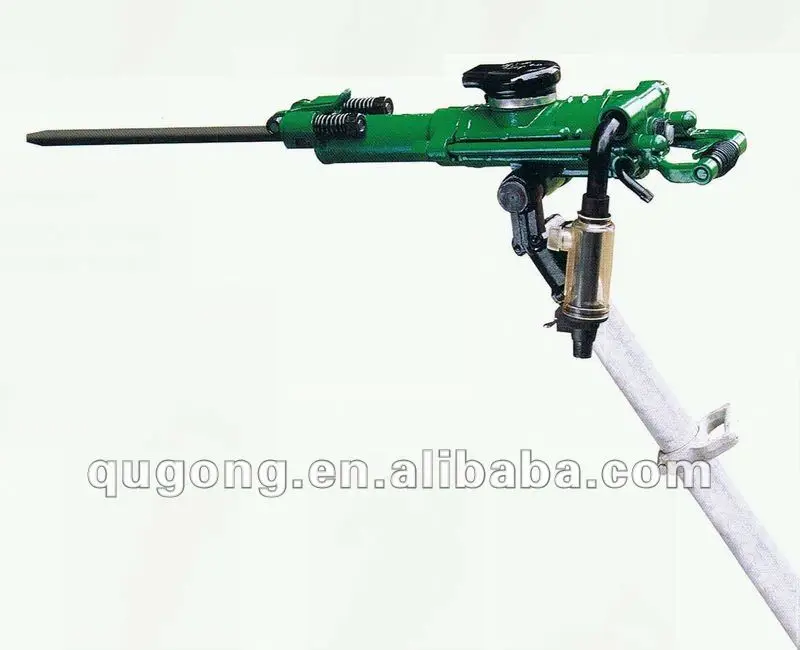

Air Leg Rock Drill Type



Model	Weight	Dimension	Cyilinder diameter xSroke	Working  pressure	Impace  energy	Impact  frenquency	Air consumption
	kg	mm	mm	MPa	J	Hz	I/s
YT23	24	628	76×60	0.4-0.63	≥65	≥37	≤78
YT23D	24	668	70×70	0.4-0.63	≥65	≥31	≤67
YT24	24	678	70×70	0.4-0.63	≥65	≥31	≤67
ZY24	25	690	70×70	0.4-0.63	≥65	≥30	≤67
YT28	26	661	60 ×60	0.4-0.63	≥70	≥37	≤81
MZ7665	26	720	76x70	0.4-0.63	≥70	≥37	≤81

 Production

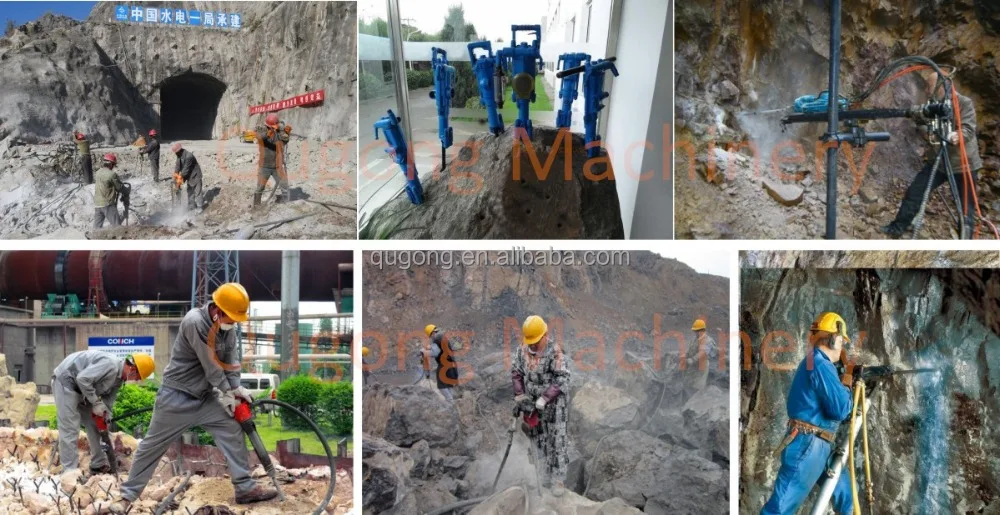

 On Working Site
