IMD Printing Machine Silkscreen Printing Machine Automatic
- Category: >>>
- Supplier: Lingtie (Xiamen) Machinery Co. Ltd.
Share on (60412157474):
Product Overview
Description
Product Description
Machine body surface is sprayed with static electricity, which can resist corrosion.
The control panel of the machine uses an English touch screen.
Model | LTA-6080 |
Print Area | 630*850mm |
Print Speed | 0-2500t/h |
Screen Frame Area | 900*1200mm |
Max. Paper Width | 620mm |
Inspection Table Max. Size | 700*800mm |
Air Source | 0.4-0.6mpa |
Power | 1P 220V 3KW/3P 380V 3KW(Customizable) |
Printing Material Thickness | 0.02-0.5mm |
Weight | 2000kg |
Machine Size | L3150*W1260*H1865mm |
Application

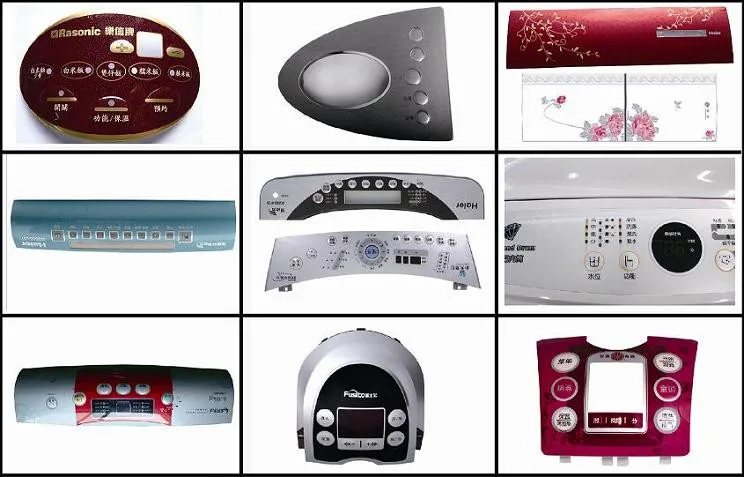

This machine is suitable not only for IML/IMD, but also for PVT, PC, PET, BOPP, PE,PP, stickers and other kinds of plastic film material in roll.
Introduction of the Three Components
Components

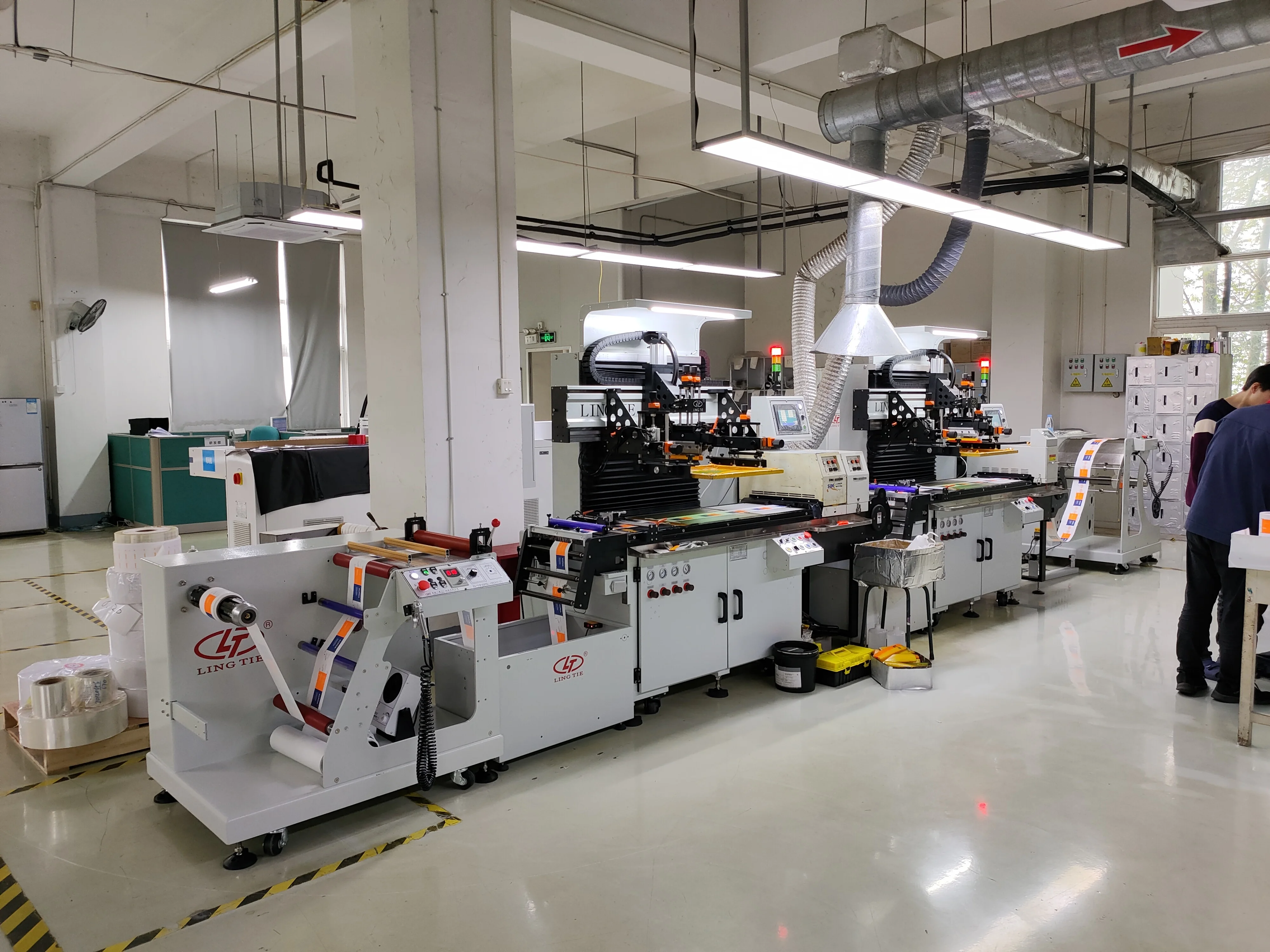

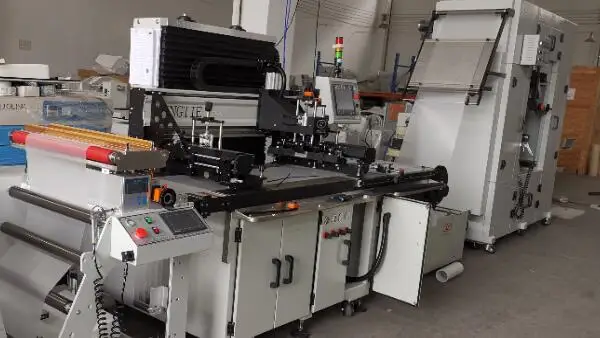

The IMD Screen Printing Machine is composed of an automatic feeding machine, automatic printing machine and automatic oven.
1. It is mainly used to feed all kinds of roll material and cooperate with automatic screen printer.
2. The feeding and winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
3. Adopting Japan Mitsubishi frequency converter, automatic control the feeding speed.
4. The feeding machine adopts imported photoelectric switch control, avoids scratching material, and can automatically adjust the
feeding length.
2. The feeding and winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
3. Adopting Japan Mitsubishi frequency converter, automatic control the feeding speed.
4. The feeding machine adopts imported photoelectric switch control, avoids scratching material, and can automatically adjust the
feeding length.
Optional functions:
1) Electromagnetic tension control
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device

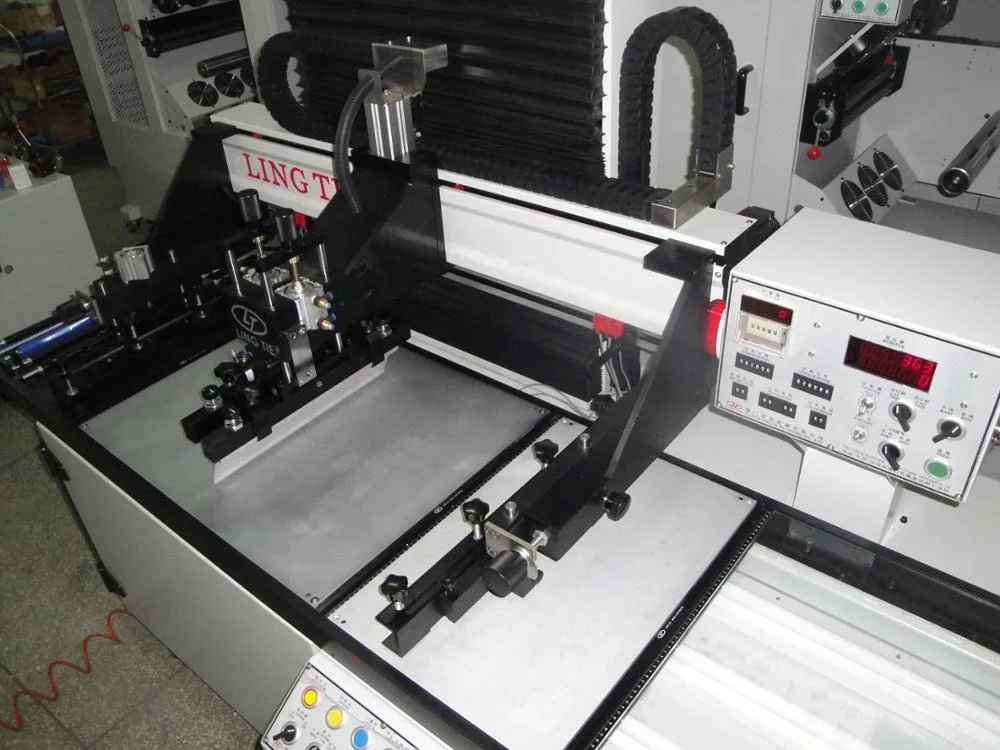

1. The printing seat adopts 4-column precise linear guide rail, with high repeatable positioning accuracy, strong stability and durability.
2. With off-screen function, printing a large area of background color and printing glue, to prevent the sticky screen.
3. With anti-drip ink function, prevent color difference between ink with ink, to achieve high quality printing.
3. With anti-drip ink function, prevent color difference between ink with ink, to achieve high quality printing.

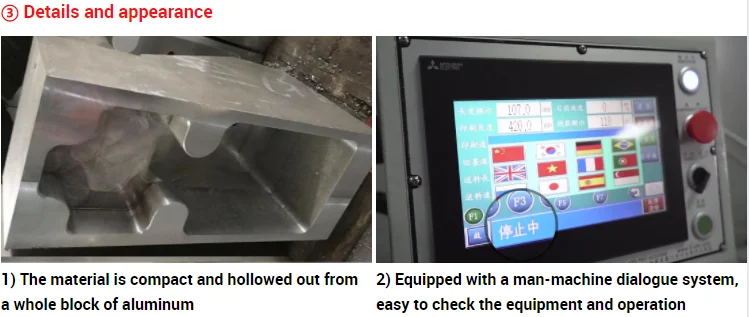

4. With a man-machine dialogue system to remind the abnormal parts of the machine.
Optional functions:
1) Automatic punching function
2) automatic registration function
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device
1) Automatic punching function
2) automatic registration function
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device

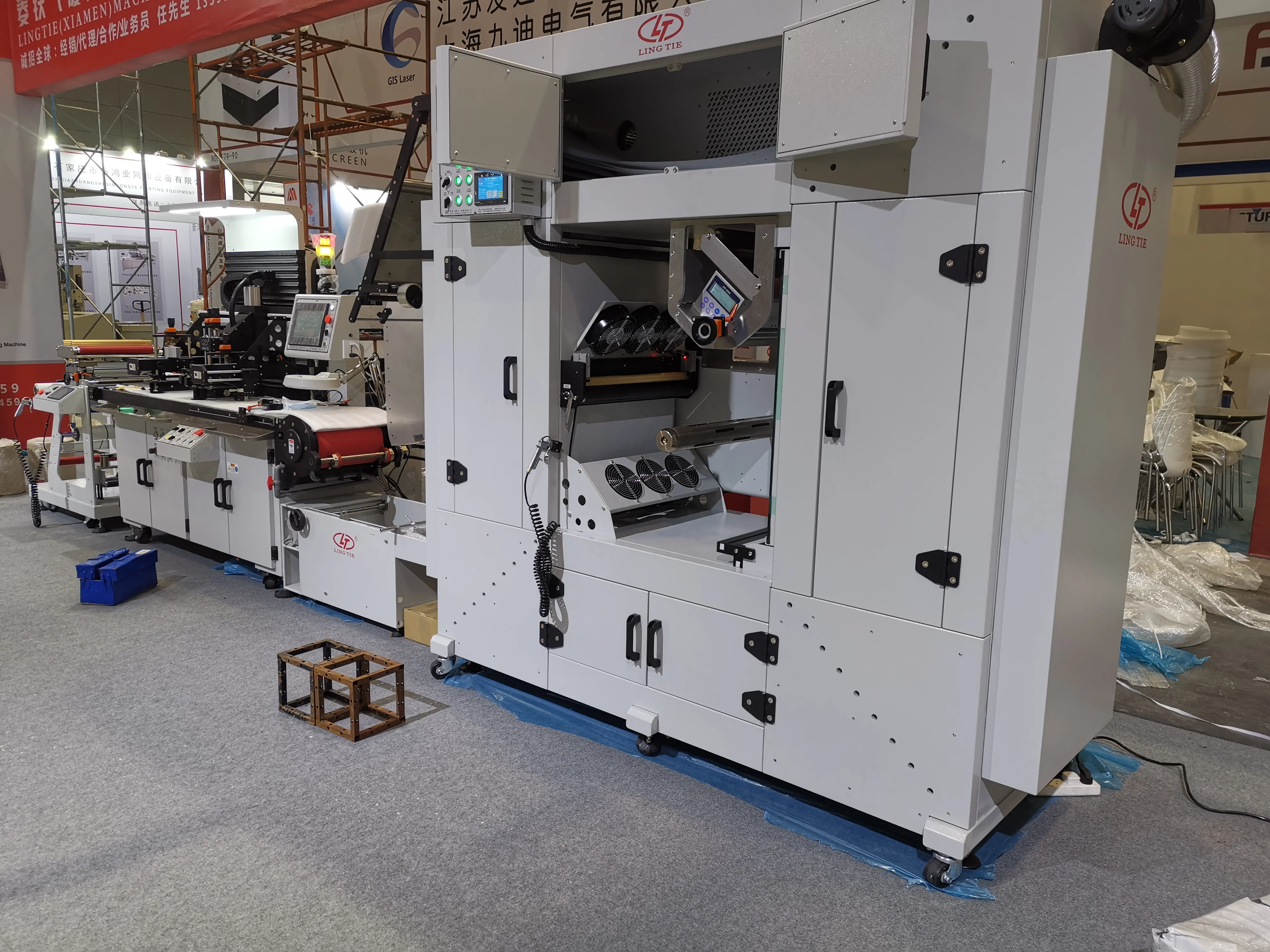

1. Oven with 4 sides, 4 sides heating, air circulation more smooth.

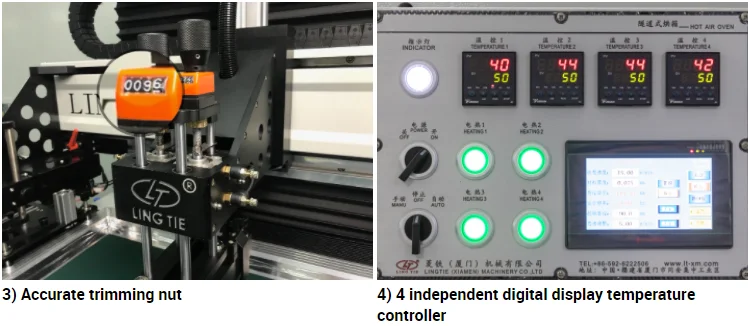

2. 4 independent digital display temperature controllers respectively control the temperature, temperature control is more convenient, more accurate.
3. Imported photoelectric switch, can sense any printing material, and can automatically track the speed of the printing machine.
3. Imported photoelectric switch, can sense any printing material, and can automatically track the speed of the printing machine.
Optional functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device
Optional Plug

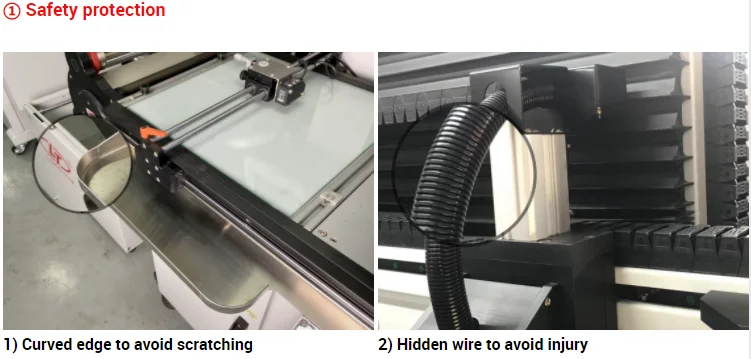

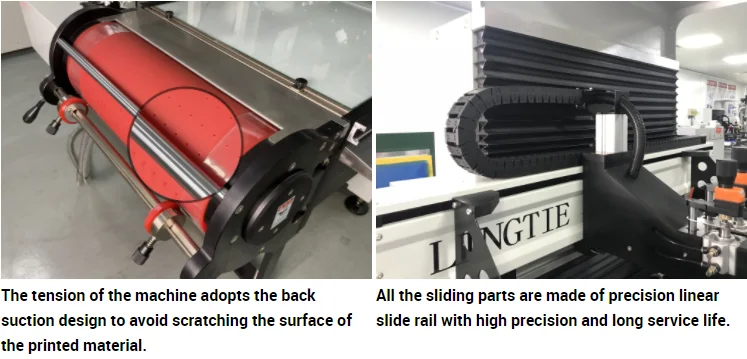

Humanization Design

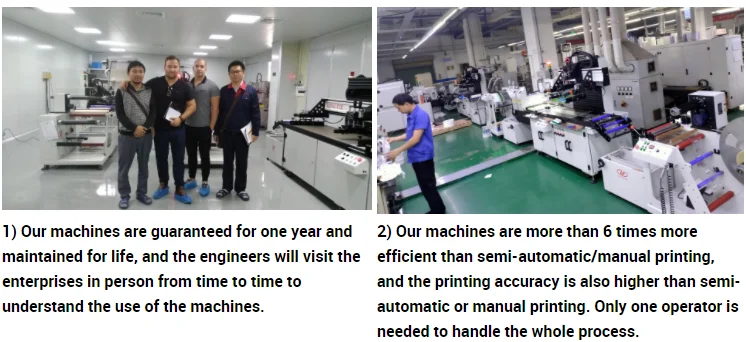

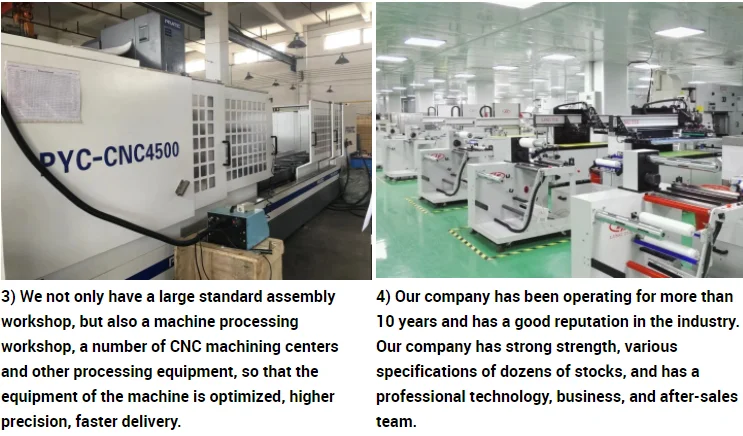

Our Advantages

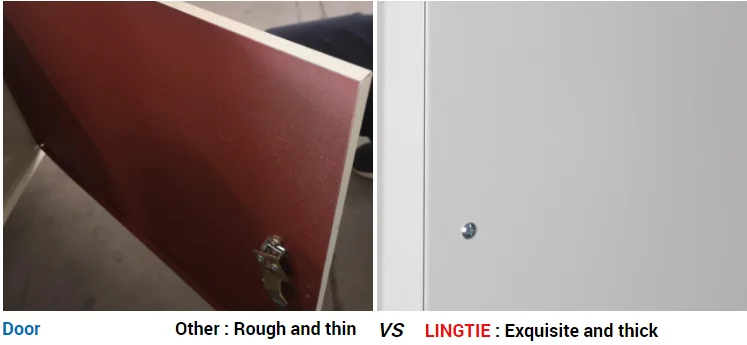

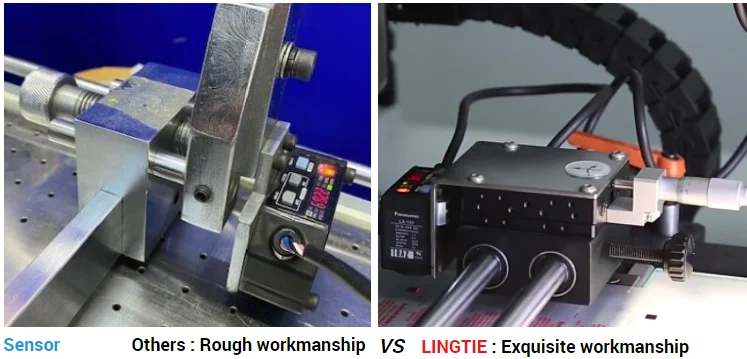

Our Details Compared to Theirs
