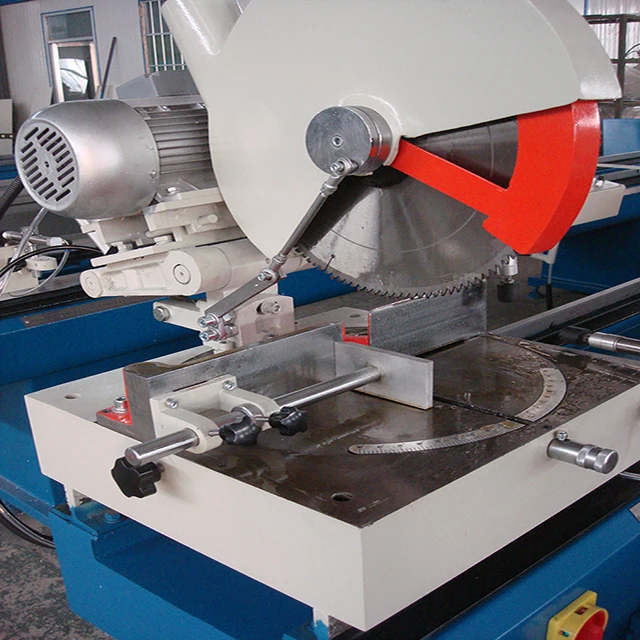

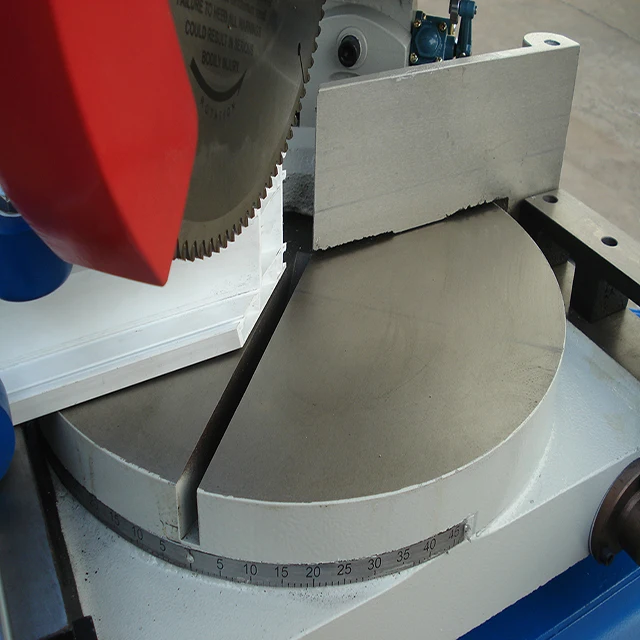

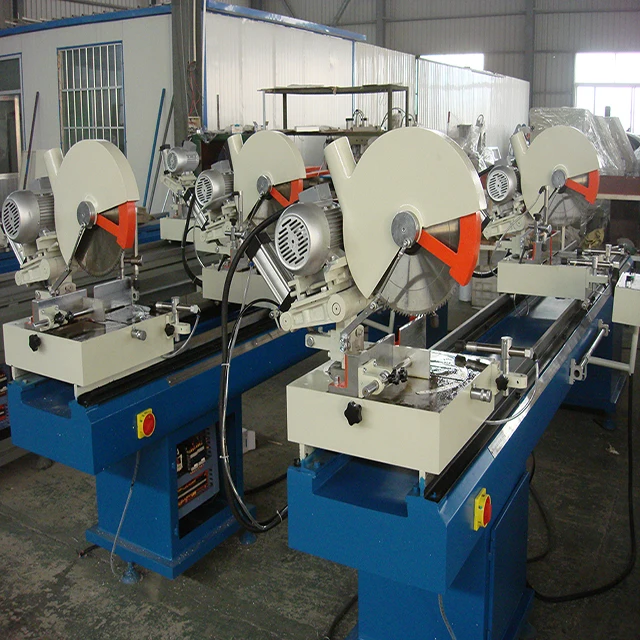

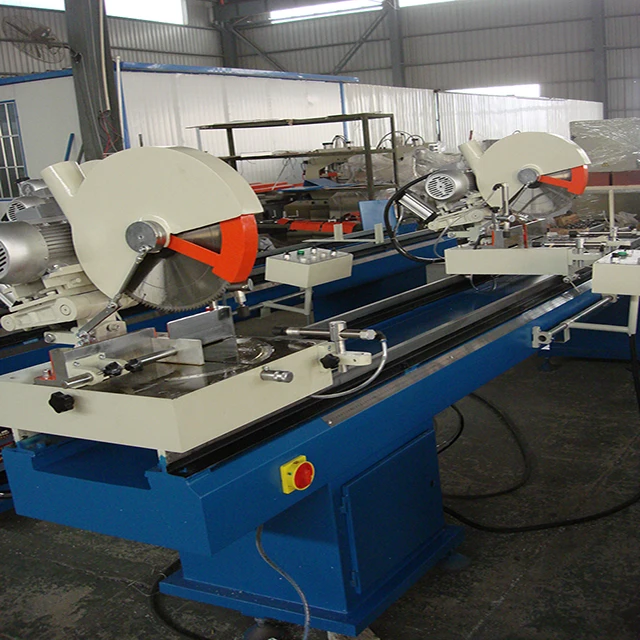

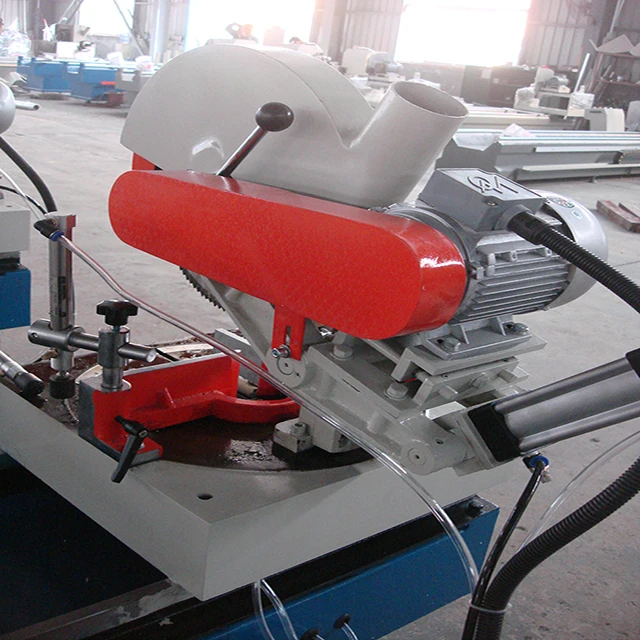

aluminum and UPVC Windows Double Head Cutting Machine
- Category: >>>
- Supplier: Jinan Windotek International Co. Ltd.
Share on (60412286436):
Product Overview
Description
Product Description
aluminum and UPVC Windows Double Head Cutting Machine
Function:
UPVC and Aluminum Window Fabricating Machine, Used for plastic and aluminum profile cutting.For -45°~90°~45°plastic and aluminum profile cutting. angle cutting machine automatic double mitre saw.
Features:
Cutting angle stopper adjustable; can realize angle compensation.
Chop type feeding.
Flexible operation.
Parameter:
Air Pressure: | 0.5MPa~0.8MPa |
Air Consumption: | 30L/min |
Input Voltage: | 380V 50Hz |
Input Power: | 3KW |
Motor Power: | 1.5KW |
Motor Rotary Speed: | 2840r/min |
Spindle Rotary Speed: | 3155r/min |
Saw Blade Specification: | 350mmx3.0mmx30mm |
Max. Cutting Height: | 100mm |
Max. Cutting Width: | 200mm |
Cutting Length: | 450mm~3500mm |
Overall Dimension: | 4000mmx1120mmx1450mm |
Weight: | 590kg |
| Main Accessory | |
| Solenoid | SXPC |
| Temperature Controller | Omron |
| PLC | Omron, Misibisi |
| Cylinder | JPC (Festo China) |
| Motor | Anhui Sanyang/Zhenyang |
| Saw Blade | Uniken |
| Mechanical Parts | High Precision |
| Air Filter Device | STNC |
| Electrical Button and Switcher | Schneider |
| AC Contactor and Circuit Breaker | Schneider |
| Approach Switcher | Swiss CONTRINEX or Japan Omron |
window making cutting machine LJB2-350x3500
