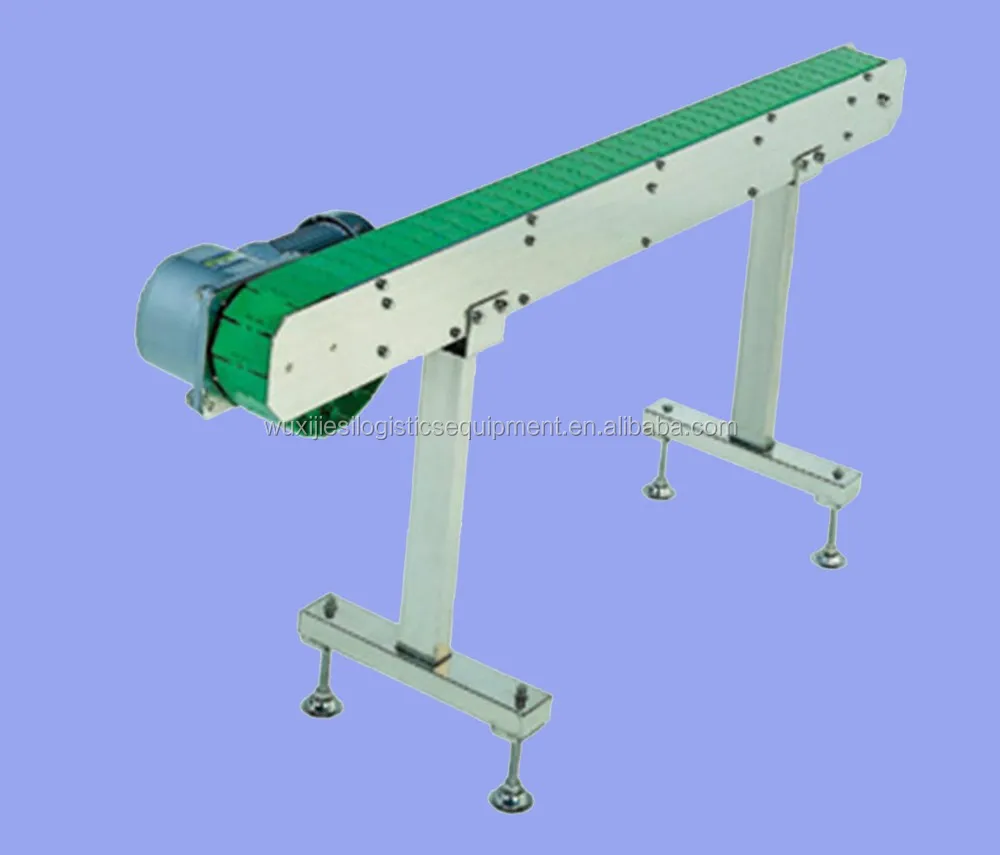

Plastic top chain conveyor; scraper chain conveyor JR12

Product Overview

Description



NAME:   Plastic top chain conveyor; scraper chain conveyor JR12-TD2 /TC2

    Roof chain conveyor chain standard for roof loading areas, and from the motor drive for powertrain, operating in the exclusive guideway, Under the process, the chain is turning the roof and linear.

   Suitable for automobile, motorcycle, air conditioning, hardware tools, refrigerators, washing machines and other industries in the automated assembly line.

>> Technical parameters:

Plate  width: 64mm~191mm
Chain speed:3.6m~36m/Min
Capability: 30kg/M
Metal plate chain working environment temperature: ~+120 C -20 C
Frequency conversion, stepless speed regulation
Voltage: 220V/380V

>>Size:



	(unit: mm)
Model	JR12-TD2									JR12-TC2
Plate width(PW)	64	76	83	102	114	127	152	165	191	82.6	114.3	190.5
Conveyor width(FW)	77	90	96	115	128	141	166	179	204	96	128	204
Conveyor Length(L)	1,000~4,000									L1+Lc+L2
										Central chain length max4,000
										(Minimum Central radius600R)
Height(H)	min400
Frame material	SUS304 125H
Chain Plate	Plastic roof chain
Capability	30(kg/P)
Motor power	200W.400W
Voltage	AC100V(1PH).AC200V(1PH).AC200V(3PH)
Option	Foot\\guide etc.



>>Speed:

Fixed speed		Variable speed
No.	50/60Hz	No.	20~60Hz
T1	3.0/3.6	H1	3.6~10.8
T2	5.0/6.0	H2	8.4~25.2
T3	10.0/12.0	H3	12.0~36.0
T4	20.0/24.0	-	-



>>DWG:

1.straight

2.Curse:

 >>Pictures:

>>WORKSHOP AND MACHINE



>>how to choose the right roller conveyor for your warehouse or workshop, please follows:

 1.tell us the conveying items' size and weight

 2.how long of conveyors do you want?

 3.do you need motor to drive or manual work?

 4.what is the working environment?
