010 COATING THICKNESS GAUGE MODEL CM 8822 COATING THICKNESS GAUGE

Product Overview

Description

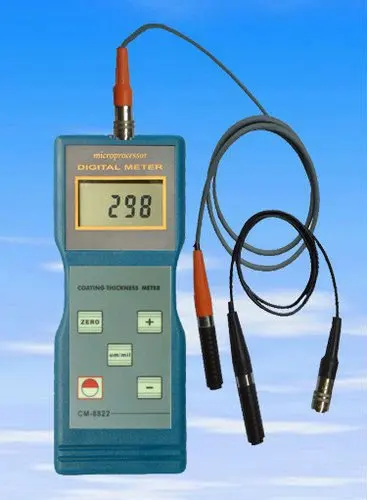

MODEL CM-8822 COATING THICKNESS GAUGE





































































Application:

        This tester is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, ship building, power station, and machine manufacturing.



Technical Parameters:



Operating principle: magnetic induction/eddy current (F/NF)



Measuring range:0-1000um



Resolution; 0.1/1



Accuracy: ±1-3%n or ±2.5um



Min. measuring area: 6mm



Min. sample thickness: 0.3mm



Battery indicator: low battery indicator



Metric/ imperial: convertible



Power supply: 4x1.5V AA (UM-3) battery



Auto power off



Operating conditions: 0-+45°C(32°F-104°F), less than 90%RH



Dimensions: 160 x 68 x 32 mm



Weight:  250g (not including battery)



Optional accessories:



other range 0-200um to 15000um
