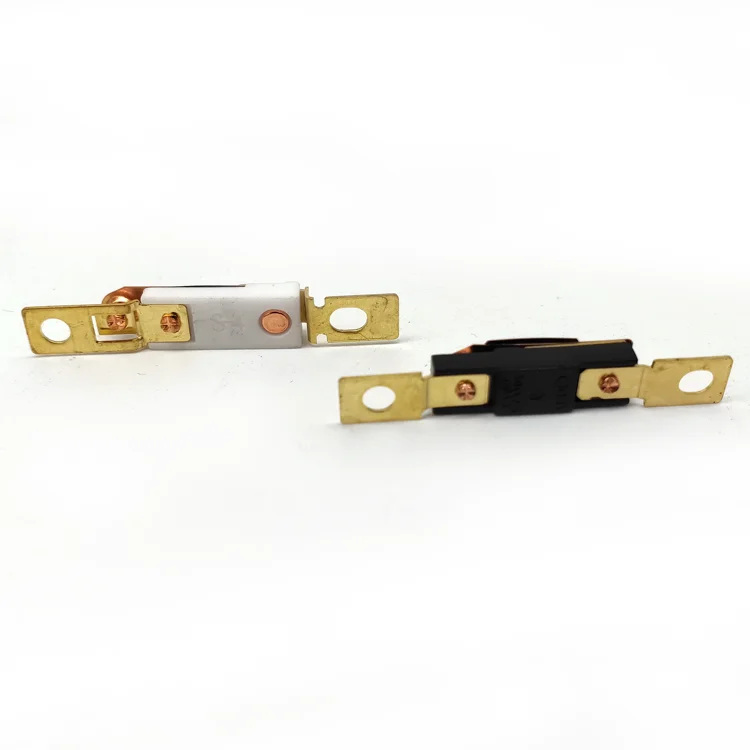

ZJT 1 Bimetal Thermal Switch 125V AC 15A Thermostat in Hair Dryer
- Category: >>>
- Supplier: Wuhan Zhenguan Industry And Trade Co. Ltd.Wuhan Ltd.
Share on (60412646248):
Product Overview
Description
ZJT-1 Bimetal Thermal Switch 125V AC 15A Thermostat for home appliance
| rated temperature | off temperature | rated current |
| 65℃ | 65℃ ±7℃ | 10A 15A |
| 70℃ | 70℃ ±7℃ | 10A 15A |
| 75℃ | 75℃ ±7℃ | 10A 15A |
| 80℃ | 80℃ ±7℃ | 10A 15A |
| 85℃ | 85℃ ±7℃ | 10A 15A |
| 90℃ | 90℃ ±7℃ | 10A 15A |
| 95℃ | 95℃ ±7℃ | 10A 15A |
| 100℃ | 100℃ ±7℃ | 10A 15A |
| 105℃ | 105℃ ±7℃ | 10A 15A |
| 110℃ | 110℃ ±7℃ | 10A 15A |
| 120℃ | 120℃ ±7℃ | 10A 15A |
| 130℃ | 130℃ ±7℃ | 10A 15A |
| 140℃ | 140℃ ±7℃ | 10A 15A |
Technology Specification:
Authentication:CUL,VDE, CQC
Elecaric Ratings:125V AC/15A, 230V AC/10A
Maximum off Temperature:140℃
Off Tolerance:±5℃ ; ±7℃(according to client's requirement)
Hi-pot:1250V/0.5mA/1Min 2500V/0.5mA/1Min
Insulation Resistance:≥ 100mΩ(DC500V)
Contacting Resistor: ≤ 50mΩ
Working Life: ≥10000Cycles
Method of restoration: Auto restoration
Application: Electric dryers, Fan heaters, Popcorn Makers
