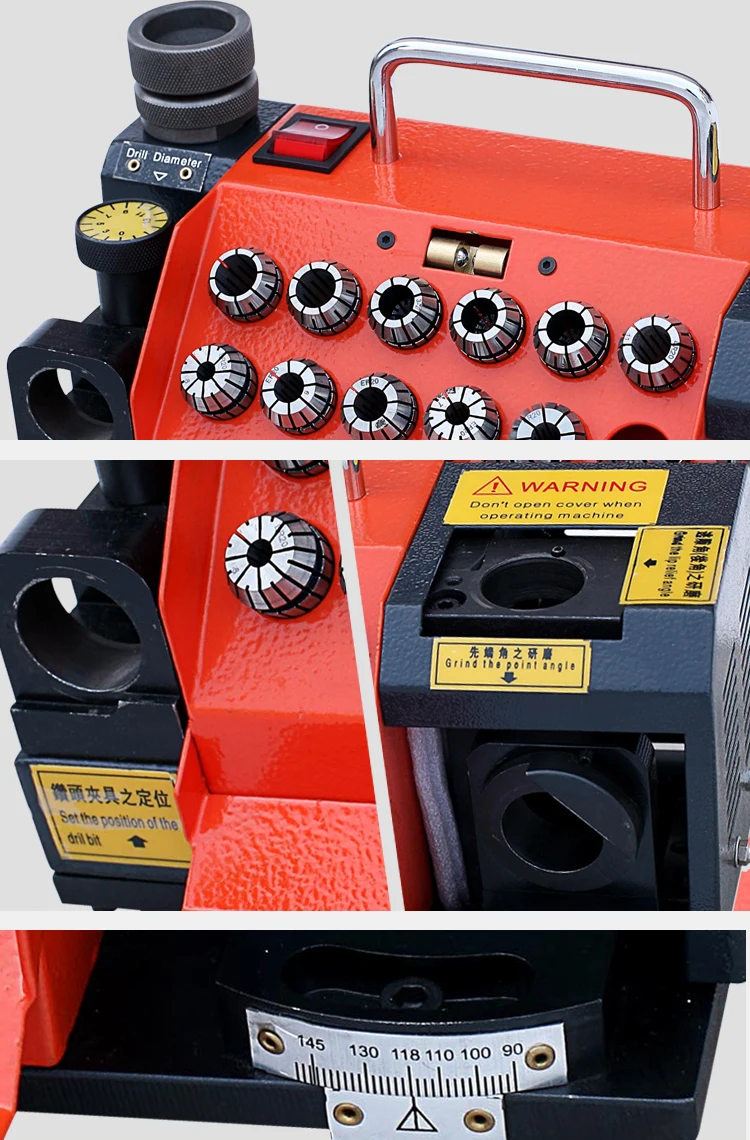

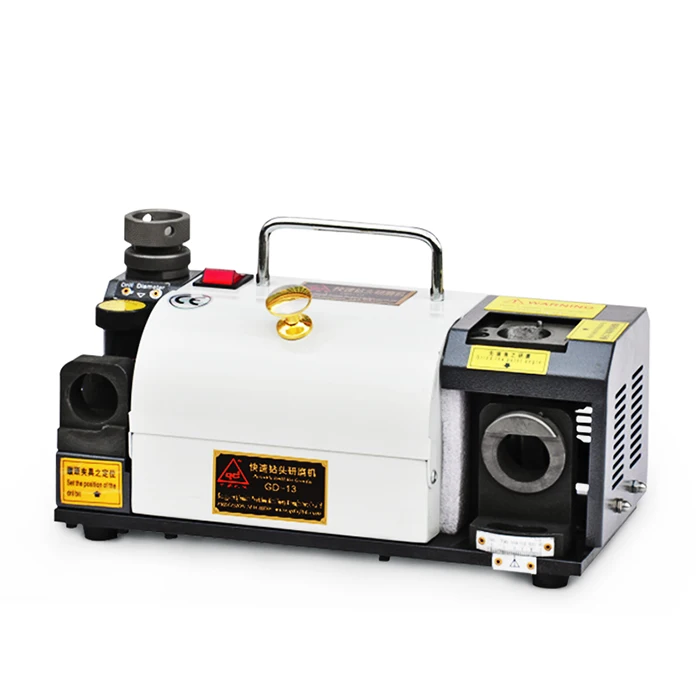

Hot Sale GD 13 Drill bit Sharpener CE Certificate portable drill bit grinder sharpening machine

Share on (60412674128):


Price:RUB 17,833.95

Quantity:


Product Overview

Description

Drill Sharpener GD-13 in good price CE Certificate portable drill bit sharpening machine



GD-13_01
High quality factory price drill sharpening machines CE certificate drill bit grinder
Lapping range: Φ 2-13mm
Check the machine operation video please copy url: //v.youku.com/v_show/id_XOTU1MzkzNjg0.html
The latest color is orange red, has a yellow color, if there is a request to contact customer service








Product description:



Portable idiot drill grinder, twist drill grinder, Universal small drill grinder, universal big drill grinder, universal precision drill sharpener, it is accurate and fast with easy operation.

1)  Grinding is accurate and rapid, easy operation, with no skill requirement to grind easily.
2)  Economical price that greatly reduces the cost and improves the use effect.
3)  With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.
4)  The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
5)  Bearing shaft and locking unit.
6)  The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and long service life of the drill bit.



Parameter:

Model

GD-13

Grinding Range

Φ2-Φ13(Φ15)

Point Angle

100°(90°)~135°

Power

AC220V

Motor

120W

Speed

6400rpm

Dimension

32*18*19

Weight

12kg

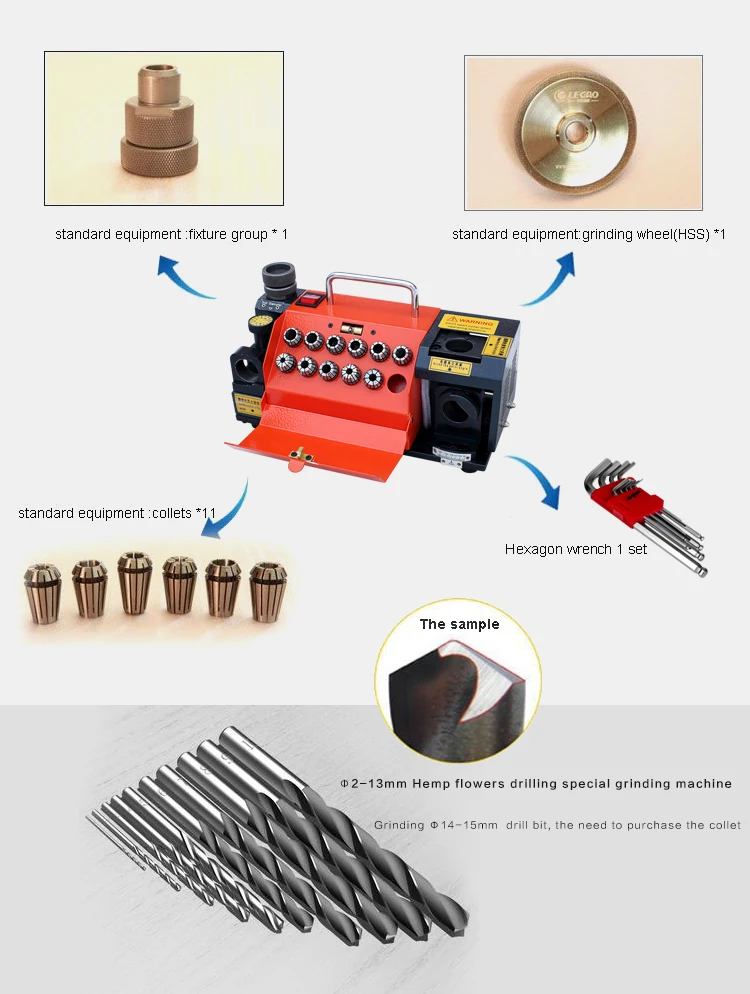

Standard Equipment

grinding wheel :CBN (for HSS)×1

Eleven collets: Φ345678910111213

collet chuck:(Φ2-Φ14)×1

Option Equipment

grinding wheel :SD (for Carbide)

collets: Φ22.53.54.55.51415

collet chuck:Φ15





GD-13_02



GD-13_06



GD-13_08



GD-13_21



GD-13_20





GD-13_10



GD-13_04
