Product Overview
Description
| General introduction: |
Prodrill series Hydraulic Rock and Concrete Splitters provide a powerful and extremely cost effective alternative to other conventional demolition techniques such as Expansive Mortar
( High Soundless Cracking Agent ), Blasting, Pneumatic Spitting Hammer G10, etc. used for
quarrying, demolition. Type of rock splitter is Mobile and portable,
Advantages:

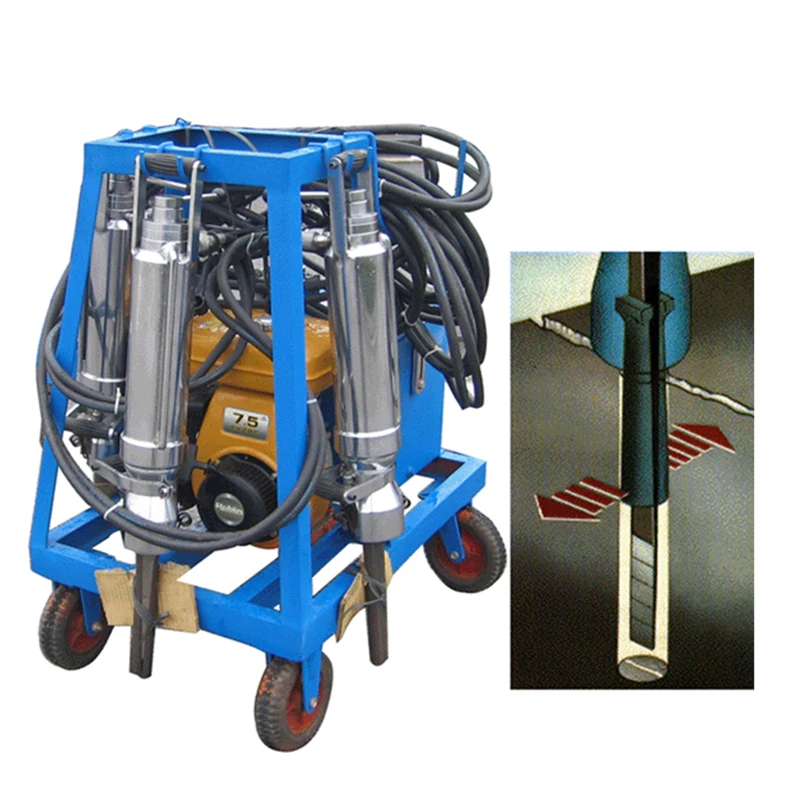

Hydraulic stone & concrete splitter is one of the efficient, safest and easiest ways of mining, dimensional stone quarrying, demolition & removing mass and reinforced concrete.
New model no splitter standard configuration is 3 aluminum cylinder with centre wedge and one counter wedge for each, and plus diesel motor engine, pump station, and high pressure hose etc.

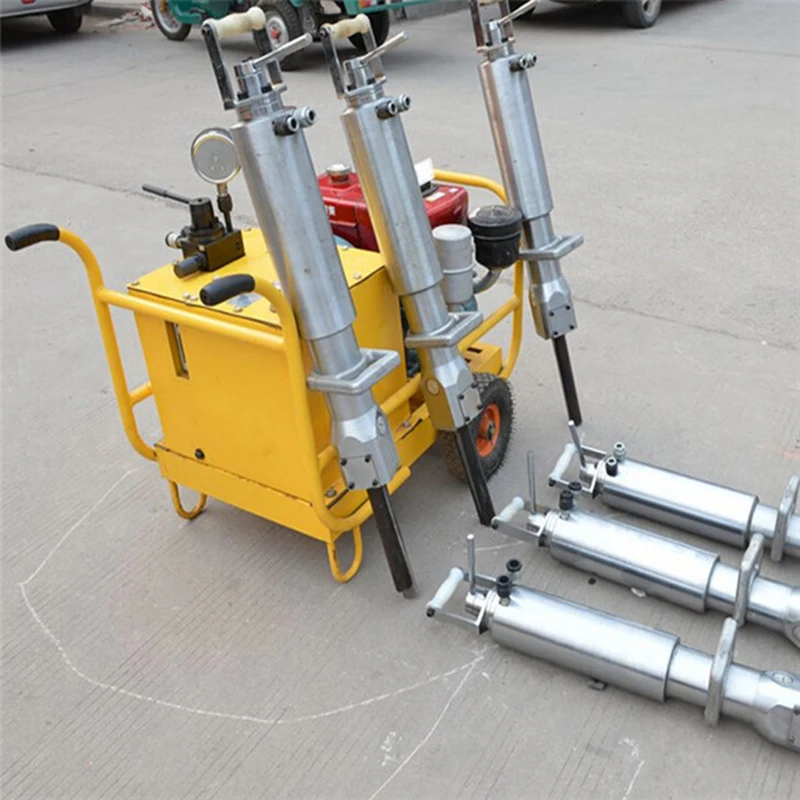

A complete Prodrill series rock and concrete splitter comprises 3 components:
1. one or several steel /aluminum splitting cylinders
2. one hydraulic pump unit
3. one set of high and low pressure hoses
Model Number
| Hole Diameter (mm) | Counter Wedge Dia (mm) | Counter Wedge Length (mm) | Min hole depth (mm) | Actually splitting force (ton) | Weight
(kg) | Length Cylinder Body (mm) | Splitting Distance (mm) |
PD250 | 42-44 | 40 | 250 | 550 | 450 | 34 | 700 | 10-18 |
PD350 | 44-46 | 42 | 350 | 650 | 450 | 35 | 700 | 10-18 |
PD450 | 46-48 | 44 | 450 | 750 | 450 | 36 | 700 | 10-18 |
| Images |

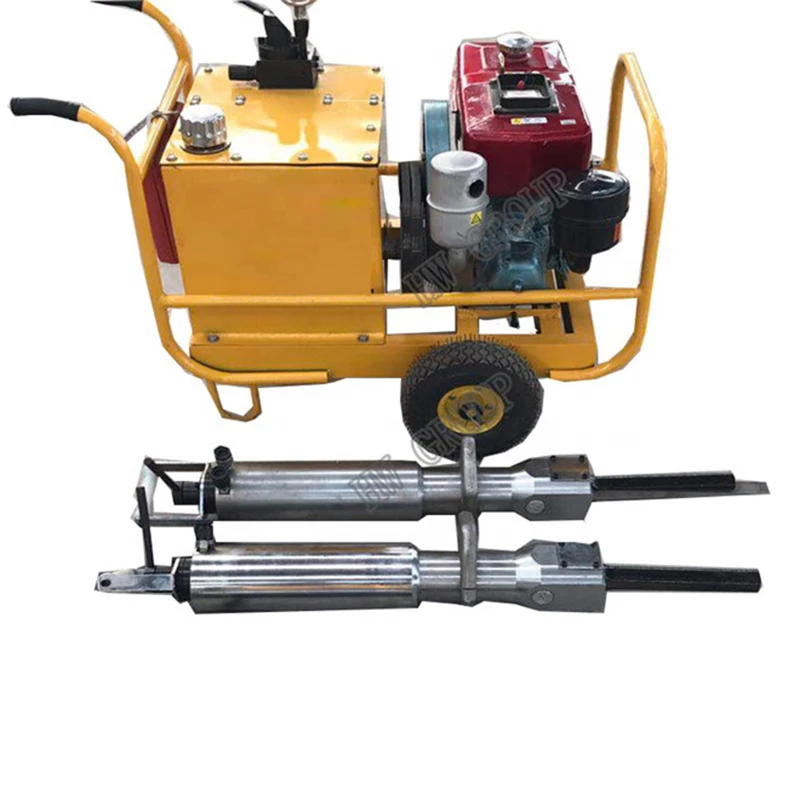

A complete Prodrill series rock and concrete splitter comprises 3 components:
1. One pump station
2. One and more splitting cylinder
3. One set of high and low pressure hoses

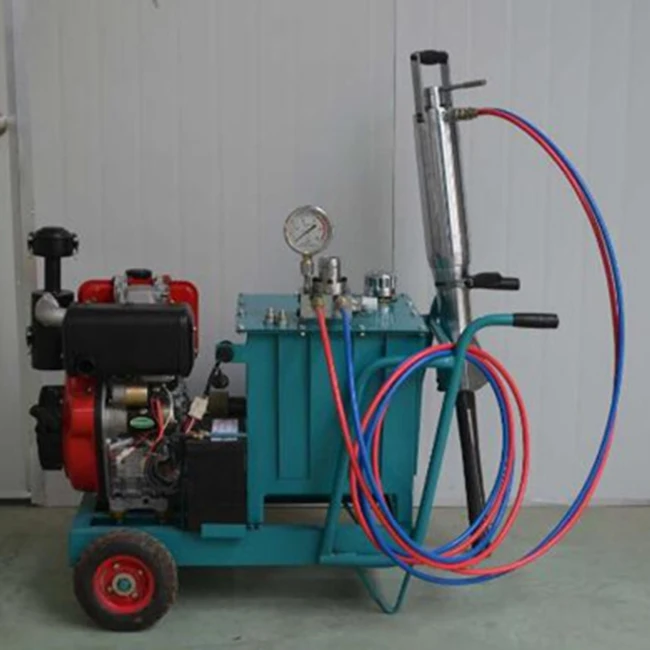

| Hydraulic Pump Station ( Diesel Motor ) |
![_`[1S2EW4HR18RW2N`FV]E.jpg](http://g02.s.alicdn.com/kf/HTB1xuD8KVXXXXajXFXXq6xXFXXXv/224307276/HTB1xuD8KVXXXXajXFXXq6xXFXXXv.jpg)

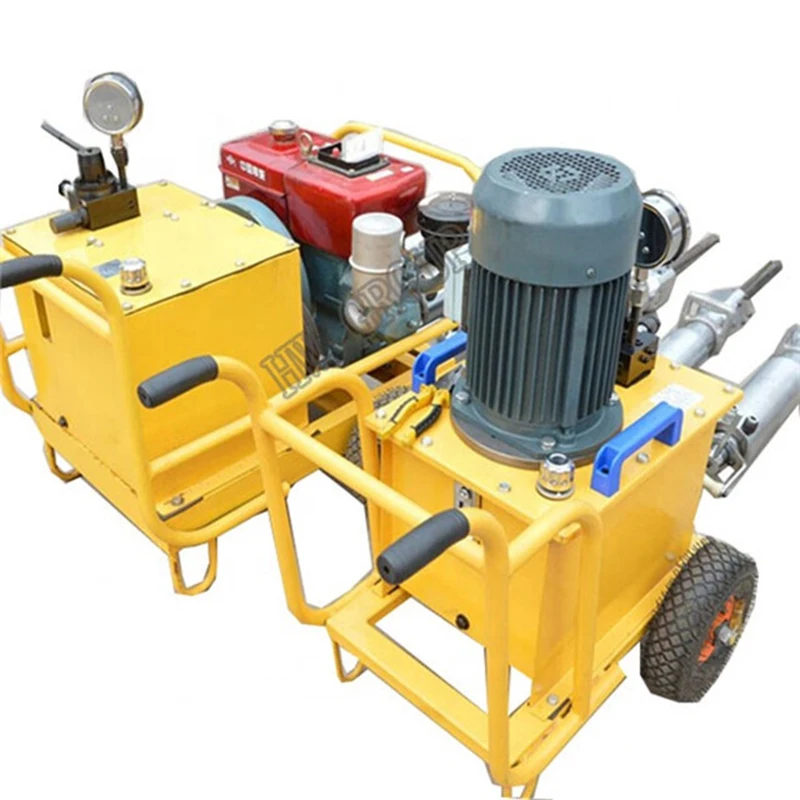

Technical Parameter of Hydraulic Pump Station:
Motor Type | Tank capacity (L) | Power(Kw) | Voltag (V) | Working Pressur (Mpa) | Working Flow | Working medium | Can configure Cylinder Q'ty | Remarks |
| Electric | 30 | 0.75 | 220 | 60 | 4 | No. 46 or no. 68 anti wear hydraulic oil | 1 | Special production |
| Electric | 30 | 1.5 | 380 | 60 | 4 | 1 | Standard | |
| Electric | 30 | 4 | 380 | 60 | 14 | ‘1-6 | Standard | |
| Electric | 30 | 7.5 | 380 | 60 | 14 | ’1-10 | Import, few use | |
| Diesel | 50 | 5.66KW (7.5P) | 60 | 14 | ‘1-6 | Water/wind cooled |
| Hydraulic Splitting Cylinders |
![L`B1HNQ4PT{1)V8PKC]Z%6X.png](http://g03.s.alicdn.com/kf/HTB1zevWKVXXXXcTXVXX760XFXXXl/224307276/HTB1zevWKVXXXXcTXVXX760XFXXXl.png)
| spare part |
E7EBSF2L71RGJR3LPAX2K.png" width="700" style="font-family: Verdana, Arial, Helvetica, sans-serif;" ori-width="1000" ori-height="200"/>
Counter wedge Centre wedge Piston
Wedge set assemble
Applications
Packaging & Shipping
More Products
DTH Hammer >> DTH BIT>> Thread Button Bits>>
ODEX Eccentric Casing >> Symmetrix Overburden Drilling System>> RC Bits>>
FAQ
Terms & Conditions of Ordering:
1 .Payment Terms:
T/T (Telegraphic Transfer) or Western Union
2. Delivery Term:
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Transportation:
Sample order: we suggest Courier express or by air
Bulk order: we suggest by air or by sea.
4. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded) through skype( simonhu6) and WhatsApp/Wechat: + 86 139 1110 7654
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
