Digital electronic cabinet lock; smart lock; RFID cabinet lock with bracelet; smart door lock
Product Function
Power supply
DC6V
Static power supply
<10u A
Dynamic power supply
< 150mA
Door thickness
15-30mm
Latch length
15mm
Lock Key types
T5557, M1, EM4100, EM4305 card
Alarm voltage
<4.5V
Battery type
4xAA batteries
Working temperature
-30~+70 °C
Lifetime of battery
One year
Emergency opening: 1. Use master card to open 2. Use override mechanical key to pen. Take off the reader panel and find the cylinder inside the panel and open it with mechanical key. 3. Use outside battery box(Emergency Power supply is free for you) to open the locker when the battery power is low.
Operating Instruction
Single card (guest card can unlock alone) or dual card (guest card and waiter card can unlock at the same time) to open, you can set it at any time according to the need.
I. Automatic rebound function:
No need install door handle, just open by card, then 5-7seconds later lock will bounce off automatically, even special type door hinges can also be opened smoothly. When you close the door then the locker be locked.
II. Low voltage alarm indication function:
When power is lower than 4.8 V, every time you use the card to open, there will have sound and lighting double indicate, you should replace the battery soon at this time.
III. Intelligent smart cylinder, reasonable structure, gear combined movement, safe stable and reliable operation.
IV. Spare external emergency power, in case you forget to change battery You can use the external power to replenish and light up to open cupboard door by card.
V. Different kind of key chain key /Watchband/ FOB card for choice:
Plastic, Silicon or Buddha beads, which are all waterproof, moisture proof, high temperature resistant, corrosion resistance, easy to carry, safe and durable.
VI. EM card to open doors, eliminate illegal inserting card phenomenon.

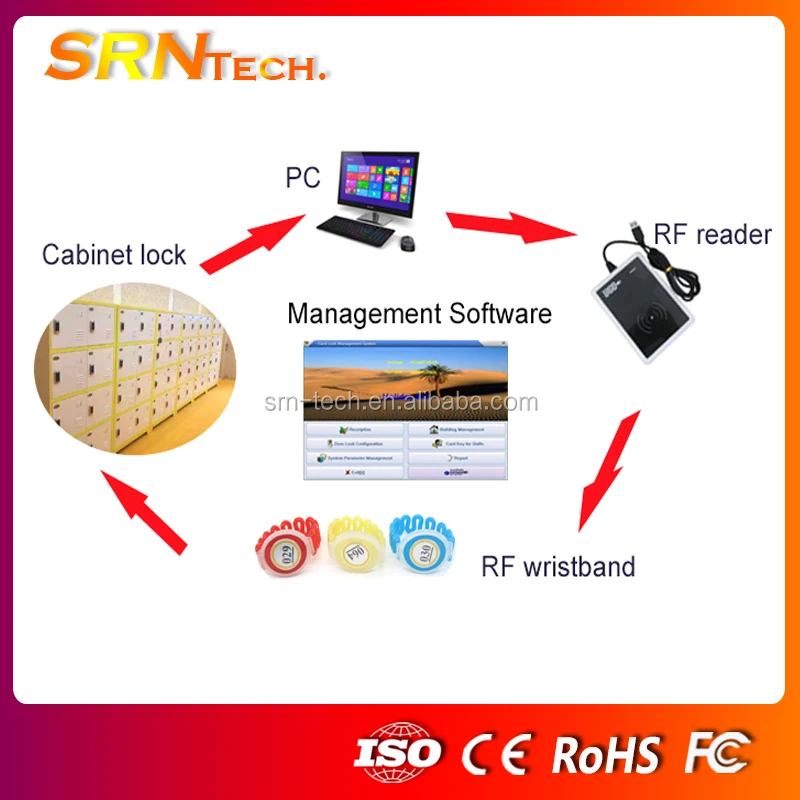

VII.Can realize Two-level management function, a lock can set a Management card, and users' cards (at most 30pcs) or match card scheme according to customers’ request
VIII.Prying resistant alarm indication function: when lock is opened in illegal, it will indicate service personnel by alarm sound to prevent the loss of property.
Different cylinder for your choice:Plastic or metal
Logo print service in keychain for you for free.

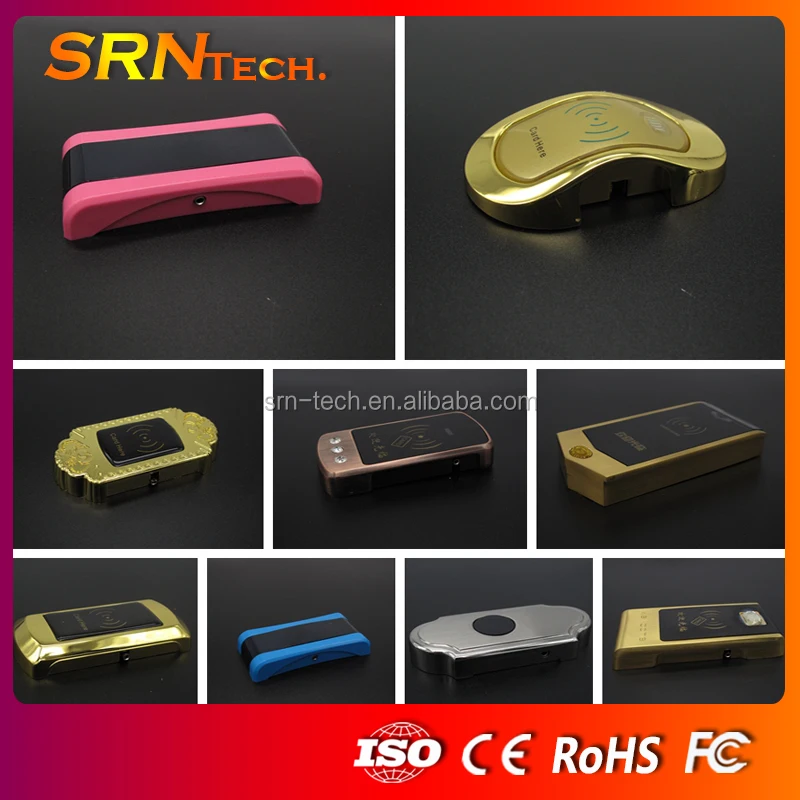

Kind Shooting--Product Pictures

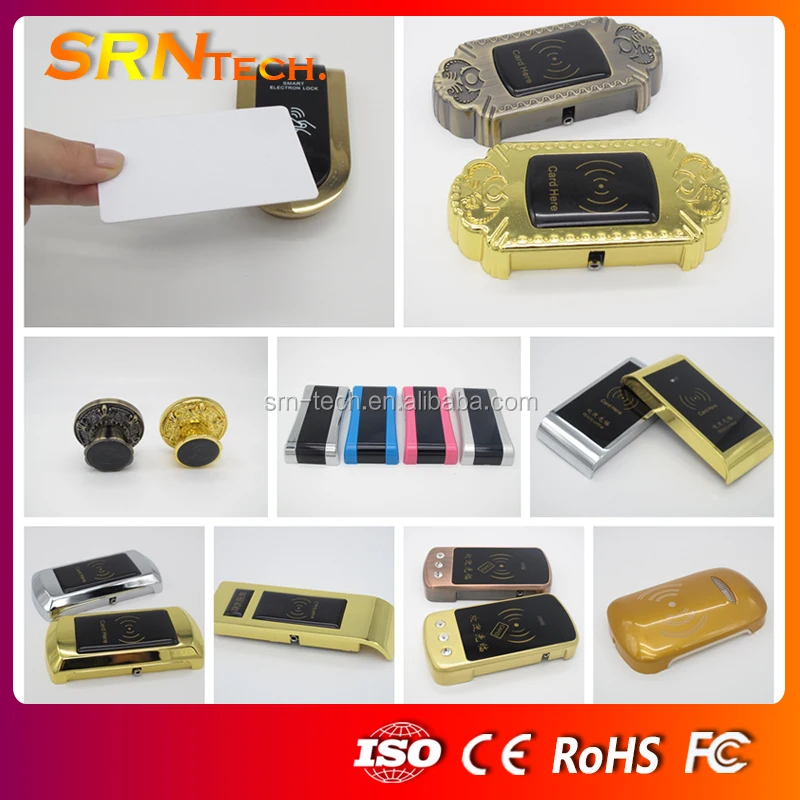

Lock Key Options
Lock Mortise Options
Installation Introduction

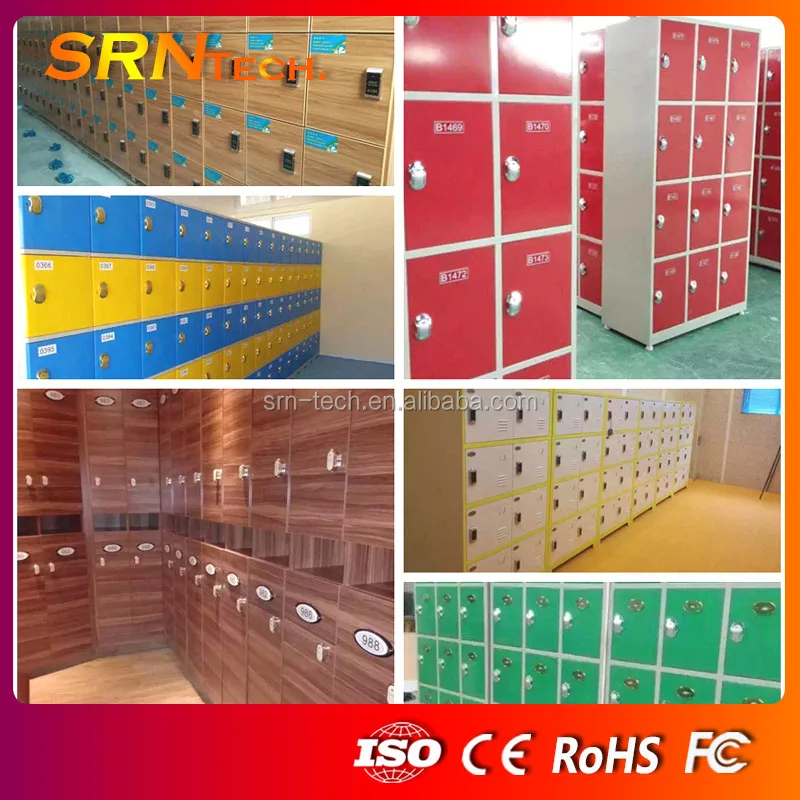

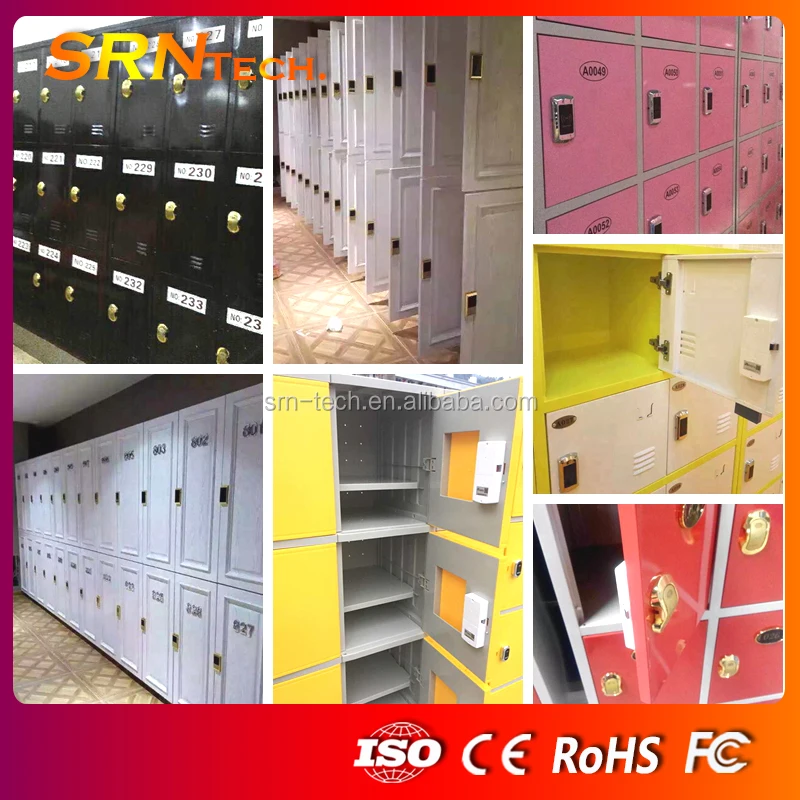

Project Pictures
Why choose us?
Certifications
Packaging & Shipping
Call for a deal
Small Order Quantity is also available! Call me, let's start a deal !!!
