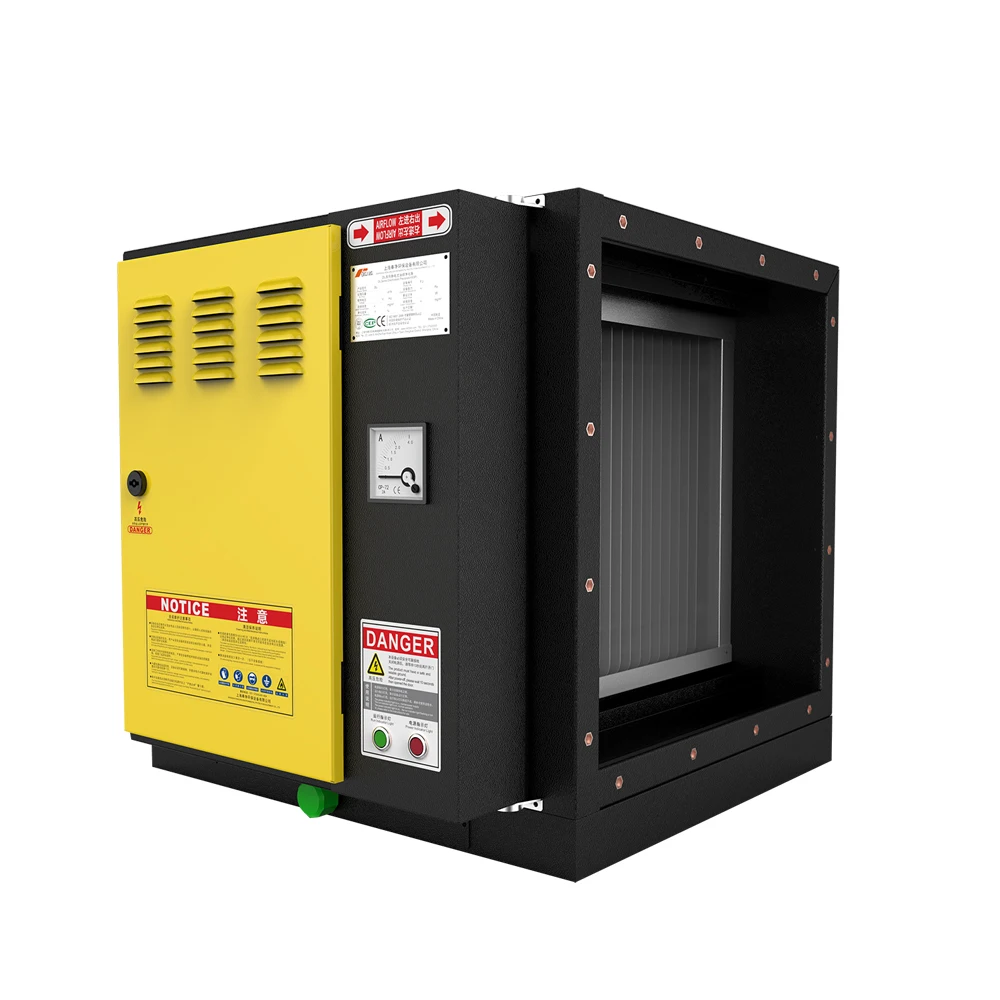

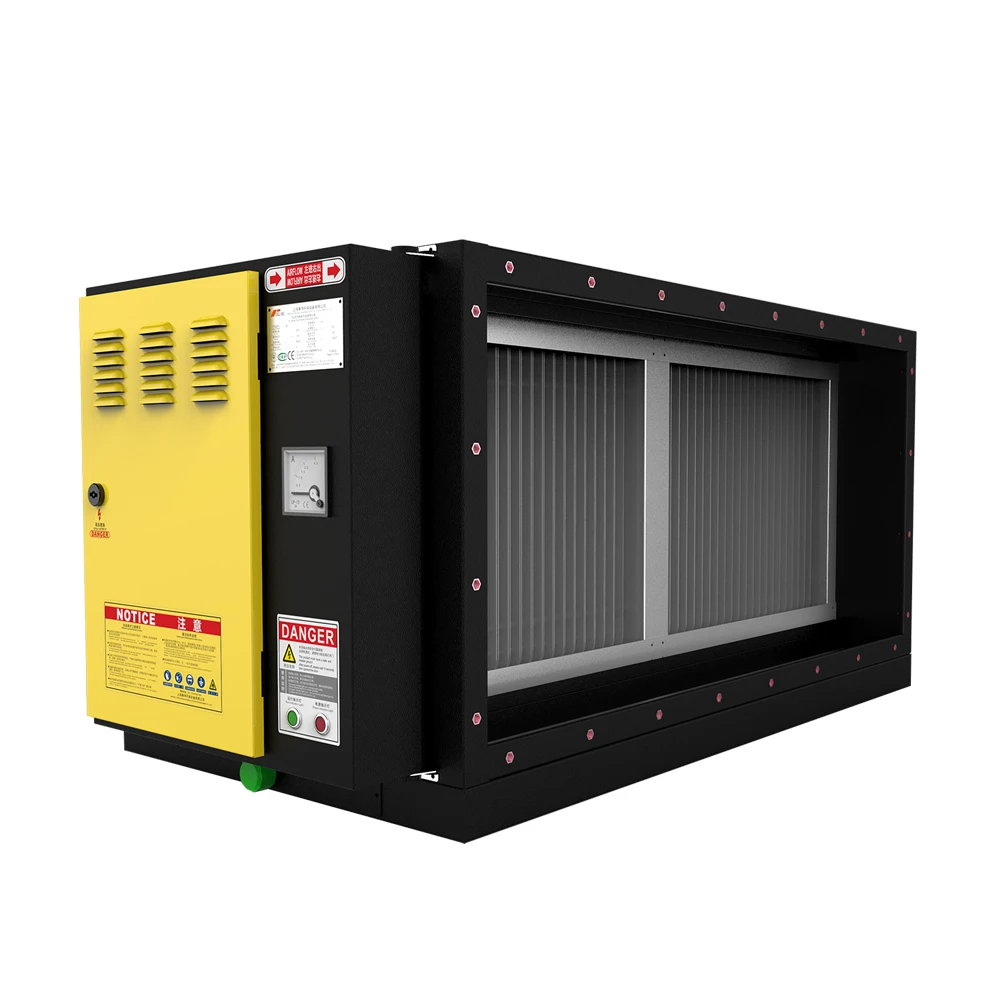

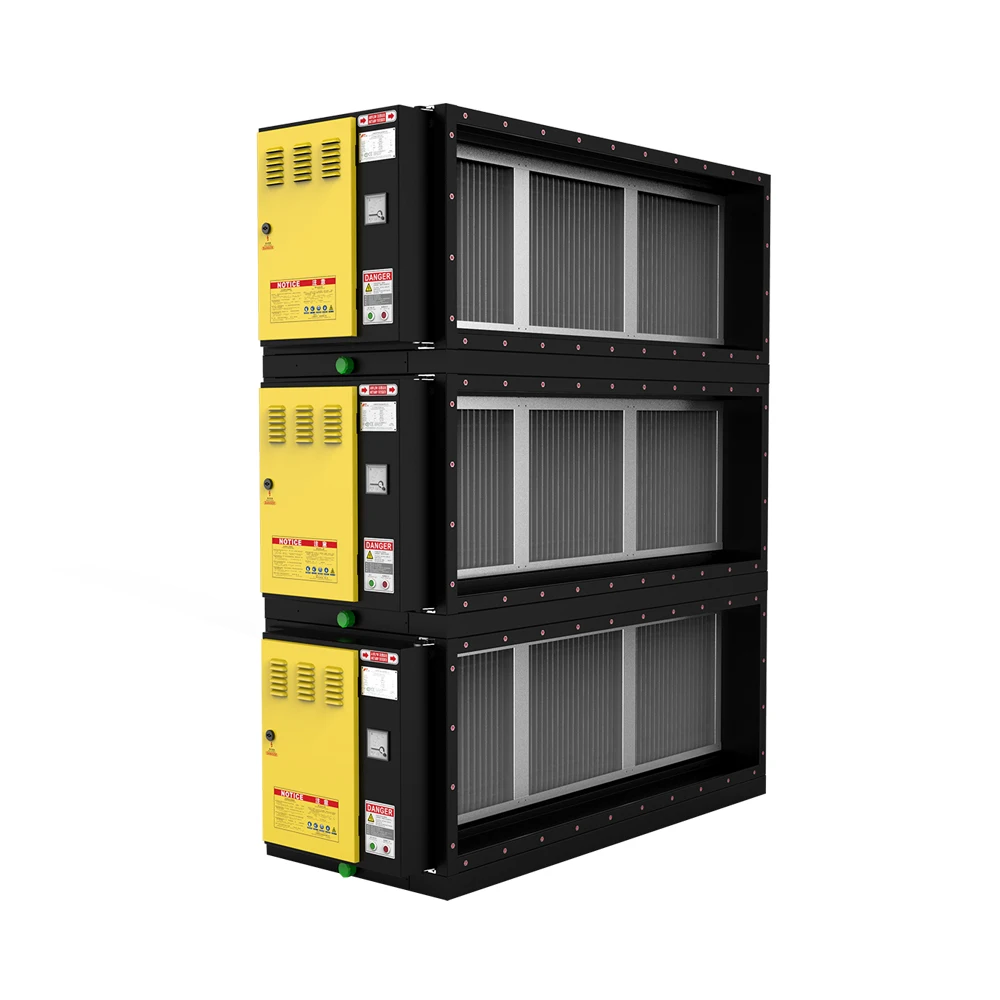

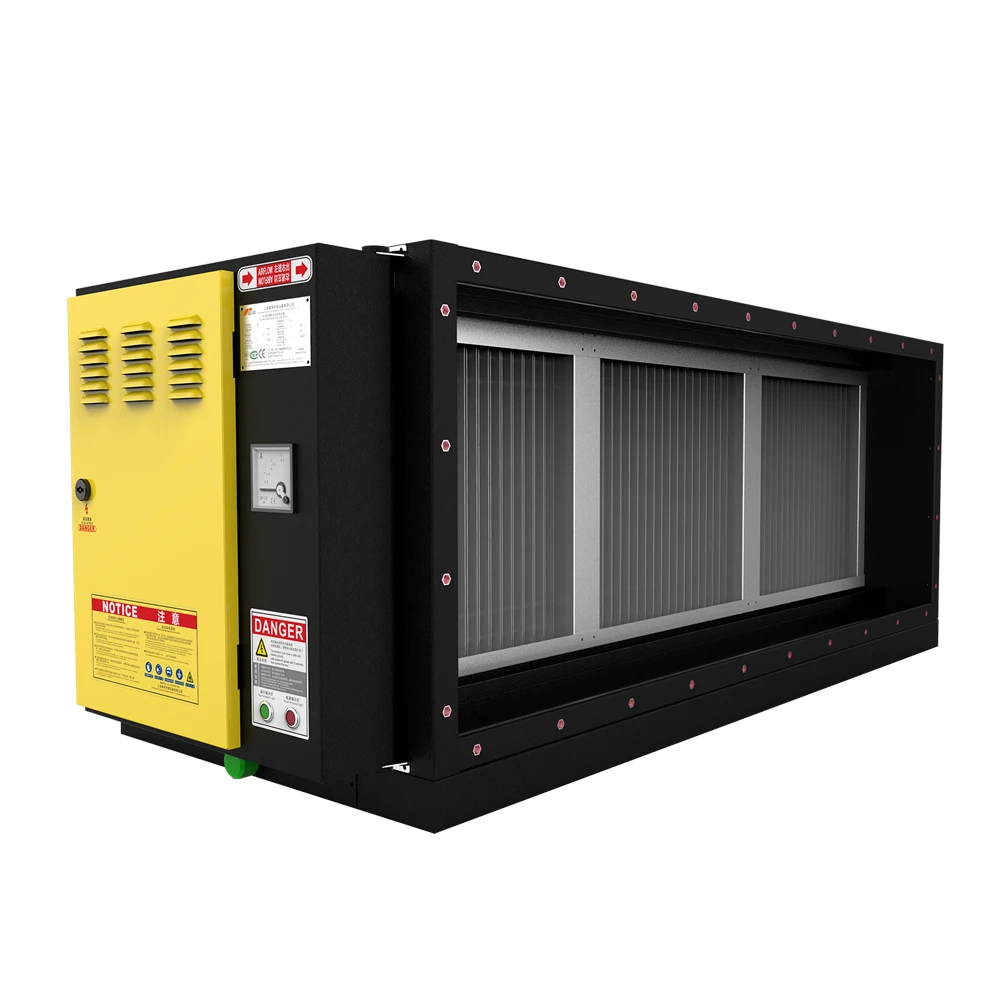

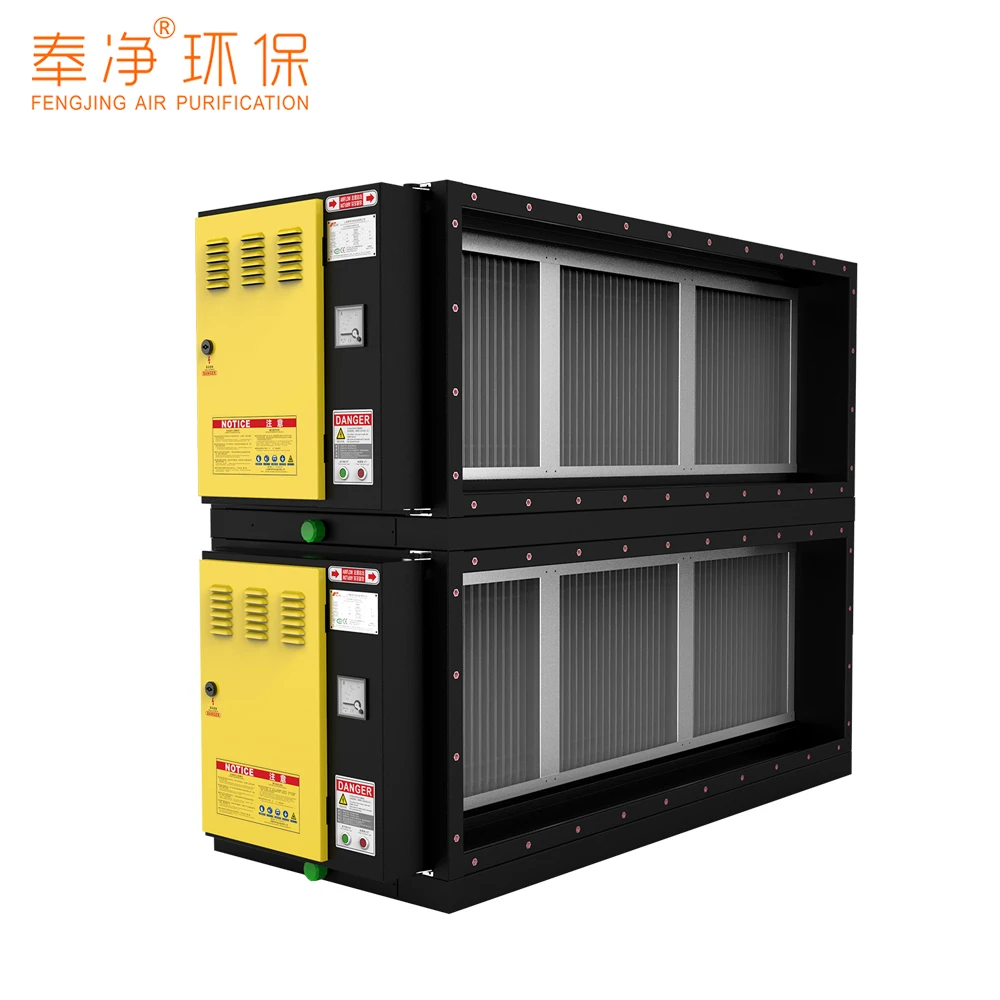

Purified Air ESP BBQ Kitchen Exhaust Electrostatic Precipitator Fume Disposal Equipments With Smoke Filter
- Category: >>>
- Supplier: Shanghai Fengjing Environmental Protection Equipment Co. Ltd.
Share on (60413045285):
Product Overview
Description
Product Description
Model | DL-CY 602 |
Brand | FENGJING |
Weight | 100 KG |
Package | Wooden Box |
WORKING PRINCIPLE
Large Oil Droplets Flow Into The Oil Groove And Discharge Through The Front Baffle Under The Action Of Their Own Gravity. The Remaining Small Particles Of Pollutants Into The Ion High-Voltage Electrostatic Zone, Through The Strong Electric Effect Of Particles With A Charge, Become Charged Ion Particles, Achieve The Preliminary Separation And Purification. When Charged Ion Particles Reach The Polar Plate Adsorption Area, They Are Immediately Adsorbed, And Oil Droplets Flow Back To The Bottom Of The Oil Leakage Collection Basin Under The Action Of Vertical Gravity. Clean Air Standard Discharge Outdoor. (Meet The Requirements Of Environmental Protection Catering Lampblack Emission).
Details Images

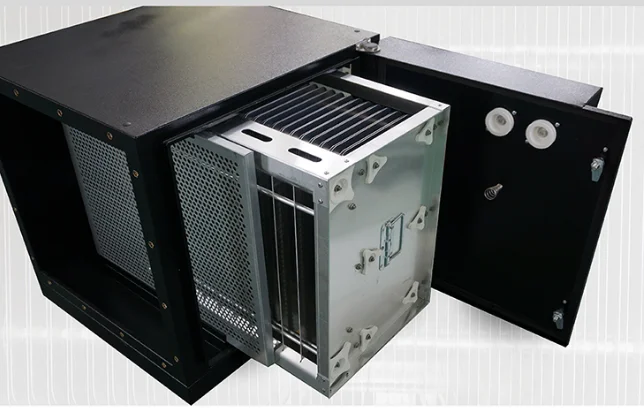

Tertiary Purification
Independent Filter, Purification Effect Is More Effective
NOTE: FILTER SCREEN IS OPTIONAL
Prefilter
The Even-Flow Network Intercepts Large Particles And Has A Even-Flow Effect On Entering The Electronic CellHigh And Low Voltage Electrostatic Cell
The 9Mm Spacing Aluminum Alloy Electronic Cell，Ionizes The Small Particle Oil Stains, And Then The Electrostatic Adsorbs On The Plate
Rear Filter
Honeycomb Activated Carbon Particles Filter Screen Physical And Chemical Dual Effects, Quick Deodorization
Under The Action Of The Electronic Cell At High Pressure, Electrons From The Saw teeth Tip Of The Negative Electrode Move Rapidly Towards The Positive Electrode, Colliding With The Gas Molecules And Ionizing Them. When The Lampblack Exhaust Gas Passes Through The High-Voltage Electronic Cell, The Lampblack Particles Collide And Capture Gas Ions In A Very Short Time, Resulting In Electric Charge. Under The Action Of Electronic Cell Force, They Move Towards The Positive Dust Collector, Thus Achieving The Separation Effect. This Kind Of Equipment Has The Advantages Of Low Investment, Small Footprint, No Secondary Pollution And Low Operating Cost. As It Is Easy To Catch Dust With Small Particle Size, The Purification Efficiency Is High, Up To 85~96%. The Difference Between Its Purification Mechanism And Gas Method Is That I Separation Force Is Electrostatic Force, Which Acts On Particles Directly Rather Than On Airflow, So It Has The Characteristics Of Low Energy Consumption And Small Resistance.
PWM High Voltage High Frequency Power Supply
PWM High Voltage High Frequency Power Supply With Disruptive Discharge Protection, Open Circuit Protection, Short Circuit Protection And Overheating Protection, Also Has The Unique Arc Suppression Technology, To Be Able To Control Discharge Spark
Energy To A Very Low Level, Effectively Avoid The Spark Discharge And Arc Of Fire, Explosion And Other Accidents, The Safety Of The Oil Mist Purifier Make Lampblack Effectively Improve.
Energy To A Very Low Level, Effectively Avoid The Spark Discharge And Arc Of Fire, Explosion And Other Accidents, The Safety Of The Oil Mist Purifier Make Lampblack Effectively Improve.
Related Products
Packing&Shipping

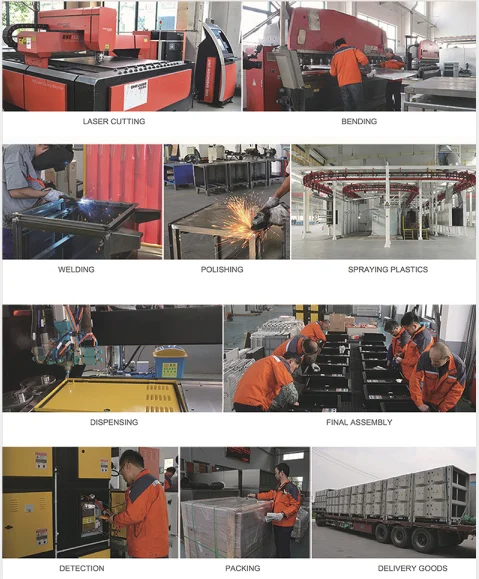

Company Introduction
Shanghai Fengjing Environmental Equipment Co,, Ltd, since its inception in 2008, there has always been focusing on industrial plants and catering oil smoke and other environmental pollution control. Has developed electrostatic fume purification industrial
soot purifier, large exhaust gas treatment equipment other air environmental pollution control. Has developed electrostatic products. Our products are widely used in welding cutting grinding spraying, casting, chemical, wood processing,tobacco,ceramics, paper and other industries. Products have passed 1SO9001:2008 quality management system certification, China Environmental protection product certification, the European CE product safety certification.
soot purifier, large exhaust gas treatment equipment other air environmental pollution control. Has developed electrostatic products. Our products are widely used in welding cutting grinding spraying, casting, chemical, wood processing,tobacco,ceramics, paper and other industries. Products have passed 1SO9001:2008 quality management system certification, China Environmental protection product certification, the European CE product safety certification.
About Us
Our company will continue to promote scientific and technological innovation, optimize product structure,improve service quality, we will strive to do the best in the industry,providing customers with better product and services.Created industry leading brands, to build a first-class enterprise in the world, working with global environment protection industry, but also the world a blue sky!
FAQ
1.Are you a factory or trading company?
We are the professional and reliable manufacturer in China,and our team has committed to the electrostatic fume purifier business for more than 7 years.
2.How can I trust your company to get goods if I order from you?
Our company have many regular customers in domestic,and we use the payment such as L/C,T/T and so on,ensure safety of your business.
3.Can you do the OEM for us?
Yes,we can.But the price may be higher than we used to sell stardand machine.
4.How to be the agent of your company?
You can contact us,we will glad to provide detail information.
5.How does your factory do regarding quality control?
Quality is priority.Our company has strict technical staff control the quality,please don't worry the quality about the equipment.
2.How can I trust your company to get goods if I order from you?
Our company have many regular customers in domestic,and we use the payment such as L/C,T/T and so on,ensure safety of your business.
3.Can you do the OEM for us?
Yes,we can.But the price may be higher than we used to sell stardand machine.
4.How to be the agent of your company?
You can contact us,we will glad to provide detail information.
5.How does your factory do regarding quality control?
Quality is priority.Our company has strict technical staff control the quality,please don't worry the quality about the equipment.
