Hot Selling biomass gasifier design with competitive price

Product Overview

Description

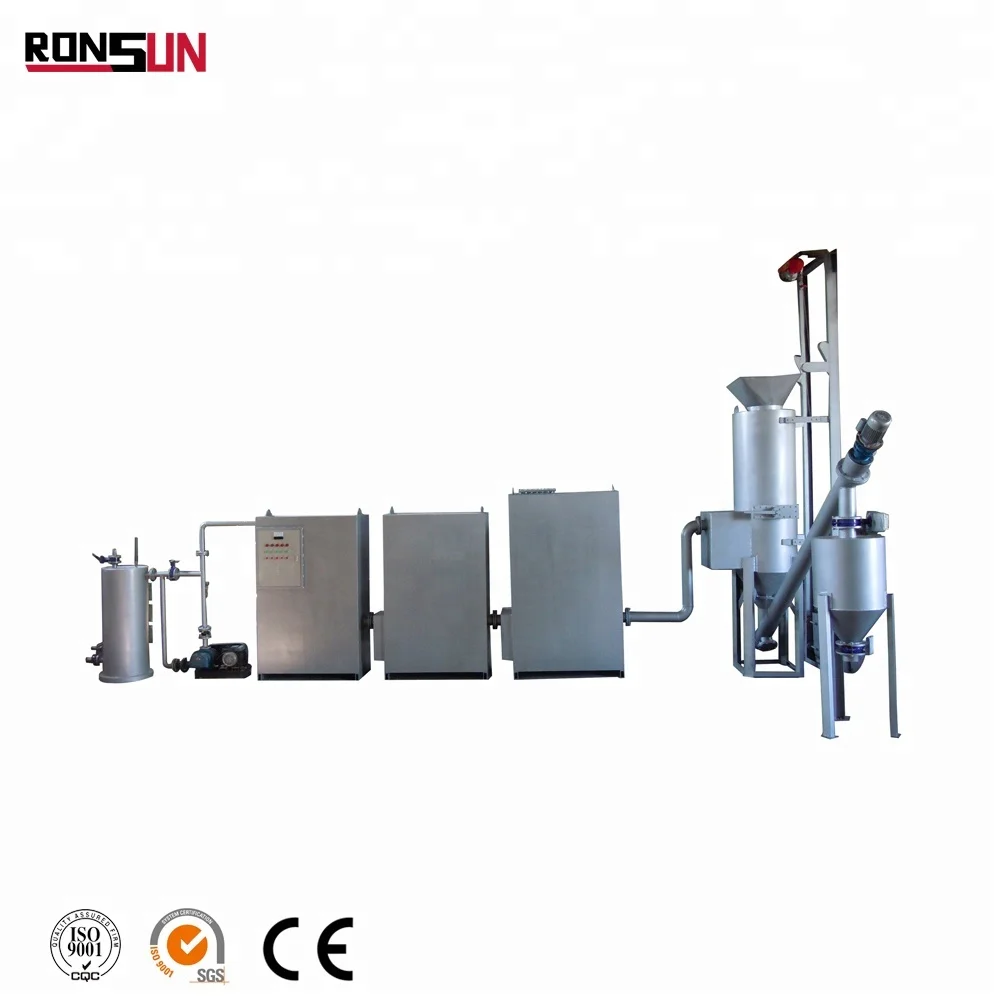

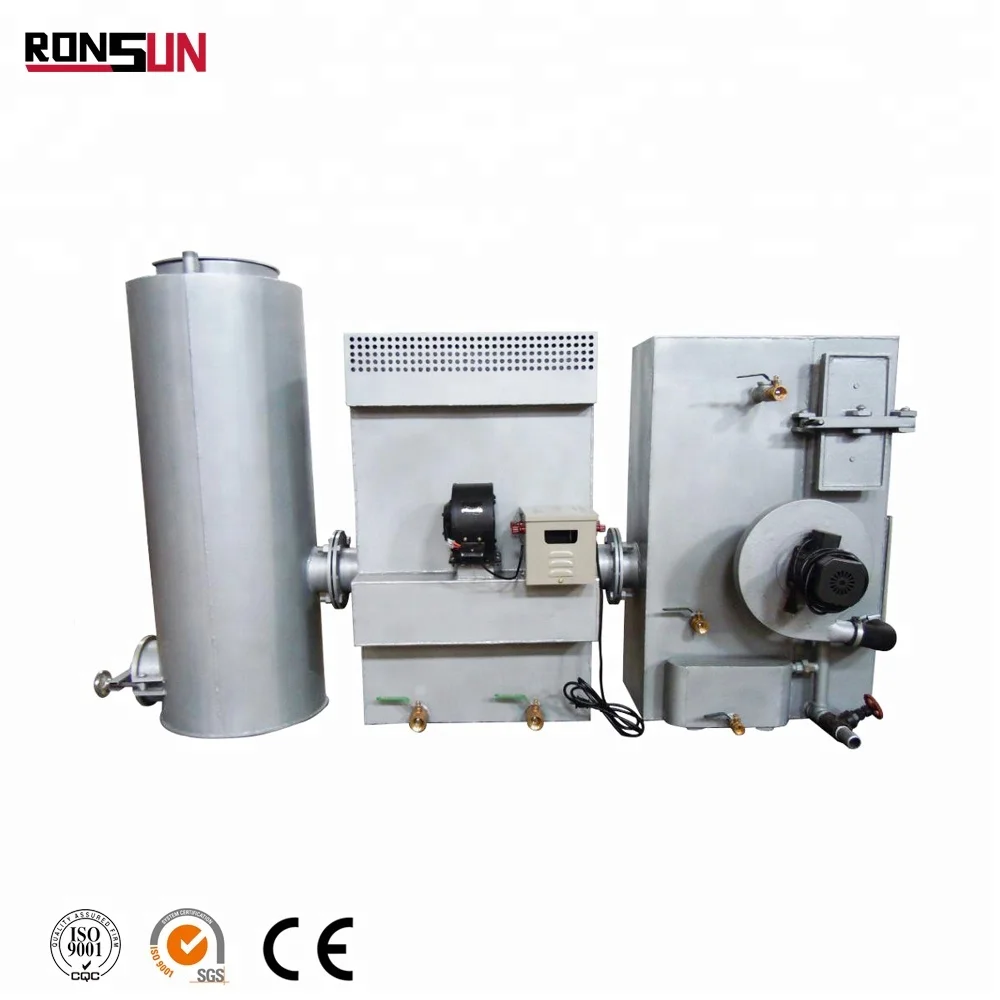

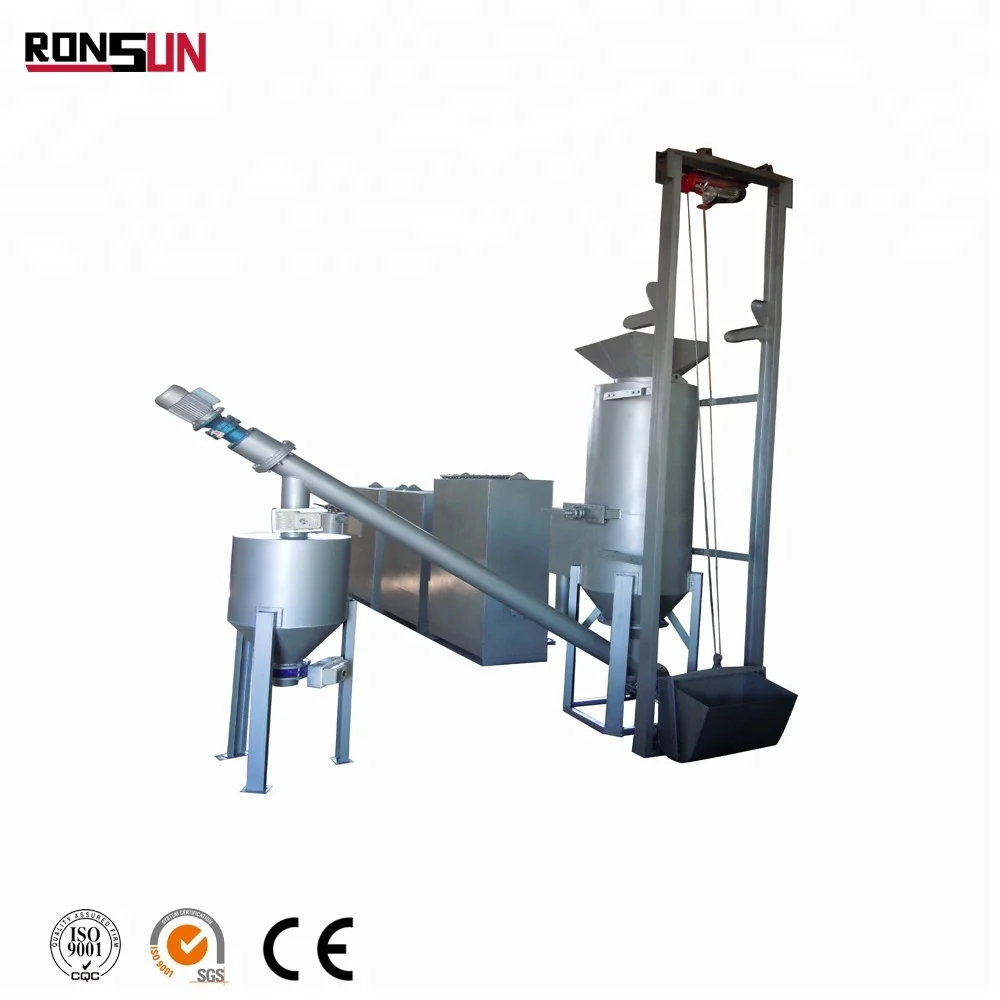

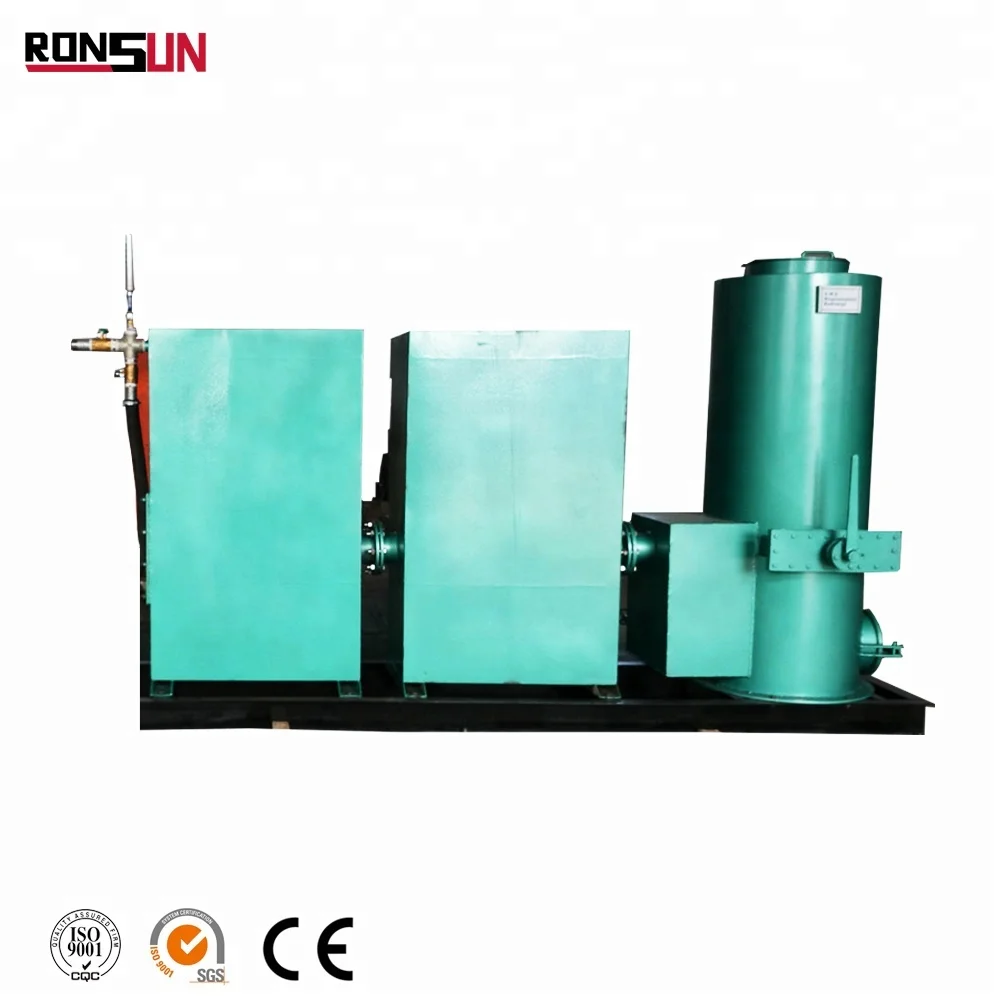

LSG—30A appliance down draught syngas producer is wood biomass biomass gasifier design design that uses crop straw and other agricultural wastes to make straw gases . It is a great product that utilizes the syngas gasification pyrogenation technology to produce environmentally friendly gases using common biological materials such as straw. It serves as a solution to environment pollution caused by destroying straw on fire and save trees by replacing them by straws. Thus, it protects environment, saves energy sources and improves the life quality of farmers.





The technology of down draught syngas gasification is a technology that converts biological materials such as straw into energy by a high-pressure exhaust fan in a high temperature state. Straw is mainly composed of carbon, hydrogen, oxygen and ash. When these elements meet in a controlled high temperature state, they combine together to be carbon monoxide, hydrogen gas, and methane. These are all burnable gas. The process in which biological materials converts into burnable gas is named gasifying process.



The principle of gasifying process: biological materials enter combustor, and undergo heat drying. As the temperature increases, the volatile is separated out and split. After splitting, the gas and carbon meet supplied air in the oxidation area and combustion takes place. The combustion results in CO ,CO2 and vapor. The heat from combustion is utilized to maintain dryness, splitting reaction and endothermic reaction of the underneath reversion area. The gas resulted from the combustion goes through the reversion area and reacts with carbon layer(C+CO2=2CO,C+HO2=H2+CO), which produces burnable gas consisting of CO,H2,CH4,CmHn. The burnable gases are separated from impurities such as tar, and are output from the bottom ready for use. The ash is discharged from the bottom of the wood biomass gasifier design.







1. The wood biomass gasifier design can be installed inside or outside of a residence. If installed inside, it should not be in bedroom or rooms connecting to the bedroom, so that CO poisoning is prevented. The place where the wood biomass gasifier design is installed must have good ventilation.
2. The place where the wood biomass gasifier design is installed should have 220V/400V power outlet(s) for exhauster.
3. A special rubber hose, steel hose or PE hose can be used to connect the Combustion equipment the gasification stove. The connection should be level to prevent water accumulation in the hose that can block the gas passageway.
4. Furnace combustion equipment and gas connection installed between the emission pipes, install the valve
5. The room installed with Combustion equipment should have a powerful ventilator.
6. The ventilation pipes of the the wood biomass gasifier design should be connected to the air outside of the residence.
7. The wood biomass gasifier design has a circulating water cooling system. Be sure to connect the upper and lower valves behind the purifier to the water tank securely.
8. Purifier plus behind pipes on overflow, the manifold is connected, To open the valve of the manifold, the device when not emit the sewage collected.
