China Manufacturer clean ball Dual wire drawing machine
- Category: >>>
- Supplier: Jiangyin Xiangle Machinery Manufacturing Co. Ltd.
Share on (60413155305):
Product Overview
Description
| China Manufacturer clean ball Dual wire drawing machine |
Product Description

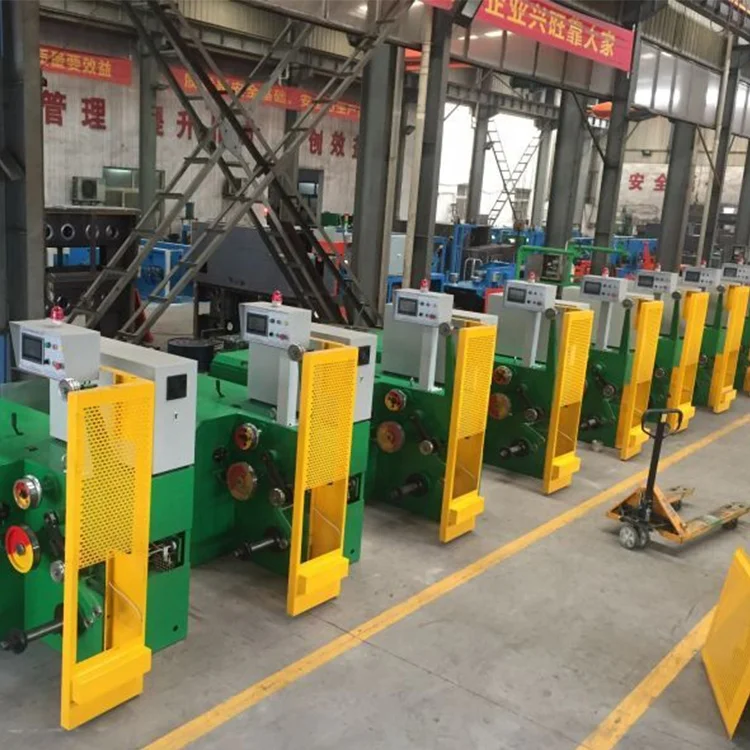

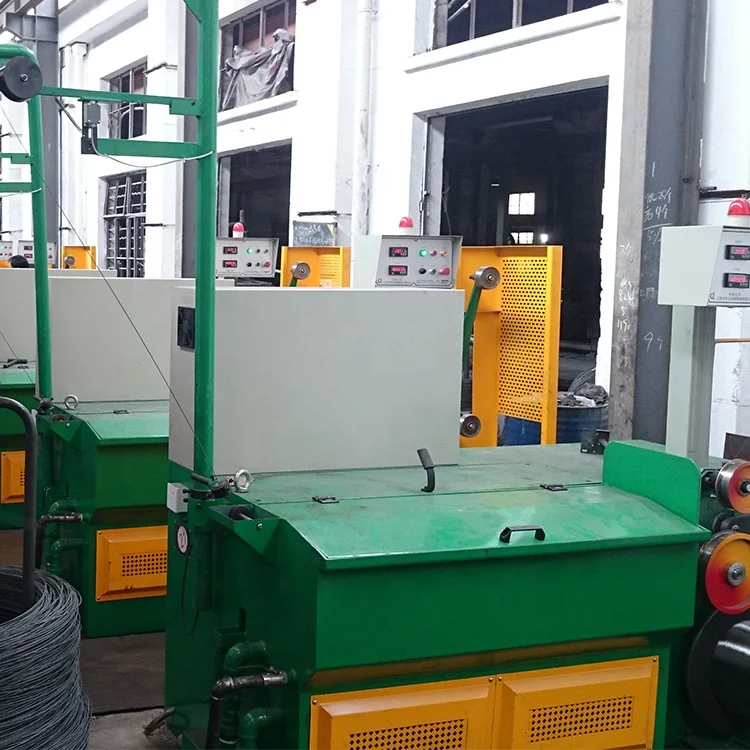

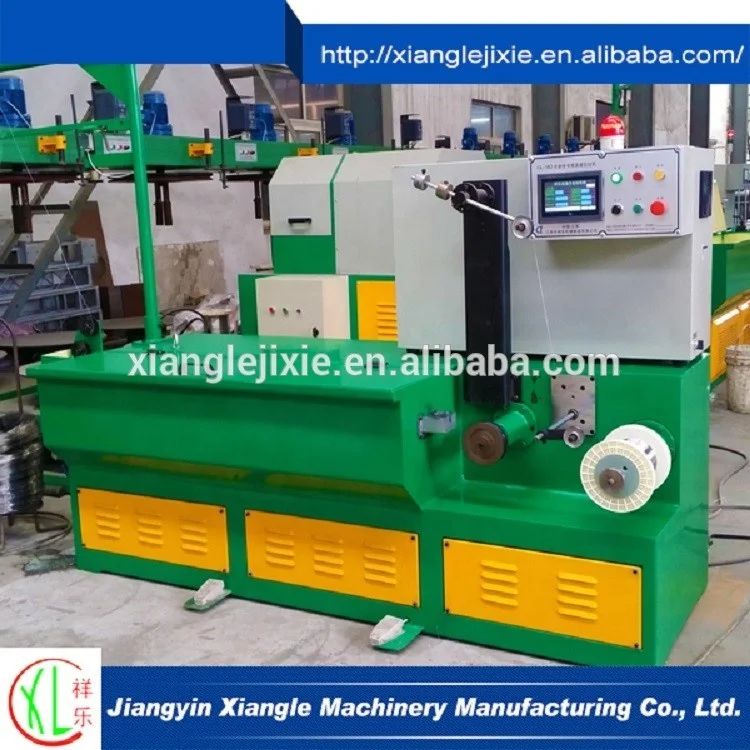

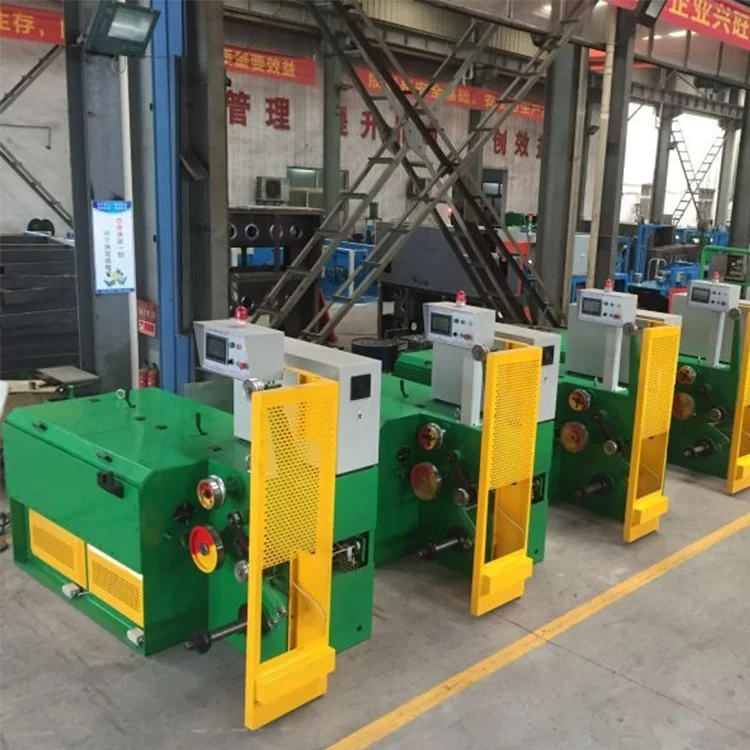

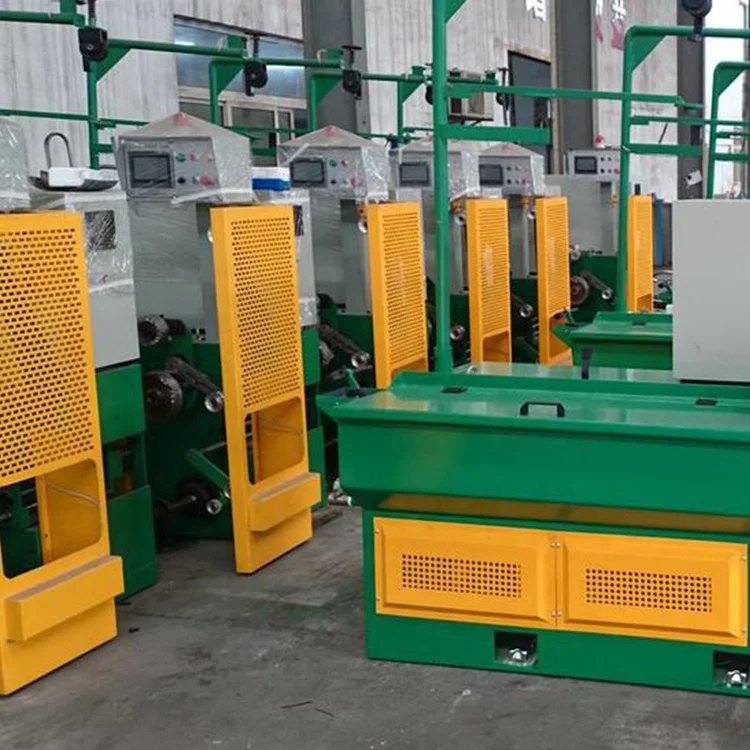

Equipment Pictures |
Technical Parameters |
Machine type | Dual wire drawing machine |
Inlet | 0.7mm |
Outlet | 0.13mm |
Max Modules | 20 |
Drawing Method | Horizontal Tour-Pulley Type |
Control System | PLC Frequency Conversion |
Max Line Speed | 800m/min |
body structure | Annealed treatment of weld steel plate |
Step Pulley | Vacuum Annealing Treatment Of Alloy Steel |
Max.dia.of step pulley | Φ210 |
Take-up Spool Spel | Φ220 |
Traversing | Adjustable sinding method of stepper motor |
Main Engine Power | 4KW |
Take-up Engine Power | 1.5KW |
Transmission Method | Synchronizing Sheel,Synchronizing Belt |
Drawing Lubrication Method | Modules Step Pulley By Full Immersion |
Shaft Sealing Method | Mechanical Seal |
Braking Method | 5kg Electromagnetic brake |
Abailable power | 380V,50Hz/75Hz |
Outline Dimension(mm) | 2300*850*2000 |
Weight(kg) | 1100kg |
Product Advantages |
1. Low cost;
2. Energy efficiency;
3. Stable and reliable performance;
4. Cleaner Production.
The domestic market share of stainless steel drawing machines takes more than 90% in stainless steel
equipment industry area. For the overseas market,our equipment are exported to Japan, Russia, Brazil,
Vietnamese, India and other countries.
