Гидравлический морской Телескопический корабельный кран 2/ 3/ 5/ 10 /25 тонн, цена
- Category: Other Cranes >>>
- Supplier: Xinxiang Kehao Machinery Equipment Co. Ltd.
Share on (60413174735):
Product Overview
Description
PRODUCT OVERVIEW
The crane is a hydraulic slewing and luffing crane. From the cylinder, the fuel tank, crane, hoisting mechanism and the amplitude bodies, lifting ,rotating, hydraulic luffing are driven from the flexible and reliable action, easy to operate, uses a wide range of characteristics such as lifting items ship ideal for lifting equipment. Suitable for operations at sea.
DETAILS IMAGES
Factory Testing
Main Structure
1.Tower Body 2. Hoisting Winch 3. Wire Rope 4. Restrictor 5. Jib
6.Luffing Cylinder 7. Operation Bench 8. Slewing Mechanism 9. Column 10. Hook
Our Advantages
1. Electric and diesel powered double support double hydraulic slewing crane.
2. Hoisting operation, stable operation.4. Equipped with hydraulic oil cooler, it can operate in high temperature environment.
3. The diesel motor can be operated arbitrarily and replaced conveniently.6. Good view. You can see any of the following parts. You can also work in the rain or at night.
5. SMOTOR and SIESL engines can be used for cab full lift operation.
SPECIFICATION
* Load capacity: 0-80 tons
* Lifting height: 0-35m
* Max/Min working radius: as per your requirements
* Slewing degree: ≤360°
* Power supply: as per your requirements
* Certificate: CCS ABS BV or as your requirements
You can choose one type from below sheet or tell us your require directly.
* Lifting height: 0-35m
* Max/Min working radius: as per your requirements
* Slewing degree: ≤360°
* Power supply: as per your requirements
* Certificate: CCS ABS BV or as your requirements
You can choose one type from below sheet or tell us your require directly.
Type | Safety working load (N) | Max. working Radius (m) | Min. working Radius (m) | Hoisting Speed (m/min) | Slewing Speed (r/min) | Luffing Time (s) | Hoisting Height (m) | Power (kW) |
YQ05 | 5 | 5~12 | 1.3~2.6 | 15 | 1 | 60 | 30 | 7.5 |
YQ1 | 10 | 6~12 | 1.3~2.6 | 15 | 1 | 60 | 30 | 11 |
YQ2 | 20 | 5~15 | 1.1~3.2 | 15 | 1 | 60 | 30 | 15 |
YQ3 | 30 | 8~18 | 1.7~3.8 | 15 | 0.9 | 70 | 30 | 22 |
YQ5 | 50 | 12~20 | 2.5~4.2 | 15 | 0.75 | 80 | 30 | 37 |
YQ8 | 80 | 12~20 | 2.5~4.2 | 15 | 0.75 | 100 | 30 | 55 |
YQ10 | 100 | 12~20 | 2.5~4.2 | 15 | 0.75 | 110 | 30 | 75 |
YQ15 | 150 | 12~20 | 2.5~4.2 | 15 | 0.6 | 110 | 30 | 90 |
YQ20 | 200 | 16~25 | 3.2~5.3 | 15 | 0.6 | 120 | 35 | 75*2 |
YQ25 | 250 | 20~30 | 3.2~6.3 | 15 | 0.5 | 130 | 40 | 90*2 |
YQ30 | 300 | 30 | 3.2~6.3 | 15 | 0.4 | 140 | 40 | 90*2 |
YQ35 | 350 | 20~35 | 4.2~7.4 | 15 | 0.5 | 150 | 45 | 110*2 |
YQ40 | 400 | 20~35 | 4.2~7.4 | 15 | 0.5 | 150 | 45 | 140*2 |
YQ45 | 450 | 25~40 | 5.3~8.5 | 15 | 0.45 | 160 | 50 | 140*2 |
YQ50 | 500 | 25~40 | 5.3~8.5 | 15 | 0.45 | 170 | 50 | 165*2 |
PACKING & SHIPPING
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1. Wooden case for electric parts, motor, accessories. Color cloth for main structure.3. Or all parts will be loaded onto Bulk Cargo Ship after package if the length is beyond 12m.
2. If the length is less than12m, all parts will be loaded into 20ft or 40ft ISO container.
PRODUCT APPLICATION

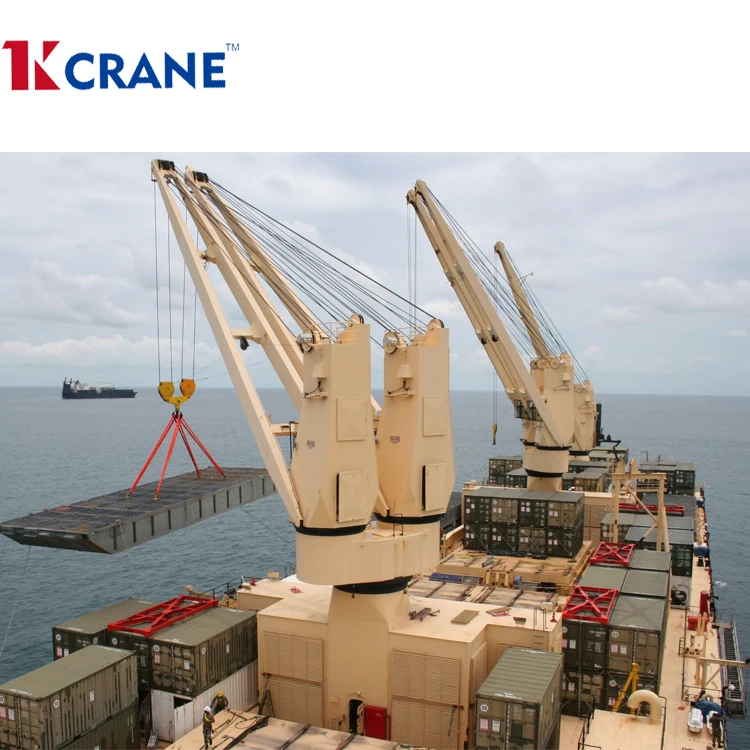

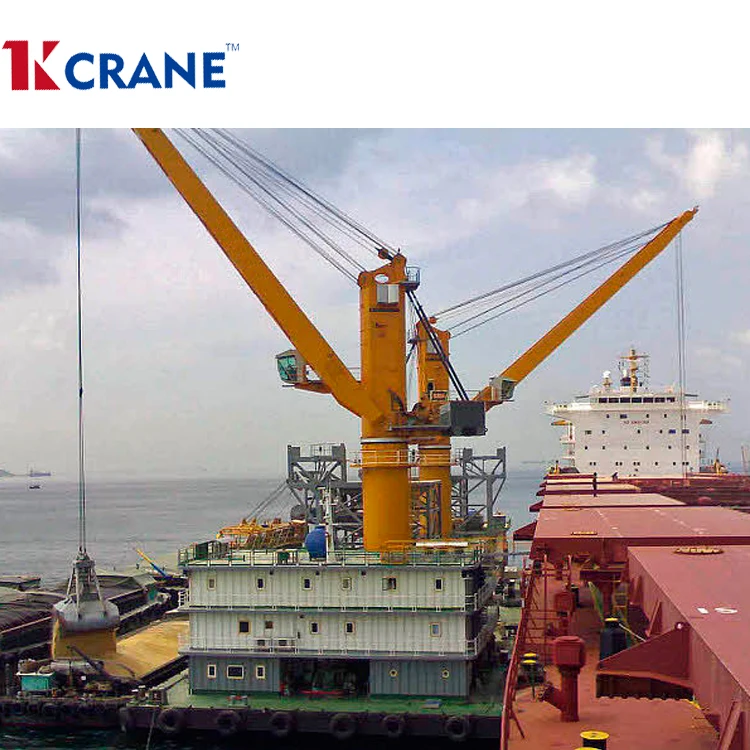

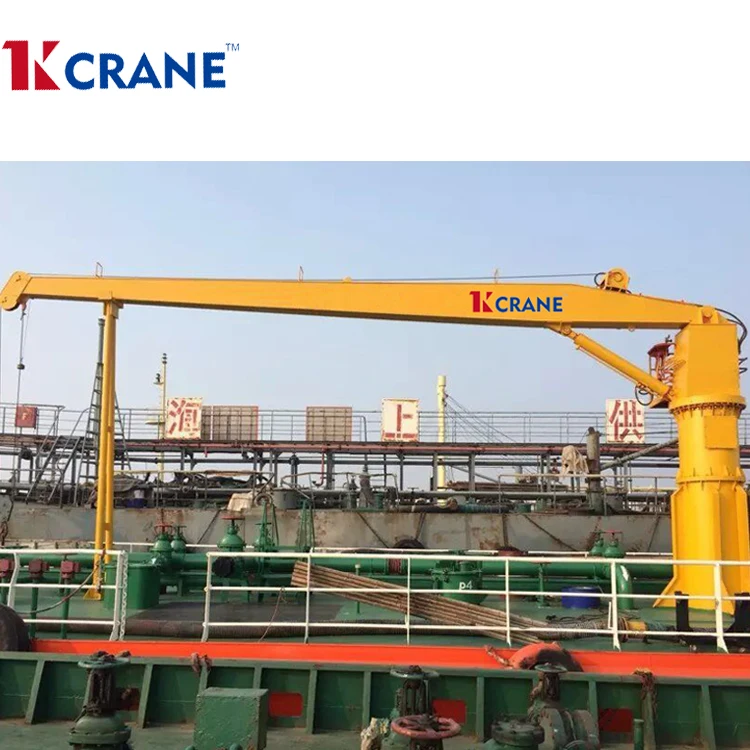

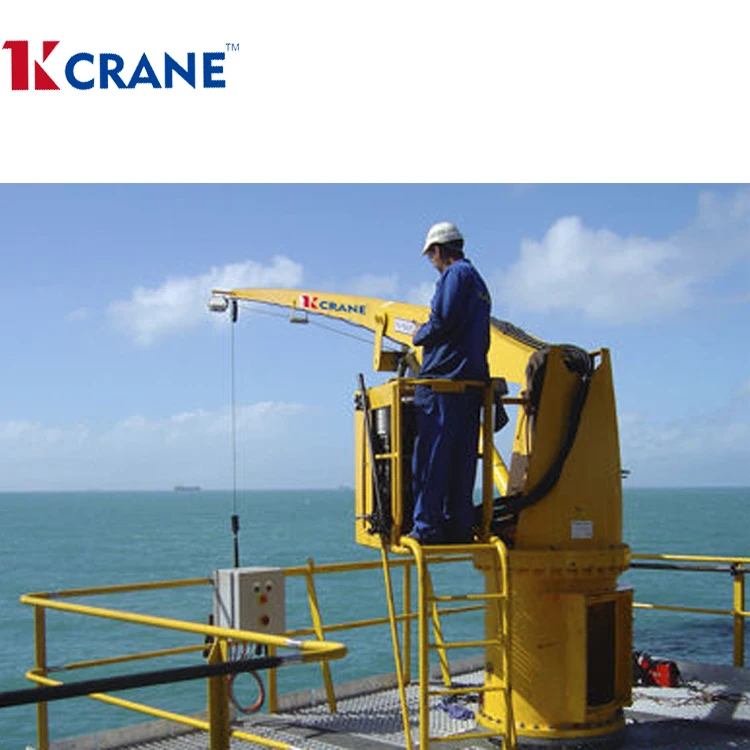

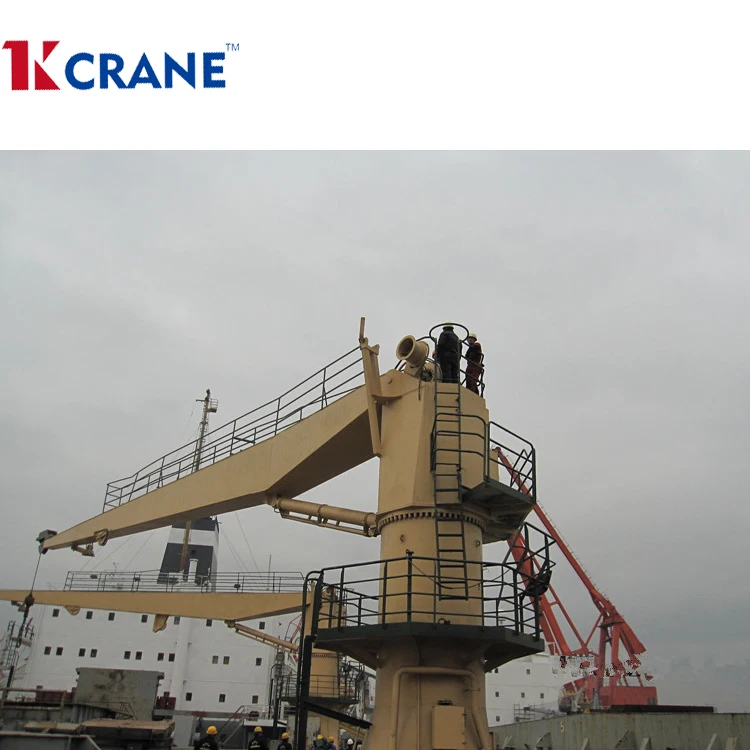

Marine deck jib crane is a kind of ship deck machinery, it is widely used to goods loading and unloading on marine, lifting a variety of marine debris and marine life, loading and unloading cargo or other special purpose.
COMPANY PROFILE
Xinxiang Kehao Machinery Equipment Co., Ltd. is the design, manufacture, sales, shipping, customs, service as one of the major integrated enterprises crane. The company has advanced machining equipment, with a variety of physical, electrical, hydraulic, chemical and other testing, testing methods, the establishment of a sound quality system. Supplying Services Content as below: R & D & Design & OEM, Overhead Crane, Gantry Crane, Port & Shipyard Crane, Electric Hoist, Jib crane, Erecting bridge crane, Electric flat car & Turntable, Winch, Crane Accessories.
OUR SERVICES
1. 24 months warranty when products leave the factory, or 18 months warranty after installation and commissioning in addition to the human damage factors.
2. 2 years spare-parts provided for better maintenance.3. Professional technical staffs provide installation, commissioning and training services.
5. Technical advisory for any time and Engineers available to service machinery overseas.
4. Delivery with English user manual, parts manual, product certification and other relevant certificates.
