2 Poles Stator coil making equipment stator winding machine

2 Poles Stator coil making machine stator winding machine

(1) Main technical data:

Wire diameter:0.15-1.3mm

Stator O.D range:50-150mm

Stack length:10-70mm

Pole no.:2 poles

Turn number:0-9999

Spindle speed:0-450 rpm

Motor power:4.5KW

Air supply pressure:5-7 Kg/cm2

Voltage:Three phase AC380V50/60Hz

Weight:1200Kg

Dimension:1050(length)X2300(width)X1750(height)mm

(2) Applications:

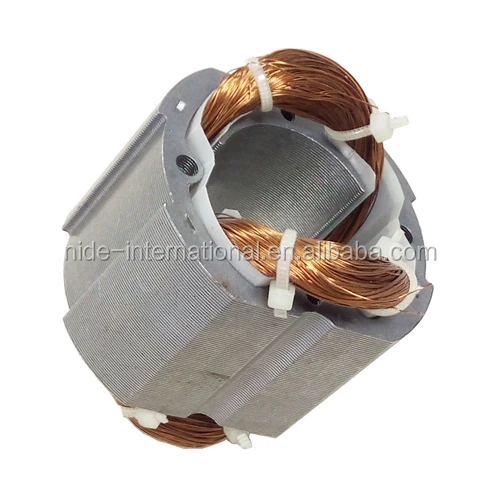

This type of stator winding machine is suitable for two-poles stator winding, such as mixer motor, grinder motor,vacuum cleaner motor etc.

(3) Machine function and characteristic:

It can wind two stators at same time.

It's self-locked, quick and convenient.

Winding parameter can be set and saved through the touch screen.

This coil making machine has two working station with two flyers. It can automatically wind stator.

Easy operation, high automation.

PLC and touch screen control.

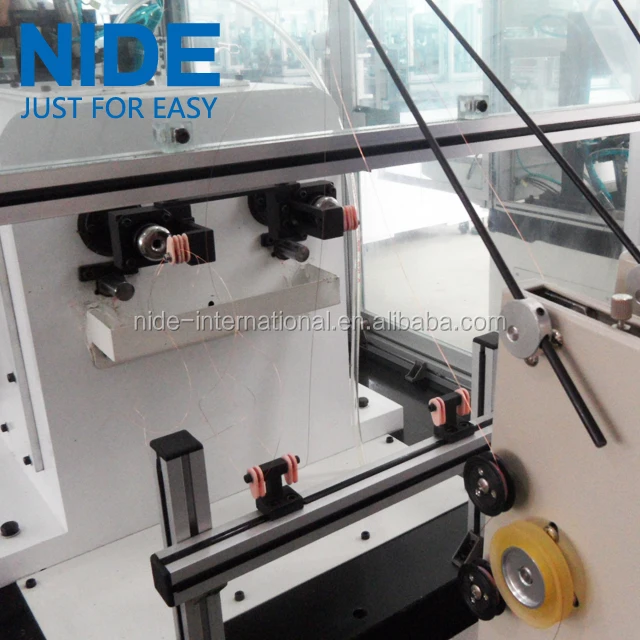

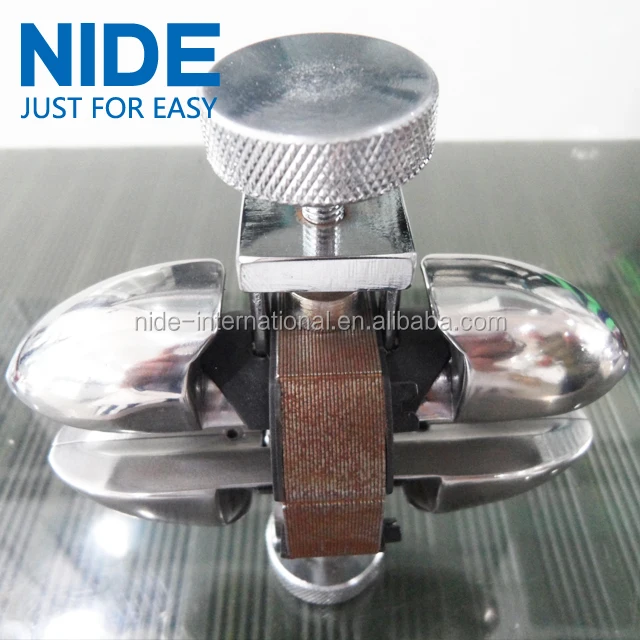

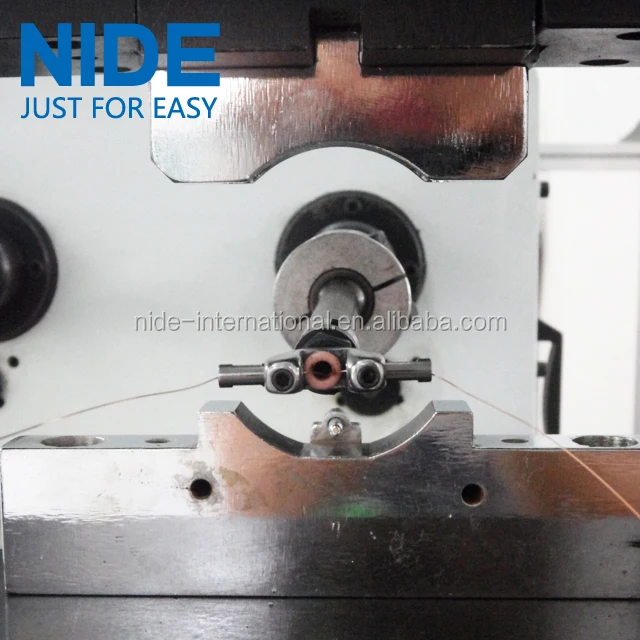

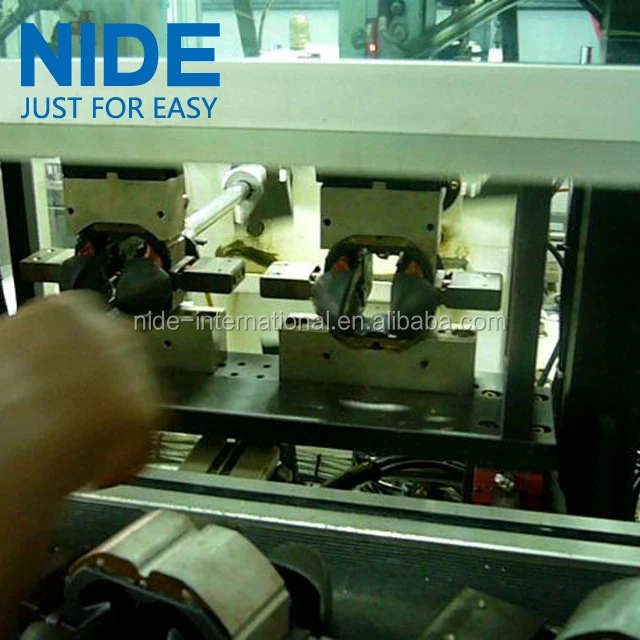

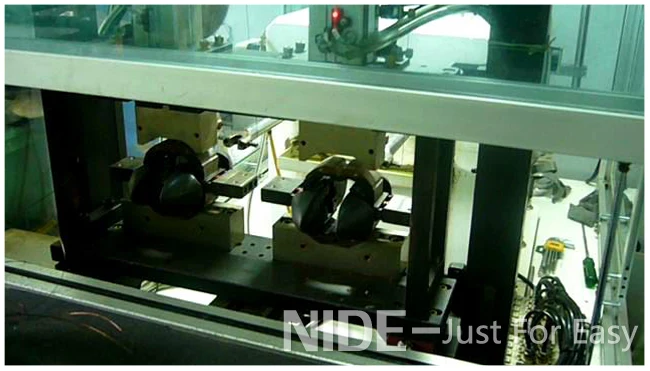

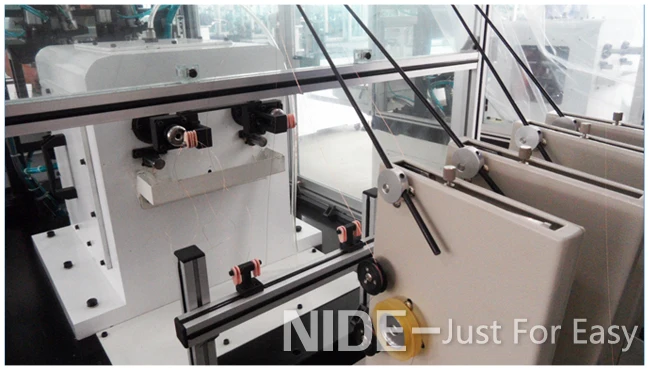

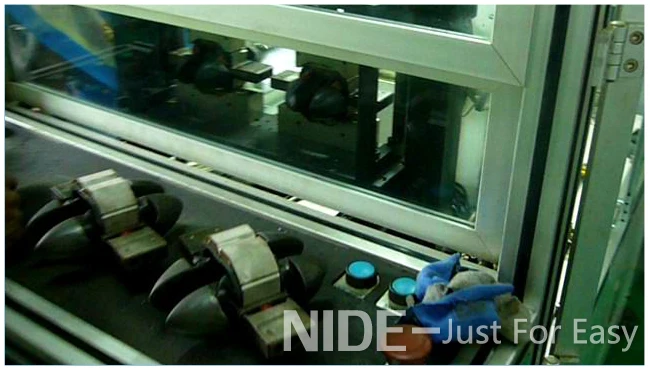

(4) The 2 poles stator winding machine image display

The Stator coil working making machine working process

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.
