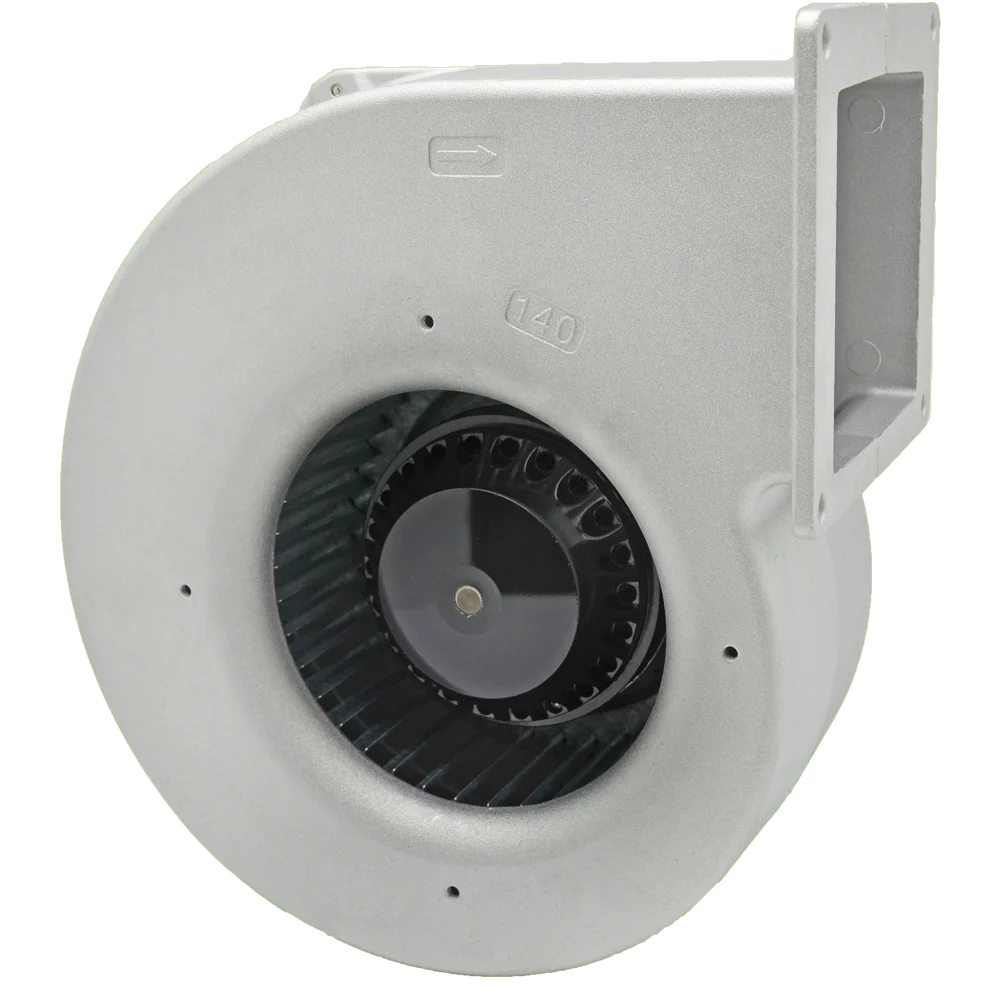

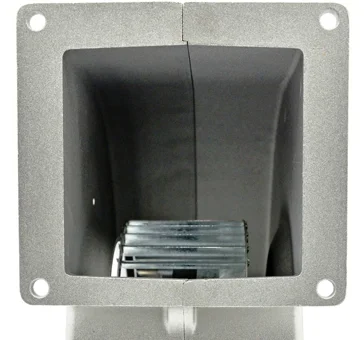

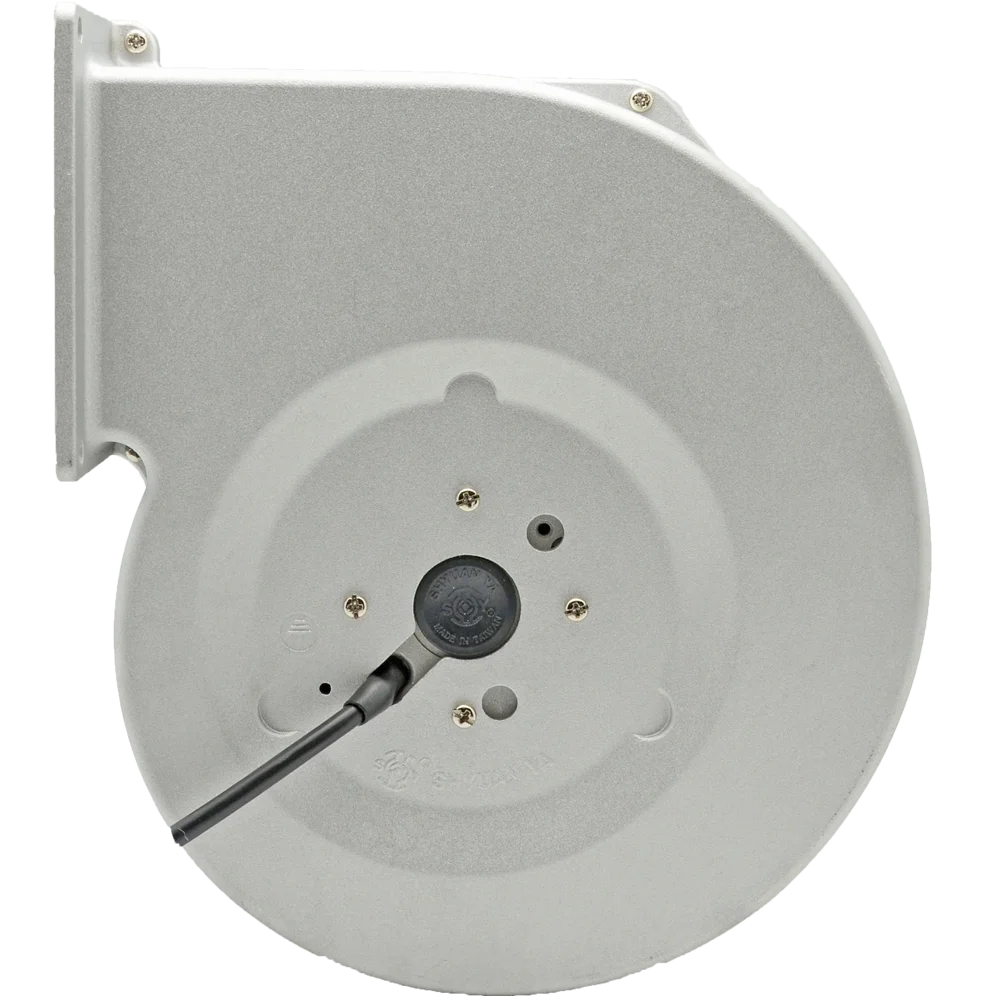

140x100mm Small Squirrel Cage Blower
- Category: >>>
- Supplier: LIANG HERNG ELEC MACH CO. LTD.
Share on (60413248970):
Product Overview
Description
why choose us
A Leader in Innovation
Each year, Shyuan Ya raises the bar further by incorporating the cutting edge designs and the high quality materials into 140x100mm Small Squirrel Cage Blower. High precision bearings, which are long life and maintenance free, are all standard. Additionally, each 140x100mm Small Squirrel Cage Blower carries Shyuan Ya's patented silicon lamination designs which have higher metal induction and lower magnetic loss than any other manufacturers. Most importantly, 100% products inspection is conducted in the end of production line in order to provide high standard and reliable products toward customers.
Product Description
Quick Detail 1
Air Flow : 286 ~ 297 CFM |
Impeller : Die-cast Aluminum Housing Galvanized Sheet Steel Impeller |
Motor : Capacitor-Run Induction and External Rotor Motor |
Rotor : Black Paint |
Bearing : Dual Ball Bearing, Permanently Lubricated |
Operating Voltage Range : 85VAC to 125VAC for 115V Type 185VAC to 245VAC for 230V Type |

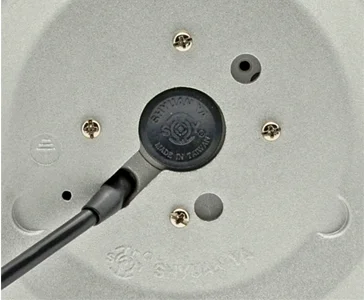

Lead Wire : AWG# 20 UL |
Insulation : Class “B” or “F” |
Safety : Thermally Protected (Auto Restart) |
Operating Temperature : -20°C to +60°C |
Weight : 3350g |
Item CodeCA1V140-100T-FMG-B38-1C | |||||||||
Rated | Frequency | Rated | Input | Speed | Air Flow | Air Flow | Static Pressure | Noise | Capacitor |
115V | 50/60 | 1.35/1.78 | 155/203 | 2380/2430 | 286/292 | 8.1/8.3 | 1.55/2.17 | 70/70 | 16μF/200VAC |
Item CodeCA2V140-100T-FMG-B38-1C | |||||||||
Rated | Frequency | Rated | Input | Speed | Air Flow | Air Flow | Static Pressure | Noise | Capacitor |
230V | 50/60 | 0.67/0.89 | 154/203 | 2400/2460 | 292/297 | 8.3/8.4 | 1.55/2.17 | 70/70 | 4μF/400VAC |
Company Information
 |
Professional & Customized Service
SHYUAN YA Group was founded in 1982 with more than 30 years’ experience in fan industry. Our professional teams in molding and R&D departments can provide technical suggestions and customized services to our customers. Besides,up to 85% of fan components including fan motors are made in our factories which located in Taiwan. |
Short Production Time & Prompt Delivery

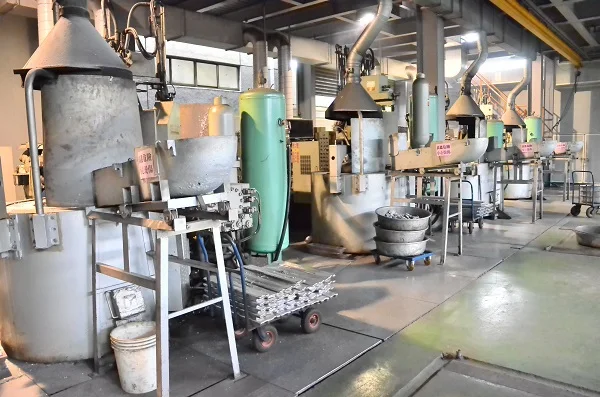

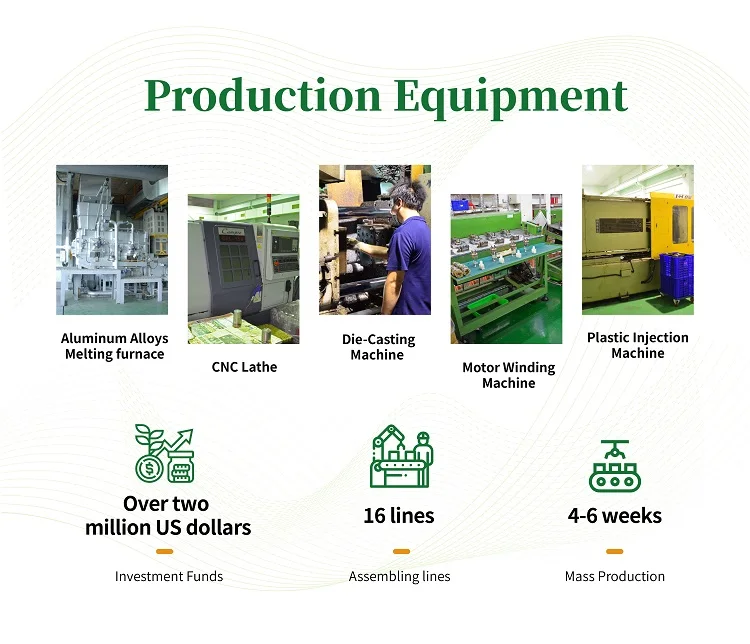

SHYUAN YA Group has invested over two million US dollars on upgrading production facilities & inspection equipment. Our production lines include plastic injection, motor winding, and die casting processing lines. Most importantly, maximum 16 Assembling lines can shorten production time which normally takes about 4~6 weeks. |
 |
Quality Stability & Reliability
To ensure that high standard and reliable products are delivered to our customers,100% products inspections are conducted at the end of production line. Our main inspection equipment includes Semi-Anechoic Room which is one of the biggest sizes in the fan industry and background noise down to 10.0 dBA The air flow chamber that can be used for measuring air flow for any kind of fan. and measurement range up to 1,300 CFM. |
Production Flow
Packaging & Shipping
Trade Shows
Our Services
Customer Services:
1. Warranty: 1 year warranty for all products.
2. Private Labelling: All of axial fans are able to be Private labeled.
3. Products Quality: 100% products inspection before delivery.
4. Just in time delivery: Normally, Lead time is 30 days.
FAQ
Questions & Answers:
Q: What information do you need to provide in order to get a quotation?
A: Generally, information about Size,Air Flow,Voltage of required fans
is needed in order to select a right fan for you and provide you a quotation.
Q: Can I have samples for testing before ordering products?
A: Yes, we sincerely suggest that customers should have some samples
of required fans for testing because the truly performance of fans can be
fully demonstrated after testing is conducted.
Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual usage
quantities increase, please provide the information to our sales.
We will provide you a further discount.
