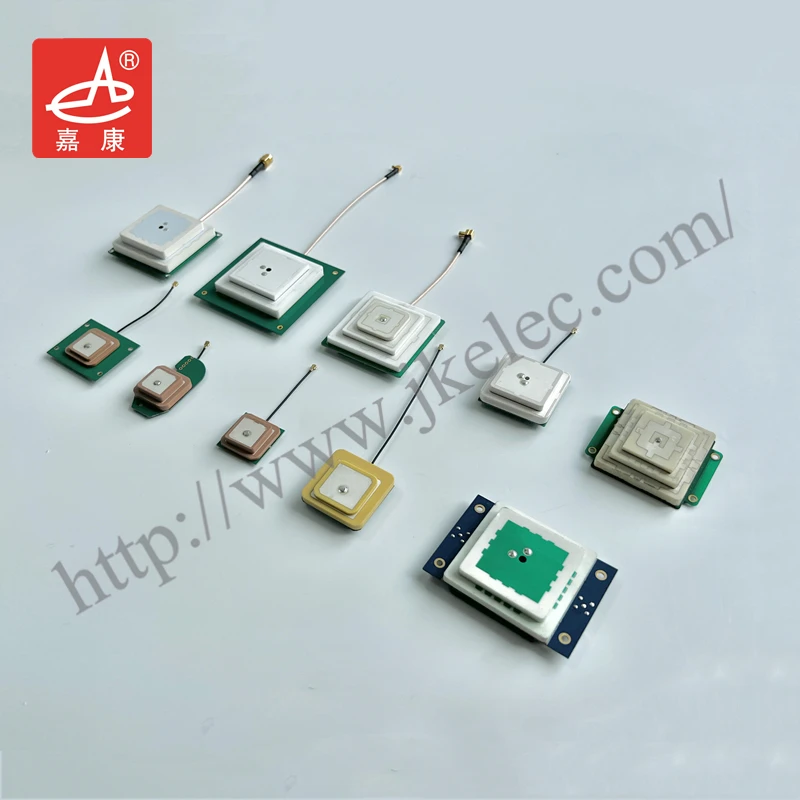

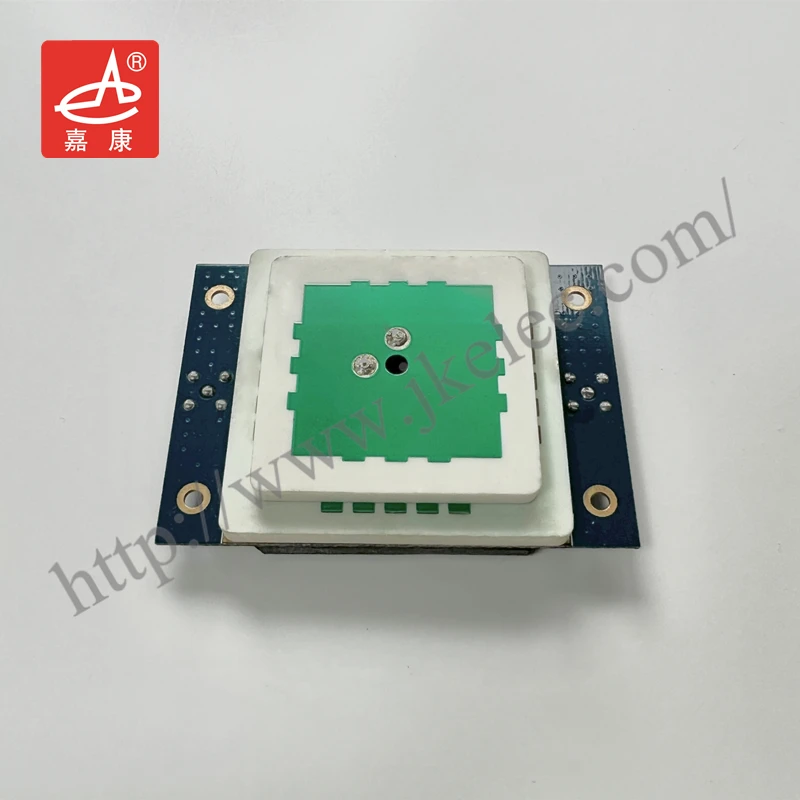

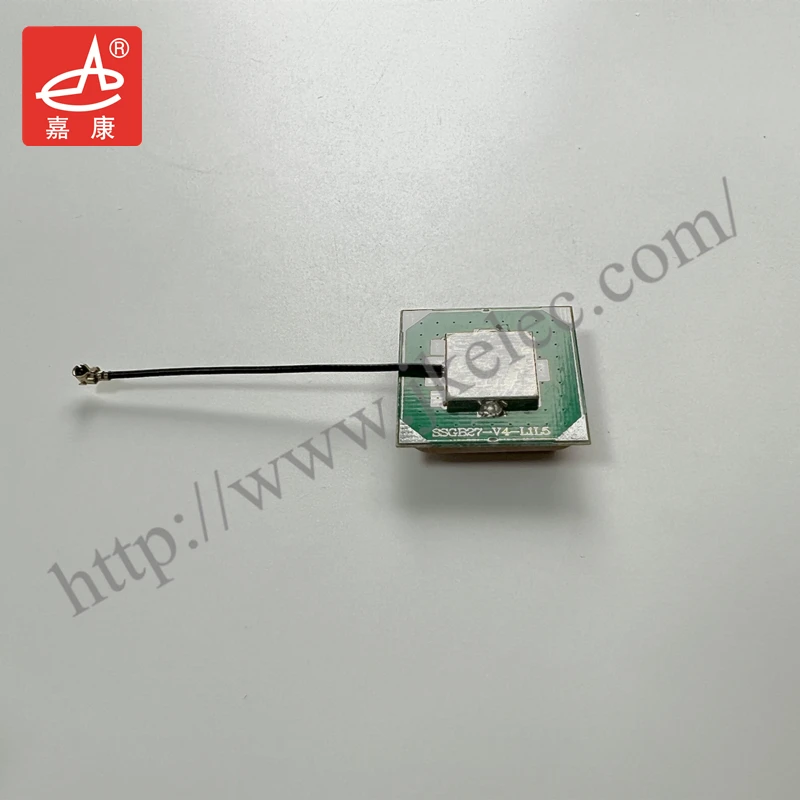

JIAKANG Ceramic Dielectric GPS Module Internal Active Antenna
Product Description
 |

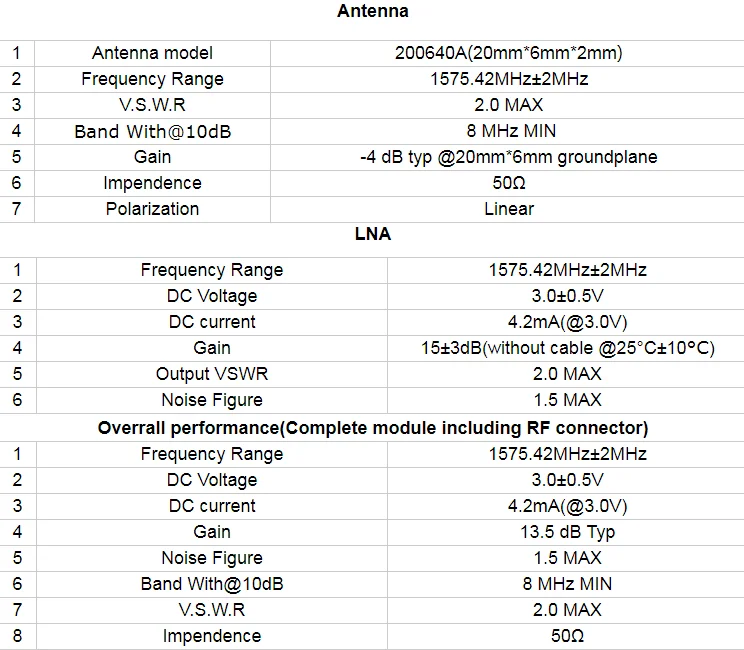

Antenna | ||||
1 | Antenna model | 200640A(20mm*6mm*2mm) | ||
2 | Frequency Range | 1575.42MHz±2MHz | ||
3 | V.S.W.R | 2.0 MAX | ||
4 | Band With@10dB | 8 MHz MIN | ||
5 | Gain | -4 dB typ @20mm*6mm groundplane | ||
6 | Impendence | 50Ω | ||
7 | Polarization | Linear | ||
LNA | ||||
1 | Frequency Range | 1575.42MHz±2MHz | ||
2 | DC Voltage | 3.0±0.5V | ||
3 | DC current | 4.2mA(@3.0V) | ||
4 | Gain | 15±3dB(without cable @25°C±10°C) | ||
5 | Output VSWR | 2.0 MAX | ||
6 | Noise Figure | 1.5 MAX | ||
Overrall performance(Complete module including RF connector) | ||||
1 | Frequency Range | 1575.42MHz±2MHz | ||
2 | DC Voltage | 3.0±0.5V | ||
3 | DC current | 4.2mA(@3.0V) | ||
4 | Gain | 13.5 dB Typ | ||
5 | Noise Figure | 1.5 MAX | ||
6 | Band With@10dB | 8 MHz MIN | ||
7 | V.S.W.R | 2.0 MAX | ||
8 | Impendence | 50Ω | ||
| Material | ||
| No | Part Name | SPEC |
| 1 | Antenna | Dielectric Ceramics |
| 2 | PCB | FR4 |
| 3 | Shielding Case | Tin |
| 4 | 16.5mm×5.5mm×1.3mm | |

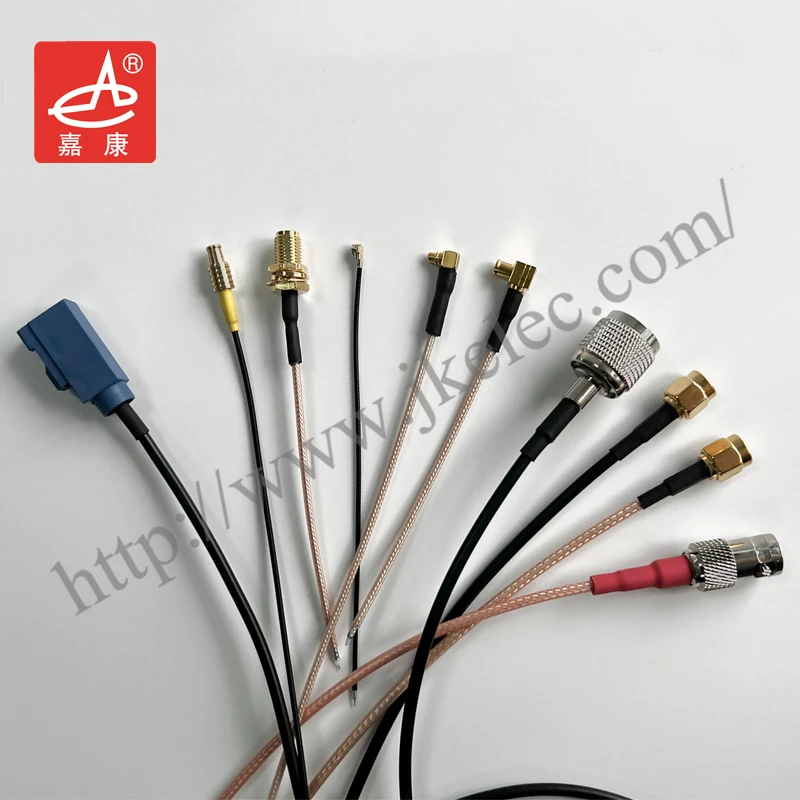

| 5 | RF Cable | RF0.81mm |
| 6 | L=26mm ( or others ) | |
| 7 | RF Connector | IPEXⅡ ( or others ) |
Environment Condition | ||
1 | Working Temp | -40°C~+85°C, 10%~95% RH |
2 | Storage Temp | -55°C~+100°C, 10%~95% RH |
3 | Vibration | Sine sweep @1.5mmAM 10~55Hz each Axis |

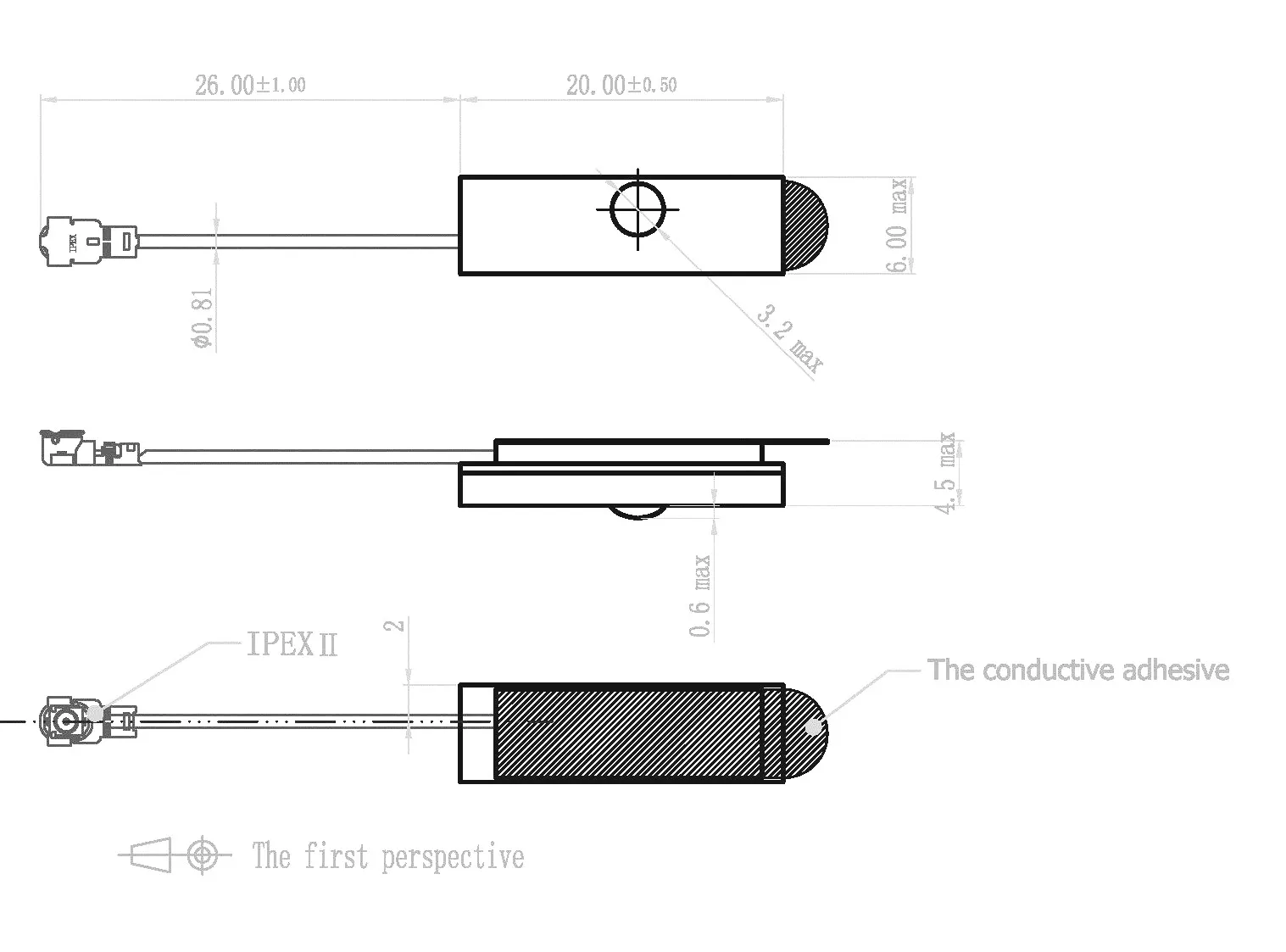

Structure |
 |

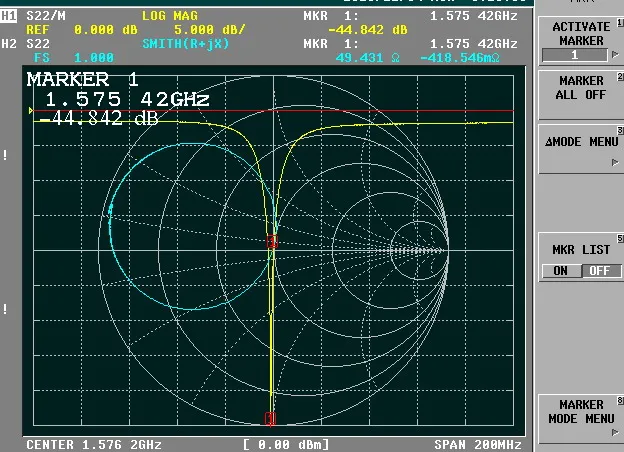

| Patch Simth& VSWR |
 |

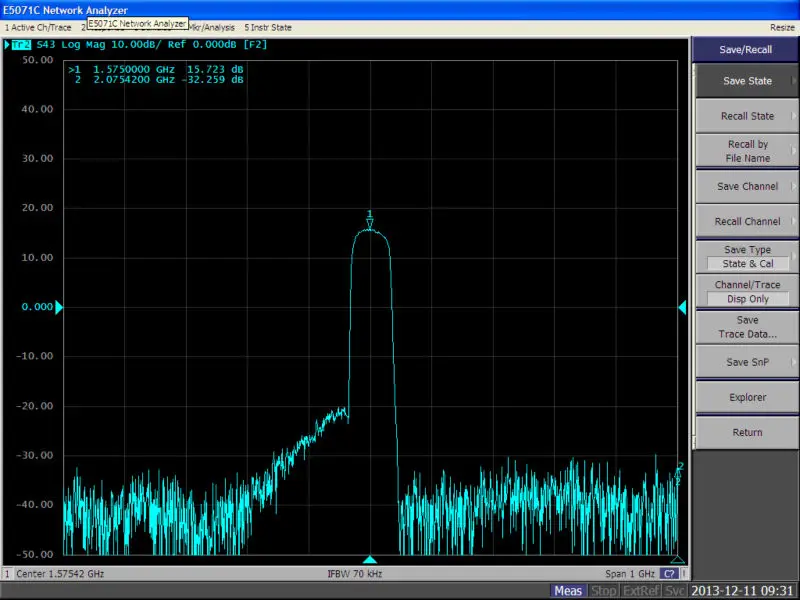

| LNA Gain |
 |
