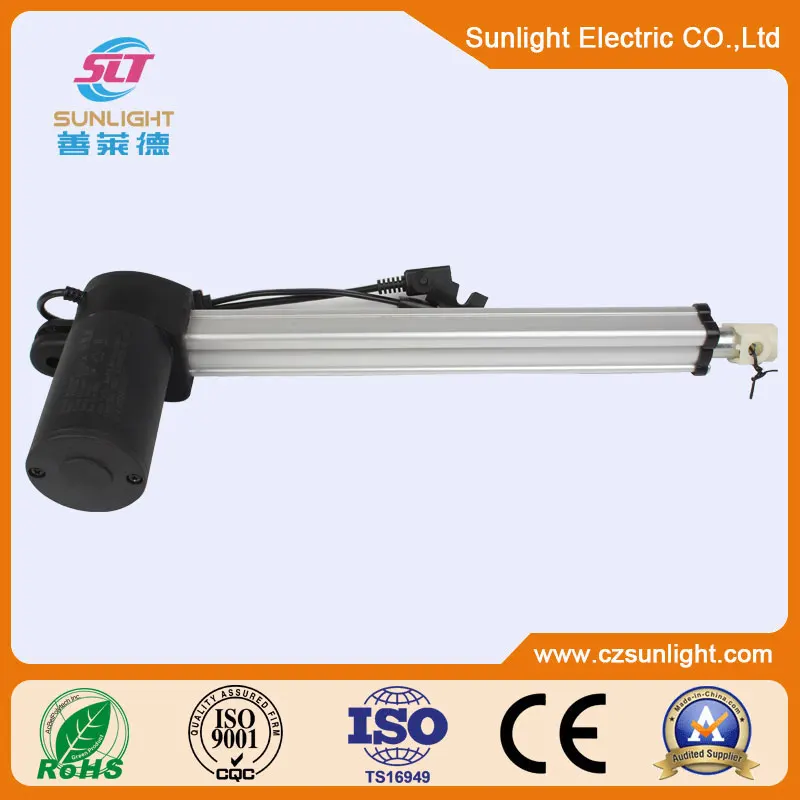

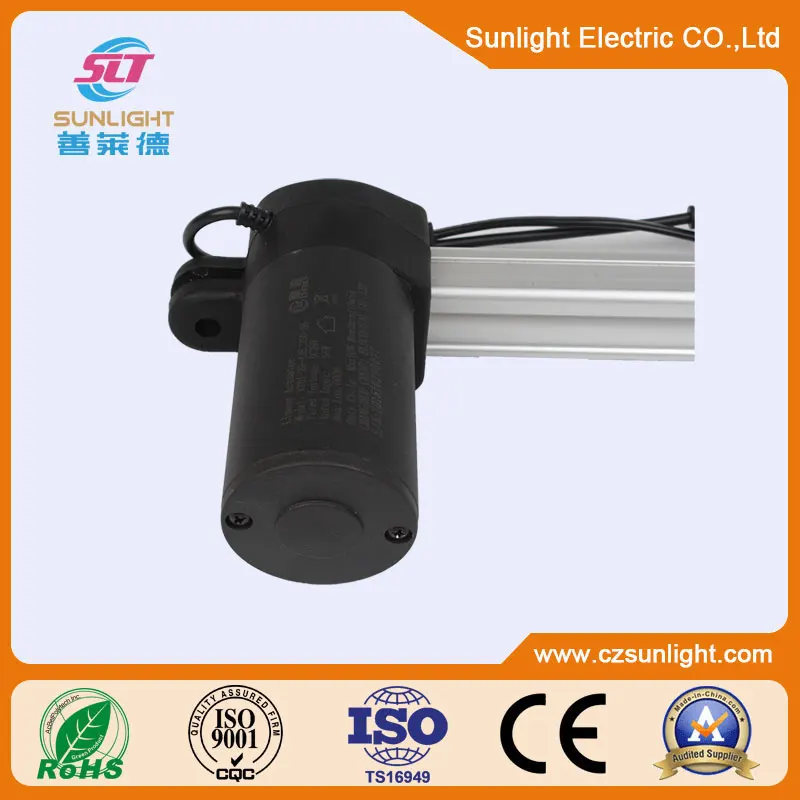

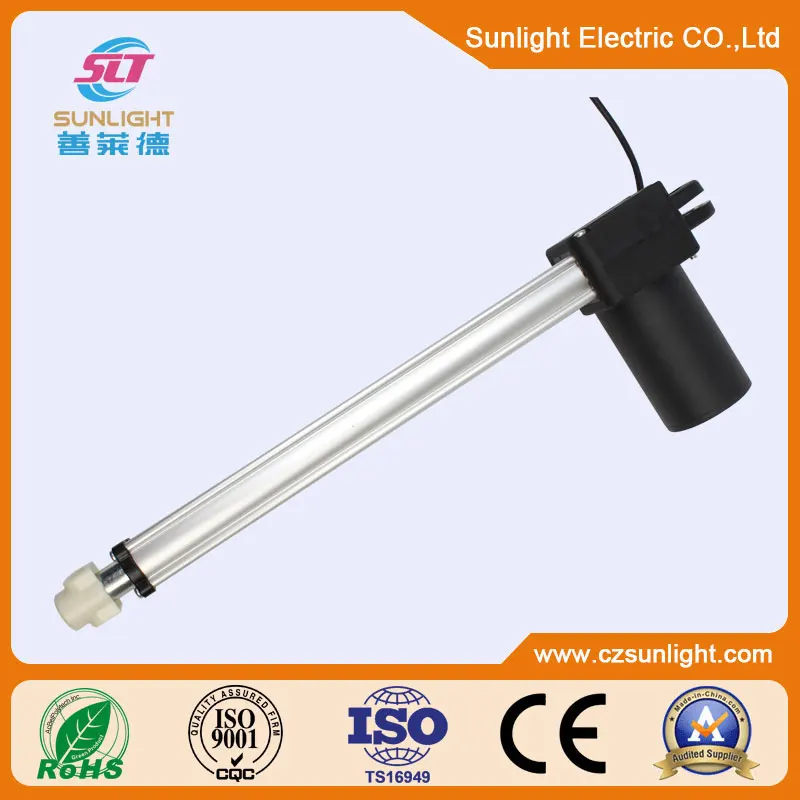

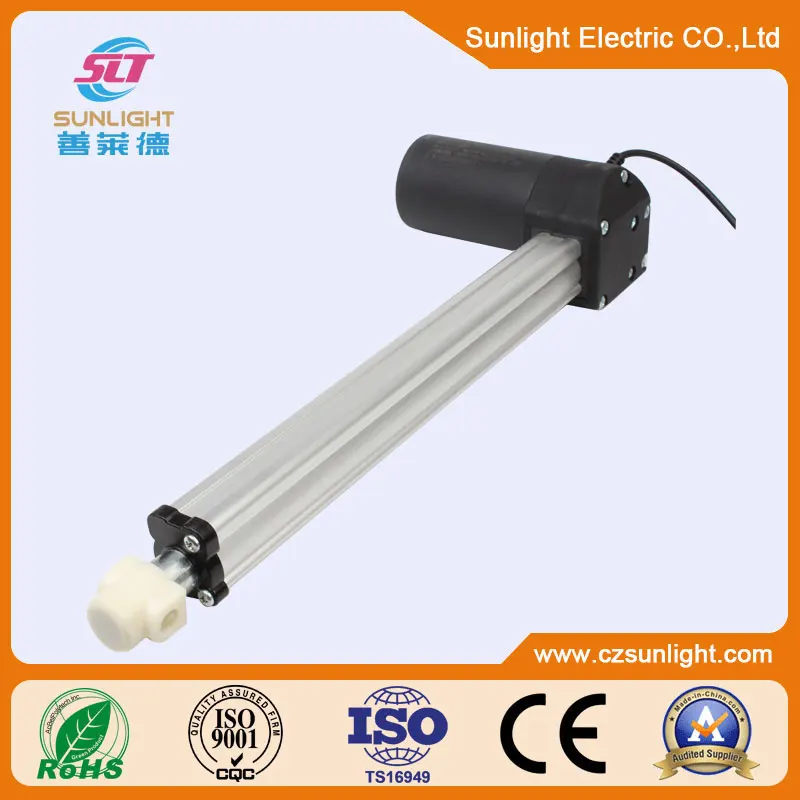

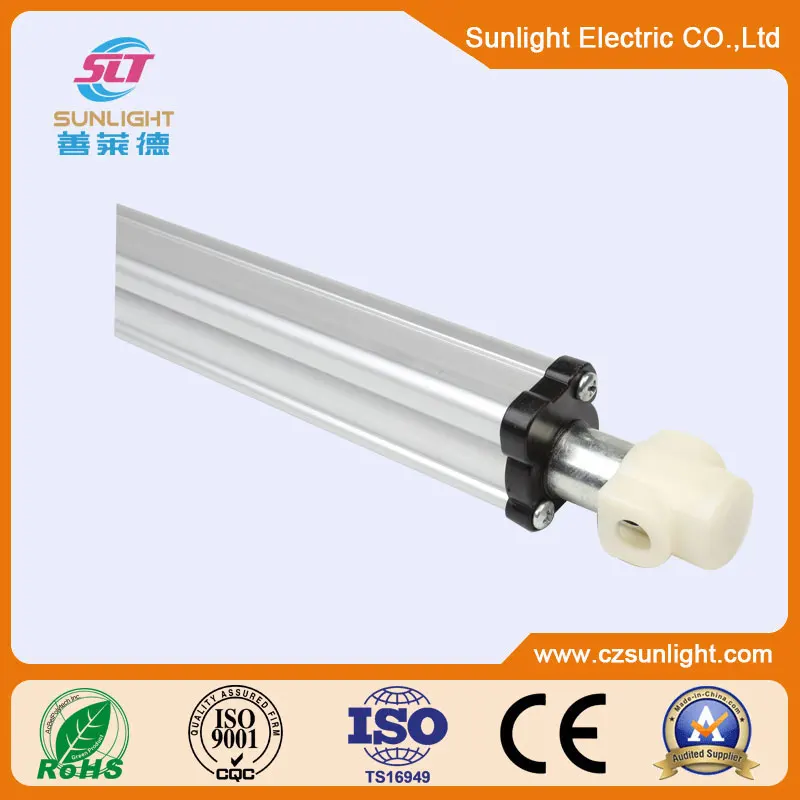

24V 50W linear vibration actuator motor for Agriculture Machinery

Product Overview

Description

24V 50W linear vibration actuator motor for Agriculture Machinery



YT01 Push Rod Motor
Specification
Model				SLTYT01
Input		24VDC
Load Capacity		4000N
Speed		6~40mm/s(Option)
Limit Switch		Inner
Standard Stroke		100mm,150mm,200mm,250mm,300mm,350mm,400mm(Option)
						Min.Install Dimension		S+170
Duty Cycle		10% 2 mins continuous Max
Ambient Temperature		-5℃~40℃
Protection Class		IP42
Color		Back shell and silver tube
Option		All power supply and handset from Sunlight
Certificate		ROSH CE

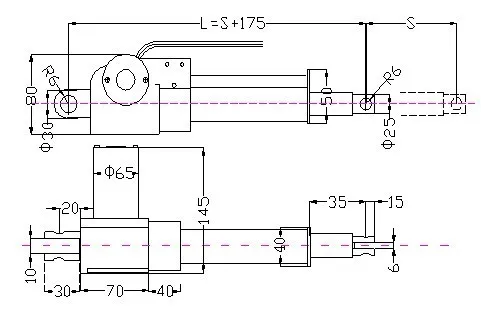

The dimension of 24V 50W linear vibration actuator motor for Agriculture Machinery



The application of 24V 50W linear vibration actuator motor for Agriculture Machinery

• Industry equipment: Solar Panels,Gear box,Material lift



• Home life:Furniture, Leisure bed,Electric sofa,Window opener, Nursing bed,Bathroom equipments



• Medical Equipment:Optometry equipment,Dental equipment, Sickbed,Electric wheelchair



• Cleaning Equipment: Motor Sweeper, Road Sweeper



• Skyligh, Power Sunroof



• Agriculture Machinery



• and so on
