Medical breast surgery hd laparoscope equipment

Product Overview

Description



Quality is our culture!

With us,your business is safe,your money is safe,too.

So don't worry,come here and get our offers!



FAQ:



1.  Payment term: TT, Paypal or Western Union



2.  OEM service offered



3.  Guaranteen period: 2 years

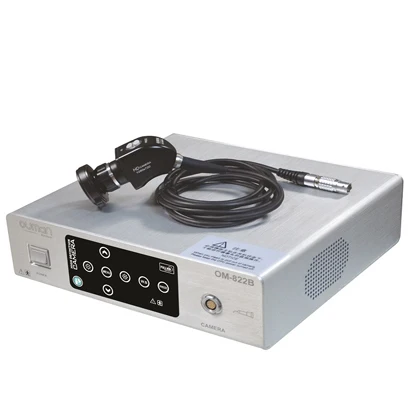

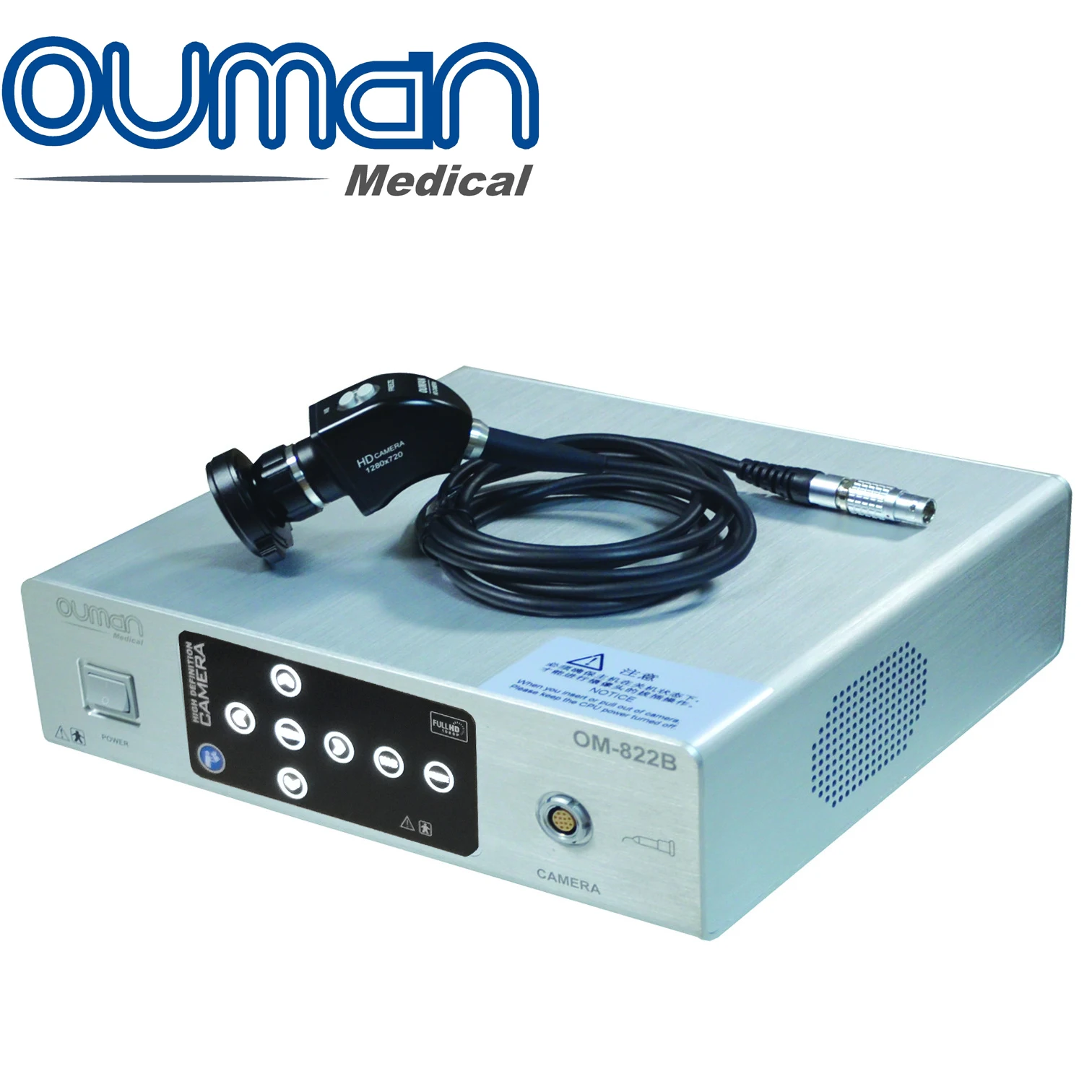

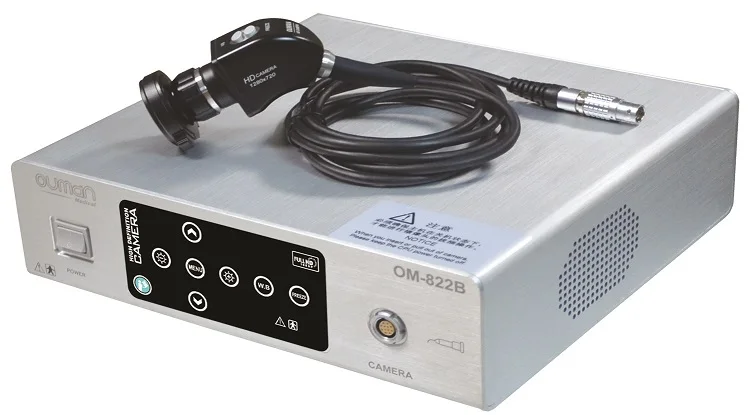

OM-822B
Image sensor	SONY SUPER HD CCD
Pixel	1280(H)*720(V)
Scanning system	CVBS/HD-SDI/HDMI/DVI>
Synchronizing mode	Internal Synchronization
Horizontal Resolution	900 TV Line
Video Output	1.0Vp-p, 75Ω
Signal to noise ratio (S/N)	>52db
Gamma Correction	0.45
White balance	Automatic
Scope of WB	2200~15000°K
Electronic shutter	1/50~1/100000s continuous
Min illumination	0.5 Lu×F2.0
TV system	PAL
AGC	automatic

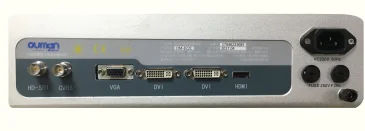

Video output	CVBS/HD-SDI/HDMI/DVI
Adapter	C—mount
Camera cable	2.5m (or custom-made)
Electricity supply	AC110~240V
Power	≤25W
Storage temperature	—20℃~+50℃
Working temperature	—10℃~45℃
Working humidity:	20~85%
Standard Configuration: Host machine CCD camera Optical coupler: F18/20/22/28/32/35mm Power line 2×BNC video line



Optical Coupler: default F20

If necessary you can choose one from F18/20/22/24/28/32/35, or ZOOM 32~35.



Produce structure

Mainly made of camera control unit, waterproof camera, and optical coupler.



Application scope:

Be used in hospital for clinical endoscopic surgery, to amplify video or gain images during inside-body surgery.

otoscope, nasoscope, laryngoscope, arthroscope, hysteroscope, laparoscope, vapour-resectoscope, etc.



Functional Characteristics:

1.  The camera is equipped with 1/3 inch SONY CCD image chip and DSP (Digital Signal Processor), and the horizontal resolution up to 580 TV line, supplying clear image and true colour restoration.


2.  OSRAM light source is used in this device, having the latest high-energy, low-power, high luminous flux, quickly brightened, uniform illumination, and wide angle. It’s useful life up to thirty thousand hours, energy-conserving and environment-protective. With 1~10 continuously adjustable illumination levels, you can observe current brightness level through the LCD screen.


3.  Compared with conventional xenon lamp, this integrative machine haves ultra-long useful life and ultra-low power consumption. It became more safe without ultraviolet rays. Real-time monitoring of its light source operating temperature is adopted in order to ensure it’s useful life, simultaneously you can read data and control the product running state through the LCD screen.
