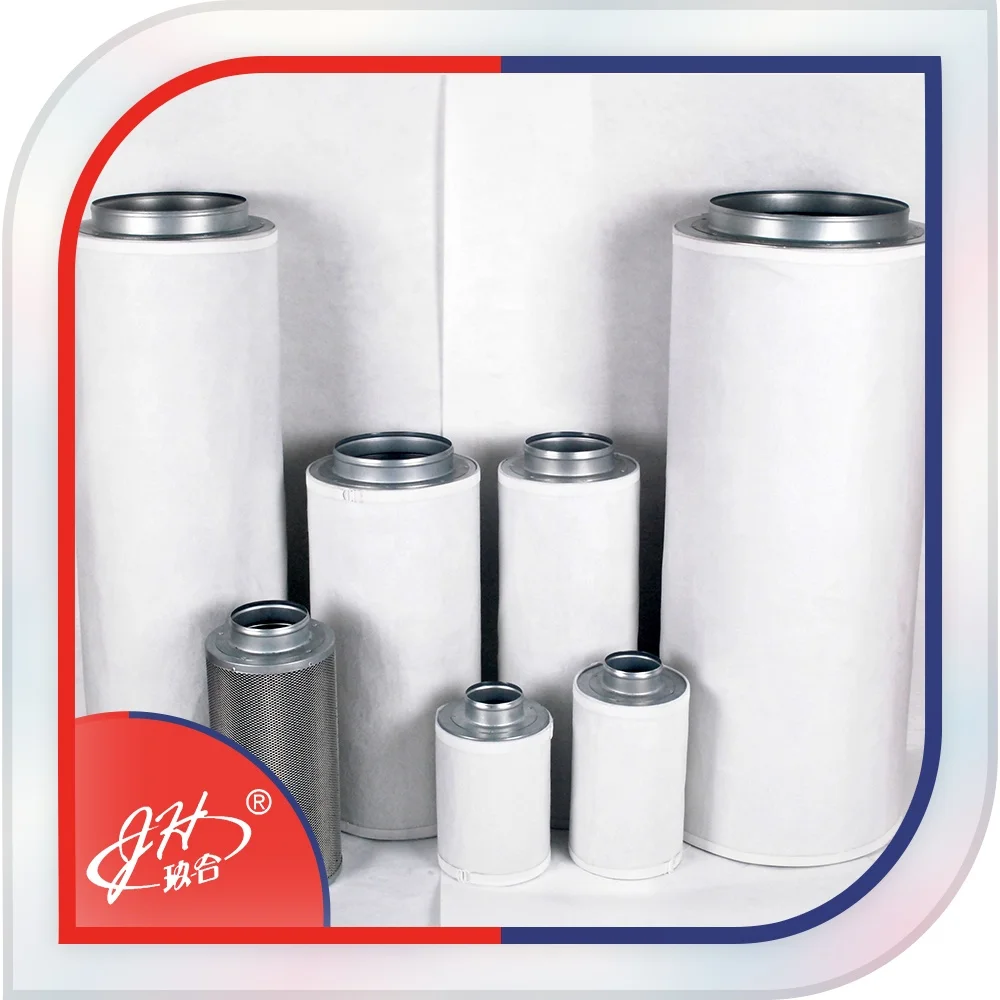

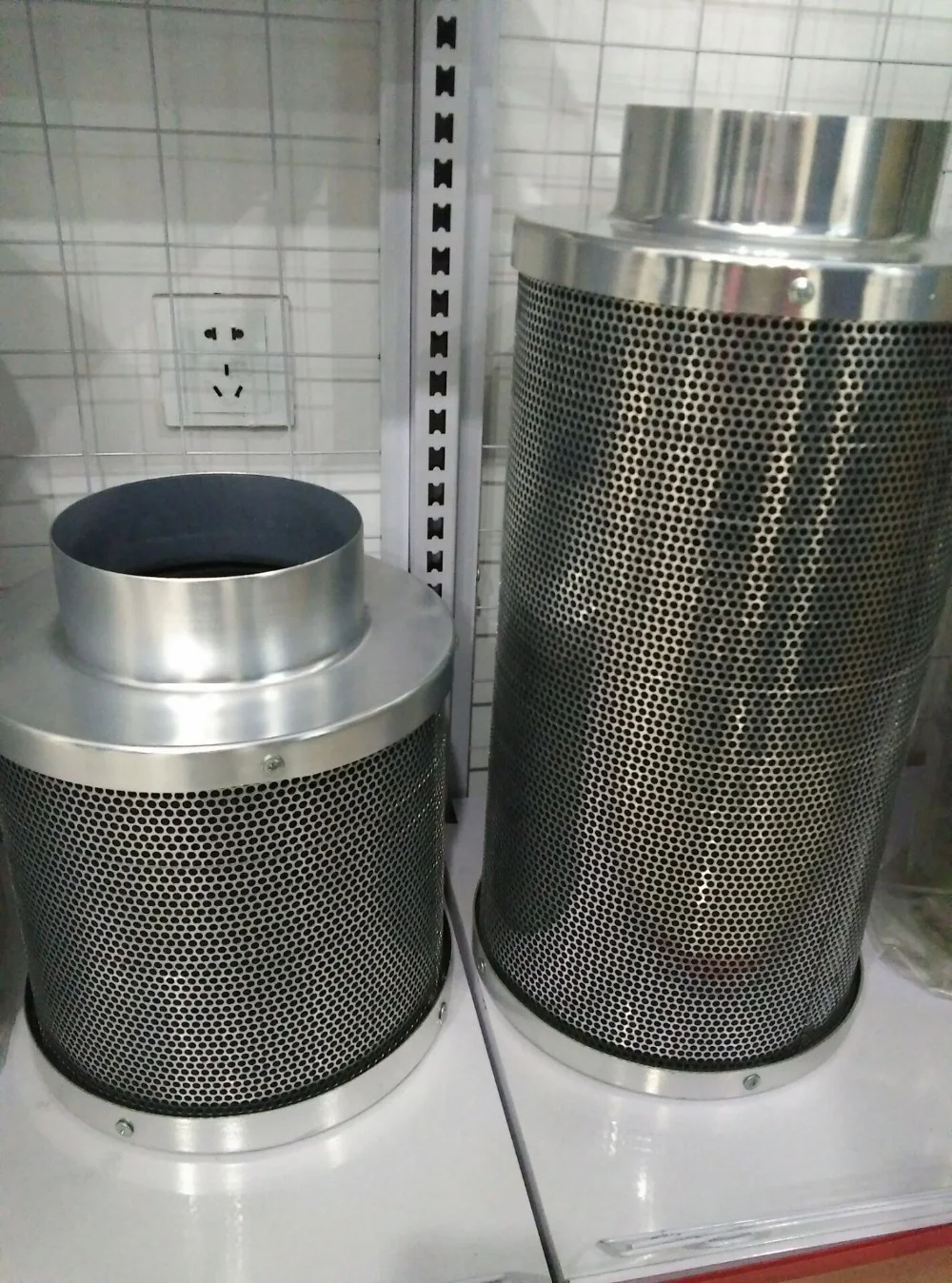

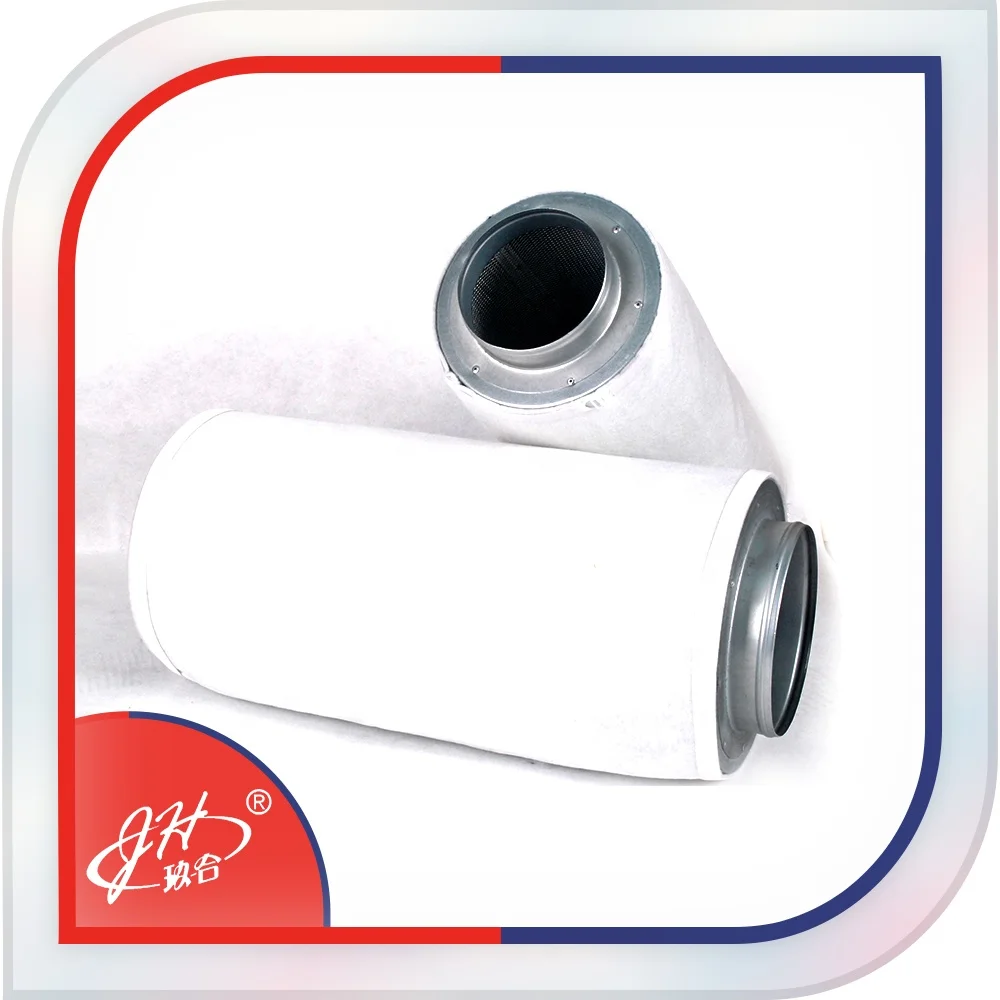

Popular 100% Virgin Activated Carbon Filter 4" 5" 6" 8" 10" 12" with inline fan for greenhouse/grow tent/room air cleaning


v Removes all smells/odours when used with fan through activated carbon.
v In a variety of sizes to fit 4inch 5inch 6inch 8inch 10inch 12inch fans.
v 55% Open area custom mesh for maximum airflow.
v 100% Virgin activated carbon, 4mm columnar carbon or light granulated carbon.
v Aluminum flanges weight is light, and it looks beautiful. The colour usually are silver,light green light pink also can be OEM orders.
v Pre filter set is included and also have other colours orto undertake OEM orders.
v 1.5-3 year life span.
v Hot in USA. and Europe market.
v Excellent design
v Simple and effective
v Highly effective at absorbing odors and airborne organisms with physical and chemical adsorption
v Easily replaceable carbon filters to maintain high efficiency
v Easy to install and operate
v Run quietly




| ITEM | Configuration Size F.D.*O.D.*T1*T2 (inches) |
Carbon bed depth (mm) | Carbon weight kg |
Packing L*W*H(MM) | N.W./G.W. (KG) | AIRFLOW(m3/h) |
| 100-200MM | 4"X176mmX200MM*246MM | 30 | 1.4 | 196*196*270 | 2.0/2.4 | 140 |
| 100-250MM | 4"X176mmX250MM*296MM | 30 | 1.75 | 196*196*320 | 2.5/2.9 | 175 |
| 100-300MM | 4"X176mmX300MM*346MM | 30 | 2.1 | 196*196*370 | 3.0/3.5 | 210 |
| 100-400MM | 4"X176mmX400MM*446MM | 30 | 2.8 | 196*196*470 | 3.7/4.3 | 280 |
| 100-600MM | 4"X176mmX600MM*646MM | 30 | 4.2 | 196*196*670 | 6.6/7.5 | 420 |
| 125-200MM | 5"X201mmX200MM*246MM | 38 | 2.01 | 226*226*270 | 2.9/3.3 | 160 |
| 125-400MM | 5"X201mmX400MM*446MM | 38 | 4.02 | 226*226*470 | 5.1/5.7 | 310 |
| 125-450MM | 5"X201mmX450MM*496MM | 38 | 4.53 | 226*226*520 | 5.7/6.4 | 338 |
| 125-500MM | 5"X201mmX450MM*546MM | 38 | 5.02 | 226*226*570 | 6.2/7.0 | 375 |
| 125-600MM | 5"X201mmX600MM*646MM | 38 | 6.03 | 226*226*670 | 7.3/8.0 | 450 |
| 150-400MM | 6"X225mmX400MM*446MM | 30 | 3.84 | 241*241*470 | 5.3/5.9 | 384 |
| 150-500MM | 6"X225mmX500MM*546MM | 30 | 4.8 | 241*241*570 | 6.4/7.2 | 480 |
| 150-540MM | 6"X225mmX540MM*586MM | 30 | 5.2 | 241*241*610 | 6.9/7.7 | 518 |
| 150-600MM | 6"X225mmX540MM*646MM | 30 | 5.75 | 241*241*670 | 7.5/8.3 | 576 |
| 150-680MM | 6"X225mmX680MM*726MM | 30 | 6.53 | 241*241*750 | 8.5/9.3 | 653 |
| 150-800MM | 6"X225mmX800MM*846MM | 30 | 7.68 | 241*241*870 | 9.5/10.6 | 760 |
| 160-500MM | 6.3"X236mmX500MM*546MM | 30 | 4.9 | 252*252*570 | 6.2/7.4 | 500 |
| 160-800MM | 6.3"X236mmX800MM*846MM | 30 | 7.84 | 252*252*870 | 9.7/10.8 | 790 |
| 200-500MM | 8"X276mmX500MM*546MM | 30 | 6.8 | 296*296*598 | 8.1/9.0 | 760 |
| 200-600MM | 8"X276mmX600MM*646MM | 30 | 7.43 | 296*296*698 | 9.3/10.4 | 912 |
| 200-800MM | 8"X276mmX800MM*846MM | 30 | 9.9 | 296*296*898 | 12/13.2 | 1216 |
| 250-500MM | 10"X326mmX500MM*546MM | 30 | 7.7 | 341*341*598 | 10.05/11.5 | 790 |
| 250-750MM | 10"X326mmX750MM*796MM | 30 | 11.55 | 341*341*848 | 14.7/16.2 | 1180 |
| 250-1000MM | 10"X326mmX1000MM*1046MM | 30 | 15.1 | 341*341*1098 | 18.9/20.6 | 1560 |
| 305-750MM | 12"X388mmX750MM*796MM | 36 | 15.4 | 405*405*848 | 22.1/23.4 | 1250 |
| 305-1000MM | 12"X388mmX1000MM*1046MM | 36 | 20.5 | 405*405*1098 | 29/30.8 | 1700 |
| 305-1250MM | 12"X388mmX1000MM*1296MM | 36 | 25.9 | 405*405*1348 | 35.9/37.7 | 2100 |
| 315-750MM | 12.5"X411mmX750MM*796MM | 39 | 17.6 | 426*426*848 | 23.5/25.2 | 1300 |
| 315-1000MM | 12.5"X411mmX1000MM*1046MM | 39 | 23.5 | 426*426*1098 | 31.9/33.8 | 1800 |
| 315-1250MM | 12.5"X411mmX1250MM*1246MM | 39 | 29.9 | 426*426*1348 | 39.7/42.0 | 2400 |

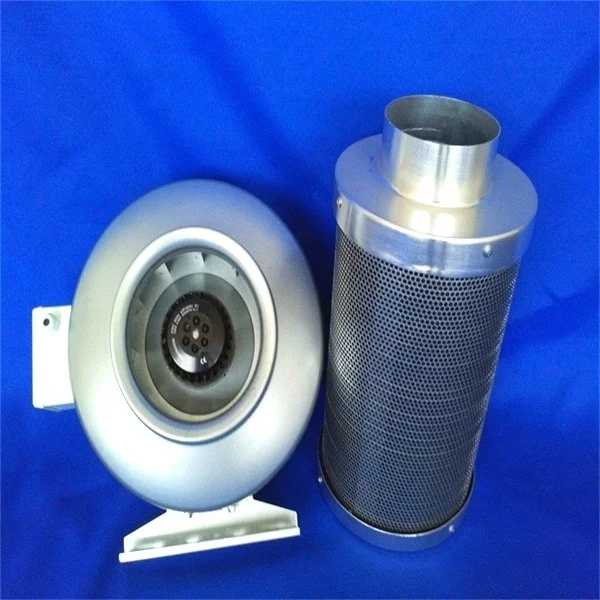

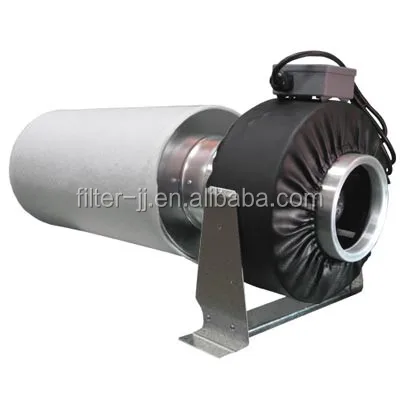

Duct Fan

Dust Silencer



Activated Carbon filter is used everywhere, including Grow tent, hydroponics, greenhouse air cleaning, etc.
Long life:
The pelletized carbon we use has developed porosity, larger surface area, strong adsorption, it can also endure high temperature, without being broken or flying ash and therefore having a life span

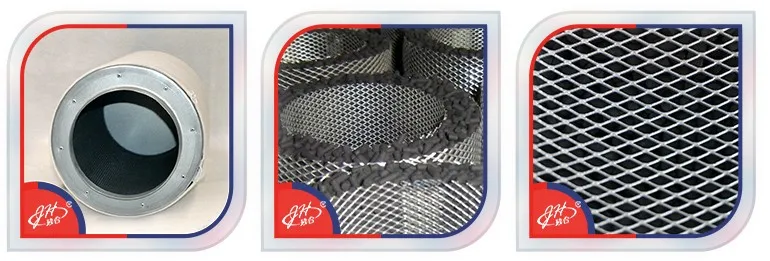

Strict production process:
Our equipment exclude the ash, and broken carbon in the process loading carbon filters. When the carbon filter is working ash don’t smoking outside. our workshop clean no dust . Carbon filter’s flange cover cap and inner and outer of the filter are clean. When loading active carbon into the filter , JiuJiu grow room carbon filters has a unique process to remove carbon particles and PE screen cloth static friction, fully vibration. each filter after truck ship such long-distance transportation is still full.
JiuJiu grow room carbon filters have strict production process, each filter’s highly error doesn’t exceed 3MM.
Delivery and shipping:
in general, we will be in the 15-30 days to ensure the timely delivery of products; no special requirements for fashion boat location in Tianjin port.



v Provide you the most HOT items towards your market.
v Supply the samples of YD products for reference.
v Let you know the process from production to loading for your order.
v We are care about the case of the goods when you received and try our best to solve the problem.
v Build products to your specification.
v I can provide samples, but the sample is required to pay, for the first time the return of the sample fee
v I can guarantee the quality of the product
v 24 hours to answer any questions
New products from manufacturers at wholesale prices
