10inch cast aluminum core Rice Hulling Rubber Roller

Product Overview

Description

Rice Hulling Rubber Roller

10inch cast aluminum core Rice Hulling Rubber Roller

Brand: The brand of "Hongqi bridge" has high market share, and is the first choose of customer all the time. we also accepte  the OME order with your logo.

Production and administration conception:

We have tried our best to provide wonderful goods and service to customers through perfect managment,precise style of work,sincere attitude and enthusiastic cooperation spirit

Operating principle:

Because of speed difference of veer and reversion between two rubber rollers, paddy are torn up by two rubber rollers.In the end, rice grains come out.

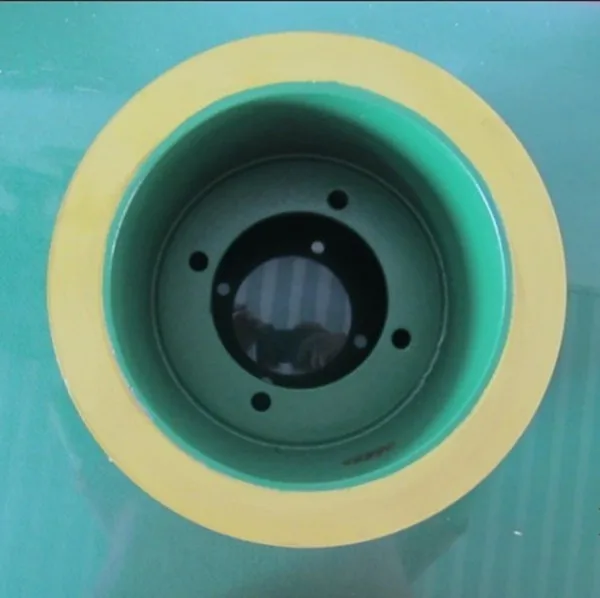

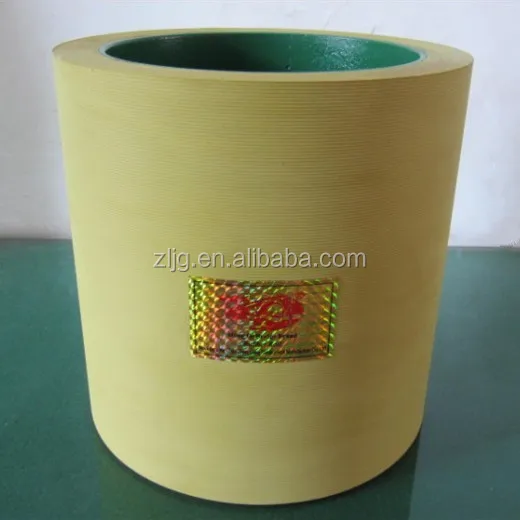

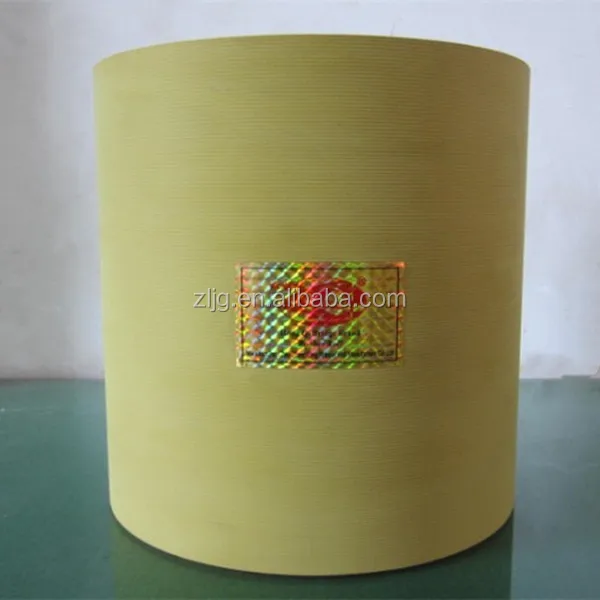

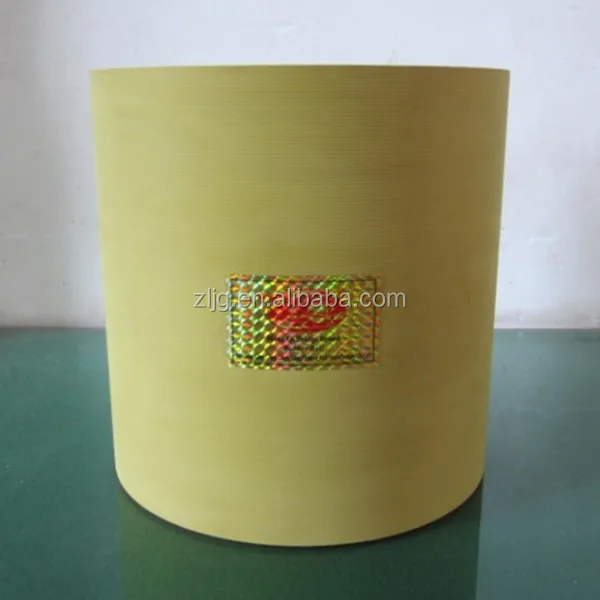

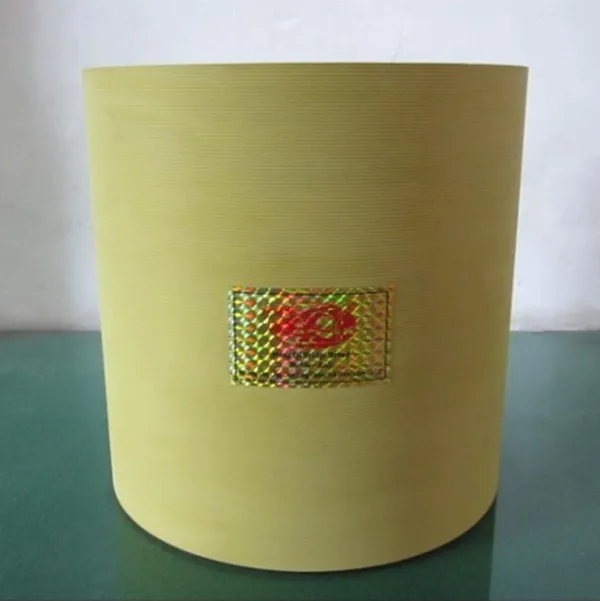

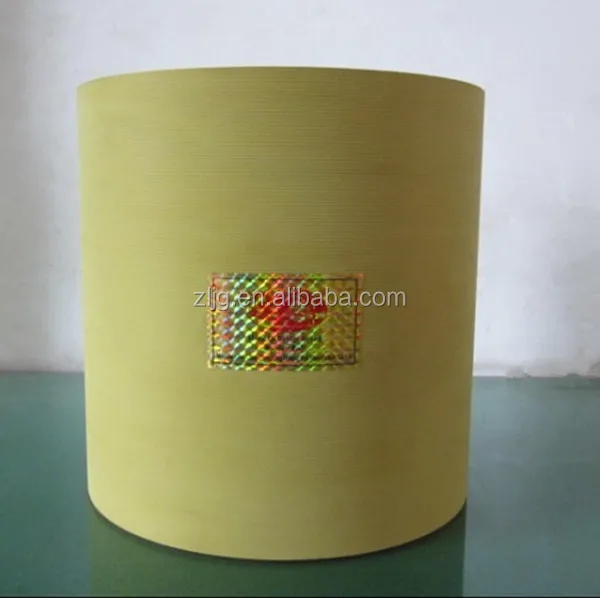

 Rice Hulling Rubber Roller   Pic

 10inch cast aluminum core  Rice Hulling Rubber Roller ,  Rice Hulling Rubber Roller , cast aluminum core  Rice Hulling ,Rubber Roller ,  10inch Rice Hulling Rubber Roller





 Specification:

Type	Inch	External diameter	Length	Thickness of rubber
Wheel Type	4”	222 mm	100 mm	19.5 mm
	6”	222 mm	152 mm	19.5 mm
	8”	225 mm	200 mm	25 mm
	10”	255 mm	254 mm	24.5mm
Casing Type	14”	227 mm	355 mm	29.5 mm
	18”	232 mm	457 mm	30.5 mm
	20”	258 mm	508 mm	30.5 mm
	25”	255 mm	635mm	30.5mm
	28”	255mm	710mm	30.5mm
Color	Amber
Hardness Shore A	92±3°
Tensile Strength	≥21.0(Mpa) [Superior to international advanced level]
Elongation Rate	≥250%     [Superior to international advanced level]
Brand	Hong QI Bridge, Tiger & Lion, JinBao



Advantage:

1.Strong bonding between rubber roll and drum

2.Ensure high degree of heat resistance and durability

3.High peeling efficience at minimum broken rice to be attained by its well balance of elasticity, hardness and abrassion resistance.



Useful tips:

1.Take away sand from rice,make sure the cleanliness of rice before hulling.

2.Two rolls should be placed at the parallel side,the space must be equal.

3.The flow or discharge should be balanced,the flow layers should well-arranged.

4.Control the segregation efficiency,and use it within the limits.

Standard Quotation Sheet



Model No.	Meas.(mm)	Packaging	Weight(1carton)	20"HQ/PCS		Capaciy		Mill rate		hardness
10inch cast aluminum core  Rice Hulling Rubber Roller	Product  Size:254*255	Carton or as your  request	N.W:17KG	1520PCS		600 tons/pair		90%-95%		91°~93°
	Carton Size: 510*260*270		G.W:18KG
Material	indicate the different material applied
Delivery	Depend on the quantity in details
Payment	30% T/T in advance,70% against copy of B/L,or by L/C
MOQ	200 pcs
