Product Overview

Description

Aluminum Foil Food Container Vertical Press (UN-110T)









Advantages:

• Welded body with steel plate and high intensity.
• Main motor is made by Siemens.
• Adopts combined pneumatic friction clutch and brake.
• Cluster gear adopts the flooding oil lubrication.
• Six-face rectangle lengthen guide;
• Equipped with hydraulic overload protecting device.
• Electric shut height adjustment with digital display.
• Equipped with lifting balance cylinder.
• Duplex valves imported.
• Electric compelling grease lubrication system.
• Balancing cylinder adopts manual lubrication system.
• One set of blowing device


Detailed Information:



Item No.	UN-110T
Nominal Force	1100KN,H-Type Press
Stroke Time	30-70 Times/Min
Slide Block Stroke(Optional Size)	240/260mm(Option)
Max. Height of Mould Installation	450mm
Height Adjustment for Mould	80mm
Distance from Slid Block Center to Body	740mm
Adjustable Work Block Dimension × 2	850(L)×220(W)×250(H)mm×2
Dimension of Slid Block Bottom Surface	520×750mm
Hole Dimension Slid Block Bottom Surface	470×470mm
Size of Centering Hole(Diameter × Depth)	Ø50×90mm
Press Machine Type	Electric Shut Hight Adjustment
Press Net Weight	13,000kg
Voltage & Frequency (Optional)	380V-50/60Hz-3 Phase
Total Power	15KW
Press Dimension (L×W×H)	3230×2150×3500mm















UNGAR Machinery (Shanghai) Co., Ltd is an Austrian enterprise established in 2009, supplying high productive multi-cavity moulds and machines, which includes press, stacker, package, re-winder, paper lid cutting, decoiler, scrap press and additional equipments.

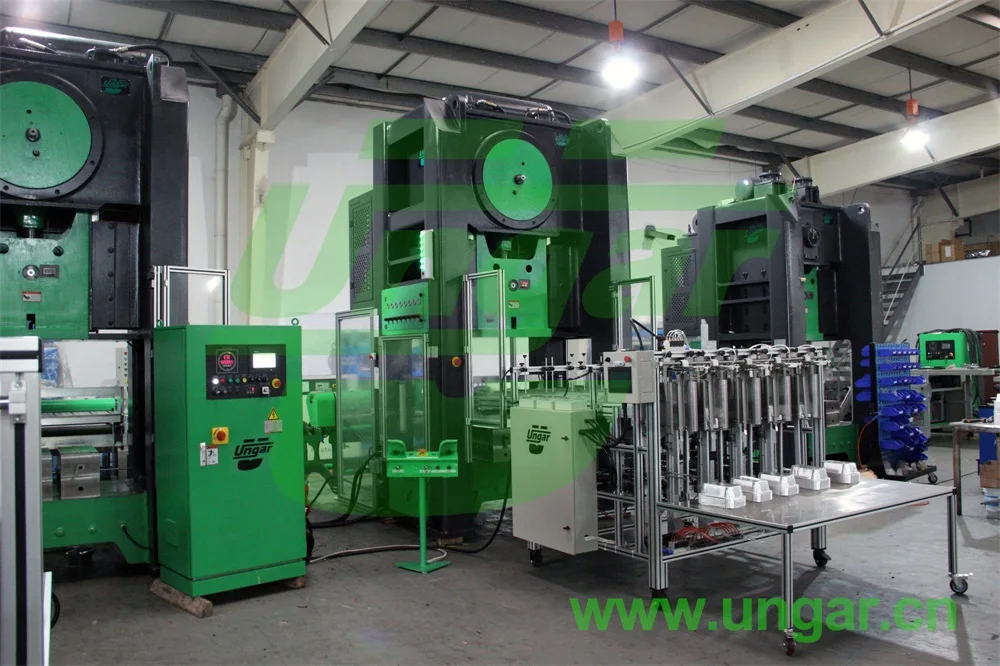

UNGAR complete integrated production line has been specially designed and developed for the production of aluminum foil food container, plate and household foil rolls.



UNGAR Machinery (Shanghai) Co., Ltd also offer customized service for technical optimization, mould prove, machine installation, material test, training course, telephone assistance and so on.
