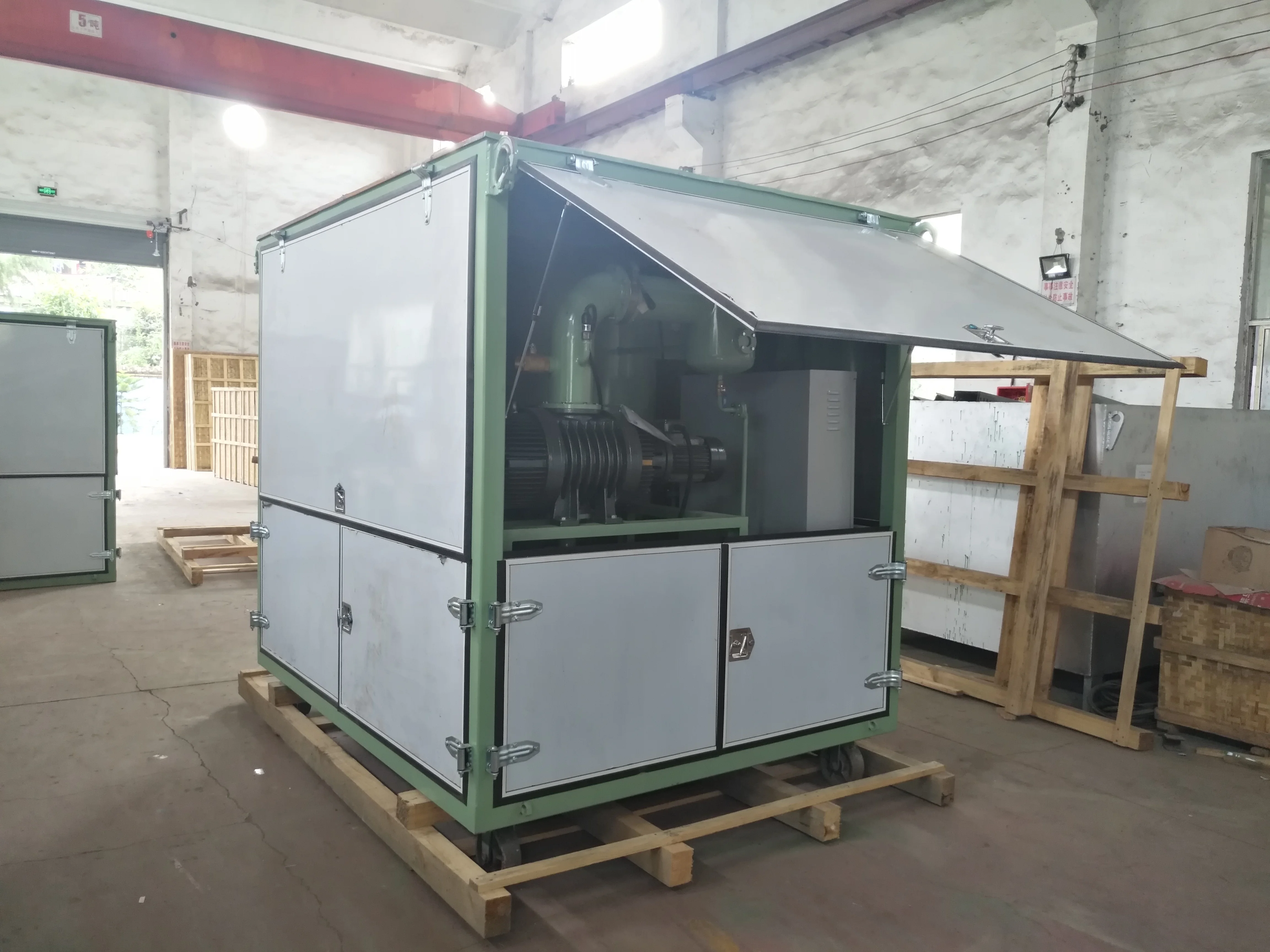

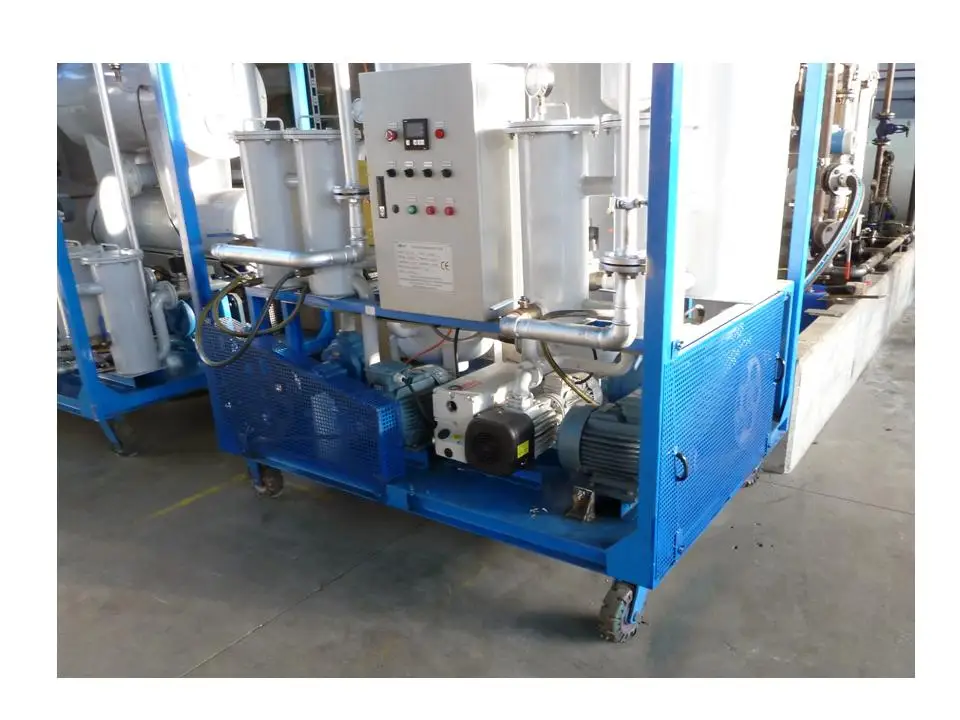

Two stage vacuum transformer oil filtration machine
- Category: >>>
- Supplier: Chongqing Fengyu Electric Equipment Co. Ltd.
Share on (60414367430):
Product Overview
Description
FENGYU Signal and Double-stage High-efficiency Vacuum Transformer Oil Purifier.
FUNCTIONS:
The main oil filtration function of DZL Series of signal and double stage high-efficient vacuum oil purifier is to remove free and dissolved water, gases, and mechanical impurities from insulating oils so as to ensure its purity and improve its insulation property. It is suitable for the application to oil treatment 500KV super-voltage transforming equipment and 220KV transformer. It is also suitable for the treatment of capacitor oil, transformer oil and freezer oil.
TECHNICAL SPECIFICATION
Product | Single | 5 | 10 | 20 | 30 | 50 | 75 | 100 | Proposed to use double stage to deal with 100L/min. capacity | |||
Double | 5A | 10A | 20A | 30A | 50A | 75A | 100A | 150A | 200A | 250A | 300A | |
Flow rate | L/min | 5 | 10 | 20 | 30 | 50 | 75 | 100 | 150 | 200 | 250 | 300 |
Total power | KW | 5 | 15 | 24 | 24 | 30 | 48 | 60 | 108 | 108 | 144 | 144 |
Pipe diameter | DN mm | 25/16 | 25/16 | 32/25 | 32/25 | 44/32 | 44/32 | 50/44 | 50/44 | 50/44 | 65/50 | 65/50 |
Gross weight | KG | 100 | 180 | 240 | 320 | 420 | 700 | 750 | 1500 | 1860 | 2100 | 2200 |
Overall dimension mm | Length | 700 | 1200 | 1200 | 1300 | 1300 | 1600 | 1600 | 1600 | 1600 | 2000 | 2000 |
Width | 500 | 800 | 1000 | 1000 | 1000 | 1400 | 1400 | 1400 | 1400 | 1600 | 1600 | |
Hght | 800 | 1200 | 1400 | 1450 | 1500 | 1800 | 1800 | 1800 | 1800 | 2250 | 2250 | |
TECHNICAL INDEX
Product | DZL-Single | DZL-Double | |
Breakdown Voltage(KV) | 60 | 75 | |
Moisture Content(PPM) | 10 | 5 | |
Gas Content | ≤0.5% | ≤0.1% | |
Filtering Fineness( m ) | 1-5 | 1-5 | |
Vacuum Degree(PA) | 400 | 50 | |
Working Temperature | 40---70 | ||
Max Outlet Pressure(MPA) | 0.5 | ||
Working noise | 60 | 60 | |
Filtering efficiency | 1-3times | ||
