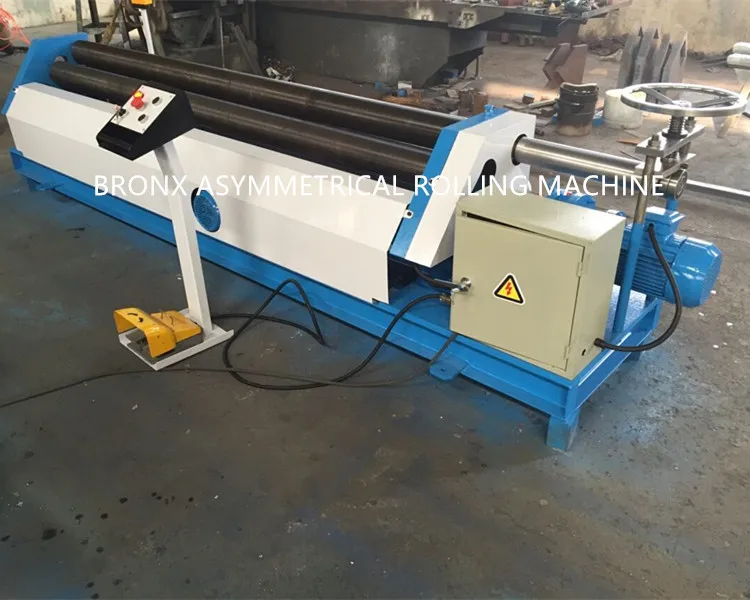

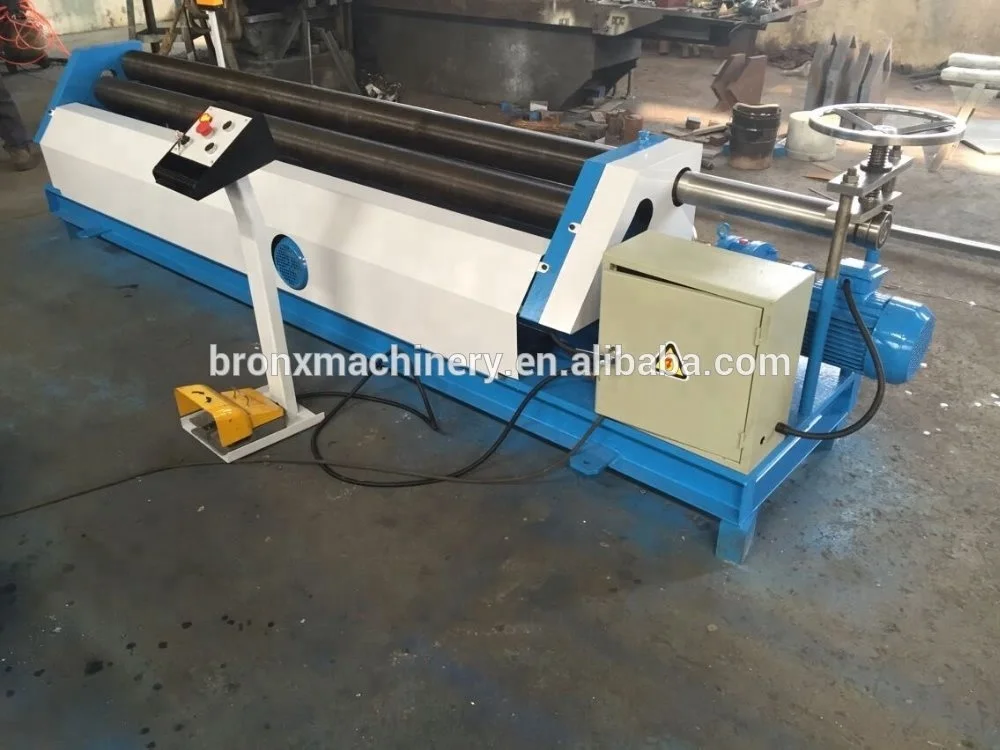

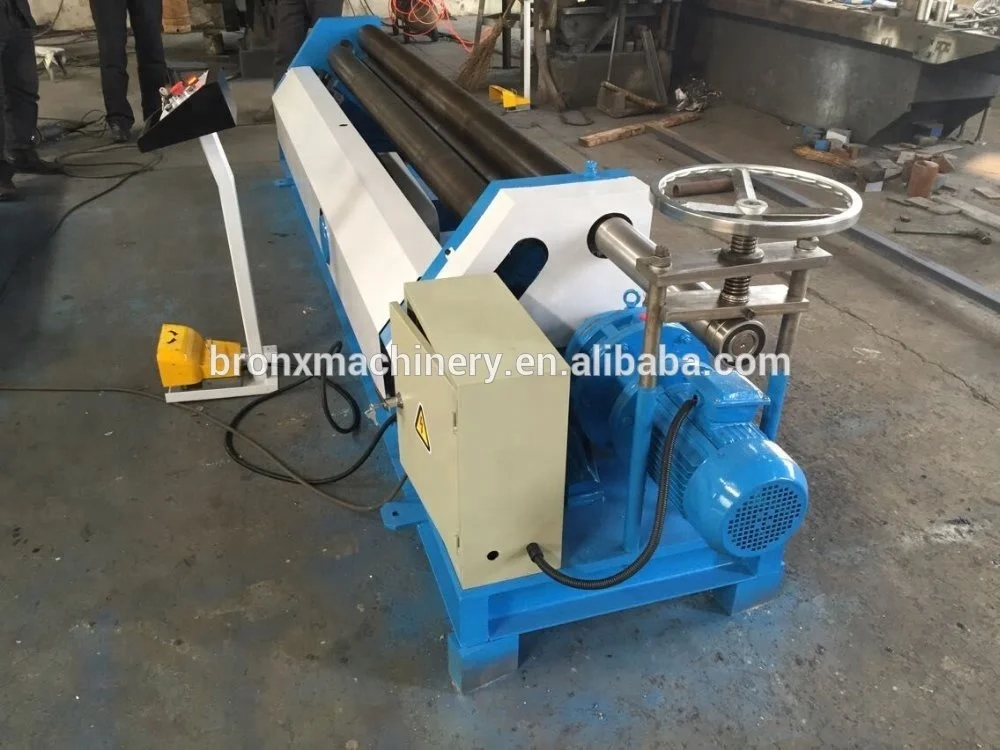

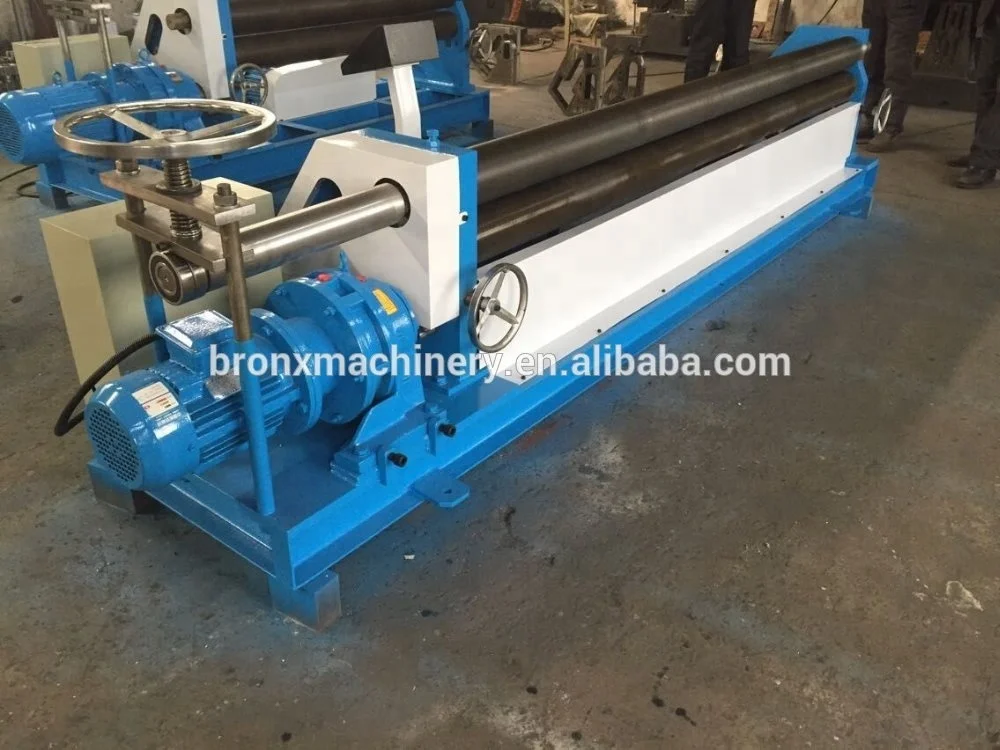

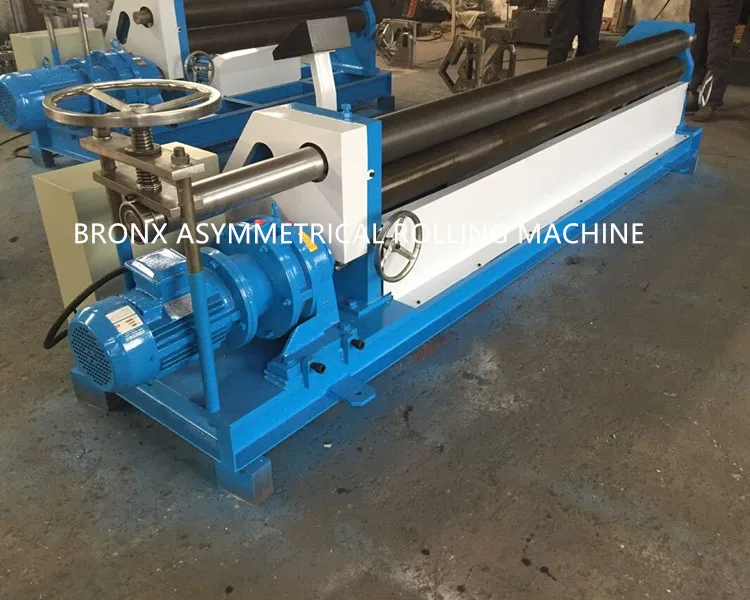

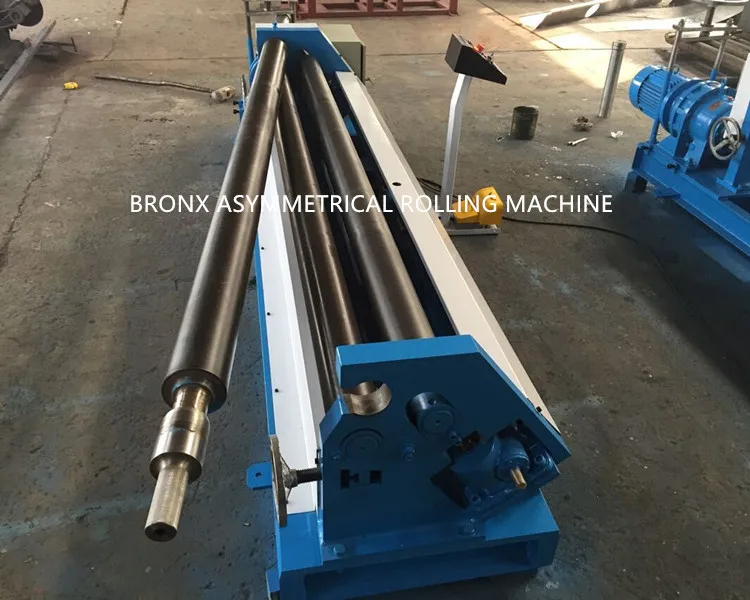

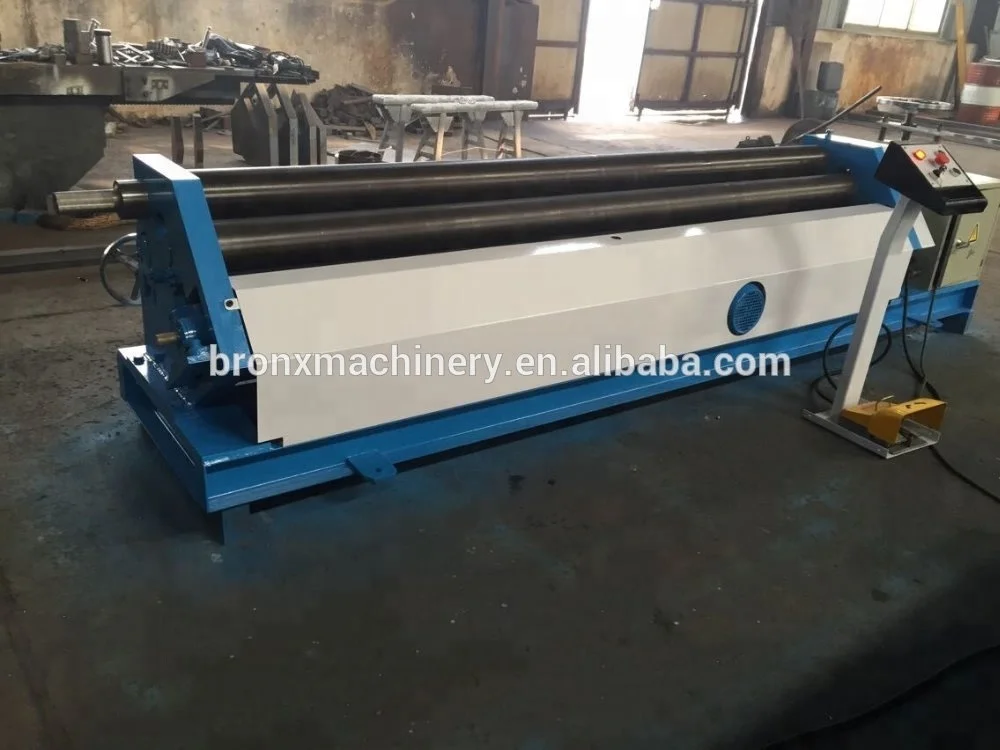

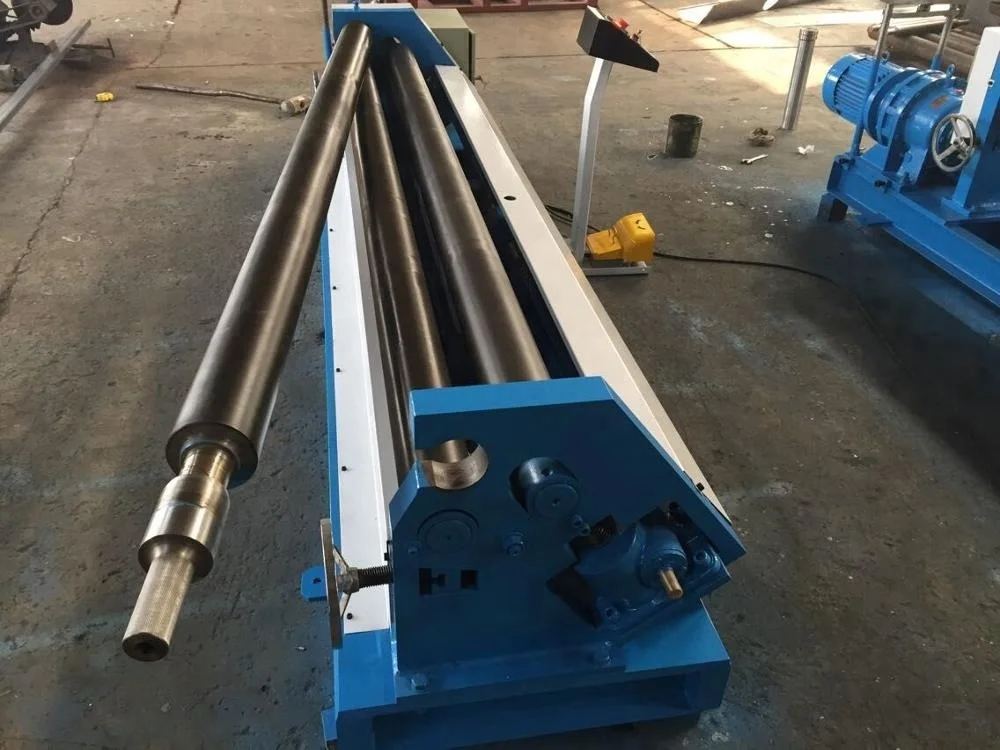

asymmetrical three roller metal plate sheet board rolling bending machine device equipment
- Category: >>>
- Supplier: Jiangsu Bronx Machinery Co. Ltd.
Share on (60414370264):
Product Overview
Description
Product Description
It is used to roll metal boards with thickness less than 3mm in normal pressure and temperature.
The working principle is rotary type bending deformation. The rolling machine is the necessary
equipment in fields like boiler, shipbuilding, petrochemical industry, concrete, motor and other
machinery building etc..
This machine has features like compact structure and easy operation.
This rolling machine is widely used all over the world.
Performance features:
Upper roller
45#, heat treatment hardness HRC45-52
Lower roller
Lower roller system is made up of lower rollers, bearing block, input gear, sliding bearing etc..
The rollers are made of excellent carbon steel. They are thermal refining processed (HB260~300)
after rough machining according to JB/ZG4289-86 standard.
Transmission for upper roller lifting: zinc-base composite material, hard wearing, durable.
Bracket chassis
The chassis is of frame construction with high antitorque section modulus and small quantity of
stone bolts. It is convenient to assemble and test the machine. The inner stress is eliminated
through oscillation, which assures the whole precision of the frame.
W11F-3x2500 asymmetrical rolling machine Patameter:
| Specification | |
| Thickness min. (mm) | 0.8 |
| Thickness max. (mm) | 3 |
| Yield limit (Mpa) | 235 |
| Width (mm) | 2500 |
| Diameter of the upper roller (mm) | 125 |
| Diameter of the lower roller (mm) | 125 |
| Min. Diameter after rolling (mm) | 180 |
| Speed (m/min) | 4.5 |
| Power of main motor (kw) | 3 |
ROLLING PRINCIPLE
Quality assurance:
1. Our factory has decades of experience for metal coil and sheet processing machines production.
We have professional engineer team for technical support.
Over 30 years practical installing and testing experience accumulated makes sure the good running for machines.
2.Our QC department tracing every procedures during machine making to guarantee the qualified final
output.
3. The electric and hydraulic elements using in our machines are all famous and long cooperated in
China.
They can work stable and have long working life.
If you have special requirements for the machine, please do not hesitate to contact us. And you can advise us your ideas and thoughts for the machine,we can design specially for you and communicate with you for further details.
Now coming some pictures for the details of this uncoiler decoiler cut to length line:
All our products are custom-made.
If you have the needing of cut to length line, uncoiling machine, decoiling machine, coil cutting line, congratulations, you find us.
(It's real love of our machine if you can read here. Please move to the bottom and contact with me immediately.
We will give you spare parts for free after order settled.)
