Hot Sale ! TV Assembly Line Equipment Conveyor Belt
- Category: >>>
- Supplier: Dongguan Feita Electronics Co. Ltd.
Share on (60414400049):
Product Overview
Description

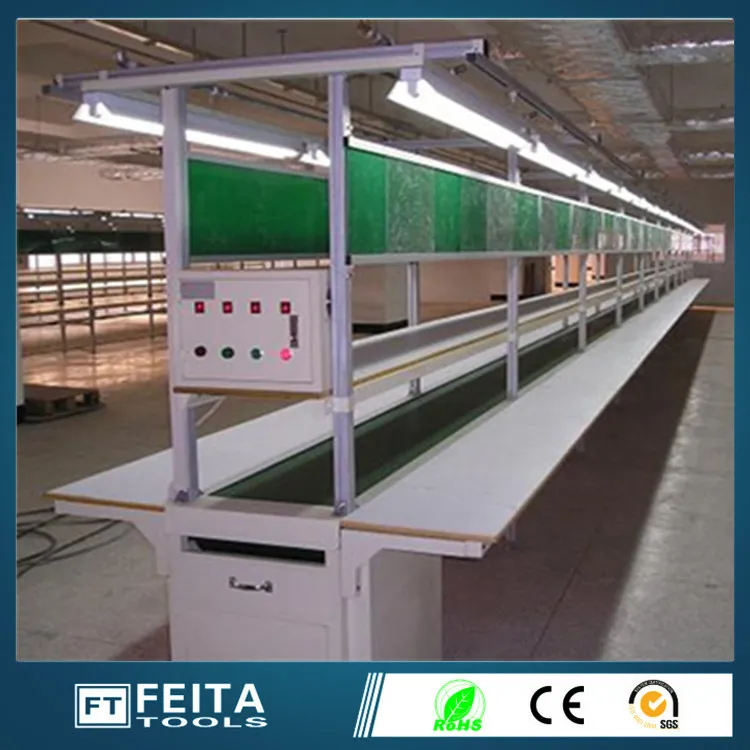

Hot Sale ! TV Assembly Line Equipment Conveyor Belt
Product Description
1.The belt conveyor could be widely used in general.
2.Conveyor belt material:Rubber,Pvc,Pu,Ep and so on.
3.Forms of conveyor such as:line conveyor,ascending conveyor,Belt round conveyor etc.
4.Conveyor frame material:carton steel,stainless steel and aluminum alloy etc.
Item | assembly parts | Details |
| Production Equipment

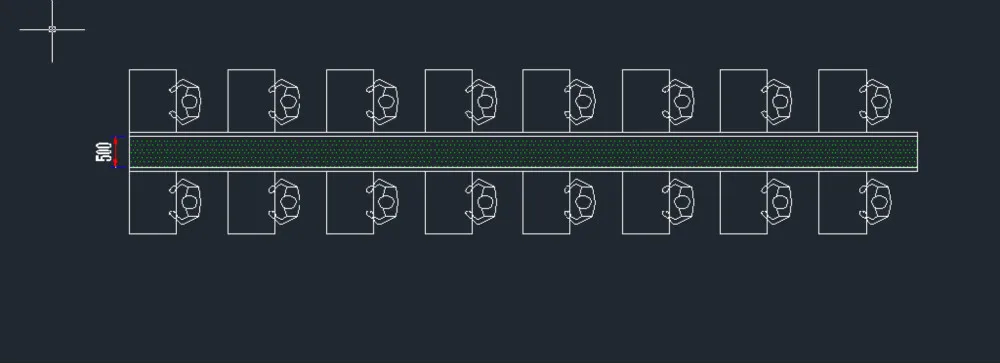

| 24mX500mmX750mm Aluminum shaped materials assembly |

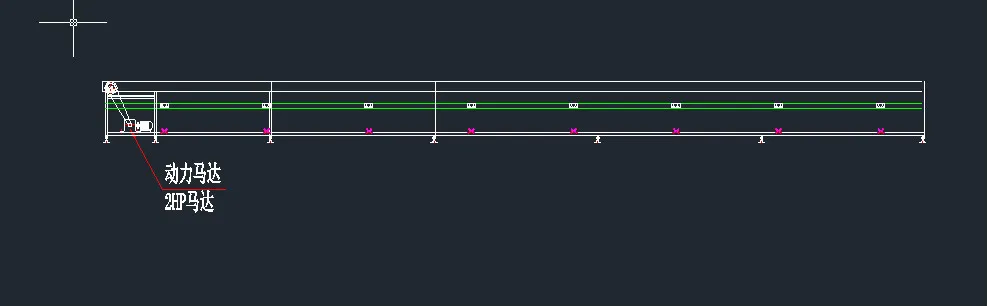

1 | Power | Motor:2HP.2HP frequency converter speed control , No70 speed reducer ,Belt speed :0-6M adjustable |
2 | Frame | 40mm*60mm Aluminum shape. 1.0mm in thickness,40mm*40mm machine leg. Adjustable height goblet, 2.0MM green ESD PVC Belt,25 Electroplating roll(0.3M/PC) |
3 | Light | 40mm*60mm .1.0mm in thickness Aluminum material as light frame(2M/PC), 40W Single covered stent, 40W Light tube, bilateral installation |
4 | Circuit | 0.5 galvanized sheet Bent,2 pcs Multi-purpose socket per meter, fixed between themachine leg,With four square wire slot |
5 | Process procedure | Special aluminum groove,fixed above the middle of the light holder, A4 Process book bag is fixed per meter |
6 | Gas | Using 4 water tube for trachea,2 pcs quick coupling per meter |
7 | Material Table | 18mmX40cmFire prevention board |

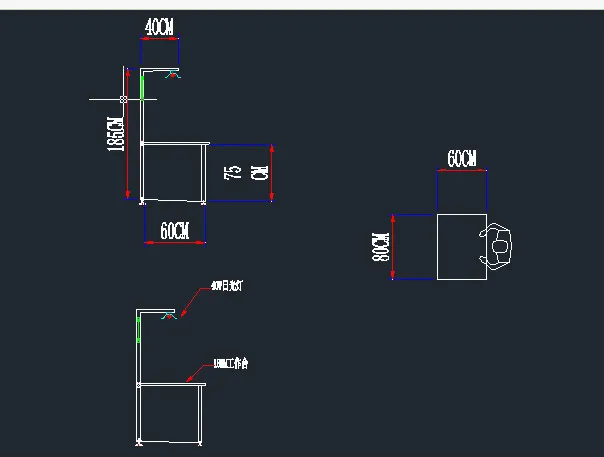

8 | Independent worktable | 40mm*40mm 1.0mm in thickness Aluminum material as standing 80cmX60cmX75cm 18mm in thickness Aluminum material as working table |
Packaging & Shipping
FAQ
Hot sale! production lines/product lines
| Q1:If high quality products |
| Ans:Yes,Our product testing by CE certification |
| Q2: How do you ship the goods? |
| Ans: by sea |
| Q3: What advantage do you have? |
| Ans:1.We have professional engineer to support you good solution for your products and design and draw the drawing for your checking. 2. Related responsible team to answer all your questions and follow-up process for you and do update in time 3 Strict and standard process control according to Quality Management System. 4.Documents support on products, we have strong technical data sheet to support our products, which could make you easier to know our products |
| Q4: MOQ? |
| Ans:1set |
Our Services
1.olive Inquires will be replied within 24 hours.
2. Professional manufacturer,two version to show how to operate.Welcome to visit our website. www.feitadz.com
3. All of our products 100% inspection before shipment, we guarantee to use our products safety.
4. We own the best after-sale service.If there any problems happen, our team will do our best to solve for customers.
5. Faster delivery, 3-7 workdays after we receive the payment
