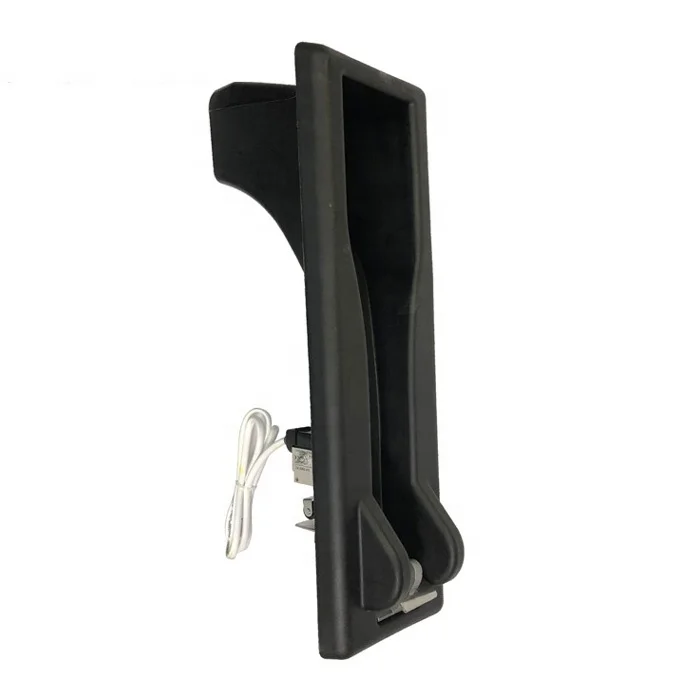

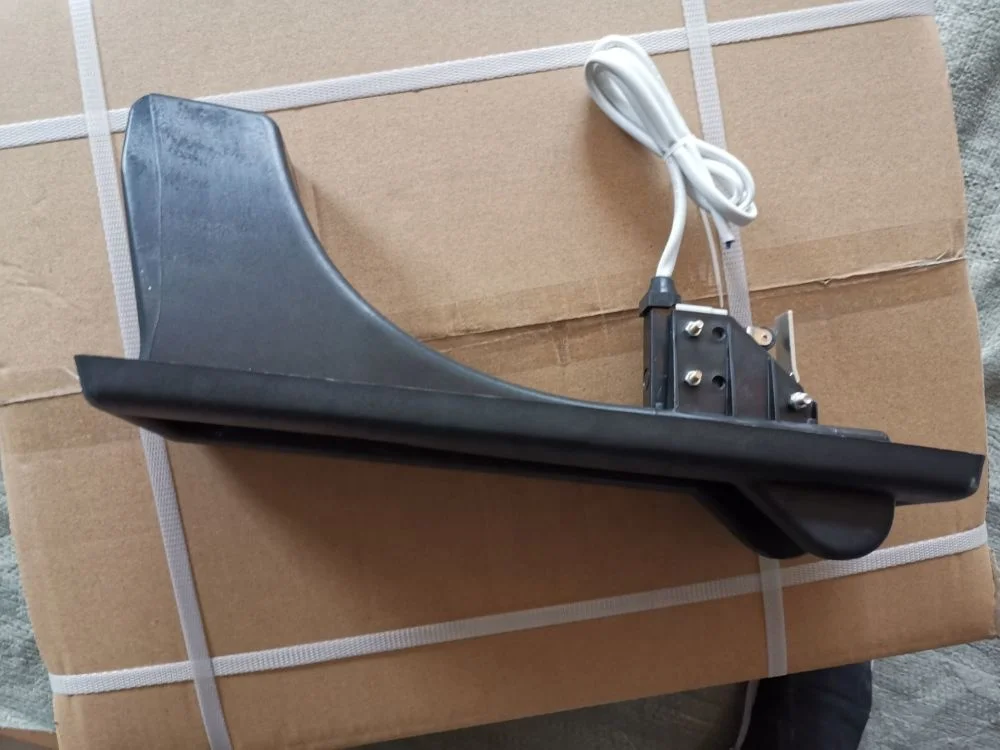

Fuel Dispenser Nozzle Holder Universal Fuel Gun Boot with Switch

Product Overview

Description

Fuel Dispenser Nozzle Holder with Switch



	K24 Digital Flow Meter
	Certificate	CE
	Material	PPS
	Connection Size	BSPF1
	Accuracy	±1%
	Repeatability Error	±0.5%
	Max Pressure	20Bar
	Temperature Rang	From -10℃ to +50℃
	Working Voltage	2.3-3.3V
	Standby Time	2 years
	Flow Range	10L-100L/min
	Single Count	0.00-999.99
	Total Count	0.00-99999.99
	Units	L/GAL/PTS/QTS
	Packing	50UNIT/CTN
	N.W/G.W	15/16KGS
	Carton Size	42 x 23 x 30cm
	Applications	Gasoline,Diesel,Kerosene,Water,Adblue
	Electronic Turbine Flow Meter
	Material	Aluminum
	Bearings Material	Ceramics
	Shaft	Tungsten Carbide
	Rotor	PVDF
	Connection Size	BSPF/NPT1’’
	Pressure	300PSI/21Bar
	Repeatability	±0.1%
	Flow Rate	10L-120L/min
	Metric Accuracy	±1.5%
	Packing	20UNIT/CTN
	N.W/G.W	7/8.5KGS
	Carton Size	49.5 x 38 x 19.5cm
	Applications	Diesel, Kerosene, Gasoline
	Electronic Turbine Flow Meter
	Material	Aluminum
	Bearings Material	Ceramics
	Shaft	Tungsten Carbide
	Rotor	PVDF
	Connection Size	BSPF/NPT1’ 1.5''
	Pressure	300PSI/21Bar
	Repeatability	±0.1%
	Flow Rate	20L-200L/min
	Metric Accuracy	±1%
	Packing	10UNIT/CTN
	N.W/G.W	12/13.65KGS
	Carton Size	49.5 x 38 x 19.5cm
	Applications	Diesel, Kerosene, Gasoline
	Mechanical Flow Meter
	Material	Aluminum
	Connection Size	BSPF/NPT 1’
	Accuracy	±1%
	Accumulative Counting	8 digits
	Max Pressure	3 Bar
	Flow Range	0-120L/min
	Units	Litre
	Packing	8UNIT/CTN
	N.W/G.W	14.5/15KGS
	Carton Size	47 x 40 x 33cm
	Applications	Gasoline,Diesel,Kerosene
	Mechanical Flow Meter
	Material	Aluminum
	Connection Size	BSPF/NPT1’ 1.5''
	Accuracy	±1%
	Accumulative Counting	8 digits
	Max Pressure	3 Bar
	Flow Range	10-180L/min
	Units	Litre
	Packing	6UNIT/CTN
	N.W/G.W	14.5/15KGS
	Carton Size	62 x 29 x 38cm
	Applications	Gasoline,Diesel,Kerosene
	SS304 Manual Diesel Fuel Nozzle
	Material	Stainless steel 304
	Outlet O.D.	22mm
	Inlet	3/4" NPT female adaptor
	Flow Rate	0-80litre/minute
	Applications:water,alcohol,gasoline,deisel,kerosene,lubricant,water based chemical acid and alkali solutions
	Packing	20PCS/CTN
	G/N Weight	23/24KGS
	Carton Size	47x29x17cm
	Aluminum Manual Diesel Fuel Nozzle
	Material	Aluminum
	Connection	BSP/NPT Thread
	Inlet Dia	BSPT/NPT 3/4" or 1"
	Outlet Dia	15/16'
	Flow Rate	0-60L/Min
	Nominal Pressure	0.20MPa
	Net Weight	0.68KGS
	Packing	1UNIT/BOX,10UNITS/CTN
	N.W/G.W	11/12KGS
	Carton Size	42 x 34 x 40cm
	Applications	Gasoline,Diesel,Kerosene
	Aluminum Automatic Diesel Fuel Nozzle
	Material	Aluminum
	Connection	BSP/NPT Thread
	Inlet Dia	BSPT/NPT 3/4'
	Outlet Dia	13/16' & 15/16'
	Flow Rate	0-60L/Min or 0-45L/Min
	Color	Red/Blue/Black
	Nominal Pressure	0.18MPa
	Self sealing time	0.1S (Max)
	Net Weight	1.13KGS
	Packing	1UNIT/BOX,10UNITS/CTN
	N.W/G.W	13/14KGS
	Carton Size	42 x 34 x 40cm
	Applications	Gasoline,Diesel,Kerosene
	Metering Fuel Oil Diesel Kerosene Gasoline Nozzle Fuelling Gun
	Material	Aluminum Alloy
	Inlet Dia	BSP/NPT1’’
	Net Weight	1.4kgs
	Flow Rate	15-40L/Min
	Accuracy	±1%
	Max Pressure	≤0.4 Mpa
	Display	LCD Digital
	Metering Range	1~9999
	Packing	1UNIT/BOX,10UNITS/CTN
	N.W/G.W	14/15KGS
	Carton Size	42 x 34 x 40cm
	Applications	Diesel,Kerosene,Gasoline
	Automatic Fuel Nozzle 1" 120 Oil Gun
	Size	450x150x30mm
	Connection	BSP/NPT Thread
	Inlet Dia	BSPT/NPT 1'
	Outlet Dia	16/19'
	Flow Rate	0-120L/Min
	Color	Red, Blue
	Max Pressure	1 MPa
	Net Weight	1.4KGS
	Packing	1UNIT/BOX,10UNITS/CTN
	N.W/G.W	16/17KGS
	Carton Size	51 x 38 x 45cm
	Applications	Gasoline,Diesel,Kerosene
	PP (polypropylene) Manual AdBlue/DEF Nozzle
	Color	White
	Body Material	Polypropylene (PP)
	Spout Material	Stainless steel
	Nozzle Size	19mm
	Flow Rate	0-80litre/minute
	Applications:AdBlue/DEF solutions,water,alcohol,gasoline,diesel,kerosene,
	lubricant, water based chemical acid and alkali solutions
	Packing	50PCS/CTN
	G/N Weight	16/15KGS
	Carton Size	67 x 47 x 35cm
	Stainless Steel Automatic Nozzle for Adblue/DEF Urea
	Size	45x15x1.9cm
	Body Material	Stainless Steel
	Net Weight	2.4kgs
	Inlet	BSPF/NPT3/4"
	Outlet	16mm
	Flow Rate	0-120L/Min
	Applications:AdBlue/DEF solutions,water,alcohol,gasoline,diesel,kerosene,
	lubricant, water based chemical acid and alkali solutions
	Packing	10PCS/CTN
	G/N Weight	23/24KGS
	Carton Size	42 x 34 x 40cm
	Metering Nozzle
	Connection	BSP/NPT Thread
	Inlet Dia	BSPT/NPT1’’
	Outlet Dia
	Flow Rate	0-60L/Min
	Accuracy	±0.5%
	Packing	1UNIT/BOX,10UNITS/CTN
	N.W/G.W	18/19KGS
	Carton Size	42 x 34 x 40cm
	Applications	Gasoline,Diesel,Kerosene
	Metering Nozzle
	Connection	BSP/NPT Thread
	Inlet Dia	BSPT/NPT1’’
	Outlet Dia
	Flow Rate	0-60L/Min
	Accuracy	±0.5%
	Packing	1UNIT/BOX,10UNITS/CTN
	N.W/G.W	18/19KGS
	Carton Size	42 x 34 x 40cm
	Applications	Gasoline,Diesel,Kerosene
	Measuring Fuel Nozzle With Oval Digital Gear Meter
	Material	Aluminum Alloy
	Connection	BSP/NPT Thread
	Inlet Dia	BSPT/NPT1’’
	Size	32x15x3cm
	Flow Rate	10-100L/Min
	Accuracy	±0.5%
	Display	LCD Digital
	Packing	1UNIT/BOX,10UNITS/CTN
	N.W/G.W	14/15KGS
	Carton Size	42 x 34 x 40cm
	Applications	Diesel,Kerosene
	Electric Diesel Fuel Oil Transfer Drum Pump - 60L/Min
	Voltage	AC 110V 220V
	Material	Aluminum Alloy
	Total Length	1.2m
	Load Current	11.5Amps
	Power	430W
	Inlet Dia	44mm
	Outlet Dia	25mm
	Output Flowing	60L/Min
	Suction	5m
	Lift	10m
	Cable	2m
	Application	Diesel,Kerosene,Water
	Packing	1PC/BOX,10PCS/CTN
	Electric Diesel Fuel Oil Transfer Drum Pump - 60L/Min
	Voltage	DC 12V 24V
	Material	Aluminum Alloy
	Total Length	1.2m
	Load Current	11.5Amps
	Power	430W
	Inlet Dia	44mm
	Outlet Dia	25mm
	Output Flowing	60L/Min
	Suction	5m
	Lift	10m
	Cable	2m
	Application	Diesel,Kerosene,Water
	Packing	1PC/BOX,10PCS/CTN
	304 Stainless Steel Electric Chemical Barrel Pump
	Voltage	220V
	Power	0.88KW
	Material	304 Stainless Steel
	Suction Tube	304 Stainless Steel
	Seal Material	Viton
	Vane Material	304 Stainless Steel
	Spout Material	304 Stainless Steel
	Inlet/Out Dia	50mm/25mm
	Tube Length	1000mm
	Output Flowing	110L/Min
	Suction/Lift	5m/7.5mm
	Speed	10000R/Min
	Fits on	15 - 55 Gallon Drums
	Applications	Acid,alkali,diesel,machine oil,water, toluene,Uric acid
	Packing	2PCS/CTN
	316 Stainless Steel Electric Chemical Barrel Pump
	Voltage	220V
	Power	0.8KW
	Material	316 Stainless Steel
	Suction Tube	316 Stainless Steel
	Seal Material	Viton
	Impeller Material	304 Stainless Steel
	Spout Material	304 Stainless Steel
	Inlet/Out Dia	42mm/25mm
	Tube Length	1000mm
	Output Flowing	150L/Min
	Suction/Lift	5m/10mm
	Motor	Changable Speed
	Max Viscosity	1200CPS
	Fits on	15 - 55 Gallon Drums
	Applications	Acid,alkali,diesel,gasoline,machine oil,water,alcohol,toluene,Uric acid
	Packing	2PCS/CTN
	Plastic ( PP ) Air-operated Fluid Transfer Drum Pump
	Model	Pneumatic Fluid Transfer Pump
	Pump Construction	PP
	Tube Material	PP
	Tube Nos	1PC
	Inlet Tube Length	98CM
	Overall Length	130CM
	Inelt Dia	43mm
	Outlet Dia	22mm
	Flow Rate	190ML/Stroke
	Max Flow GPM	8(water)
	Max Pressure	100PSI
	Applicable Drums	Fits 5 to 55 gallon drums
	Applications	AdBlue/DEF, water, alcohol, gasoline, diesel, kerosene, lubricant, water based chemical acid and alkali solutions
	Submersible Diesel Fuel Transfer Pump - 51mm
	Pump Body Material	Stainless Steel; Aluminum; Plastic
	Motor Case,Impeller	Plastic - PP
	Filter,Outlet	Plastic - Nylon
	Stator Material	Magnetic Steel
	Seal Material	NBR
	Switch	6A - 250AC
	Voltage	12V/24V
	Power	60W
	Outlet Dia	19mm
	Cable	3m
	Overall Size	50.8 x 50.8 x 177mm
	Flow	30L/Min
	Lift	3m
	Speed	8500 R/Min
	Applications	Diesel,Kerosene,Water
	Submersible Diesel Fuel Transfer Pump - 38mm
	Pump Body Material	Stainless Steel; Aluminum; Plastic
	Motor Case,Impeller	Plastic - PP
	Filter,Outlet	Plastic - Nylon
	Stator Material	Magnetic Steel
	Seal Material	NBR
	Switch	6A - 250AC
	Voltage	12V/24V
	Power	40W
	Outlet Dia	19mm
	Cable	3m
	Overall Size	38 x 38 x 117mm
	Flow	20L/Min
	Lift	2m
	Speed	8500 R/Min
	Applications	Diesel,Kerosene,Water
	Fuel Oil Diesel Transfer Pump - 45L/Min 175W DC 12V/24V
	Voltage	DC 12V/24V
	Power	175W
	Load Current	10 Amps
	Inlet/Outlet Dia	25mm/25mm
	Power Cable	2m
	Flow	50L/Min
	Suction/Lift	5m/10m
	Net Weight	3.7KGS
	Packing	1SET/BOX,6SET/CTN
	Applications	Diesel,Kerosene
	Diesel Fuel Transfer Pump - 70L/Min 550W DC 12V/24V
	Voltage	DC 12V/24V
	Power	550W
	Inlet/Outlet Dia	25mm/25mm
	Power Cable	2m
	Flow Rate	70L/Min
	Suction	5m
	Lift	10m
	Packing	1SET/BOX,6SET/CTN
	Applications	Diesel,Kerosene
	Diesel Fuel Transfer Pump - 60L/Min 550W AC 220-240V
	Voltage	AC 220-240V
	Power	550W
	Frequency	50HZ
	Load Current	2.5 Amps
	Inlet/Outlet Dia	25mm/25mm
	Power Cable	2m
	Speed	2800R/Min
	Flow	60L/Min
	Suction/Lift	5m/10m
	Packing	1UNIT/BOX,2UNITS/CTN
	Applications	Diesel,Kerosene
	Diesel Fuel Transfer Pump - 80L/Min 750W AC 220-240V
	Voltage	AC 220-240V
	Power	750W
	Frequency	50HZ
	Inlet/Outlet Dia	25mm/25mm
	Power Cable	2m
	Flow	80L/Min
	Suction	5m
	Lift	10m
	Packing	1UNITS/CTN
	Applications	Diesel,Kerosene
	12V Diesel Heating Motor Oil Extractor Pump
	Maximum Current	5A
	Maximum Power	60W
	Sound Pressure Level	70dB(A)
	Power Supply	12V- vehicle battery
	Diesel/Heating Oil Flow Rate	250L/H
	Motor oil (40-60 degrees) Flow Rate	1L/Min
	Oil Extractor Pump Size	13 x 8 x 8.5cm ( L x W x H )
	Input Hose	1.2m/6mm/4mm (Length/Outer Dia/Inner Dia)
	Outlet Hose	1.5m/12mm/10mm (Length/Outer Dia/Inner Dia)
	Packing	10PCS/CTN
	12V/24V 100W Engine Oil Transfer Pump
	Theory	Gear Pump
	Voltage	DC 12V/24V
	Power	100W
	No-Load Current	2.5A
	Load Current	5A
	Worke Cycle	30 Min
	Flow	1-4L/Min
	Inlet Tube	6mm x 800mm Copper Tube
		8mmx1000mm PU Tube
	Outlet Tube	10mmx1000mm PU Tube
	Packing	12PCS/CTN
	220V Engine Oil Transfer Gear Pump Motor 550W 20L/Min
	Voltage	AC 220-240V
	Power	550W
	Inlet/Outlet Dia	25mm/25mm
	Cable Length	1.3M
	Speed	1400R/Min
	Flow	20L/Min
	Suction/Lift	10m/20m
	Packing	1UNIT/BOX,2UNITS/CTN
	Net Weight	8.5KGS
	Applications	#32,46,68 engine oil or Hydraulic oil
	Electric 12V/24V AdBlue Liquid Transfer Membrane Pump
	Power	330W
	Speed	3000R/Min
	Flow	40L/Min
	Pump Type	Diaphragm
	Housing	Polyproplyene
	Diaphragm	TPU
	Check Valve	Viton
	Check Valve Spring	316 Stainless Steel
	Motor Shaft	316 Stainless Steel
	Inlet/Outlet Dia	25mm
	Maximum Working Pressure	40PSI ( 3 Bar )
	Switch Setting	Yes
	Self Priming	Up to 5M vertically
	Liquid Temperature	No more than 60°C
	Applications	AdBlue;Urea;Water
	Electric AC Adblue Transfer Diaphragm Pump 220V 40L/Min
	Power	330W
	Speed	2850R/Min
	Flow	40L/Min
	Pump Type	Diaphragm
	Housing	Polyproplyene
	Diaphragm	TPU
	Check Valve	Viton
	Check Valve Spring	316 Stainless Steel
	Motor Shaft	316 Stainless Steel
	Inlet/Outlet Dia	25mm
	Maximum Working Pressure	40PSI ( 3 Bar )
	Switch Setting	Yes
	Self Priming	Up to 5M vertically
	Liquid Temperature	No more than 60°C
	Applications	Adblue;Urea;Water
