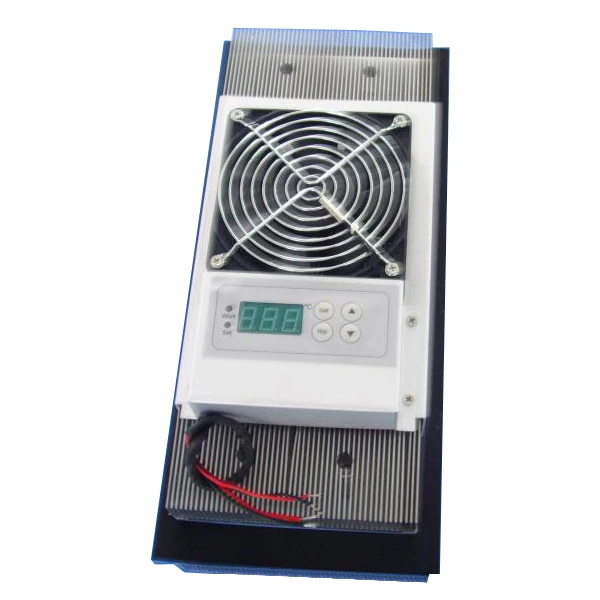

200W peltier thermoelectric cooler industrial air conditioner for outdoor cabinet AC TEC FF200

Product Overview

Description

200W peltier thermoelectric cooler industrial air conditioner for outdoor cabinet AC-TEC-FF200



Aplication



TEC air conditioner is automatic temperature control equipment using peltier refrigeration.

The internal intelligent control system, automatic control peltier device to produce cool and heat dissipation fans operate.



There is LED display screen and key-press board, friendly operation interface.

The control system offering RS485 connector, can connect with the remote computer, achieve the remote monitoring function.



This product widely used in medium and small machine room, UPS room,

 operators outdoor base station equipment room, bank ATM teller machine change money room etc.



Working principle



Thermoelectric cooler is cooling equipment consists of semi-conductor.The inner sealed circuit is composed of the two different metal traverses X and Y.



After it is powered,heat on cool end is transferred to hot end,which leads to the temperature drop of cool end and temperature rise of hot end.And switch between hot end and cool end can be completed by changing electrode.



Product Feature

1. Using semiconductor electronic cooling, small volume, light weight.

2. No compressor, no Freon, no pollution, no vibration, no leak.

3. Using no pollution material ,compliance RoHS.

4. Free mounting,applicable to a variety of places.

5. Working ambient temperature: -10℃~+70℃

6. Welded fin-heat sink,high efficiency heat.

7. High-dense foam insulation between heat sink and cold heat sink.

8. Hot-side heat sink overheat protection temperature setting +75℃±5℃



Technical data



MODEL	Dimension mm	NOTES*	COOLING POWER W	VOLTAGE VDC	CURRENT AMPS	OPERATING TEMP ℃	WEIGHT kg
FF-200W-24C	400*180*197.3	Cool only	195	24	13.2	-10~+70	7.1
FF-200W-24HC	400*180*197.3	Heat/cool	195	24	13.2	-10~+70	7.1
FF-200W-48C	400*180*197.3	Cool only	195	48	6.7	-10~+70	7.1
FF-200W-48HC	400*180*197.3	Heat/cool	195	48	6.7	-10~+70	7.1
Note*: Cool only, Using a overheat protector on the bittom of heat sink.       Heat/Cool, Using two overheat protectors both cooled sink and heat sink

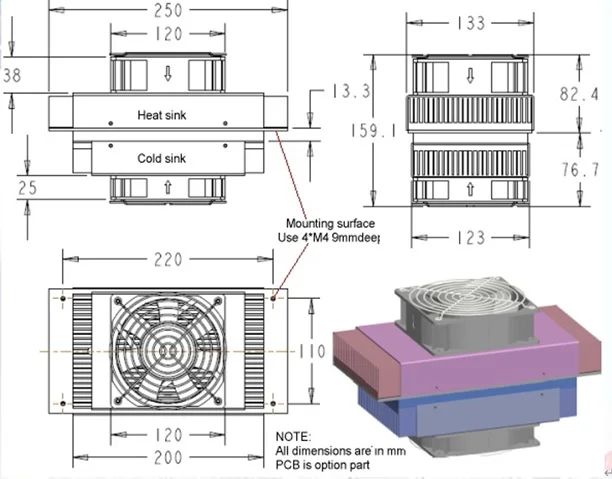

DIMENSIONS

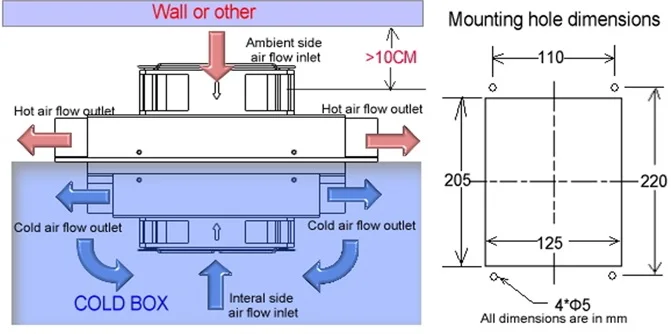

ABOUT MOUNTING

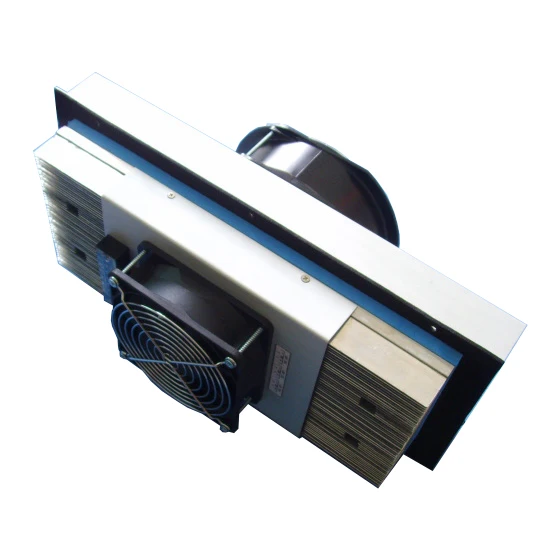

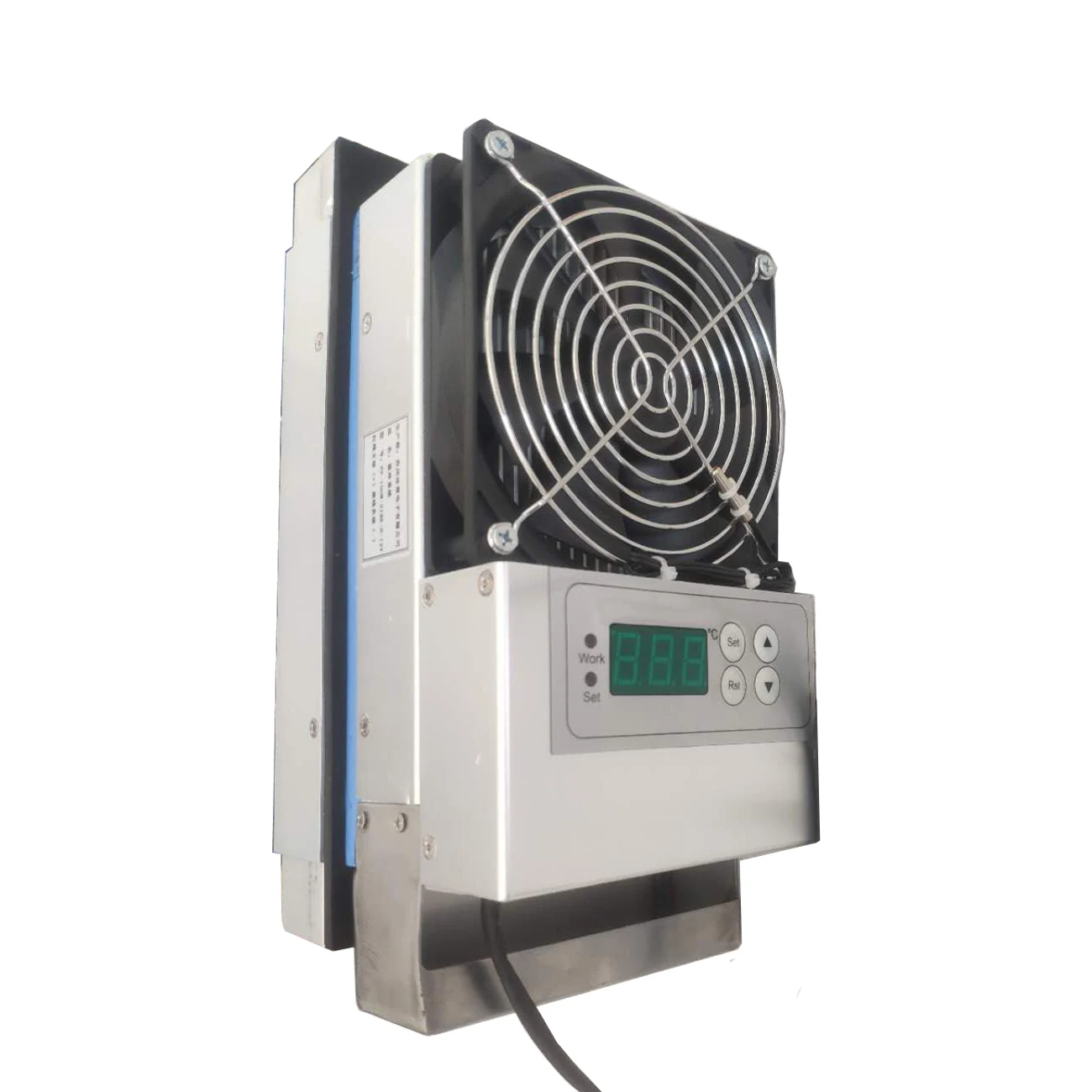

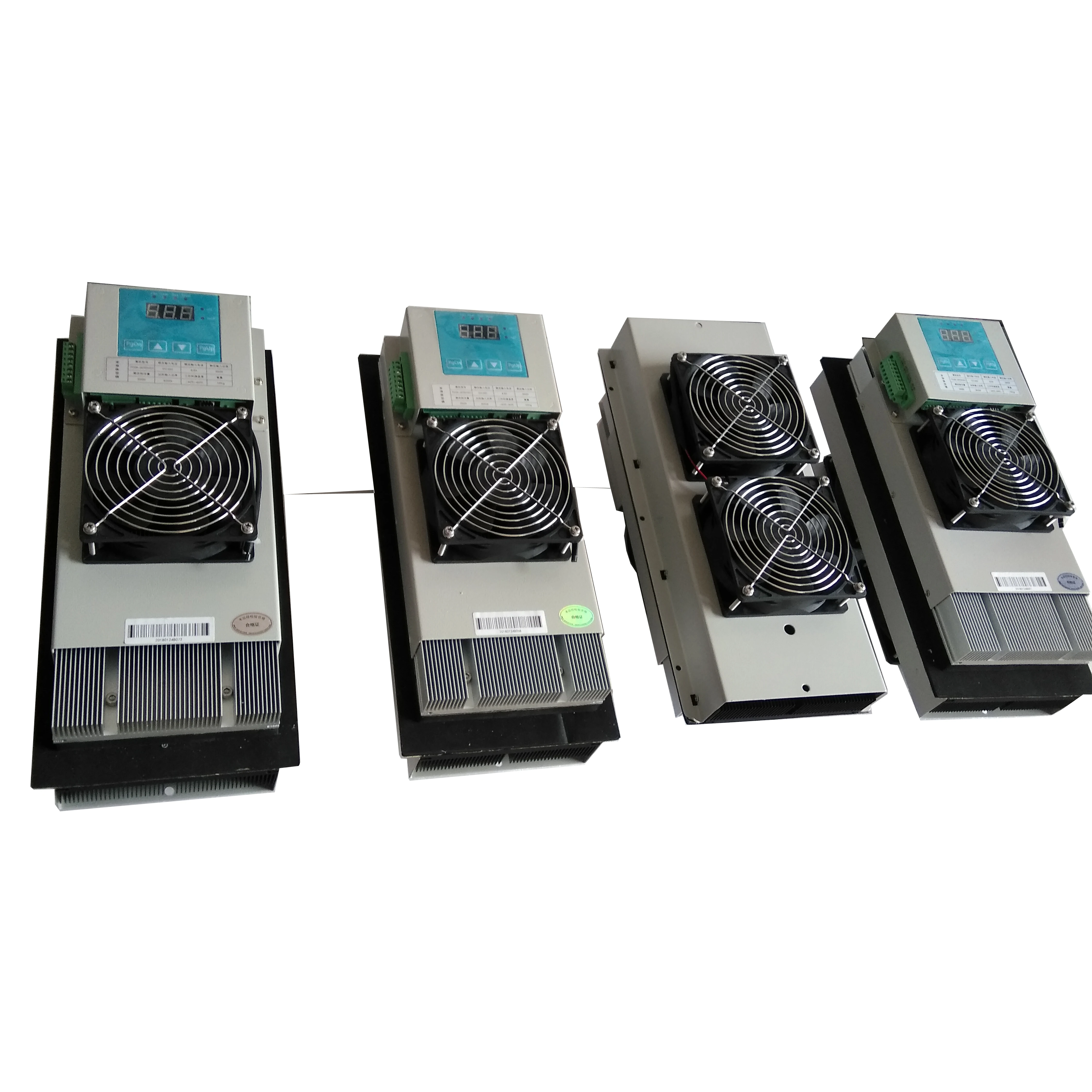

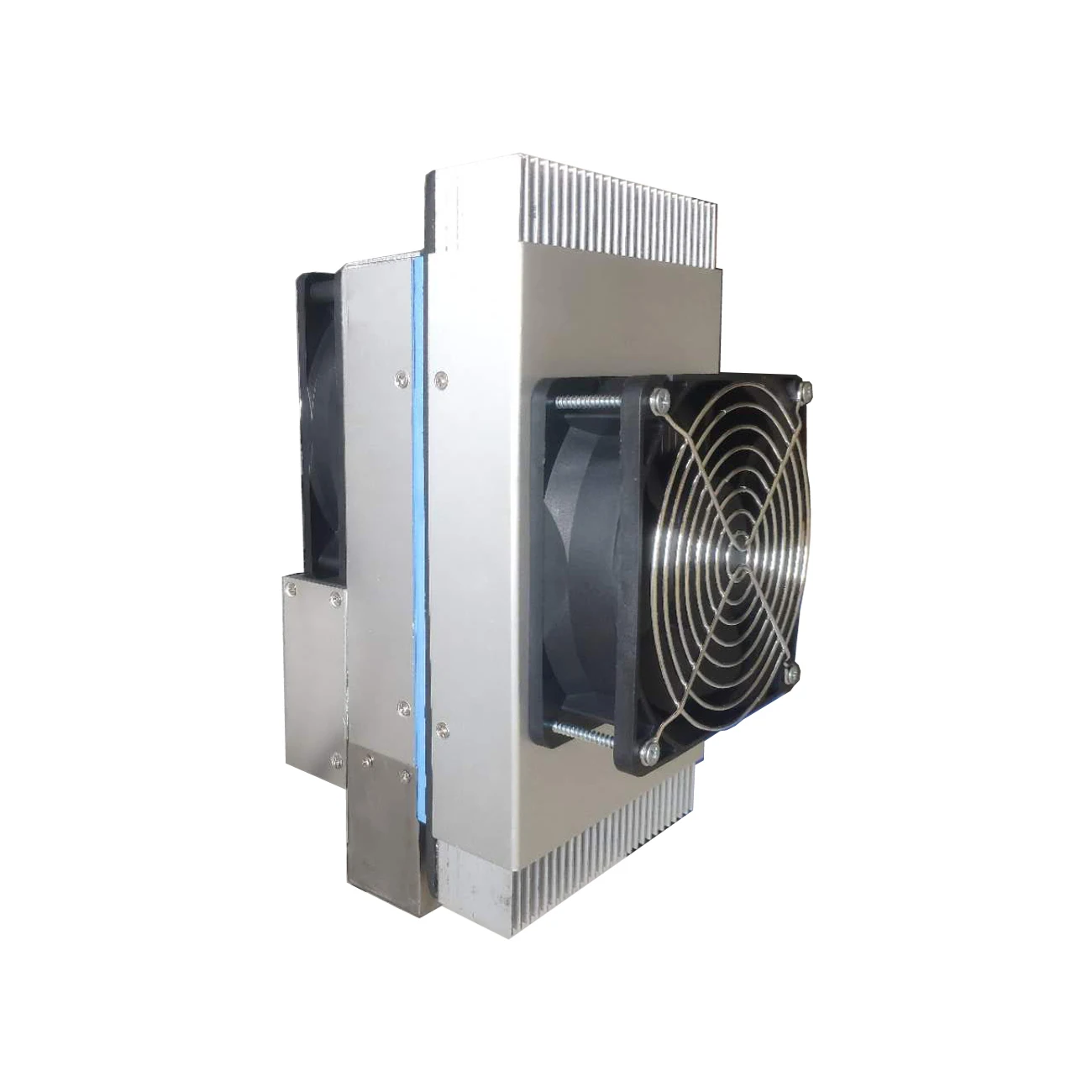

Product pictures





CIFITICATION



General information

Application of Outdoor Telecommunication Cabinet

Outdoor telecommunication cabinet is widely used in the industries of power and energy,

communication, broadcasting, traffic, climate and advertising and so on.

Waterproof outdoor telecommunication cabinet is composed of outer metal enclosure or

rack and inner base station equipment or power equipment or temperature control

equipment or transmission equipment or other assorted equipment.
